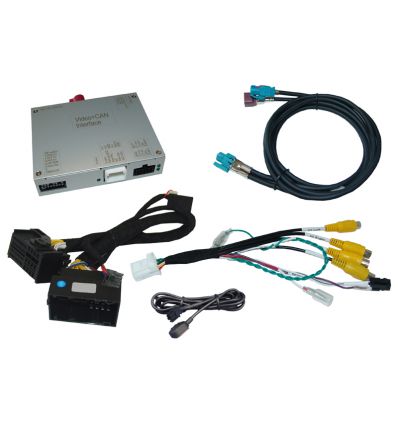

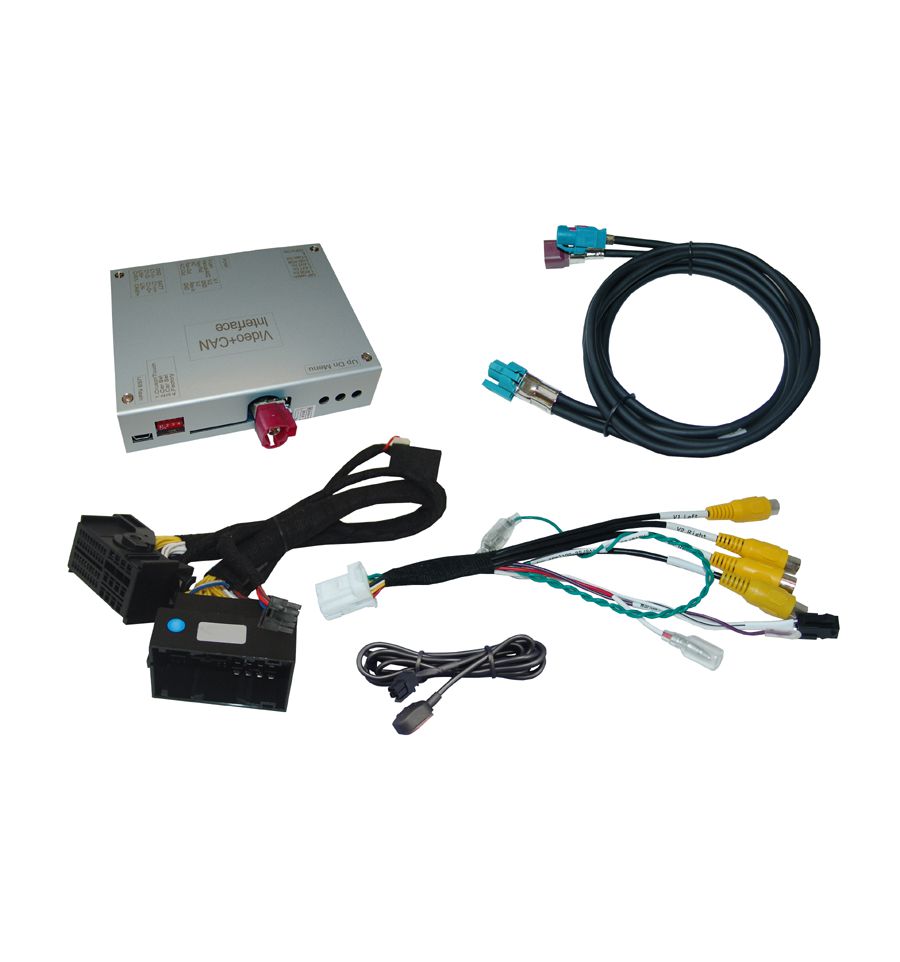

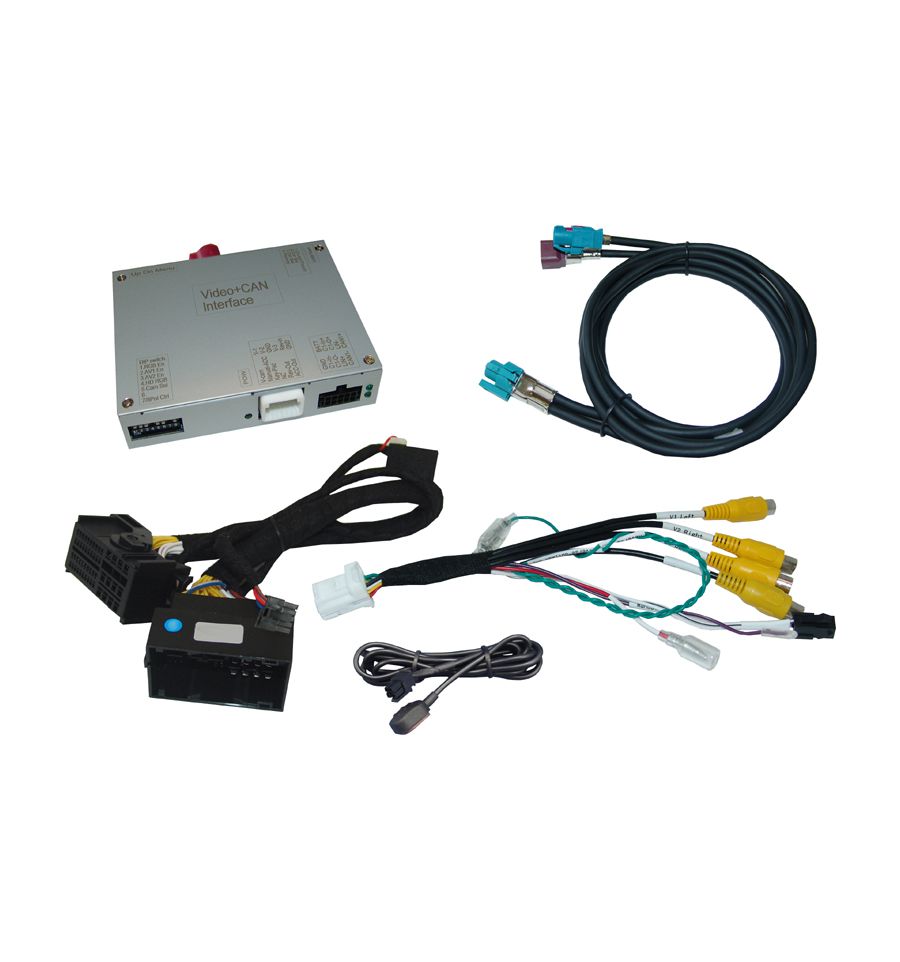

Video interface for Chrysler Uconnect 8.4" 4C NAV UAV with video inserter for rear-view camera, front camera with auto switching and 2 video-sources.
Video interface for Chrysler Uconnect 8.4" 4C NAV UAV with video inserter for rear-view camera, front camera with auto switching and 2 video-sources.
The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs PAL and NTSC compatible
Compatibility:
| Model | System |

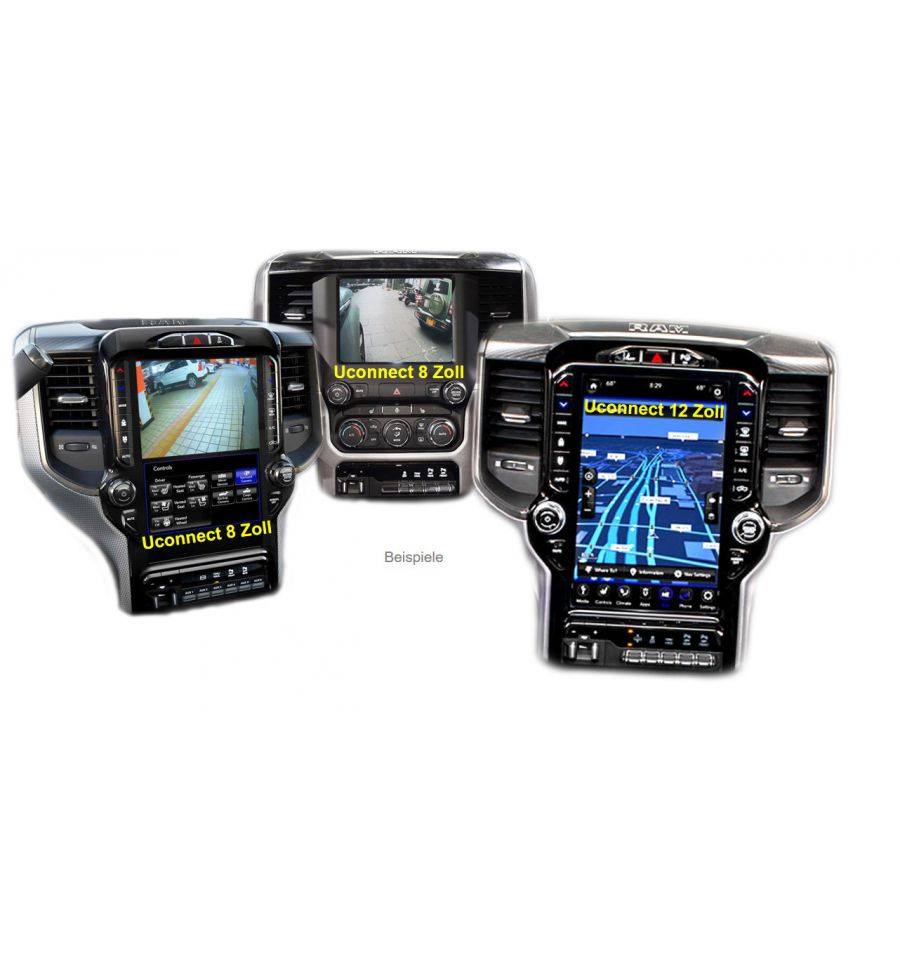

| Pacifica from 2018 | Uconnect 4C NAV UAV Infotainment with 8,4inch monitor and separate head-unit |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| PDC | If the video interface does not receive the required information from the vehicle CAN-bus, the optical PDC display will not be supported. |
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | 3mA |
| Power | 0.7A@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 117 x 26 x 103mm (W x H x D) |
Connections:
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
| Chrysler | Pacifica |
