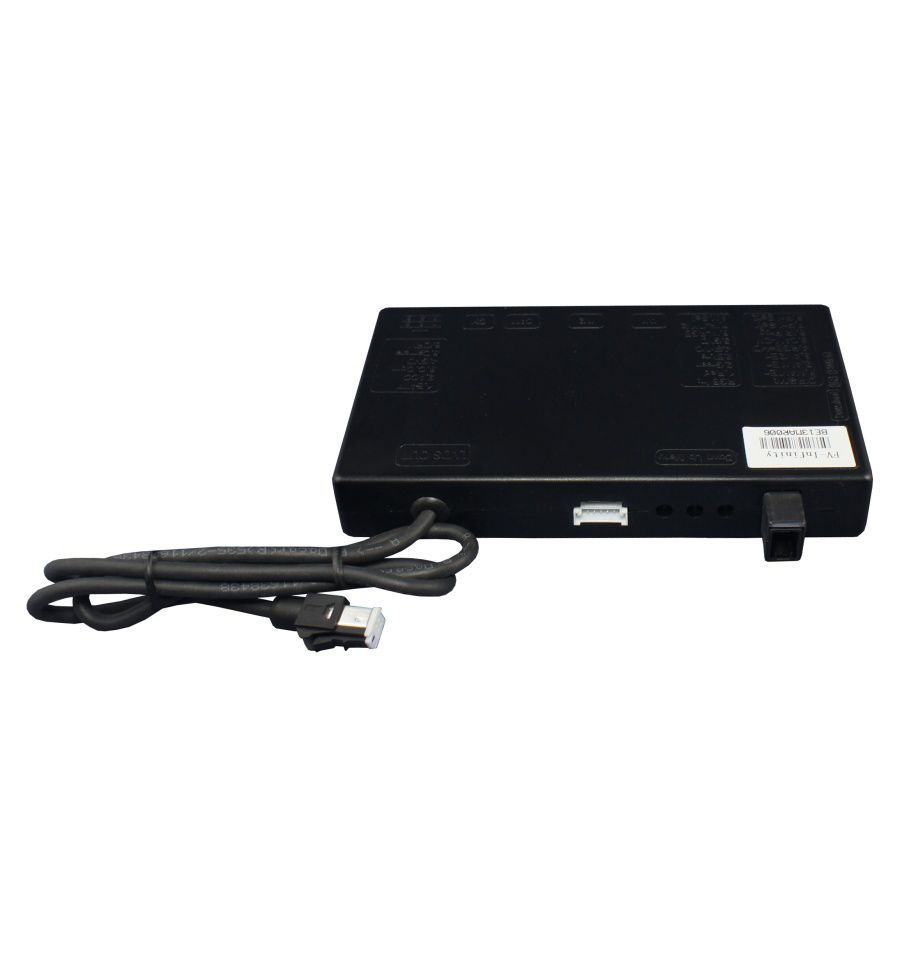

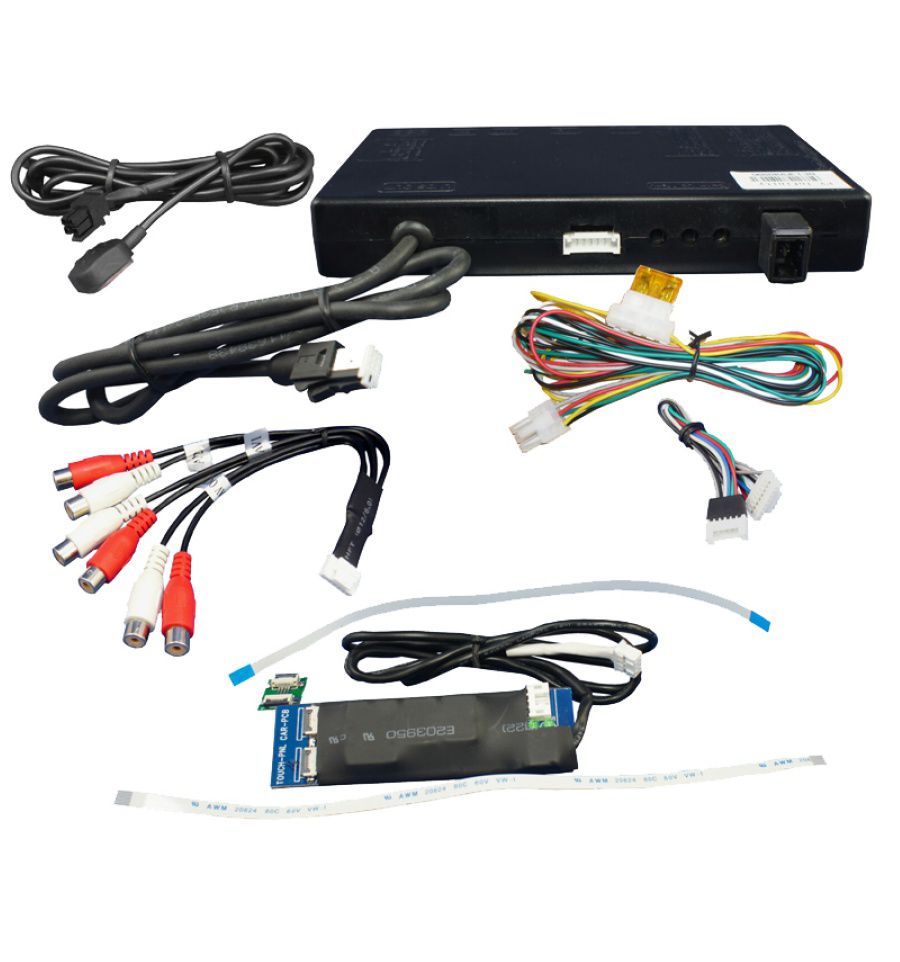

Video interface for Infiniti with GVIF-technology
CI-VL2-INF-INF
New
Video interface for Infiniti with GVIF-technology
Video interface for Infiniti with GVIF-technology
This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.
The multimedia interface has 2 video inputs, a rear camera input and a RGBS connection to add satellite navigation if you do not have a factory fitted option.The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems)
Product features:
- Video-insertion for factory-infotainment monitors
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Built-in audio-switch (no audio-insertion)
- Rear-view camera CVBS video-input
- Automatic switching to rear-view camera input on engagement of reverse gear
- RGB-input for after-market navigation
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs PAL/NTSC compatible
Compatibility:
| Model | System |
| Vehicles with GVIF-technology | where monitor and head-unit are separate |
Limitations:
- The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
- Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <5mA |
| Power | 0.2A@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 182 x 24 x 100 mm (B x H x T) |
| Dimensions CAN-box | 73 x 22 x 30 mm (W x H x D) |

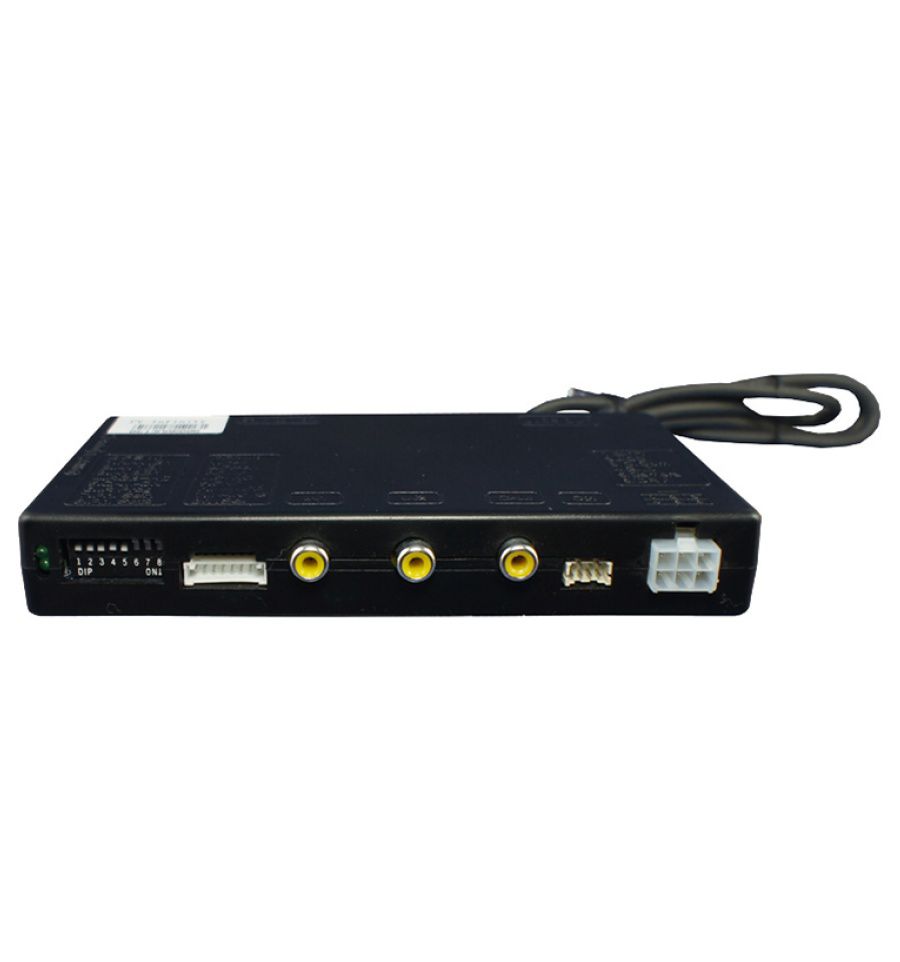

Connections:
- Video-insertion: Special male GVIF connector
- Power and CAN-bus: Plug & play
- Video-input (2x): RCA connector
- Rear-view camera-input: RCA connector
- Audio-switch: 2-channel RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Video integration |
