Video interface for Infiniti Q50 with display InTouch 2

Video interface for Infiniti Q50 with display InTouch 2

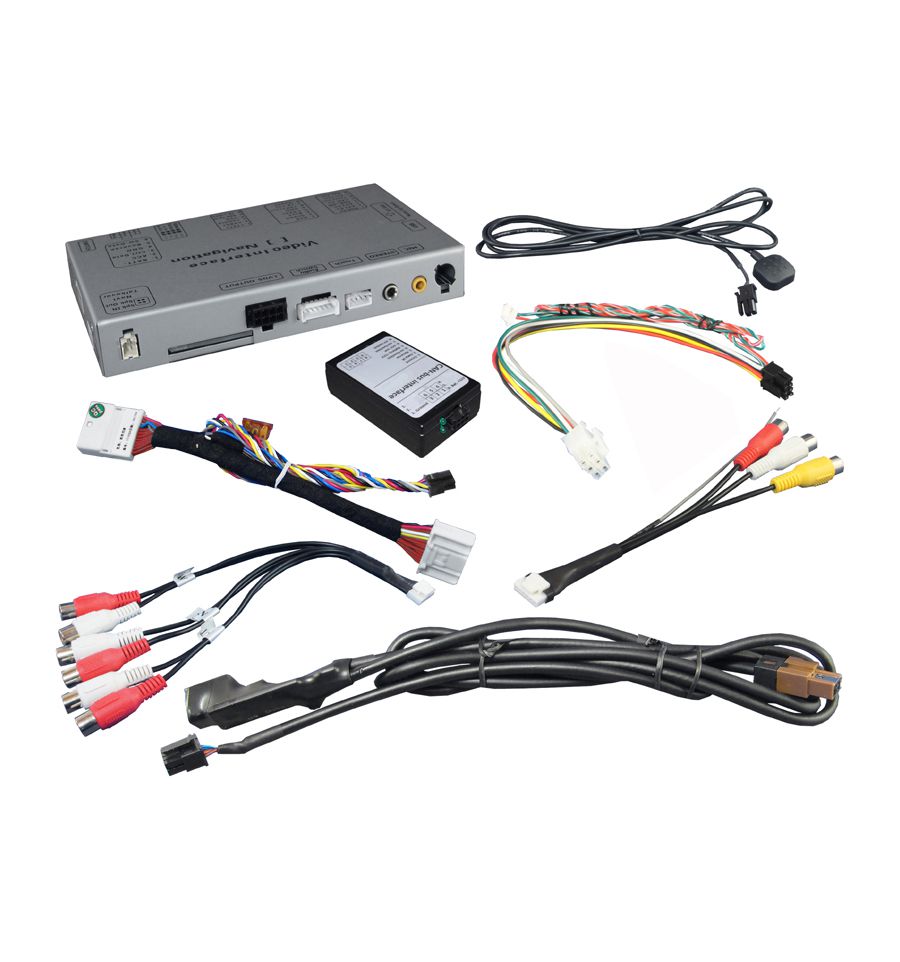

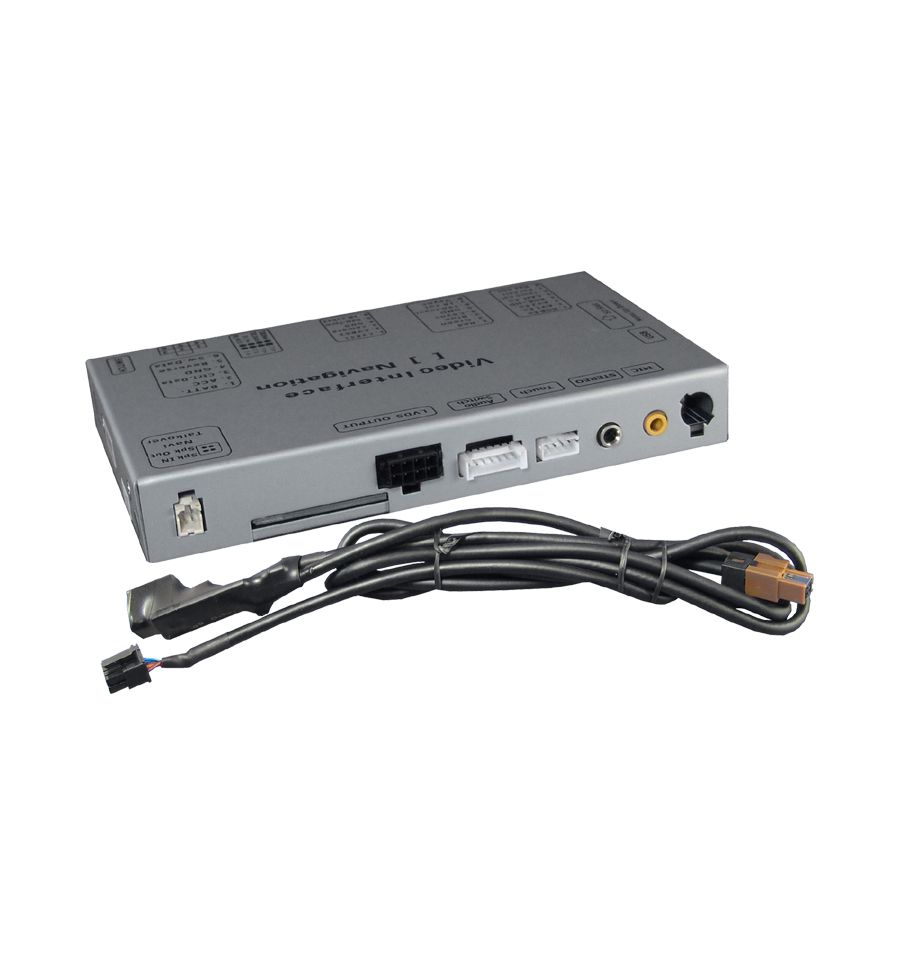

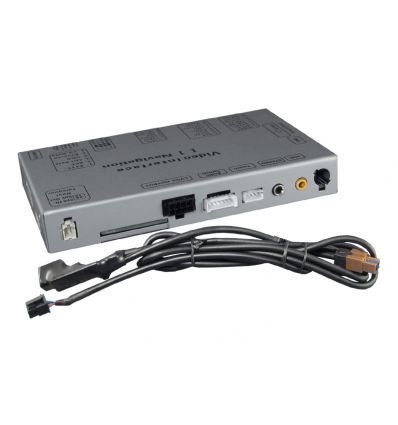

v.LiNK video inserter compatible with Infiniti Q50 from 2013. For connection of 2 different video sources (upgraded devices, for example DVD player, DVB-T tuner) and 1 rear-view camera.

Product features:

• Video-inserter for factory-infotainment monitors
• 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
• Built-in audio-switch (no audio-insertion)
• Rear-view camera CVBS video-input
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Video-in-motion (ONLY for connected video-sources)
• AV-inputs PAL/NTSC compatible

 Compatibility:

 Infiniti Q50 navigation system InTouch 2 monitor navigation (insertion in lower)

Limitations:

• The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

Connections:

• Video-insertion: special LVDS connector
• Power and CAN-bus: Plug & play
• Video-input (2x): RCA connector
• Rear-view camera-input: RCA connector
• Audio-switch: 2-channel RCA connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
