Audi Rear-view camera exchange rear door opener handle with guide-lines for A3, A4/S4, RS4, A5/S5, A6, A7, Q3 e Q5

Reference CI-VSC-E-AU13-AU

Condition: New

Audi Rear-view camera exchange rear door opener handle with guide-lines for A3, A4/S4, RS4, A5/S5, A6, A7, Q3 e Q5

Car electronic experts since 1990

Valutazione: Scrivi per primo una recensione!

More info
Data sheet

Vehicle-specific exchange rear door opener handle with integrated camera and switchable guide-lines. Easy assembling by replacing the factory rear door opener handle. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter. Additional wire for signal transfer, e.g. power supply or rear-view camera signal.

Compatible with:

A3 (8V, from 2008)
A4/S4 (8K, from 2008)
RS4 from 2009
A5/S5 (8T, from 2008)
A6 (4G, from 2011)
A7 (4G, from 2011)
Q3 (8U, from 2012)
Q5 (8R, from 2009)

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

Features:

Sensor type 1/3inch CMOS PC3089
Picture format NTSC
Resolution 720 x 480 Pixel
Min illumination 0.4 Lux
Angle horizontal 130°, vertical 90°, diagonal 170°
Mirrored image (fixed)
Parking guide lines, optional switchable
System cable with throughput, e.g. for reverse signal
Protection class IP68
Colour of rear door opener handle and camera black

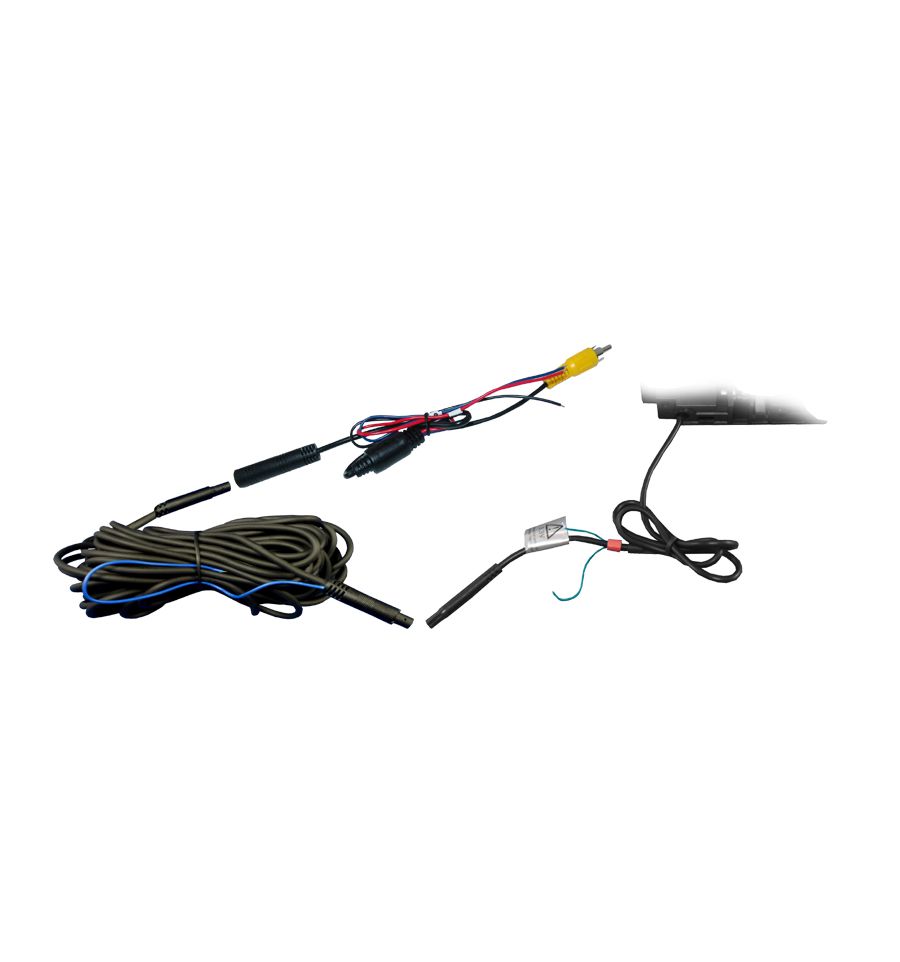

Total cable length 10m
Video connector RCA male connector
System connector camera 4pin BM
Diameter camera connector 5mm

Dimensions:

Overall L/W/D 111 x 49 x 58 mm
Build in hole L/W 101x42 mm

Operating voltage	+12V DC (6V~16V)
Current consumption	40mA
Power consumption	0.5W
Weight incl. cable approx	290g
Operating temperature range	-20°C to +70°C

Audi	A3 8V, A4 / S4, A4 8K, A5 / S5, A6 4G, A7, Q3, Q5 8R
Category	Cameras RVC
