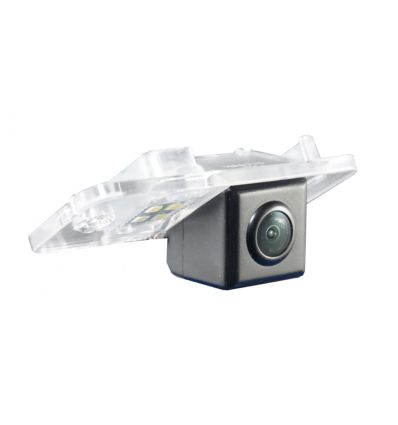

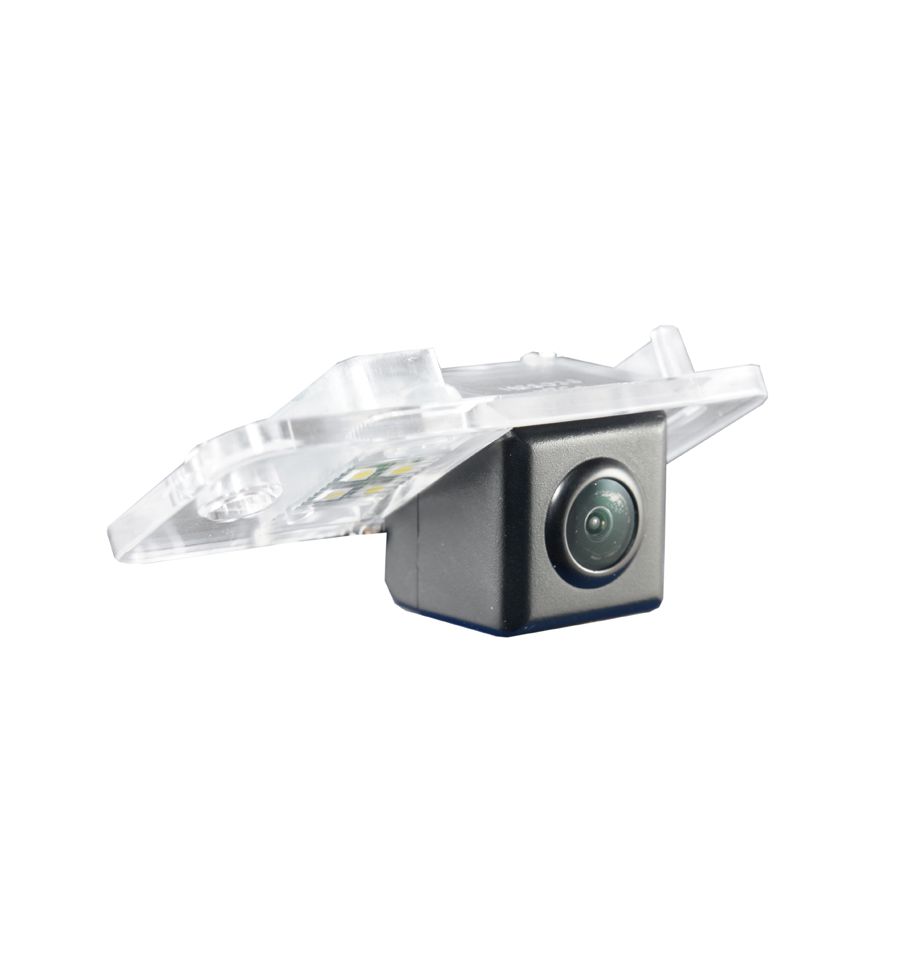

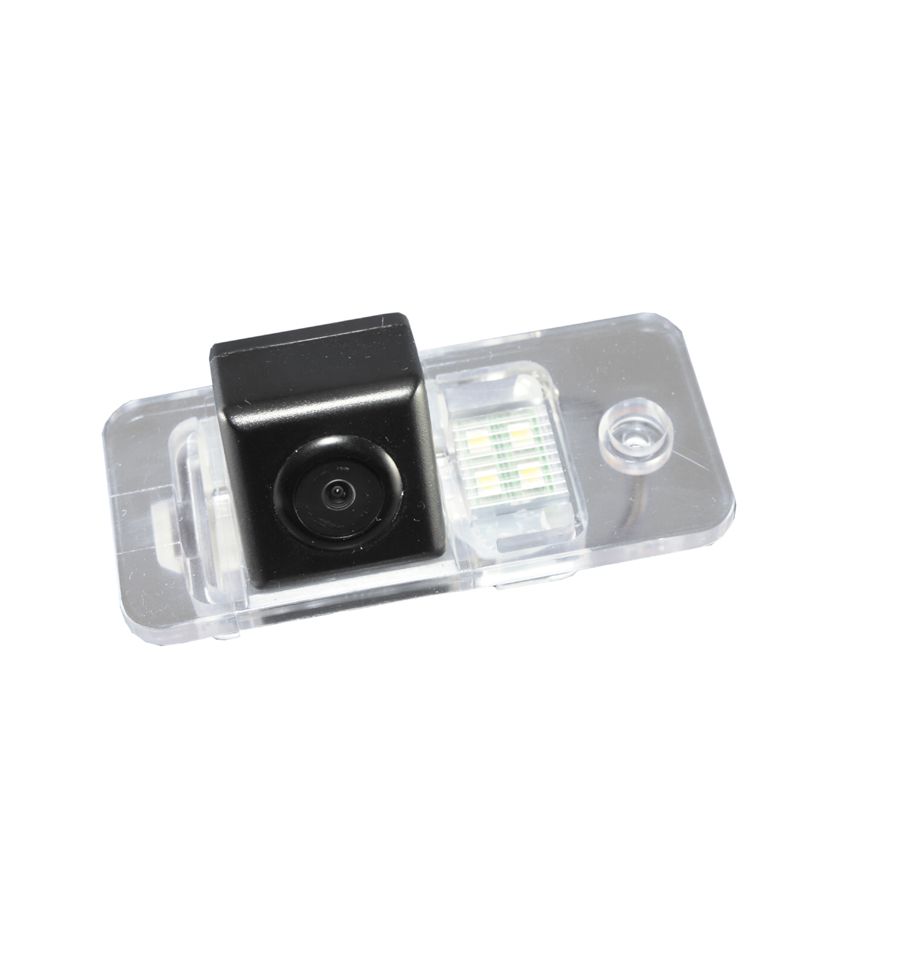

Audi CI-VS3-AU21 Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED

Reference CI-VS3-AU21

Condition: New

Audi Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED for A3,A4,A6,A8,Q7,RS4,S4,S6,S8

Car electronic experts since 1990

Valutazione: Scrivi per primo una recensione!

More info
Data sheet

Mini-camera with vehicle specific license plate light with warm-white LED.
Simple installation due to replacement of the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid. An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.

Compatible with:

A3 (8P) 2005-2012
A4 (B8) 2002-2009
A6 (C6) 2005-2008
A8 2003-2010
Q7 2007-2009
RS4 2006-2009
S4 2003-2009
S6 2005-2008
S8 2003-2010
Vehicles with part number 8E0 807 430 BC

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

Properties:

Mini-camera with vehicle-specific number-plate illumination-glass
Warm-white LED
Water resistance IP69K
Sensor-type 1/3inch CMOS NTSC colour
Resolution 800 TV lines
Sensitivity 0.01Lux F1.2
Angle horizontal 120°, vertical 100°, diagonal 170°
Mirrored image (fixed)
Guide lines, optionally disengageable
Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
Extension cable 4pin 3V, 8m with wire for signal throughput
System-connector system cable 4pin 3V with RCA connector and fuse

Dimensions:

Overall L/W/D 70.5 x 32 x 33 mm
Cover glass L/W/D 70.5 x 32 x 14.5 mm
Build-in hole L/W 46.5 x 26.5 mm
Hole spacing locking approx. 54 mm

BATT/ACCrange	10V - 15V
Power	0.05A 12V
Power consumption	0.6W
Weight incl. cable	196g
Operating temperature	-30°C to +70°C

Audi	A3 8P, A4 / S4, A4 8K, A6 4G, A8 4E, A8 4H, Q7 4L
