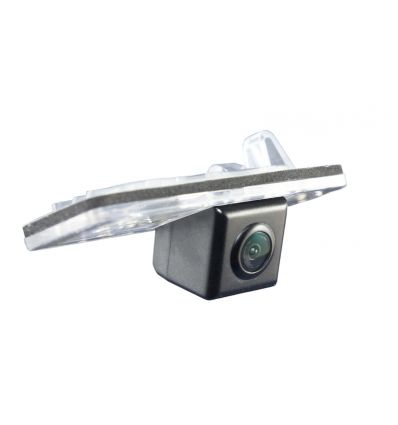

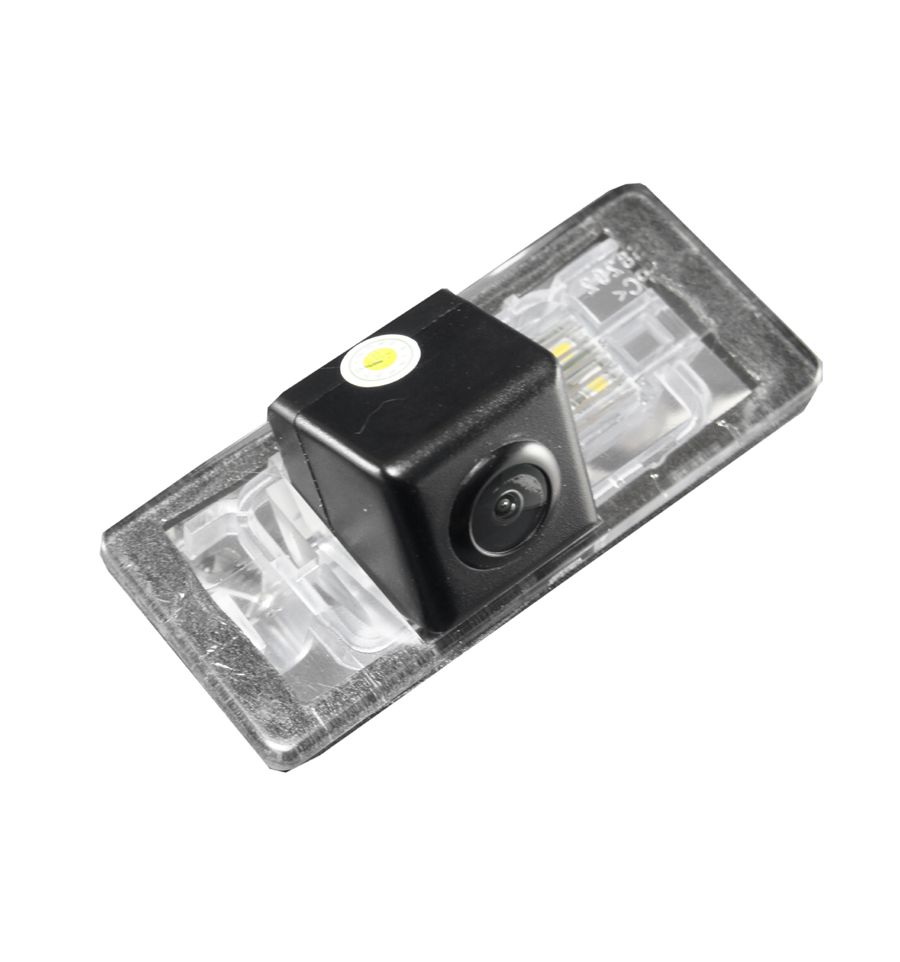

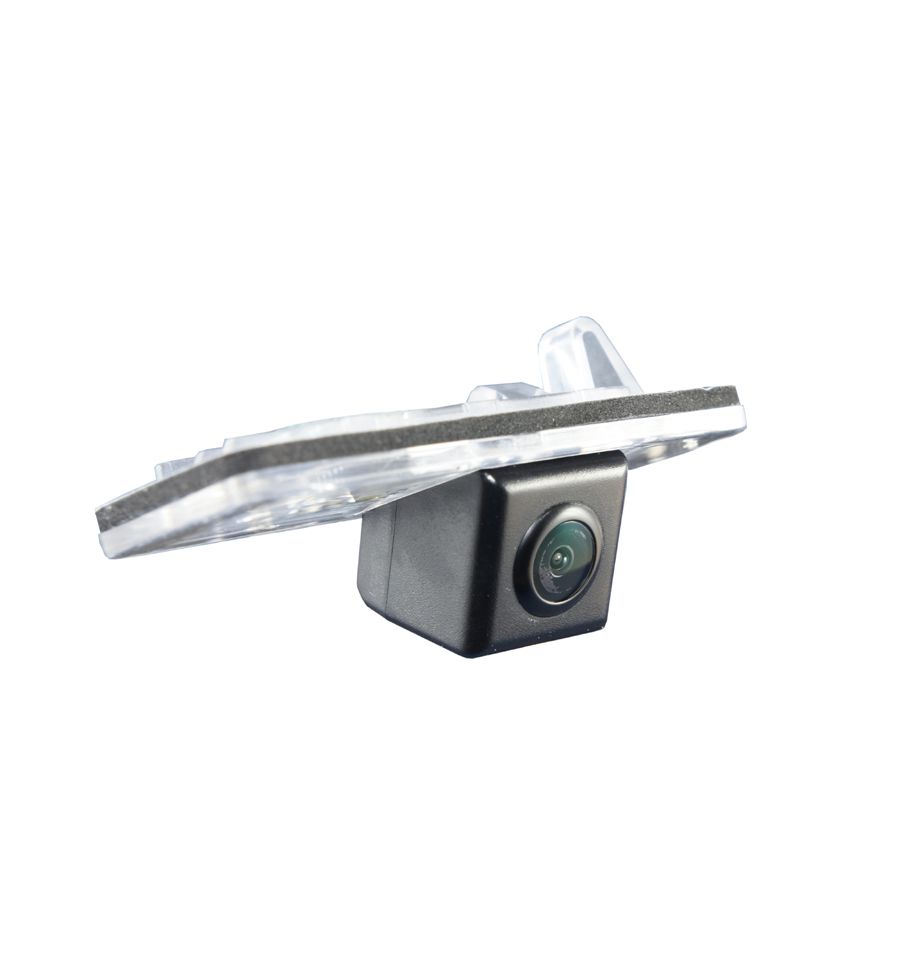

AUDI CI-VS3-AU22W Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED

Expand

AUDI CI-VS3-AU22W-AU Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED

Reference CI-VS3-AU22W-AU

Condition: New

AUDI Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED for A4,A5,Q3,Q5

Car electronic experts since 1990

Valutazione: Scrivi per primo una recensione!

More info
Data sheet

Mini-camera with vehicle specific license plate light with warm-white LED.
Simple installation due to replacement with the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.

Compatible with:

Audi A4
Audi A5
Audi Q3
Audi Q5
Audi Vehicle with part number 8T0 943 021C

NOTE
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

Properties:

Mini-camera with vehicle-specific number-plate illumination-glass
Water resistance IP69K
Sensor-type 1/3inch CMOS NTSC colour
Resolution 800 TV lines
Sensitivity 0.01Lux F1.2
Angle horizontal 120°, vertical 100°, diagonal 170°
Mirrored image (fixed)
Guide lines, optionally disengageable
Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
Extension cable 4pin 3V, 8m with wire for signal throughput
System-connector system cable 4pin 3V with RCA connector and fuse

Dimensions:

Overall L/W/D 76 x 32 x 40 mm
Cover glass L/W/D 76 x 32 x 19 mm
Build-in hole L/D 51 x 25 mm
Hole spacing 60 mm

BATT/ACCrange	6V - 26V
Power	0.05A 12V
Power consumption	0.6W
Weight incl. cable	197g
Operating temperature	-30°C to +70°C

Audi	A4 / S4, Q5 8R, Q5, Q3 F3, Q3, A5 / S5, A4 B9, A4 8K, A4 8E, A4 8D
Category	Cameras RVC
