Toyota Small (2x6) USB, AUX, Wireless Bluetooth Streaming Handsfree Interface

The new WEFA USB / AUX / Bluetooth interface allows you to stream music from any smartphone, mobile device or tablet from your car's original audio system.
It is also equipped with Bluetooth 4.0 Handsfree functionality with external microphone to allow you to converse hands-free.


One of the main advantages of the new USB / AUX / Bluetooth WEFA interface is represented by the support of A2DP, AVRCP, HFP, SPP, GATT, ATT technologies that allow you to control the playback of the music files stored on the associated Bluetooth device through the car radio commands. or those behind the wheel.
It is compatible with all Android, Windows Mobile, Apple iOS and Blackberry smartphones and is ready for use as soon as you enter the vehicle, there is no need to connect any cables to the device (except for charging if necessary).

Main features:


• Connect any Android, Apple, Windows and Blackberry Smartphone in Bluetooth 4.0 mode and listen to music in wireless streaming from the original audio system of your car.
• Control playback using the next / previous track, fast forward / reverse, volume +/- of the original car stereo or those on the steering wheel.
• Connects directly to the original car stereo CD Changer port, high quality sound without interference.
• Plug and play - maintains the original appearance of the dashboard, thanks to its small size it can be easily hidden.
• Incorporates Bluetooth hands-free functionality (pauses music upon incoming / receiving a call and automatically resumes playback when finished)
• Answering / Rejecting calls using original keys (Fast forward FF).
• Support A2DP, AVRCP, HFP, SPP, GATT, ATT technologies Bluetooth audio streaming and playback control.

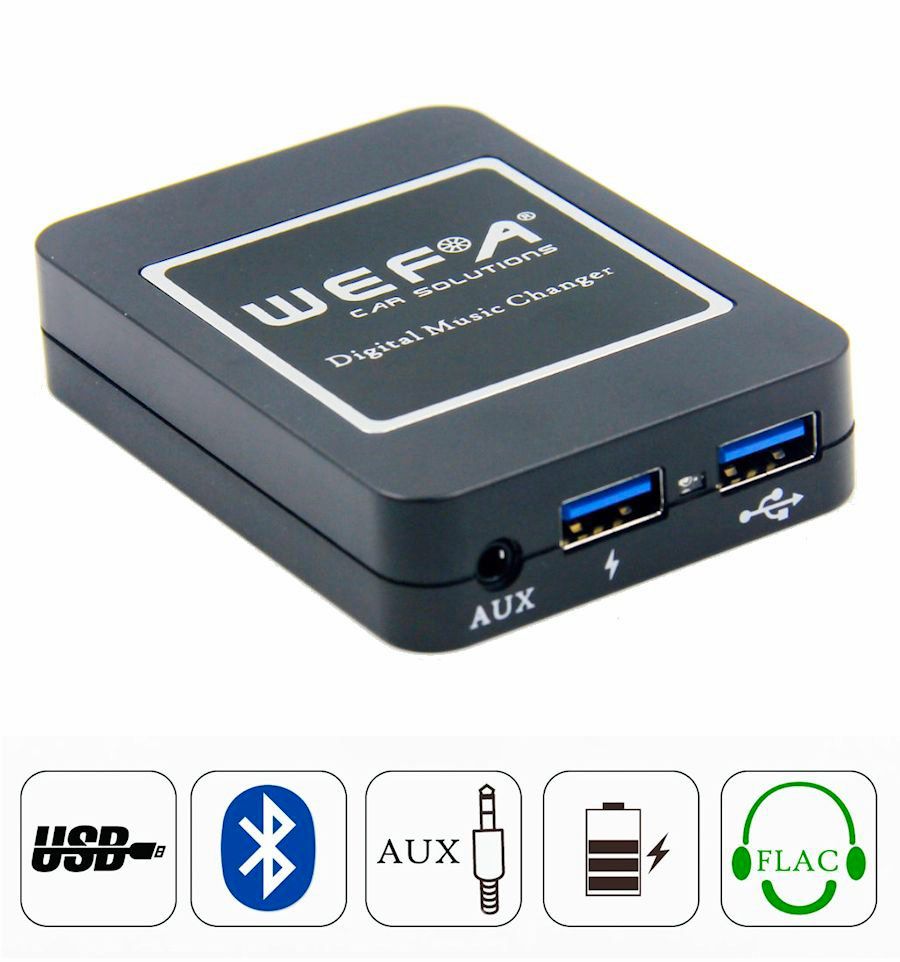

• USB port 1:playback of audio files from USB pendrive controlling their execution from the original keys of the car radio and / or from the steering wheel controls (if supported) supports MP3, WMA, FLAC (8-16-24bit), ACC files , MP4, M4A, WAV, AIF, AIFC.
• USB port 2: provides a power supply for charging your device - 5V-2A (has no other functions, charging cable not supplied).
• Auto pause function when switching to CD / TAPE / FM, etc.
• AUX input with 3.5mm jack for connecting devices without Bluetooth function.
• Supports many apps such as Spotify, Google Play etc. including the control of some features.
• Separate microphone for handsfree included in the kit.
• Interface size: 4.5 x 7.5 x 2.0cm.

Installation:

The interface connects to the CD changer port located on the back of your car stereo. On some cars, this can be reached from the passenger side whilst on others you will need to remove the radio. Instructions how to remove your radio to access the CD changer port can be found through many online resources, car manuals or by a local installer.

Compatibility:


Model	Radio
4-Runner (2003 - 2011)	SAll factory fitted Head Units with Small CD changer preparation  6+6 pin :     10309 10317 10812 11816 11817 11828 16852 12821 13803 13829 16842 16860 17006 17424 17828 50320 50323 50339 50801 51825 53810 53812 53815 53816 53818 53903 56827 58814 58816 58826 58827 58828 B9004 B9005 B9017 B86180-B4020/B4021 B86210-47280 A51806 A51814 A51829 A56828 A56829 A56831 A56832 A56833 A56835 AP1506 AP6829 AP6860 ND3N-W52 NDCN-W55 NDCT-W53 ND3T-W53 ND3T-W54 ND3T-W55 ND3T-W56 ND3T-W57 NH3T-W56 CP-W55 P2868 P3733 P3743 P3745 P3809 P 3914 P 3916 P 7809 A 56828   W13801/13801 W 13802 W 13804 W 13805 W 13811 W 13812  W 53824   W 53827   W 53828  W 53900 W 53901 W 53903 W 53904 W 53905  W 58810  W 58811  W 58814  W 58816  W 58824  W 58830  W 58831    W 58832   B9001 Navi B9002 Navi B9004 Navi B9005 Navi B9010 Navi B9012 Navi B9028 Navi
Auris (2006 - 2012)
Avalon (2005 - 2011)
Avensis (2003 - 2011)
Camry (2004 - 2011)
Celica (2003 - 2005)
Corolla (2004 - 2012)
Echo / Platz / Vios (from 2003)
FJ Cruiser (2007 - 2010)
Hilux (from 2003)
Hiace (from 2003)
Highlander (2004 - 2011)
Land Cruiser / Prado (2002 - 2012)
Matrix (2005 - 2011)
Mark x (2005 - 2011)
MR2 (2004 - 2010)
Picnic (from 2003)
Prius (2003 - 2009)
Reiz (from 2003)
RAV 4 (2003 - 2012)
Sequoia (2005 - 2011)
Sienna (2003 - 2010)
Solara (2004 - 2008)
Starlet/ Vitz (2005 - 2010)
Tacoma (2005 - 2011)
Tundra (2004 - 2011)
Vios (from 2003)
Yaris (2005 - 2011)
Venza (2009 - 2011)

The interface is compatible with any Bluetooth enabled device including Andriod, Blackberry, Windows, iOS mobile phones and tablets.



Technical specifications:

• Power supply voltage: 10.8V ~ 14.6V DC
• Power consumption during operation: 200mA
• Standby consumption: 3 mA
• Operating temperature - 35 ℃ ~ + 85 ℃
• DAC audio converter: 20 bit
• Total harmonic distortion: 0.05%
• Signal to Noise Ratio: 90dB
• Frequency Response: 20Hz-20KHz

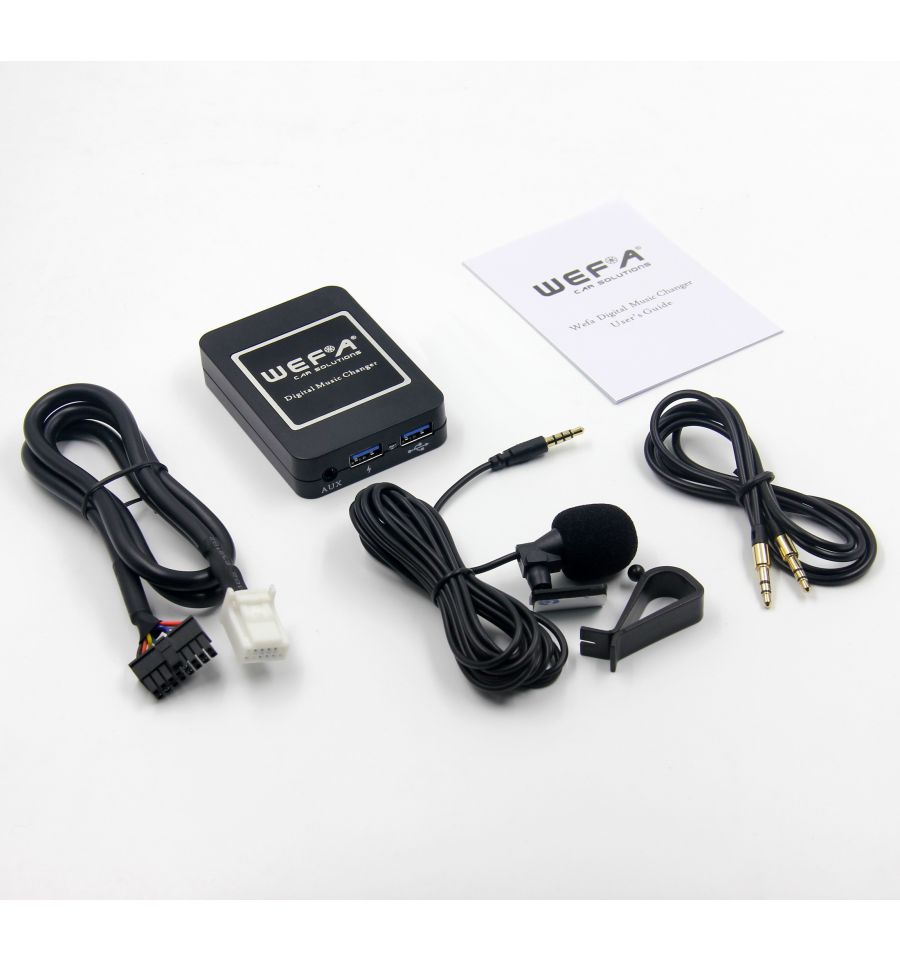

Package includes:

• WEFA USB / AUX / Bluetooth interface

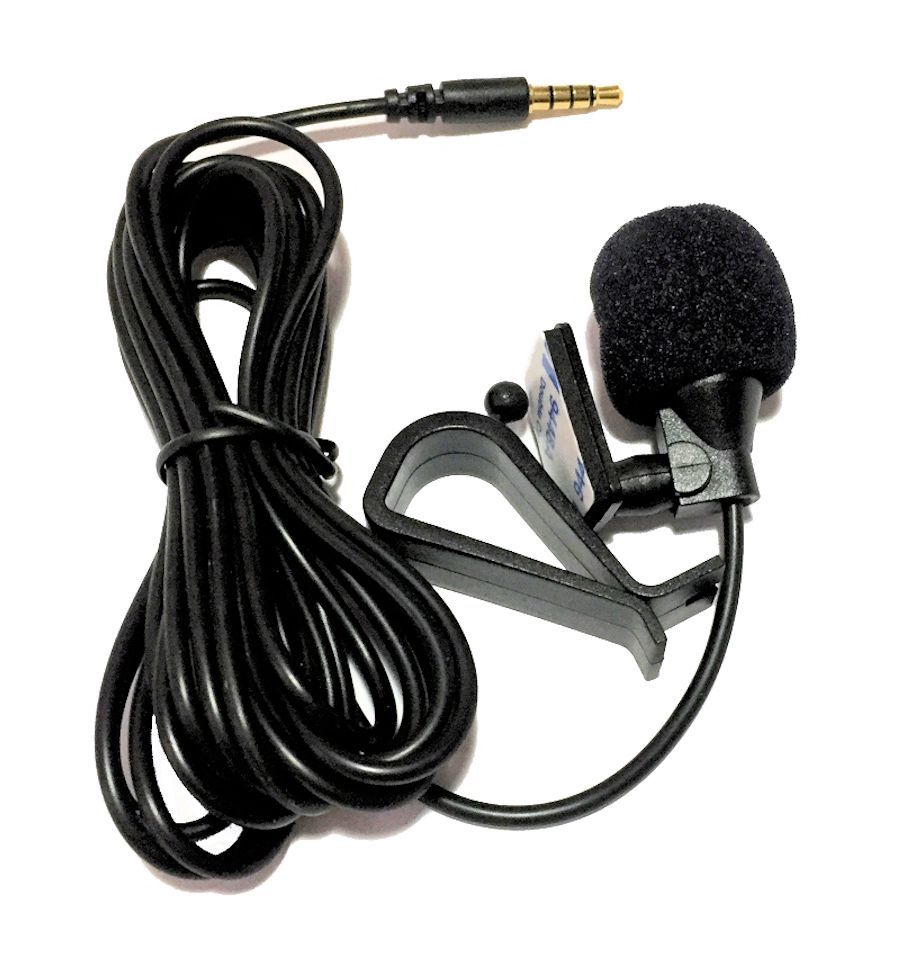

• External microphone (cable length about 300cm)
• Cabling for connection to the CD changer port of the car radio (specific for each model)

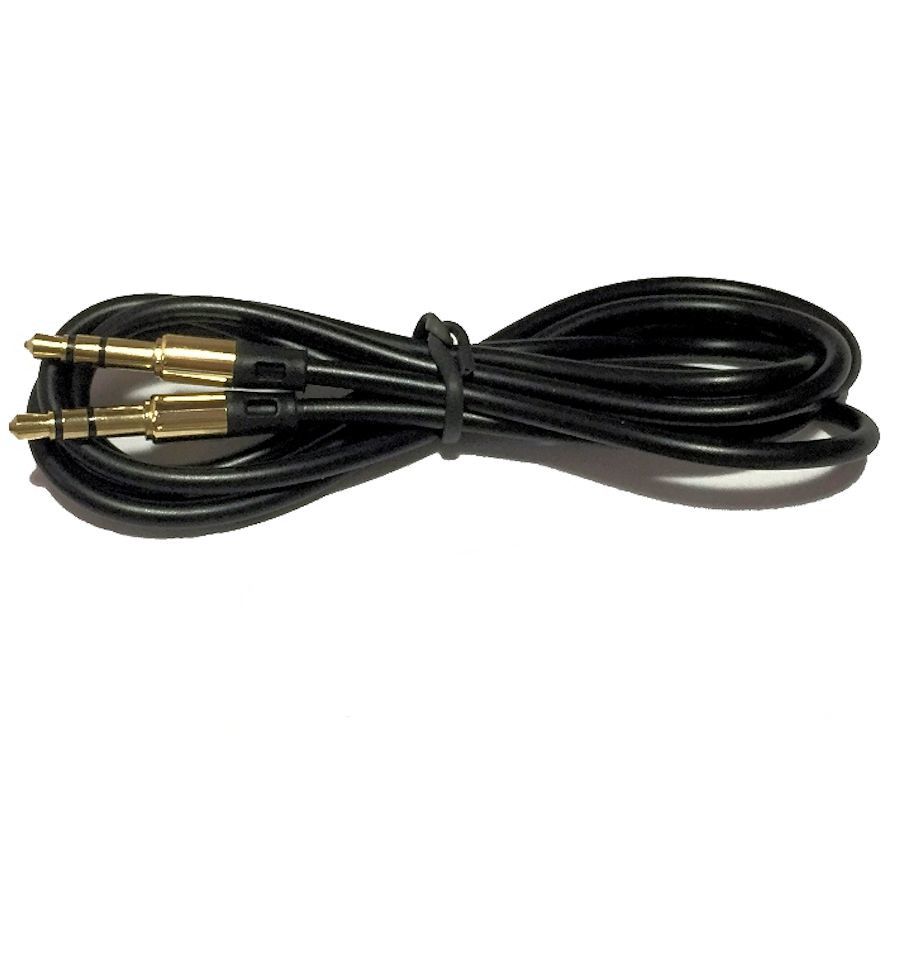

• AUX cable with 3.5mm jack / jack connectors (approx. Length 100cm)
• Instructions for use in English, downloadable in the "Download" section

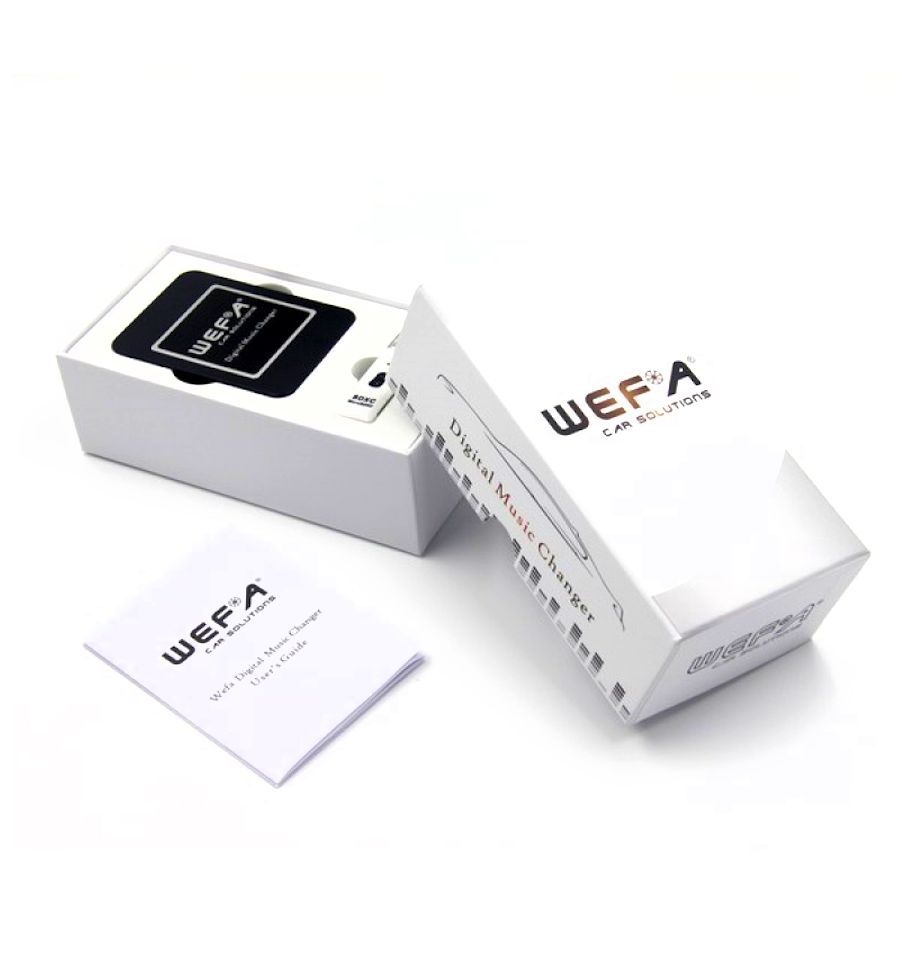

• Interface box
