BMW CI-VS3-BM21W Rear-view camera exchange license-plate illumination with guide-lines and cold-white LED Expand

BMW CI-VS3-BM21W Rear-view camera exchange license-plate illumination with guide-lines and cold-white LED

BMW BMW

CI-VS3-BM21W

New

BMW Rear-view camera exchange license-plate illumination with guide-lines and cold-white LED for 3series, 5series, X5 and X6

More details

€ 139,00

tax incl.

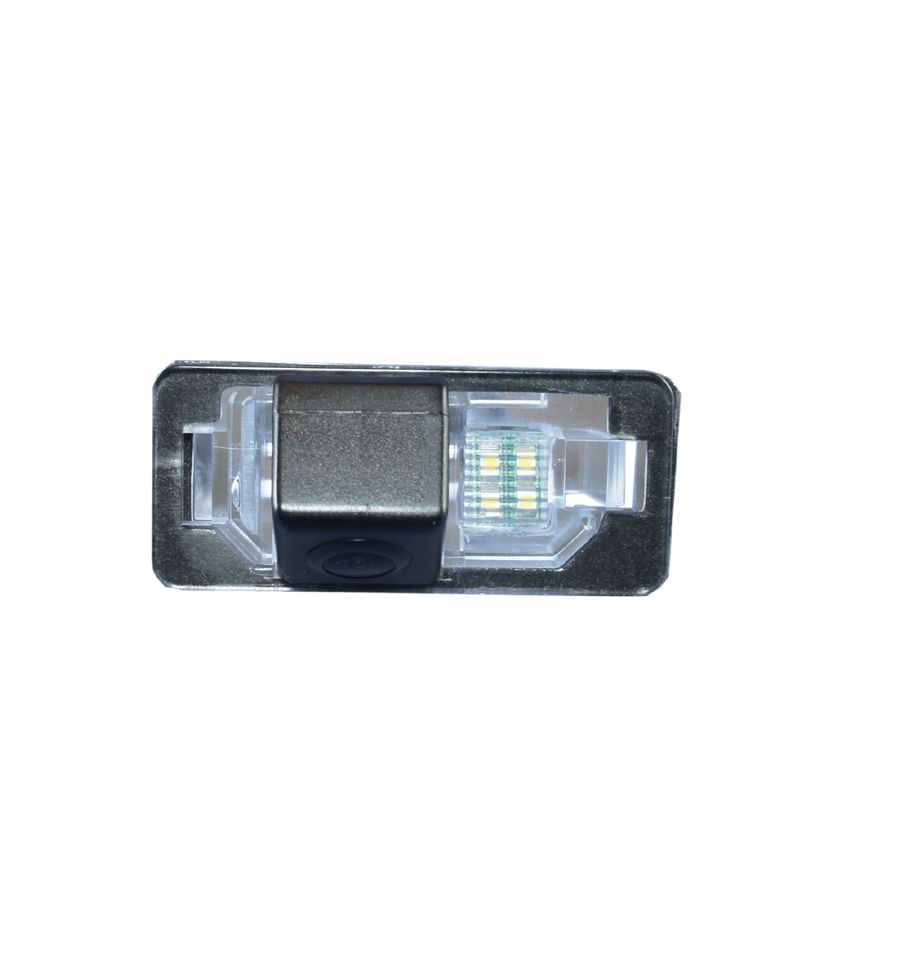

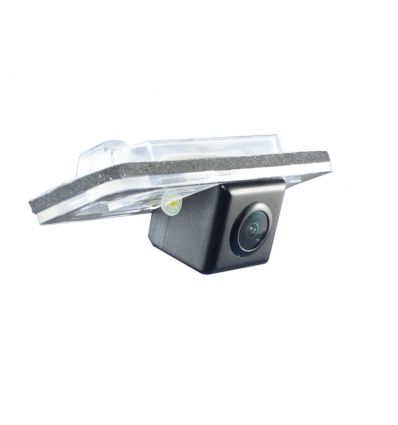

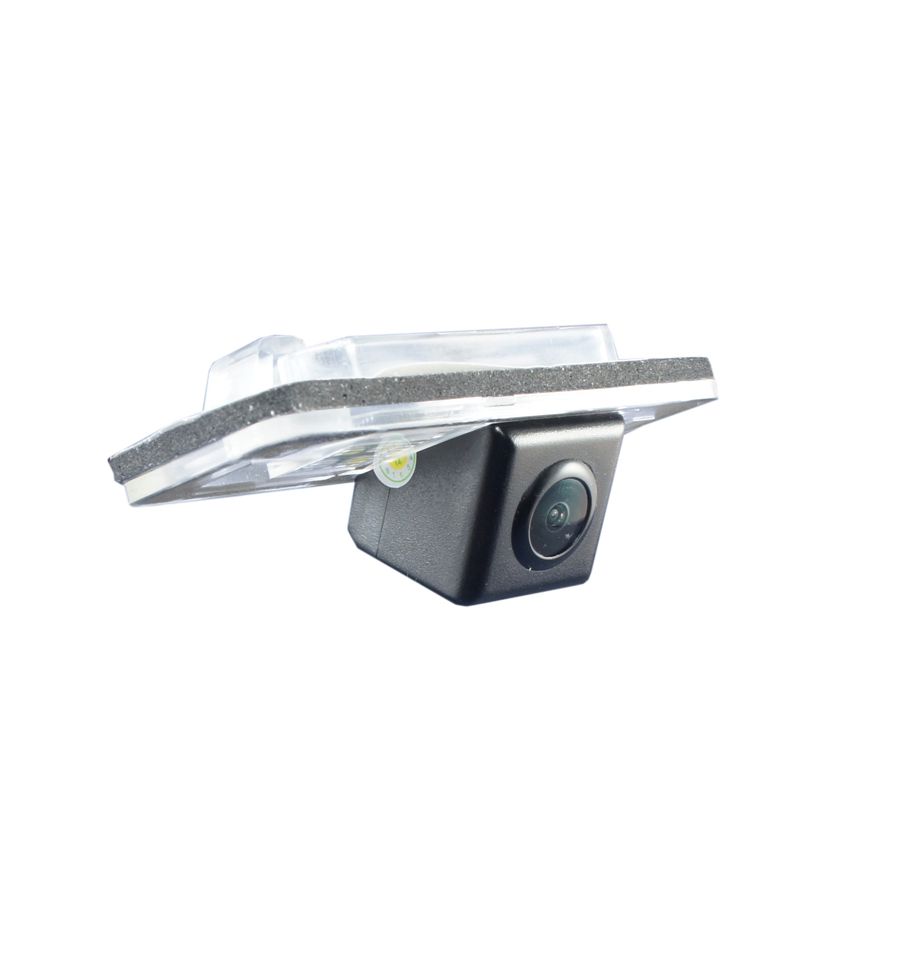

Mini-camera with vehicle specific license plate light with cold-white LED.
Simple installation due to replacement of the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.


Compatible with:
  • BMW 3series (E90 / E91 / E92)
  • BMW 5series (E39 / E60 / E69LCI / E61 / E61LCI)
  • BMW X5 (E70)
  • BMW X6 (E71 / E72)

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Properties:

  • Mini-camera with vehicle-specific number-plate illumination-glass
  • Water resistance IP69K
  • Sensor-type 1/3inch CMOS NTSC colour
  • Resolution 800 TV lines
  • Sensitivity 0.01Lux F1.2
  • Angle horizontal 120°, vertical 100°, diagonal 170°
  • Mirrored image (fixed)
  • Guide lines, optionally disengageable
  • Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
  • Extension cable 4pin 3V, 8m with wire for signal throughput
  • System-connector system cable 4pin 3V with RCA connector and fuse

Dimensions:
  • Overall L/W/D  73 x 32 x 40 mm
  • Cover glass L/W/D  73 x 32 x 14  mm
  • Build-in hole L/D  56 x 25 mm
  • Hole spacing 33.5 mm


BATT/ACCrange6V - 26V
Power0.05A 12V
Power consumption0.6W
Weight incl. cable238g
Operating temperature-30°C to +70°C
BMWSerie 3 E90 91 92 93, 5 Series E 39, Serie 5 E60 61, X5 E70, X6 E71
CategoryCameras RVC
