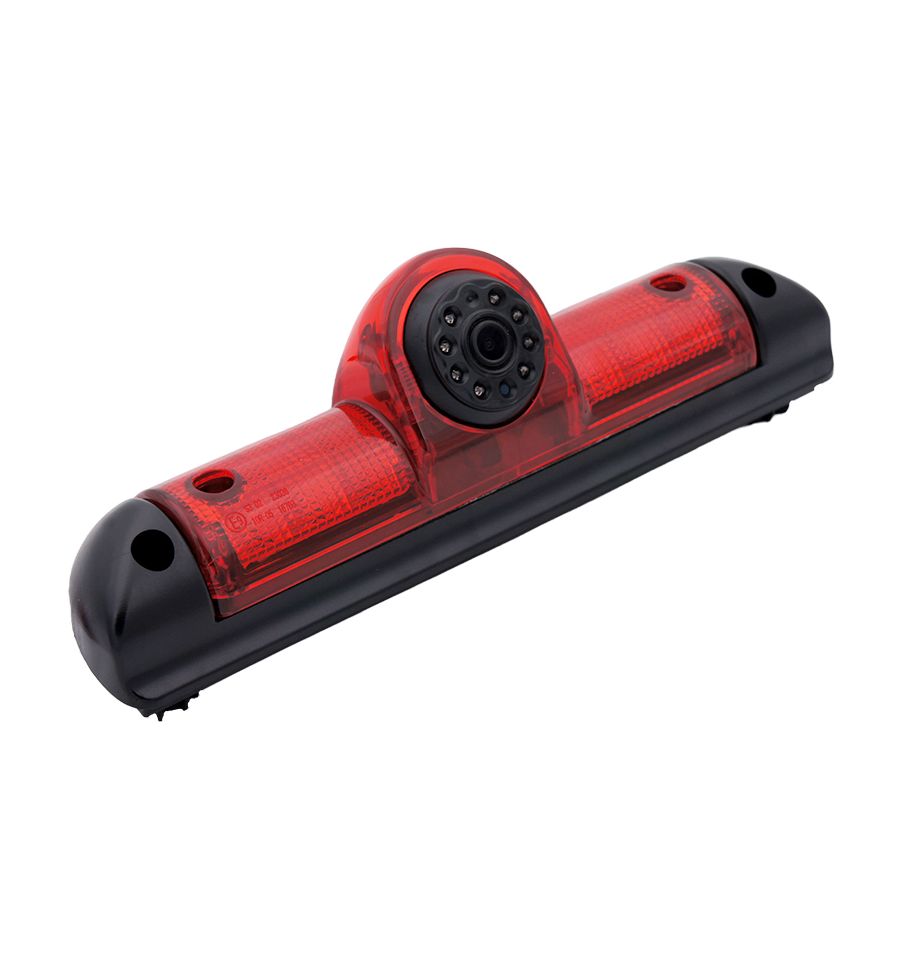

CITROEN Jumper Rear-view camera exchange brake light with CMOS and IR-LEDs

Brake light with NTSC rear-view camera compatible with Citroen Jumper with CMOS sensor, 16 IR-LEDs for night vision, 10m extension cable to cinch, 120° viewing angle.
The CI-CAM-E-DUC-02 will simply be changed with the factory brake light.

Compatible with:

•  Jumper2 from 06/2006 up

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

• Camera in vehicle-specific 3rd brake light
• Mounted by exchanging the factory 3rd brake light
• LED illumination integrated
• Camera position adjustable in 3 steps vertically
• Sensor-type CMOS 1/4inch HD low-light sensitive
• NTSC format (800 TV lines)
• Bezel F1.36
• Light sensitivity 0.01 LUX
• Infrared night vision LED
• Angle horizontal 120°, vertical 90°, diagonal 150°
• Mirrored picture (fixed)
• Guide-lines can be switched off by jumper
• Protection class IP69
• Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

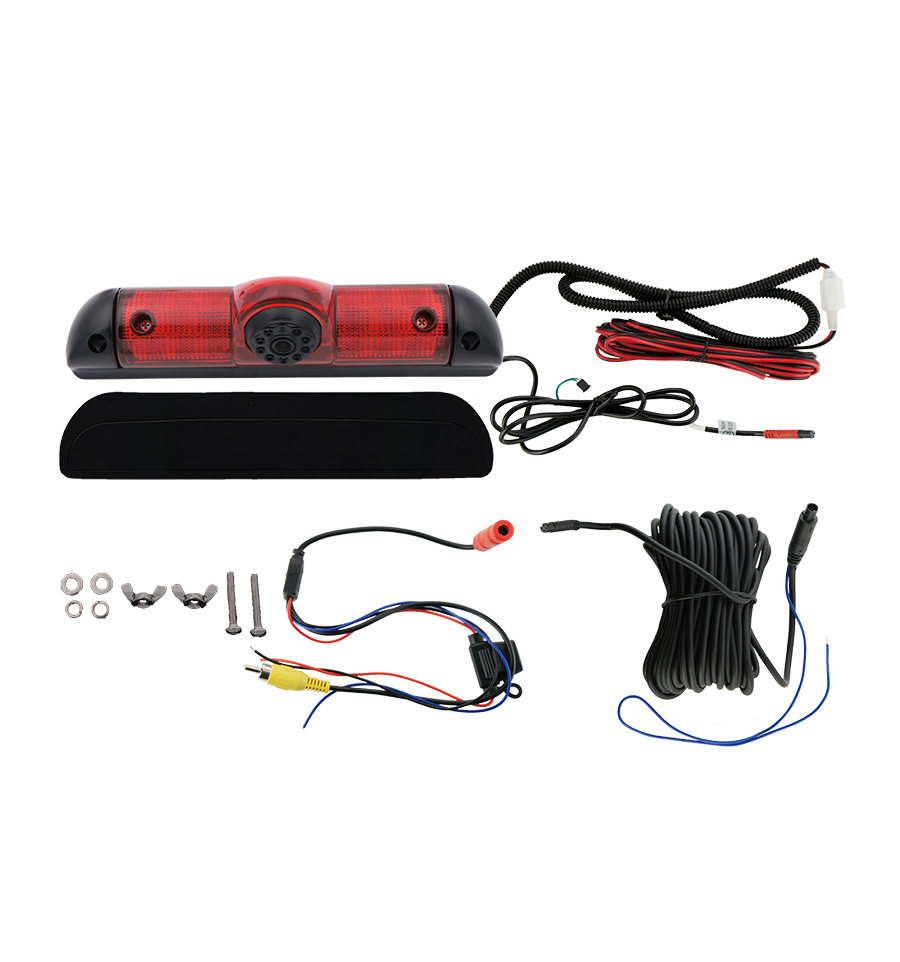

• 11.20m total system cable length, consists of:
  - 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
  - 10.00m extension cable male 4pin-BM to female 4pin-BM
  - 0.40m adapter male 4pin-BM to male RCA and power wires

Dimensions:
