Fiat Talento Rear-view camera exchange brake light with CMOS Expand

Fiat Talento Rear-view camera exchange brake light with CMOS

Fiat Fiat

CI-VAN-REN04-FI

New

Vehicle-specific 3. brake light glass with NTSC rear-view camera to replace the factory glass. Fits Fiat Talento  Vehicles with tailgate or double door

More details

€ 159,00

tax incl.

Vehicle-specific exchange brake light illumination-glass with rear-view camera. For vehicles with tailgate and double door. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

Compatible with:

  •  Talento 2016 til 2021


NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

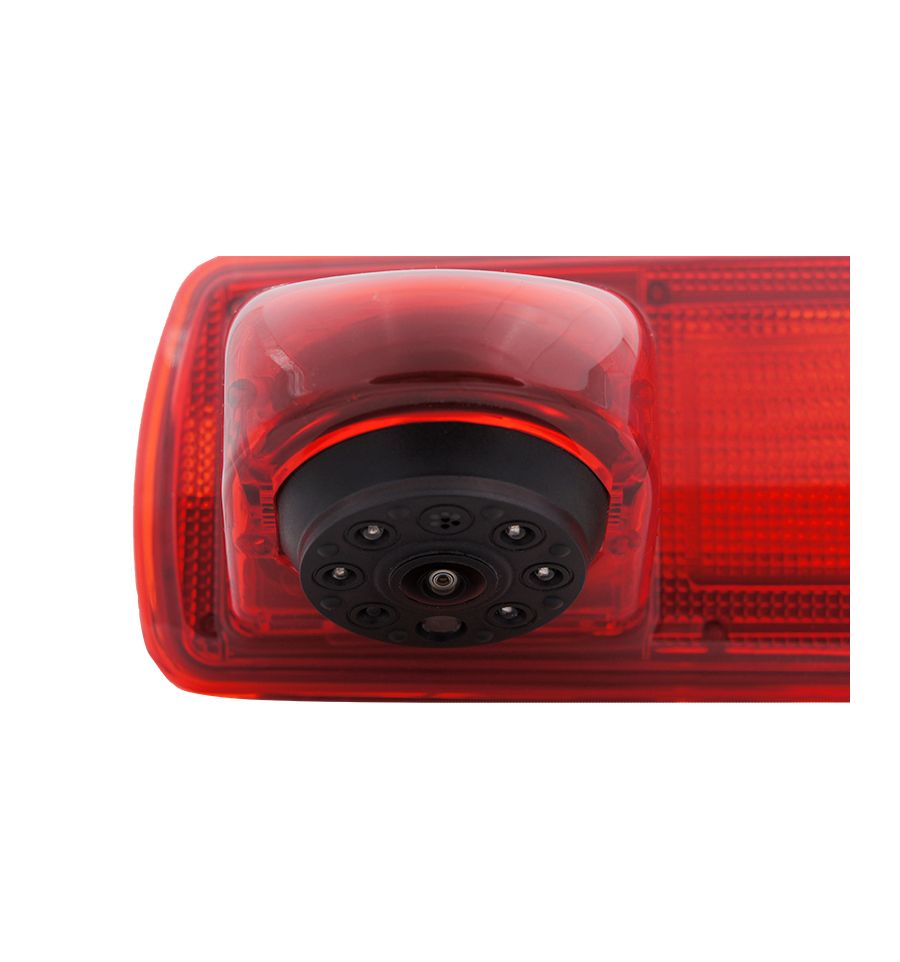

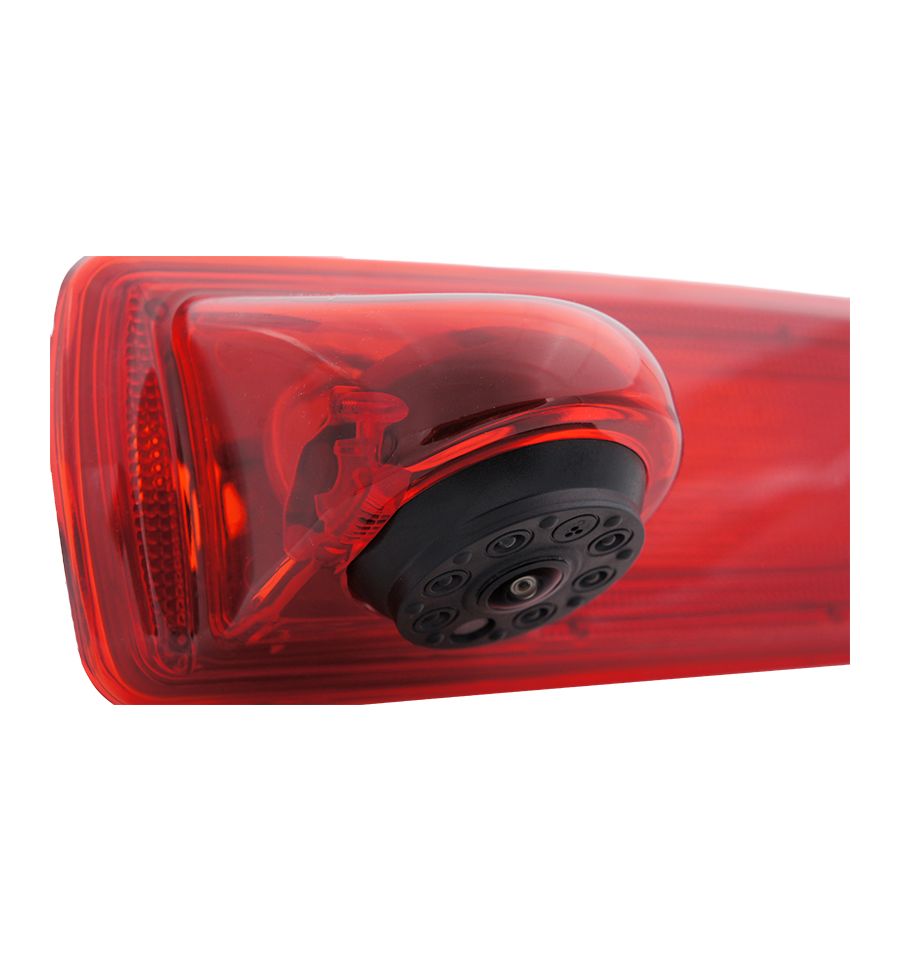

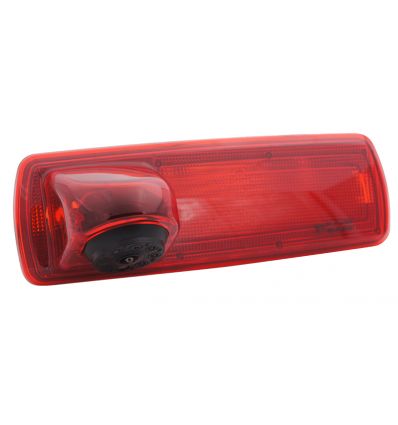

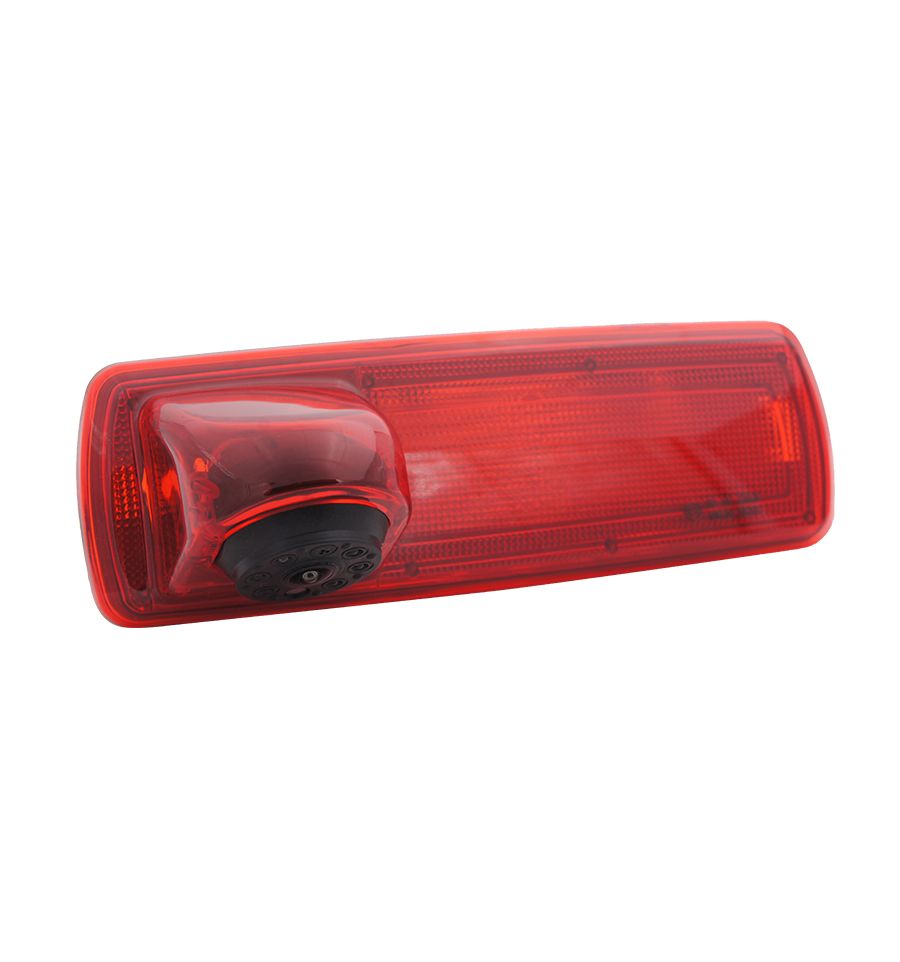

  • Camera in vehicle-specific 3rd brake light glass

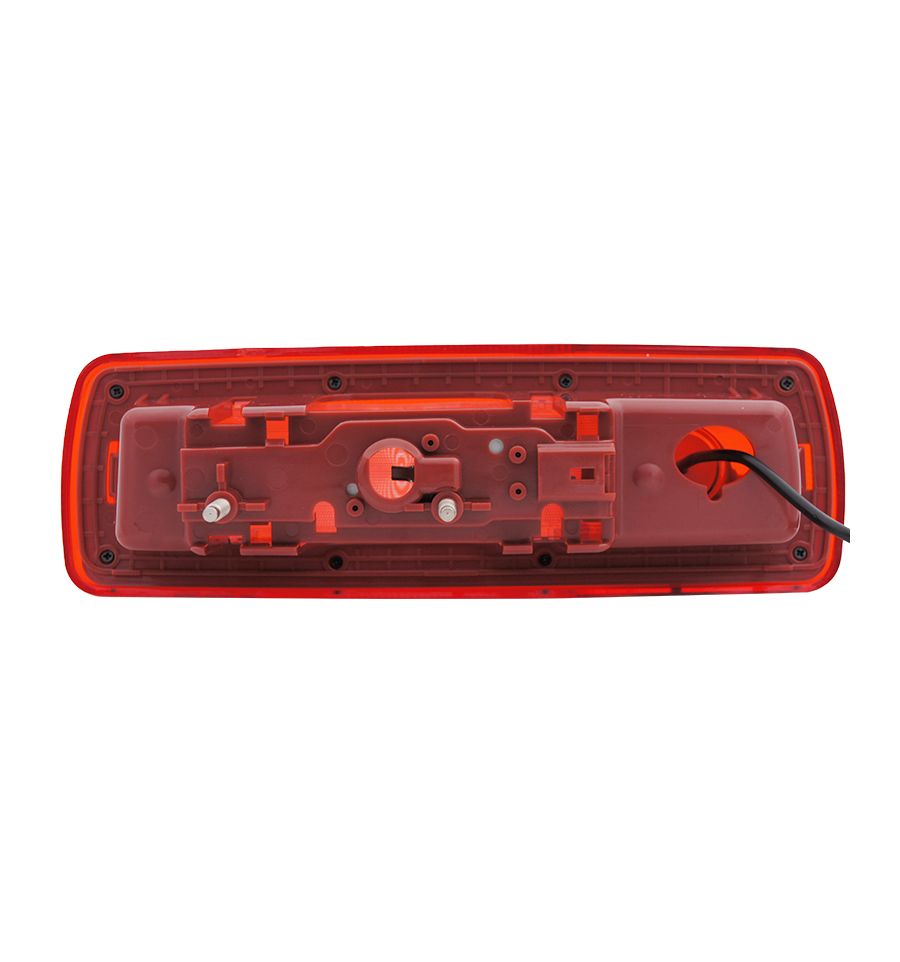

  • Mounted by exchanging the factory 3rd brake light glass
  • Use of factory illumination
  • Camera position adjustable in 3 steps vertically
  • Sensor-type CMOS 1/4inch HD low-light sensitive
  • NTSC format (800 TV lines)
  • Bezel F1.36
  • Light sensitivity 0.01 LUX
  • Infrared night vision LED
  • Angle horizontal 160°, vertical 120°, diagonal 200°
  • Mirrored picture (fixed)
  • Guide-lines can be switched
  • Protection class IP69
  • Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

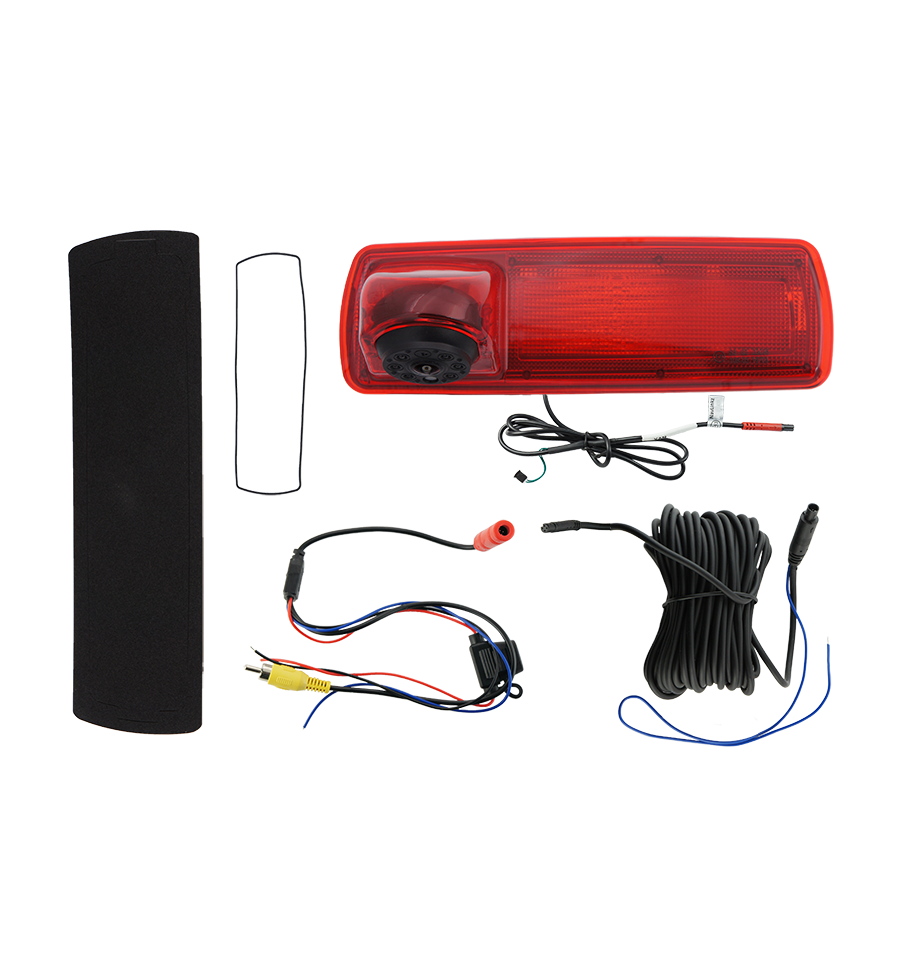

  • 11.20m total system cable length, consists of:
    - 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
    - 10.00m extension cable male 4pin-BM to female 4pin-BM
    - 0.40m adapter male 4pin-BM to male RCA and power wires

Brake light with cameraapprox 232 x 78 x 151mm (W x H x D)

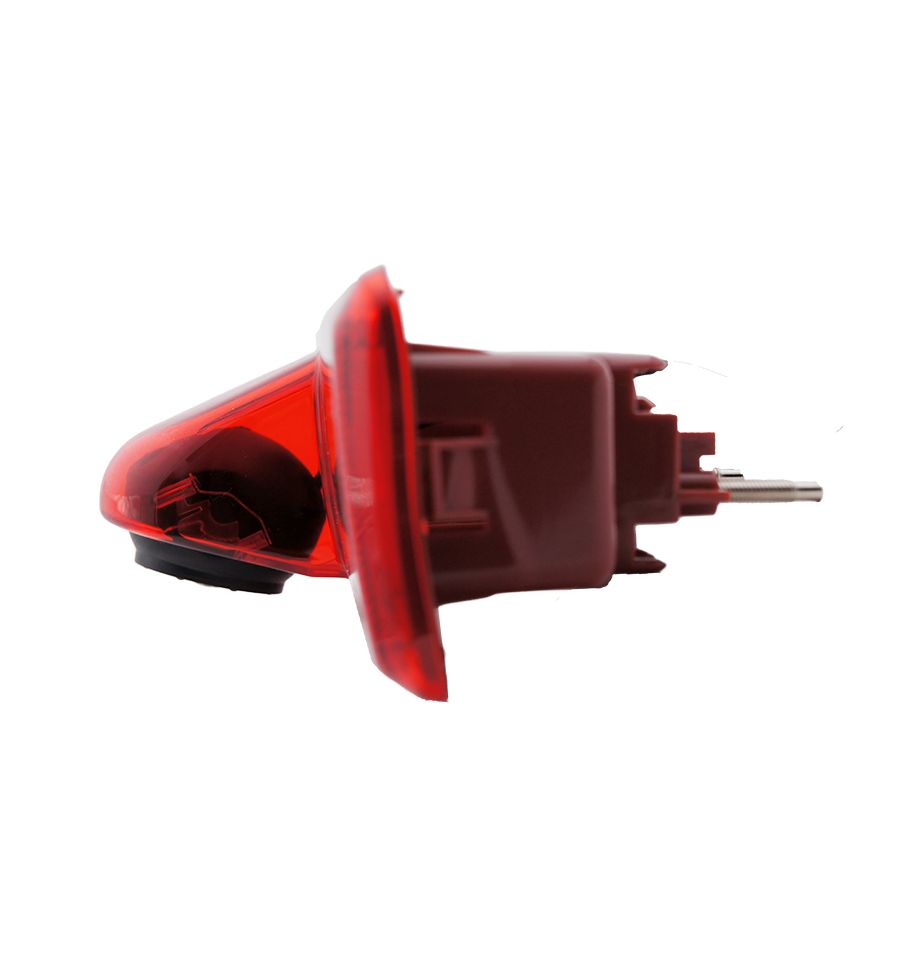

Overhang length camera
(from brake light)
approx 58mm
Installation openingapprox 201 x 47mm (W x H)
Installation opening depthapprox 63mm

Operating voltage+12V DC
Current consumptionmax. 120mA
Suitable for permanent power (ACC)Yes
Operating temperature range-30°C to +75°C
Storage temperature range-40°C to +80°C
CategoryCameras RVC
