FORD Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED for Transit
CI-VSC-E-FO04
New
FORD Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED for Transit
Valutazione: Scrivi per primo una recensione!

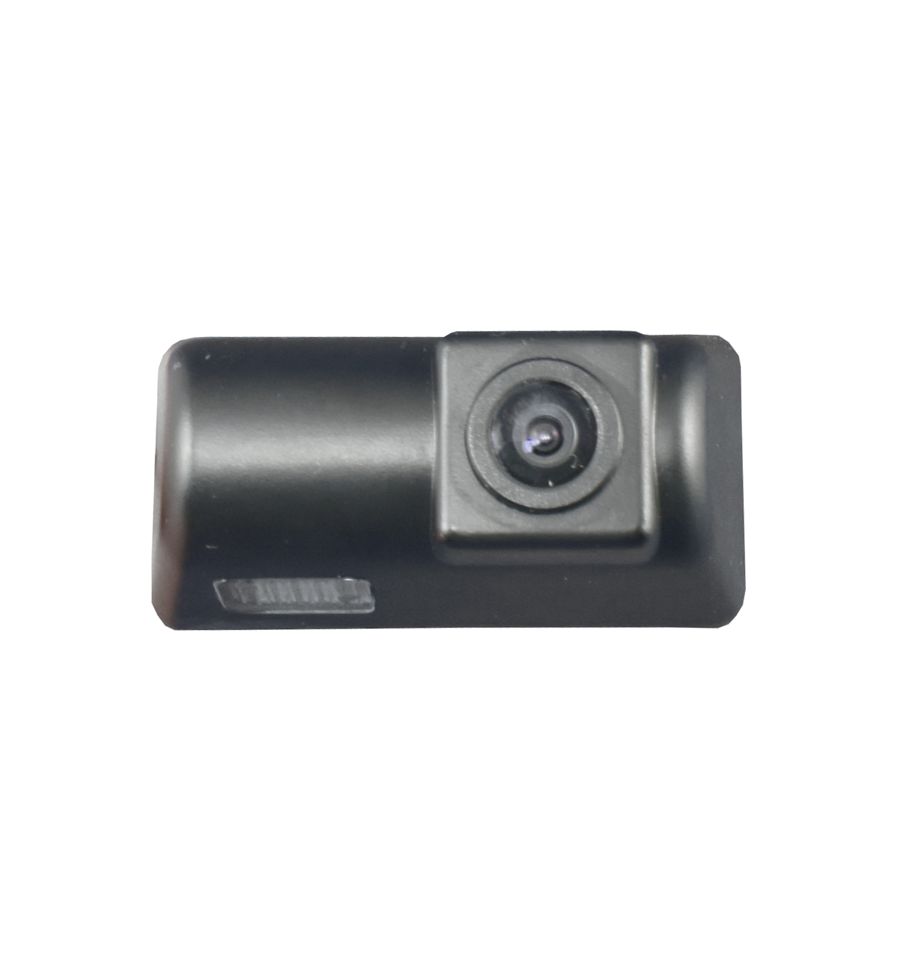

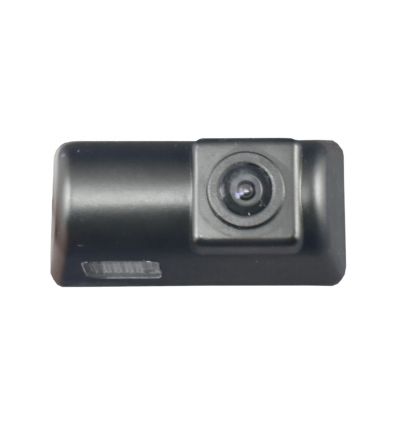

Mini-camera with vehicle specific license plate light with warm-white LED.
Simple installation due to replacement of the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.
Compatible with:
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Properties:
Dimensions:
Simple installation due to replacement of the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.
Compatible with:
- Transit from 2009
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Properties:
- 1/3inch CMOS NTSC sensor (PC3089)
- Resolution 720 x 480 pixel (700 TV-lines)
- 0.1 Lux min illumination
- F1.2 aperture
- Angle diagonal 170°, horizontal 130°, vertical 90°
- Mirroring (fixed)
- Parking guide lines, optional disengageable
- Protection class IP68
- Black rear door opener handle and camera

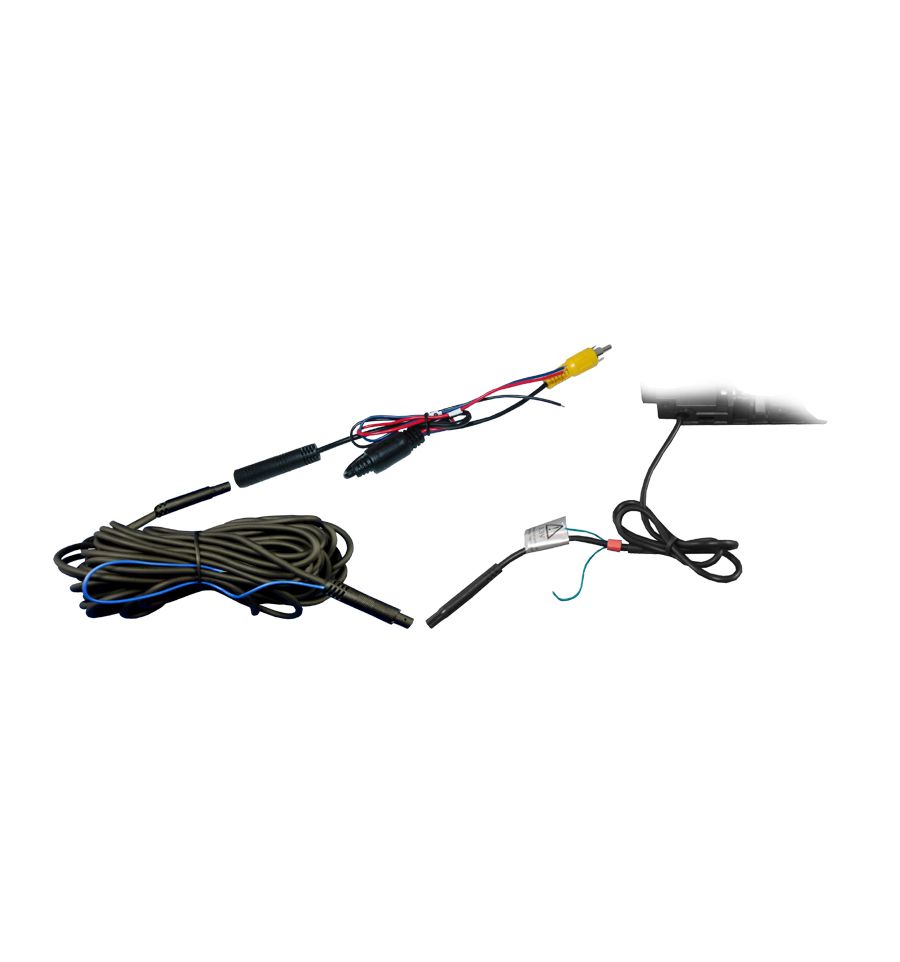

- 1.8m Camera-cable with 4-Pin-BM system-female connector (diameter 5mm)
- 8m Extension cable (4-Pin-BM) with wire for signal throughput
- System-connector system cable 4-Pin-BM with RCA connector and fuse

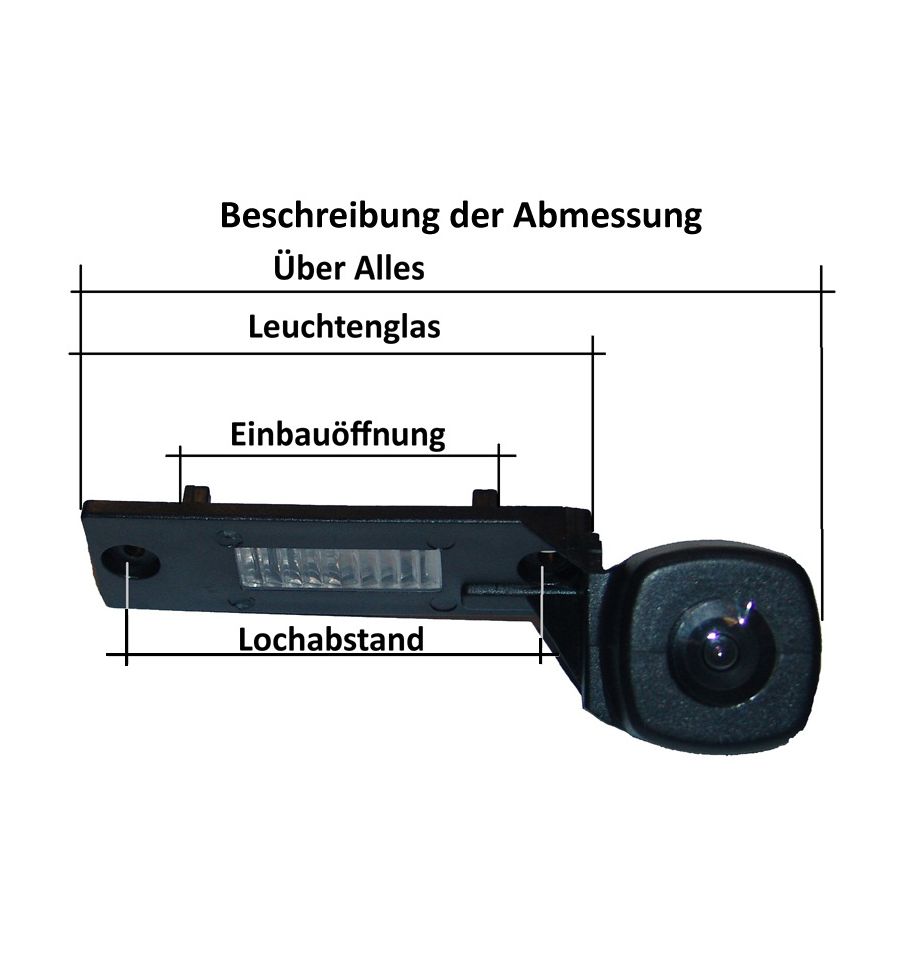

Dimensions:
- Overall: 60-50 x 30-20 x 31mm (W x H x T)
- Build-in hole: 12 x 23mm (W x H)
| Operating voltage | 12V DC (6V~16V) |
| Current consumption | 40mA |
| Power consumption | 0.5W |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Weight camera approx. | 62g |
| Ford | Transit |
| Category | Cameras RVC |
