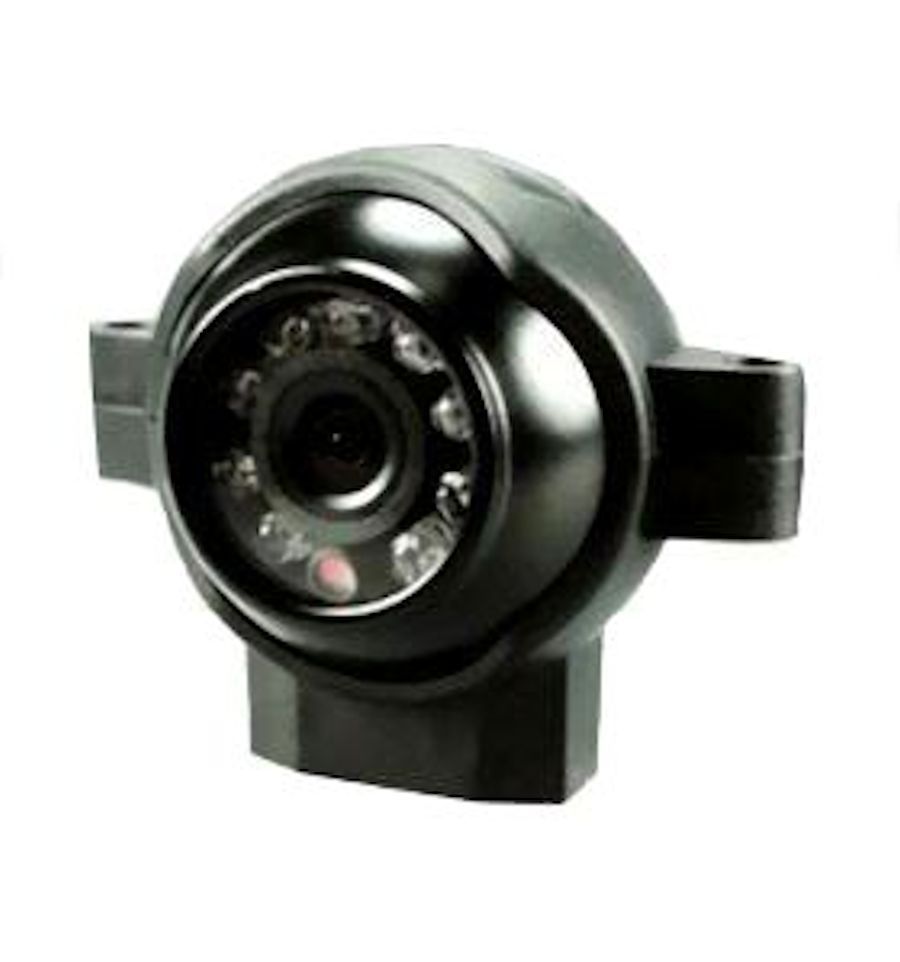

Ball-shape NTSC camera with CCD, 9 LEDs, audio, viewing angle 130° diagonal
CI-CAM-N-AE100BN
New
Ball-shape NTSC camera with 1/4 inch CCD sensor, 9LEDs IR for night vision, audio, viewing angle 130°.
Shockproof, optional image mirror function.
Shockproof, optional image mirror function.
Valutazione: Scrivi per primo una recensione!
1/4 inch NTSC CCD ball-shaped camera, shockproof, optional image mirror function, with viewing angle diagonal 130° and 9 LEDs IR for night vision.
Features:
Dimensions:
Limitations:
In order for the camera to work, an additional system of cable, not included in the delivery, is necessary: it is CI-CAB-RV4-**S, available in different length (10cm, 5m, 10m, 15m, 20m, 40m).
The 4pin Mini-DIN plug with screw thread and CV allocation can be directly connected to a camera-switch or to some monitor for rear-view system. For the stand-alone working of other products, the optional adapter to RCA CI-CAB-4P-RCA is required.
IMPORTANT:
Don't forget to order the cable system CI-CAB-RV4-**S, and eventually the adapter to RCA CI-CAB-4P-RCA!
Features:
- Ball-shape camera
- Sensor type 1/4 Colour Sony CCD
- Image system NTSC
- Resolution (pixels) H×V 510×492
- Resolution (TV-Lines) 420
- 2.6mm, F2.0 lens
- 0.1 Lux
- 9 LEDs for nightvision
- Audio
- Angle: horizontal 90°, vertical 75°, diagonal 130°
- Mirrored image (optional)
- IP 68
- 4pin connector with CV allocation
- 90cm cable with rubber grommet
- Supply voltage 12V ± 10%
- Power consumption 1.5W
- Range of working temperature: -30°C to +70°C
- Range of storage temperature: -40°C to +80°C
- Weight 154g
Dimensions:
- Camera (L×W×D) 78×63×51 mm
Limitations:
In order for the camera to work, an additional system of cable, not included in the delivery, is necessary: it is CI-CAB-RV4-**S, available in different length (10cm, 5m, 10m, 15m, 20m, 40m).
The 4pin Mini-DIN plug with screw thread and CV allocation can be directly connected to a camera-switch or to some monitor for rear-view system. For the stand-alone working of other products, the optional adapter to RCA CI-CAB-4P-RCA is required.
IMPORTANT:
Don't forget to order the cable system CI-CAB-RV4-**S, and eventually the adapter to RCA CI-CAB-4P-RCA!
| Category | Cameras RVC |
