BMW NBT2 (EVO) Video interface with Rear and front camera inputs for NBT2 Business/Professional

Video interface with Rear and front camera inputs for NBT2 (EVO) Business / Professional BMW vehicles F-and G-series with NBT2 and 6.5, 7, 8.8 or 10.25inch monitor with HSD+2 LVDS plug. For Touch and non-touch monitors.

This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.



Product features:

• Video-inserter for factory-infotainment systems
• 1 CVBS input for a rear-view camera
• 1 CVBS input for a front camera
• 1 CVBS video-input for a after-market device (e.g. USB-Player, DVB-T2 tuner, ...)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after disengaging reverse gear for 10 seconds (not available on all vehicles/CAN)

• Activatable dynamic parking guide lines for rear-view camera (not available on all vehicles/CAN)
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC compatible

Compatibility:

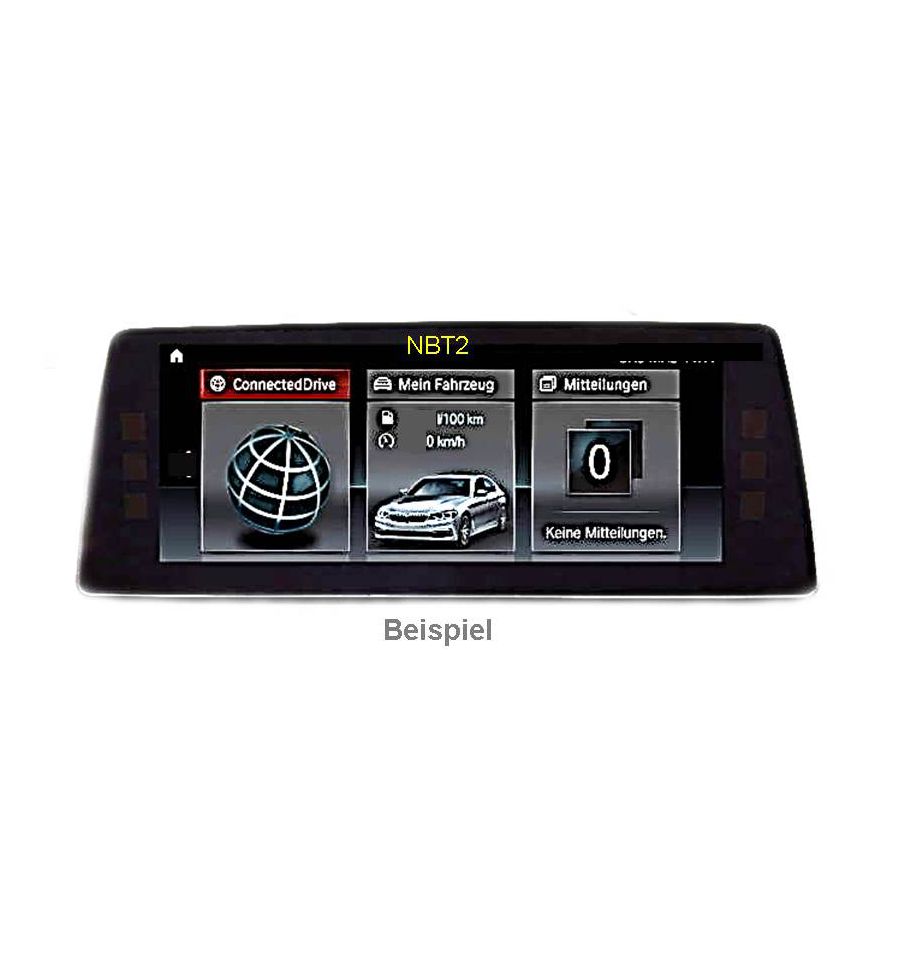

Compatible to BMW vehicles F-and G-series with NBT2 and 6.5, 7,8.8 and 10.25inch monitor with HSD+2 LVDS plug. For Touch and non-touch monitors.

Limitations:

The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

For cars not equipped with the original PDC system, the full screen view of the aftermarket camera may not be supported.
Display of guidelines and original PDC is not available on all vehicles.

Specifications:

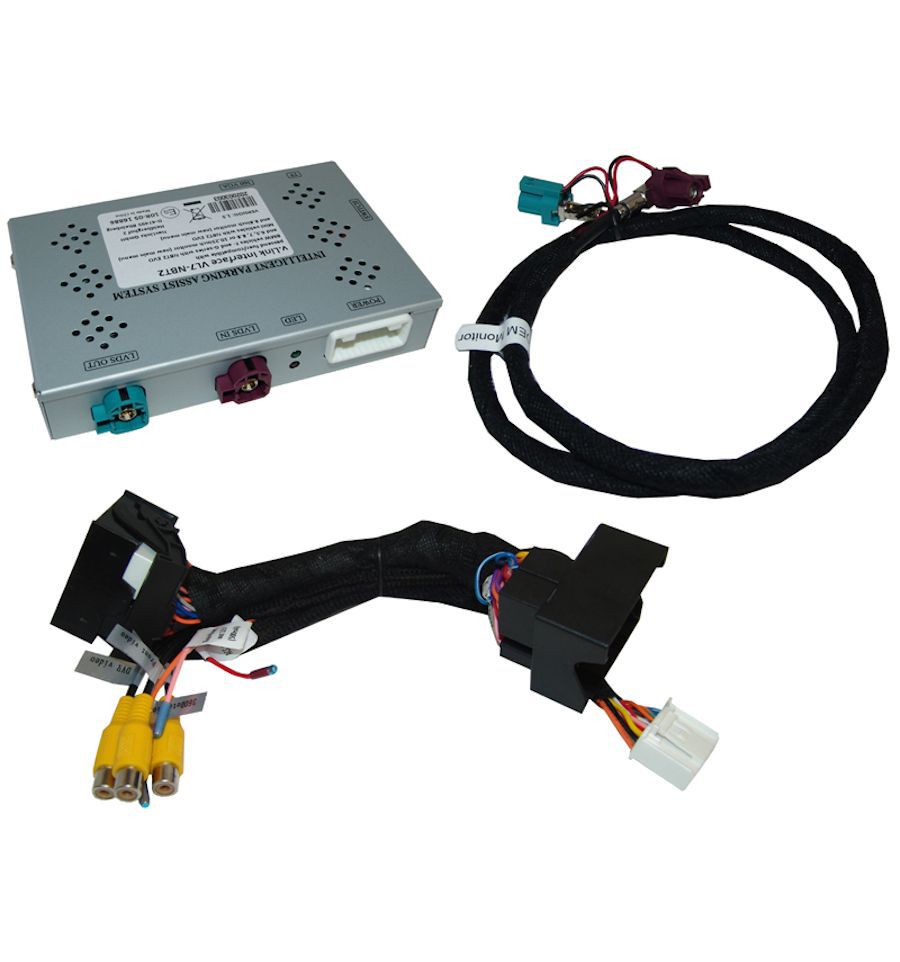

Connectors

• Video-insertion: 4+2pin HSD+2
• Power and CAN-bus: Plug & play (Quadlock insert)
• Video-input (2x): RCA female connector
• Rear-view camera-input: RCA female connector
• Front camera-input: RCA female connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
