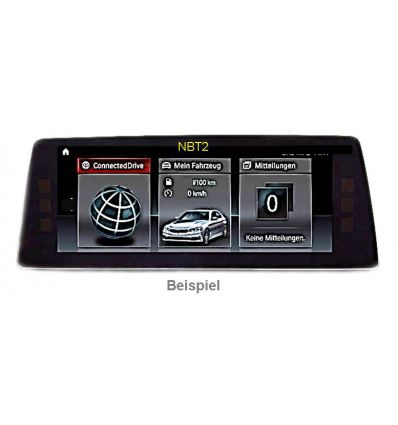

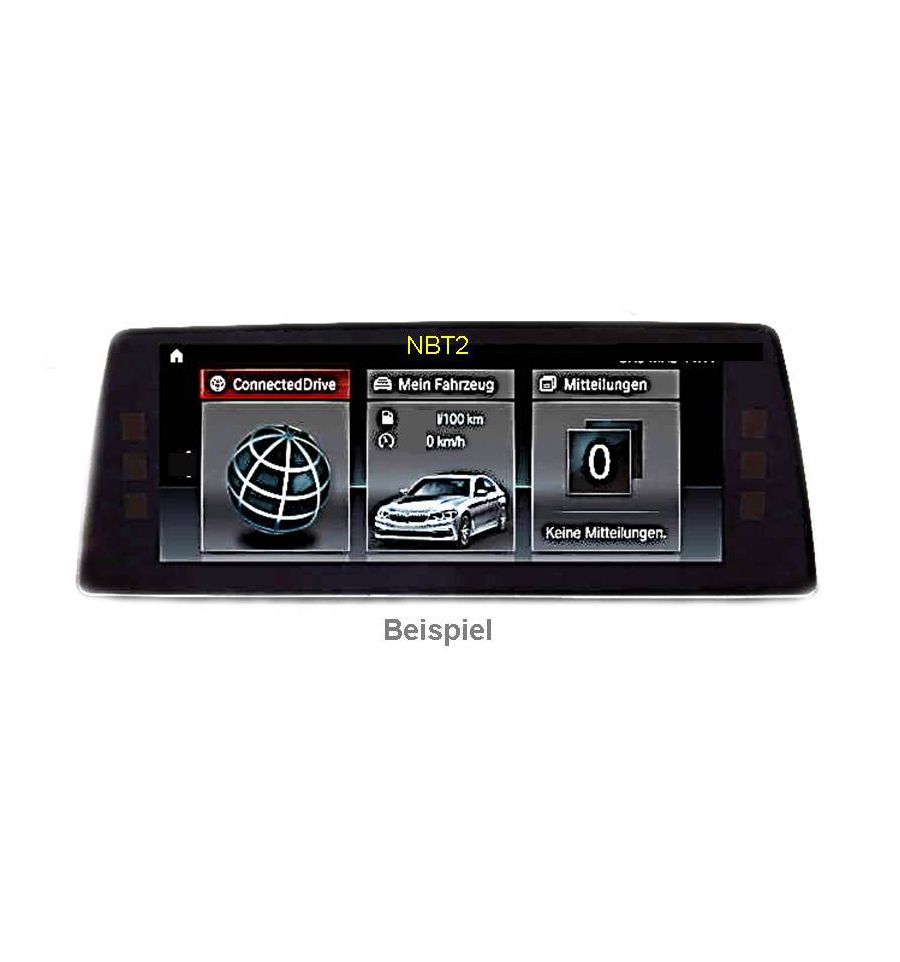

BMW Video interface with Rear and front camera inputs for NBT2 i3, HSD+2. Compatible with BMW i3 about 2017- with NBT2/APIX2 and 6.5 or 10.25inch monitor. With HSD+2 LVDS.
BMW Video interface with Rear and front camera inputs for NBT2 i3, HSD+2. Compatible with BMW i3 about 2017- with NBT2/APIX2 and 6.5 or 10.25inch monitor. With HSD+2 LVDS.
This interface allows to insert a rear-view camera, a front camera, a RGB-input and one optional video source (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS input for a rear-view camera
- 1 CVBS input for a front camera
- 1 CVBS video-input for a after-market device (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after disengaging reverse gear for 10 seconds
- Dynamic parking guide lines for rear-view camera (not available on all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Compatibility:
Compatible to BMW vehicles F-and G-series with NBT2 and 6.5, 7,8.8 and 10.25inch monitor with HSD+2 LVDS plug. For Touch and non-touch monitors.
| Model | Navigation |
| i3 (I01 LCI) from 11/2018 | Radios, S606A Business Navigation NBT2 EVO with 6.5inch monitor |
| i3 (I01 LCI) from 11/2017 | S609A Professional Navigation NBT2 EVO with 10.25inch monitor |
Limitations:
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged (no delay of the switching possible). Automatic switching to the factory rear-view camera does not work from the video mode of a video source connected to the video input of the interface.
The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching isn't possible.
Displayed dynamic guidelines are not available in all vehicles.
The factory PDC display does not work in all vehicles.
On 8.8inch and 10.25inch monitors, the image formats of the inserted video sources will only be displayed in full screen (stretched)!
Only compatible to NTSC video sources.
Specifications:
| BATT/ACC range | 9V ~ 16V |
| Stand.by power drain | 2mA |
| Power | 450mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -20°C to +70°C |
| Dimensions CAN-box | 130 x 88 x 25 mm (W x H x D) |
Connectors
- Video-insertion: 4+2pin HSD+2
- Power and CAN-bus: Plug & play (Quadlock insert)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
