Multimedia-interface for the connection of one AV-source to the factory-navigation. With remote function for connected devices, rear-view camera-input, video-in-motion and trigger signals. For vehicles WITH factory TV-tuner port and WITHOUT factory TV-tuner.
The CI-C1-CXC-TV1 multimedia interface allows to connect one AV-source (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer. Very simple connection to the vehicle with the "Plug & Play" harness. If the AV-source is in the list of compatible devices, it is possible to control the AV-source by the factory infotainment. Additionally the connection of a rear-view camera is possible. Video-in-motion is included.
Product features:
- Full plug and play multimedia interface
- 1 AV-input with separate IR-control channels
- Controls of after-market devices (e.g. DVD-player, DVD-changer, ...) by factory infotainment
- After-market rear-view camera input
- Rear-view camera power (+12V max. 1A)
- Power-on remote-out trigger-signal (+12V max 1A) to switch on connected devices
- Video-in-motion
Compatibility:
Compatible with BMW vehicles with Professional navigation system with iDrive (CCC or CIC), 6.5'' or 8.8'' monitor and WITH factory TV-tuner port WITHOUT factory TV-tuner.
| Model | Radio / Navigation |
| 1series (E81/E82/E87/E88) | Professional with iDrive CCC/CIC |
| 3series (E90/E91/E92/E93) | |
| 5series (E60/E61) | |
| 6series (E63/E64) | |
| X1 (E84) | |
| X5 (E70) | |
| X6 (E71) | |
| Z4 (E89) |
| Factory TV tuner | Has to be removed if installed. |
| After-market rear-view camera | Automatic switching to camera only from cLOGiC mode. |
| Factory PDC | If an after-market rear-view camera should be connected by the c.LOGiC, the visual PDC display must be deactivated occasionally or permanently for camera picture. |
Specifications (interface-box)
| Operation voltage | 10.5 – 14.8V |
| Stand-by power drain | <1mA |
| Operation power drain | 120mA |
| Power consumption | 1.8W |
| Temperature range | -30°C to +80°C |
| Weight | 95g |
| Measurements | 106 x 30 x 71 mm (W x H x D) |
Connections (Interface-box)
| FRONT | REAR |
| 3 female RCA connector (2x Audio In, Video In) | male 4pin Molex connector |
| male 8pin Molex connector | |
| Female MOST®-connector |

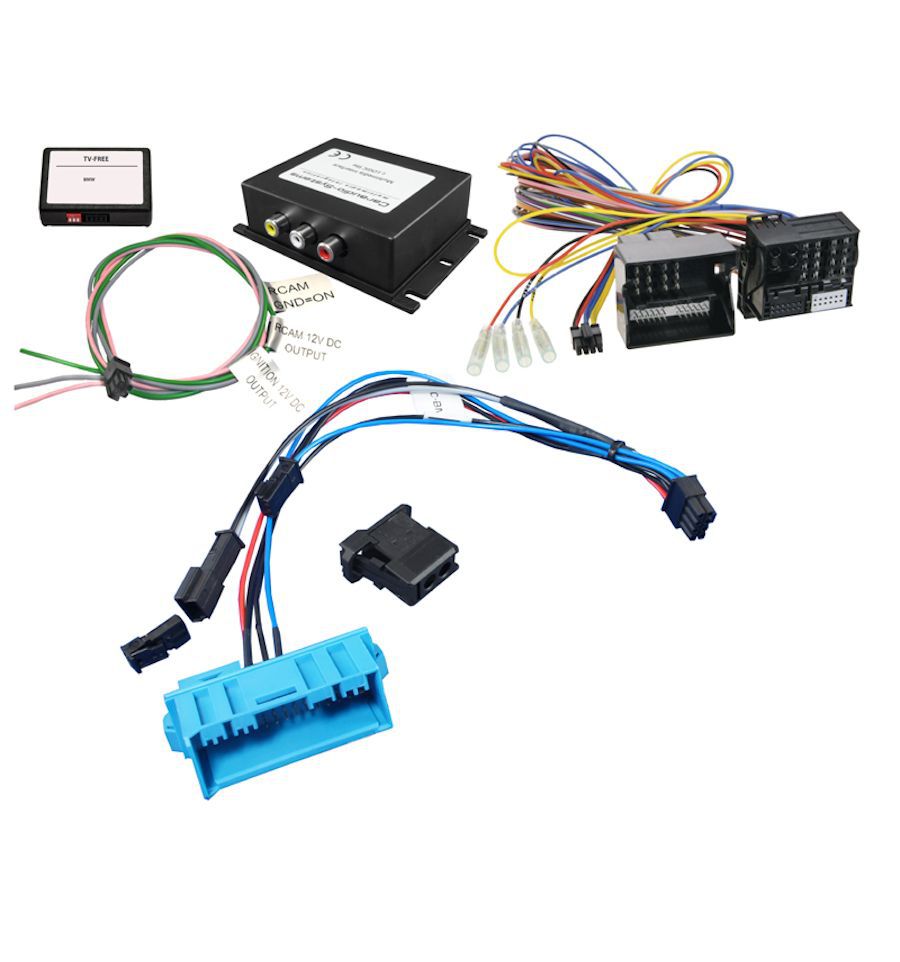

Delivery contents:
- Interface-box
- Plug & play Harness
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| BMW | Serie 1 E81 82 87 88, Z4, X6 E71, X5 E70, X1 E84, Serie 6 E63-64, Serie 5 E60 61, Serie 3 E90 91 92 93 |
| Category | Rear View Camera Interfaces, Video integration, Video in Motion |
