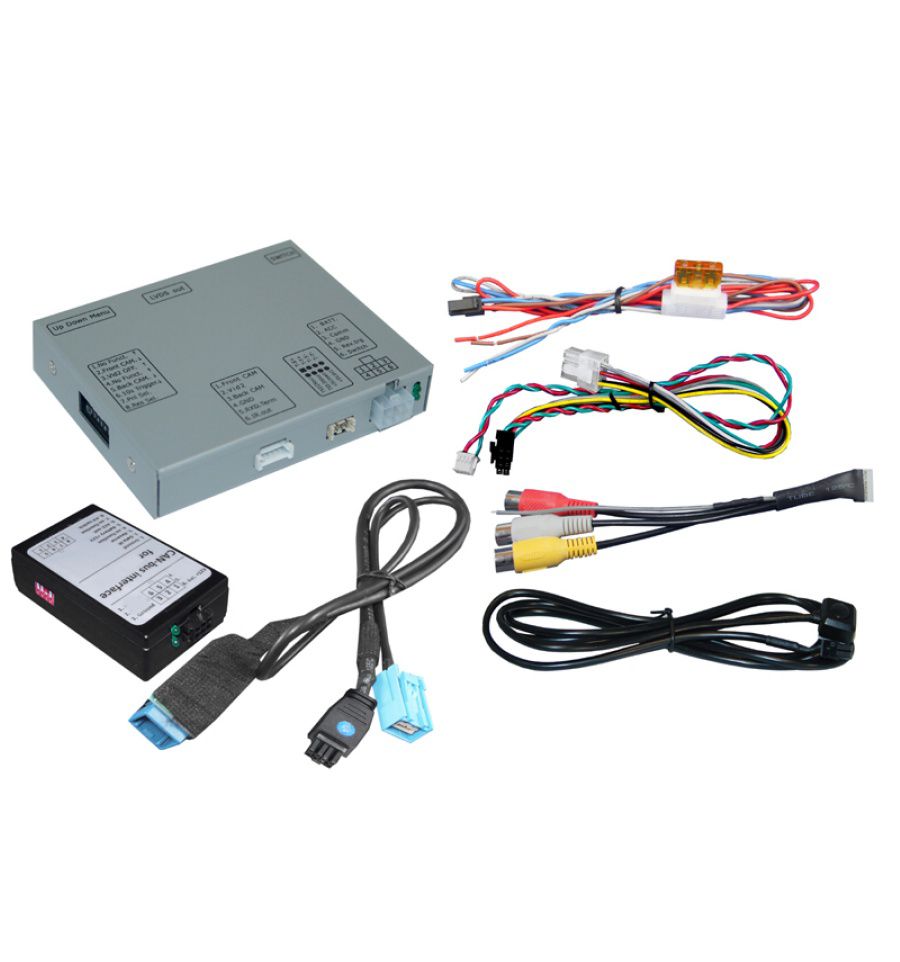

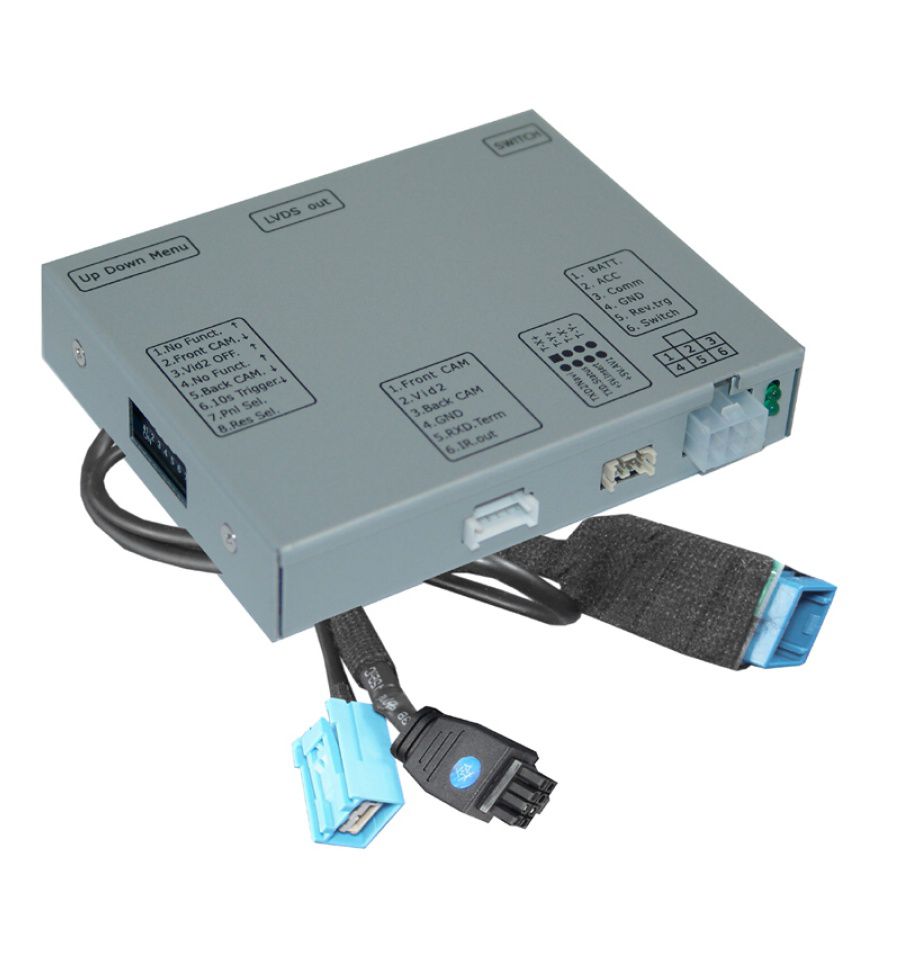

RVC Interface for front and rear view camera for Chevrolet DVD900/DVD600
RVC Interface for front and rear view camera for Chevrolet DVD900/DVD600
This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.
Product features:
- Video-insertion for factory-infotainment systems
- 2 CVBS Rear and front camera inputs.
- 1 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Automatic switching to rear-view camera input on engagement of reverse gear
- Manual Switching to Front Camera by Keypad or factory button
- Video-in-motion (ONLY for connected video-sources)
- Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
- AV-inputs NTSC compatible
Compatibility:
Compatible to Chevrolet DVD900/DVD600
| Modello | Radio / Navigazione |
| Cruze | DVD900/DVD600 |
| Orlando |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| Video Sources | Only compatible to NTSC Video Sources. |
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | 3mA |
| Power | 167mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 113 x 22 x 107mm (W x H x D) |
| Dimensions CAN-box | 73 x 22 x 42mm (W x H x D) |
Connectors
- Video-insertion: standard blue GVIF
- Power and CAN-bus: open cable ends (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
