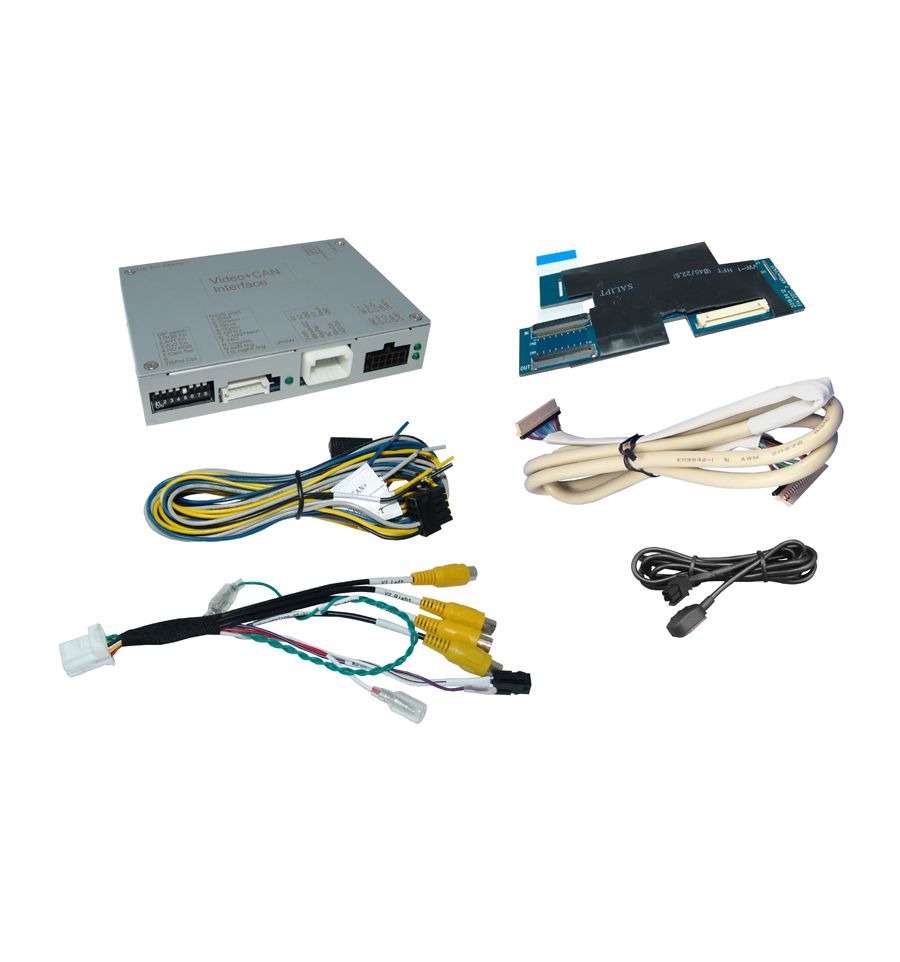

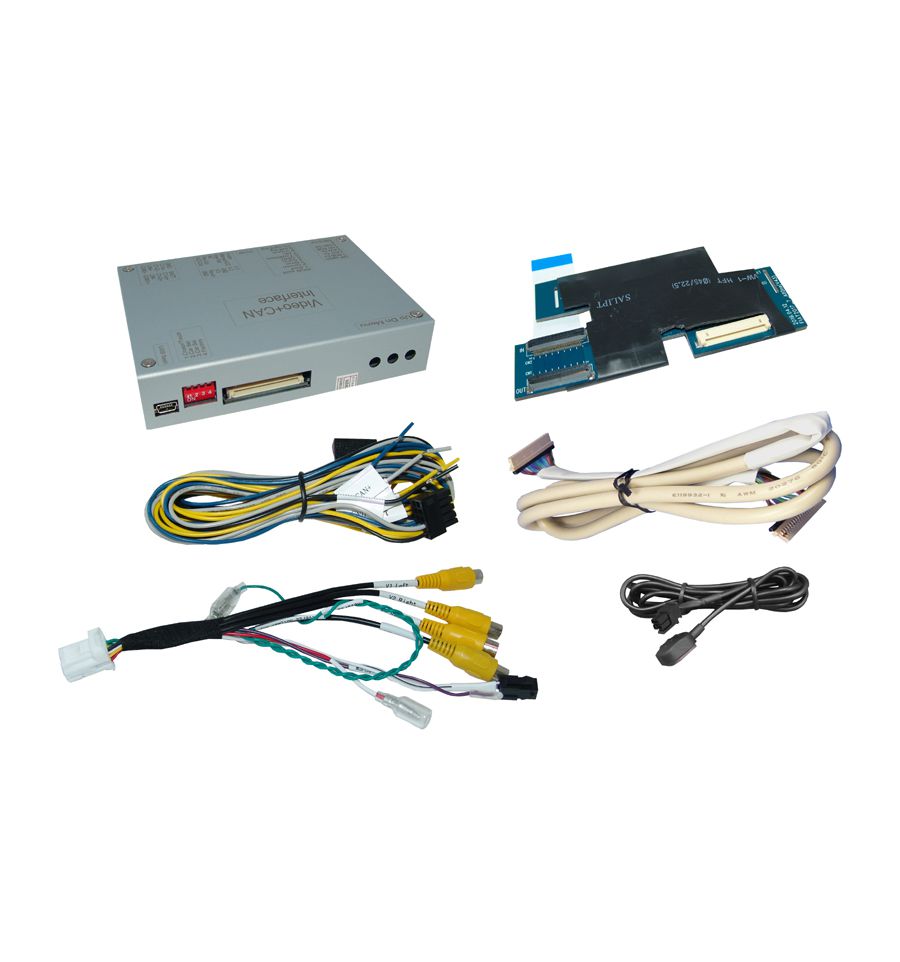

Video interface with rear and front camera inputs for Fiat 500 - 500X 7" Uconnect HD Live / Nav HD Live
Video interface with rear and front camera inputs for Fiat 500 - 500X 7" Uconnect HD Live / Nav HD Live
The r.LINK interface allows to connect a rear-view camera, a front camera and an 2 additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Compatibility:
| Model | Radio / Navigation |

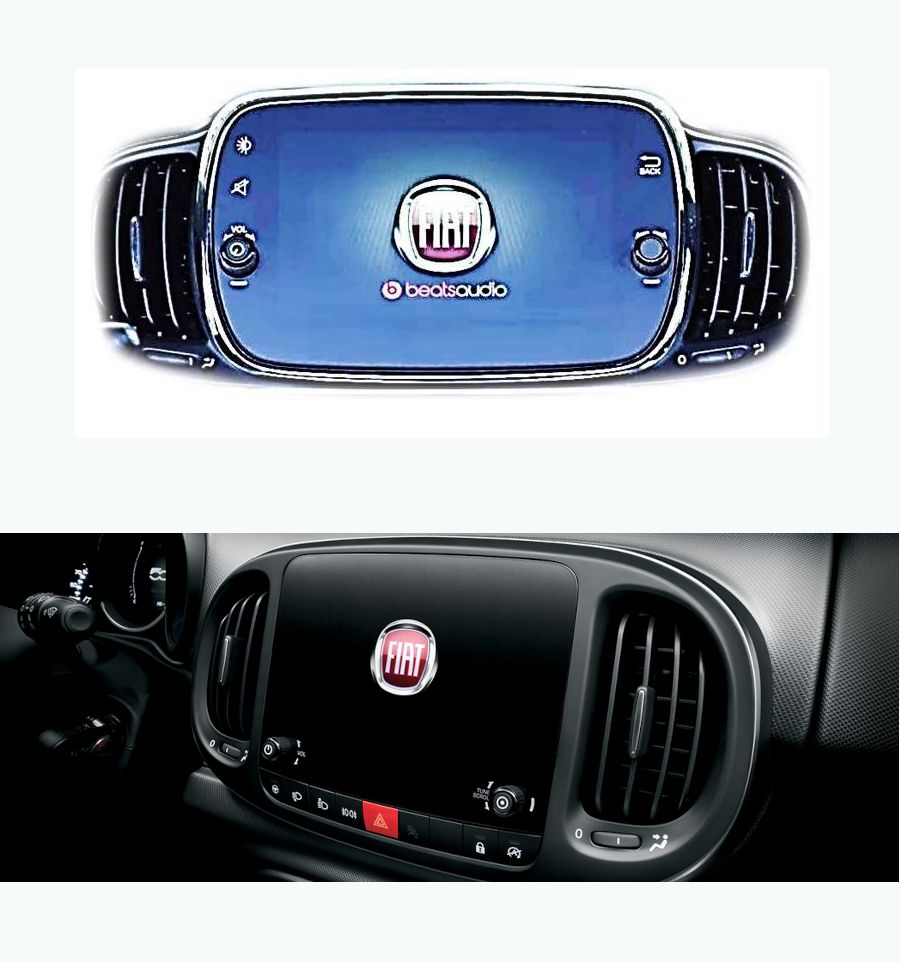

| 500 from 07/2016 | Uconnect 7" HD Live Uconnect 7" NAV HD Live VP2 312 7in VP2 334 7in VP2 330 7in VP2RFP 7in |
| 500L from 06/2017 | |
| 500X from 11/2017 | |
| Abarth 595 |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Picture format | Only compatible with NTSC |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| The interface have to be installed in the monitor panel (the cover needs to be opened!) | |
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <10mA |
| Power | 0.7A@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 154 x 22 x 92 mm (W x H x D) |
Connections:
- Video-input: RCA connector
- Rear-view camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Fiat | 500 - 500C, 500L, 500X |
| Category | Rear View Camera Interfaces, Video integration |
