Video interface for Uconnect 8,4" - 4.3" Fiat Freemont

Video interface for  Fiat Freemont Uconnect 8,4" and 4.3"navigation system with separate monitor.

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs and a rear camera input.The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems)

Product features:

• Video-insertion for factory-infotainment monitors
• 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
• Rear-view camera CVBS video-input
• Automatic switching to rear-view camera input on engagement of reverse gear
• Video-in-motion (ONLY for connected video-sources)
• Compatible with factory rear-view camera
• AV-inputs PAL/NTSC compatible

Compatibility:

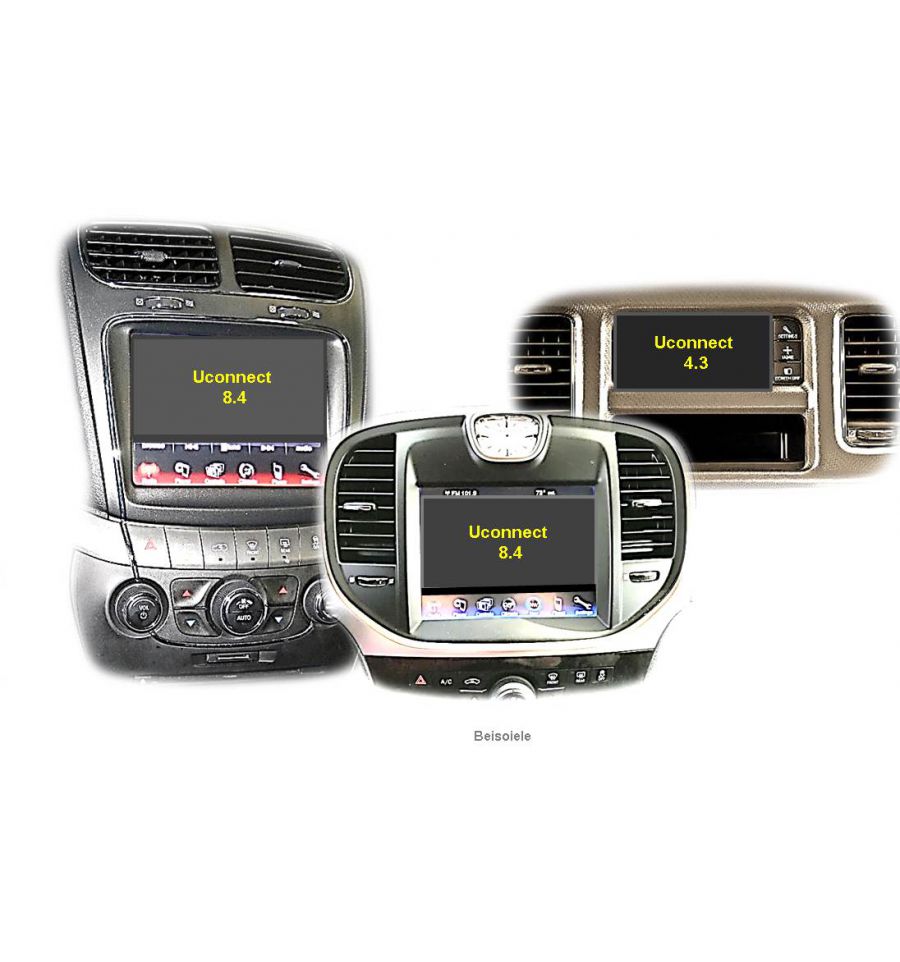

Compatible to Fiat Freemont Uconnect 8,4"navigation system with separate monitor

Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

Specifications:

Connections:

• Video-insertion: 4-pin HSD
• Power and CAN-bus: Plug & play
• Video-input (2x): RCA connector
• Rear-view camera-input: RCA connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
