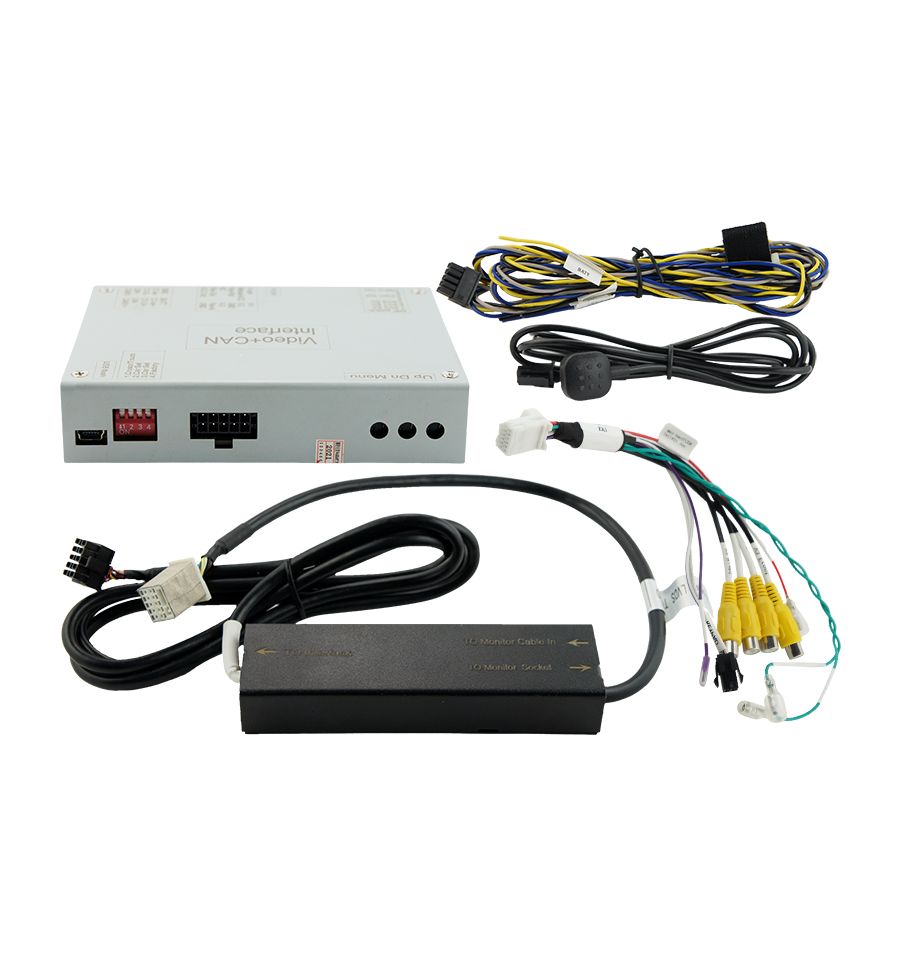

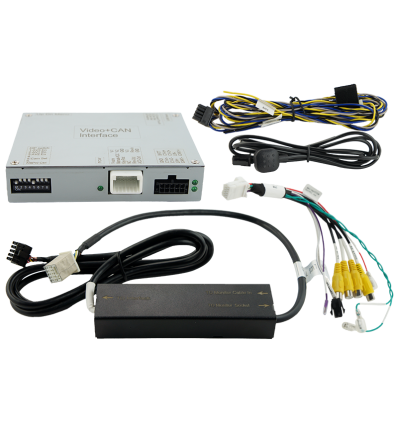

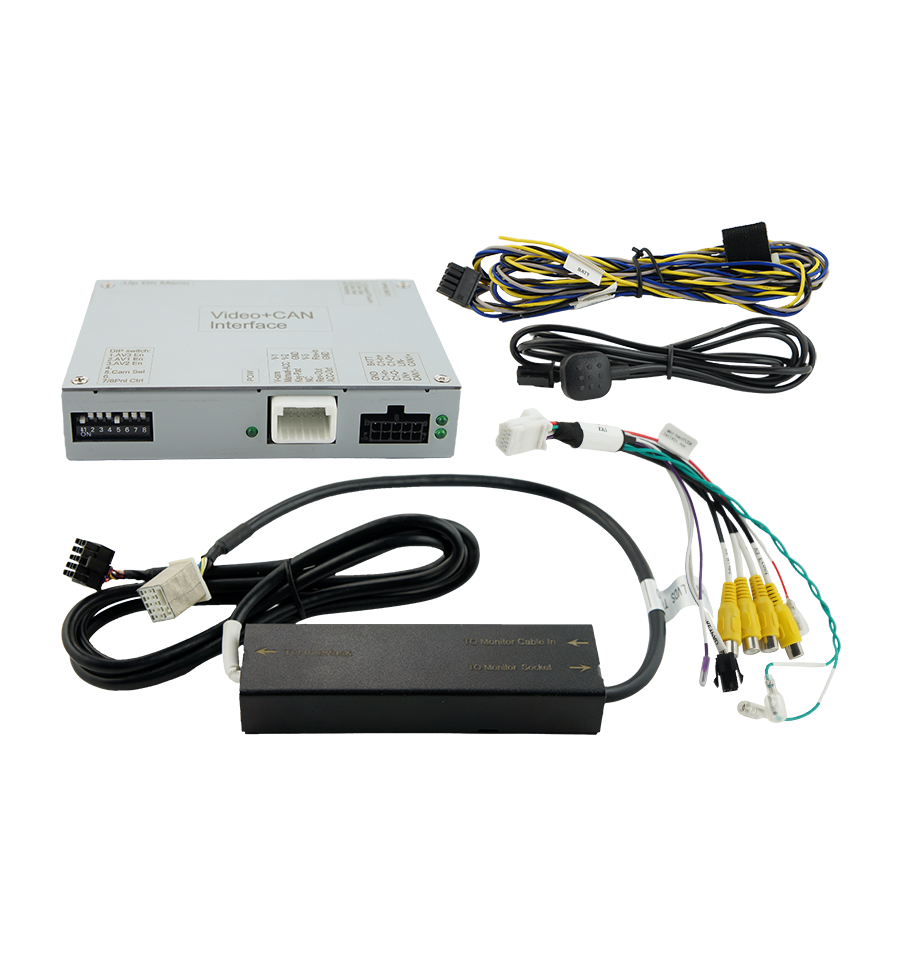

Fiat Ulysse RT3(evo) RT4 RT5 Video interface with rear and front camera inputs

Video interface for Fiat Ulysse RT3(evo) RT4 RT5 with rear and front camera inputs

Watch any video source on your original screen


The video-interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer..

Product features:

• Video-inserter for factory-infotainment systems
• 1 CVBS rear-view camera video-input
• 1 CVBS front camera video-input
• 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC compatible

Compatibility:

Original Fiat Ulysse RT3(evo) RT4 RT5 with 10pin connector

Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

Specifications:

Connections:

• Video-insertion: 10pin LVDS
• Power and CAN-bus: Open cable ends
• Video-input (2x): RCA female connector
• Rear-view camera-input: RCA female connector
• Front camera-input: RCA female connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
