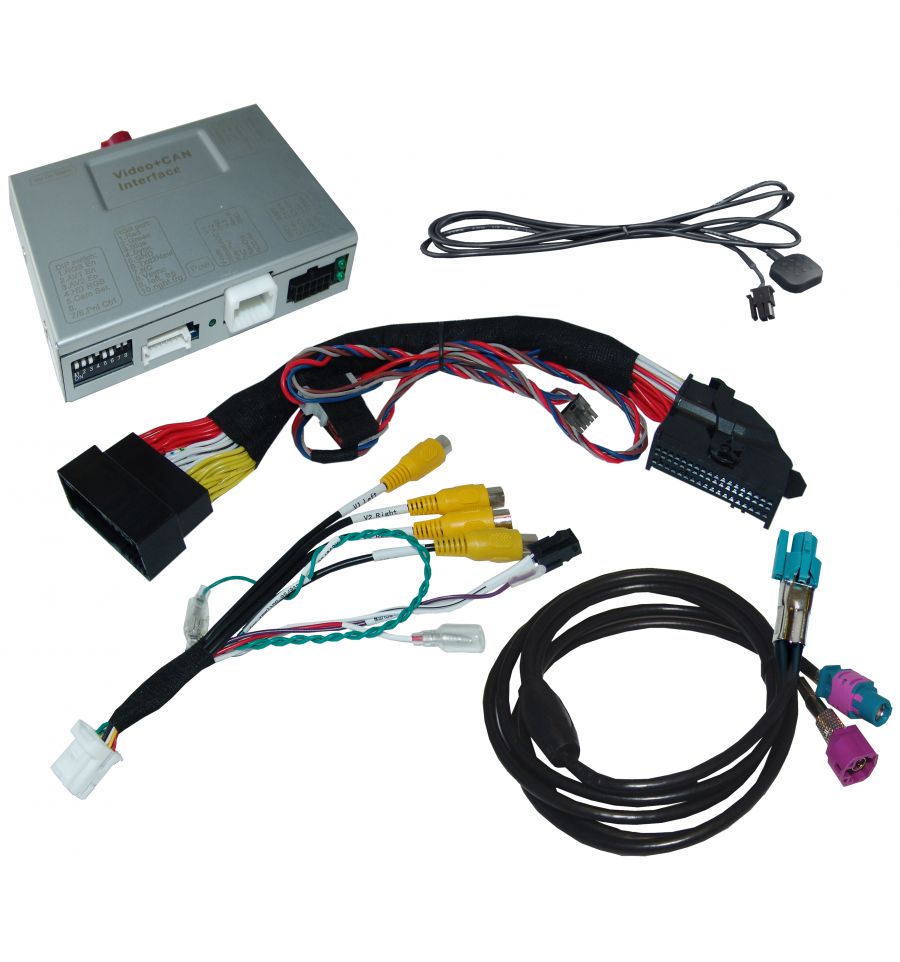

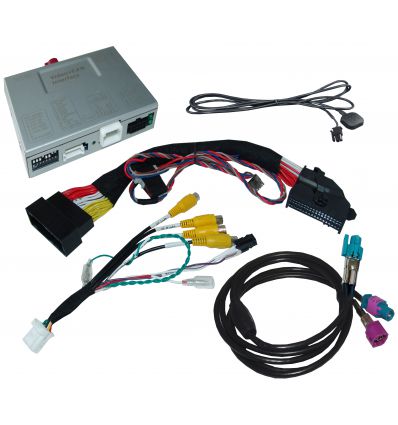

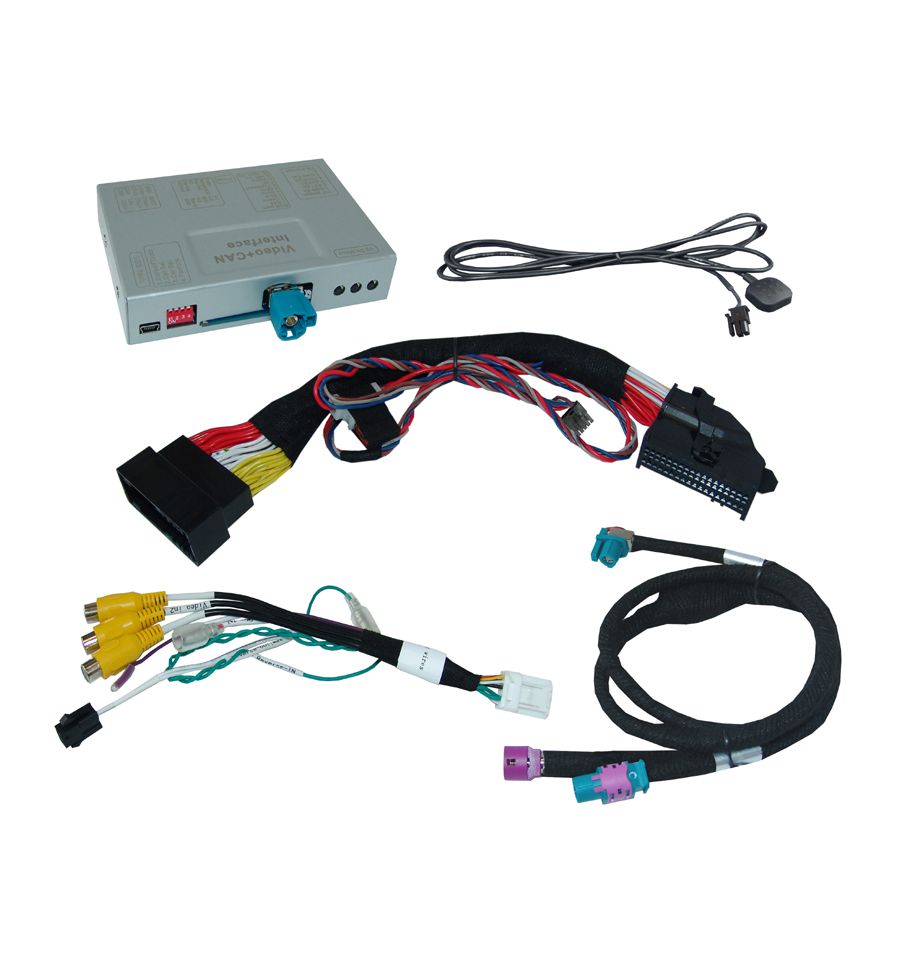

Video interface for Ford SYNC3 with plug&play harness
The r.LINK interface allows to connect a rear-view camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.
Product features:
- Video-insertion
- 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Rear-view camera video-input
- Automatic switching to rear-view camera input on engagement of reverse gear
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs NTSC compatible only
Compatibility:
| Model | Radio / Navigation |
| Galaxy from 2016 | Ford Sync3 Touch with 6.5inch, 7inch or 8inch monitor. Without and with navigation. Ford Sync4 with 8inch screen |
| Focus from 2017 | |
| C-Max from 2018 | |
| Edge from 2018 | |
| Kuga from 2018 | |
| Mondeo from 2017 | |
| Mustang from 2017 | |
| Puma | |
| Ranger from 2017 | |
| S-Max from 2016 | |
| Tourneo Custom from 2017 | |
| Ecosport from 2017 | |
| Fiesta from 07/2017 (MY2018) | |
| Transit Custom from 2017 | |
| Transit Courier MY2024 | |
| Other vehicles with SYNC3 |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Picture format | Only compatible with NTSC |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| PDC and guidelines | If the video interface does not receive the required information from the vehicle CAN-bus, neither moving guide-lines nor PDC will be supported. |
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <10mA |
| Power | 0.7A@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 154 x 22 x 92 mm (W x H x D) |
Connections:
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play
- Video-input: RCA connector
- Rear-view camera-input: RCA connector
- front-view camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Ford | Edge, Fiesta, Galaxy, Kuga, Ranger 2016, S-Max, Transit |
| Category | Rear View Camera Interfaces, Video integration |
