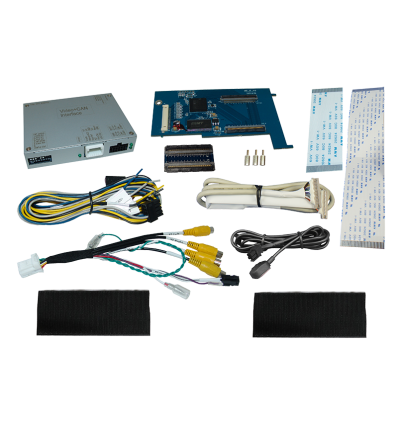

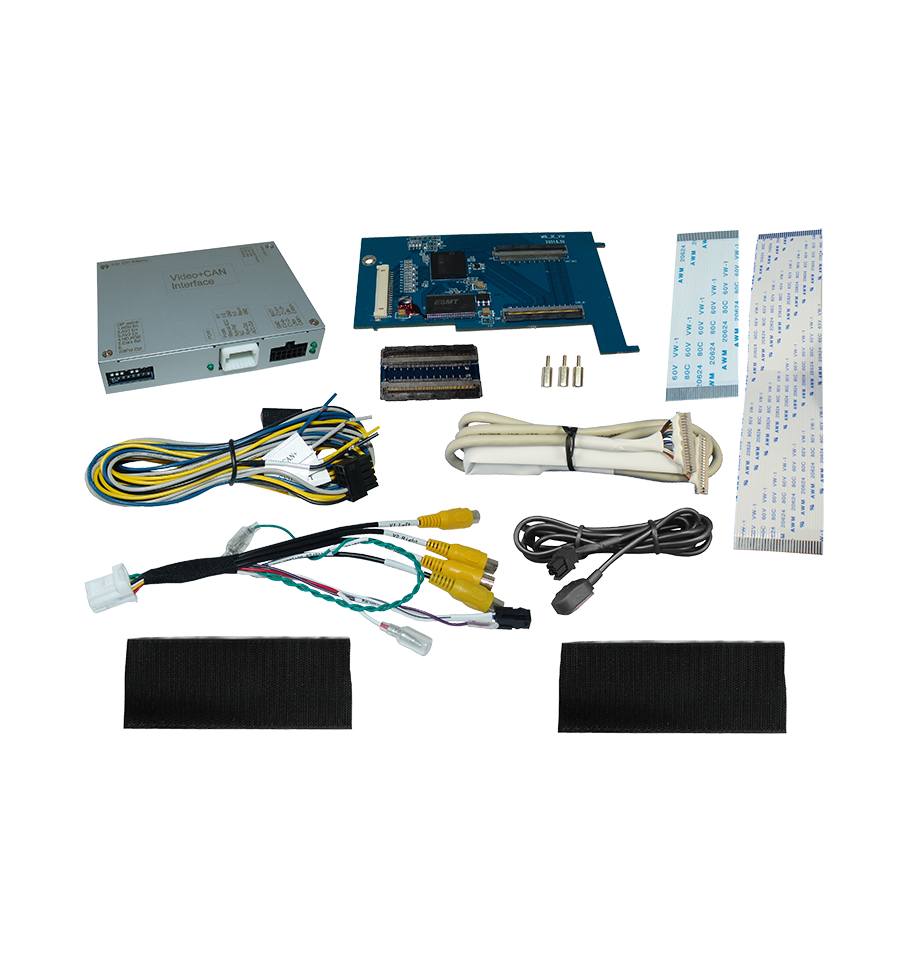

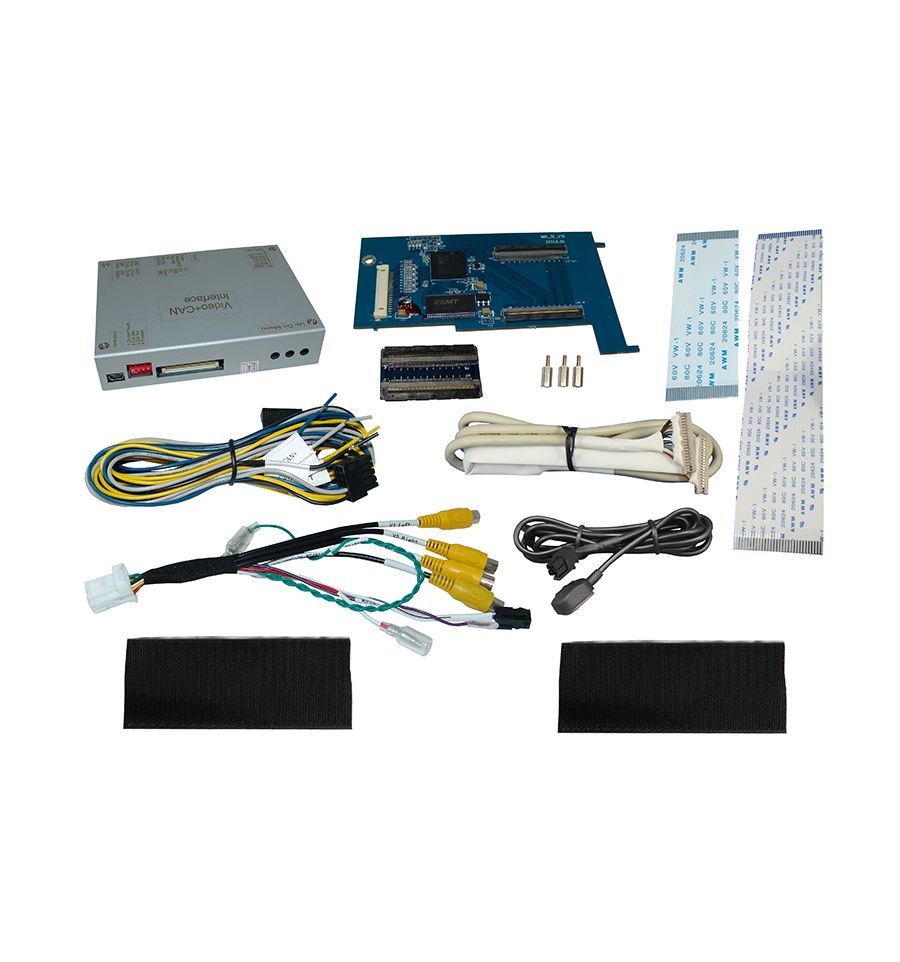

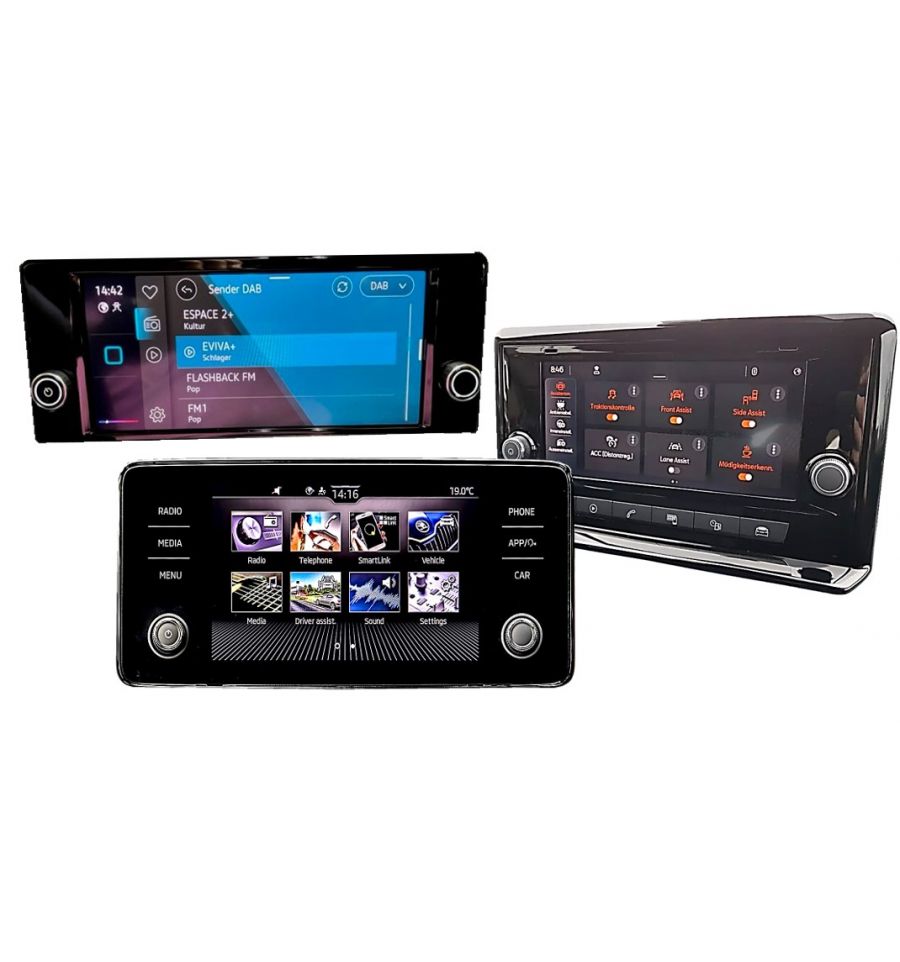

Ford Tourneo Connect 3 MIB3 Entry 8.25inch monitor rear and front camera interface
CI-RL4-MIB3-E-FO
New
Ford Tourneo Connect 3 MIB3 Entry 8.25inch monitor rear and front camera interface
Ford Tourneo Connect 3 MIB3 Entry 8.25inch monitor rear and front camera interface

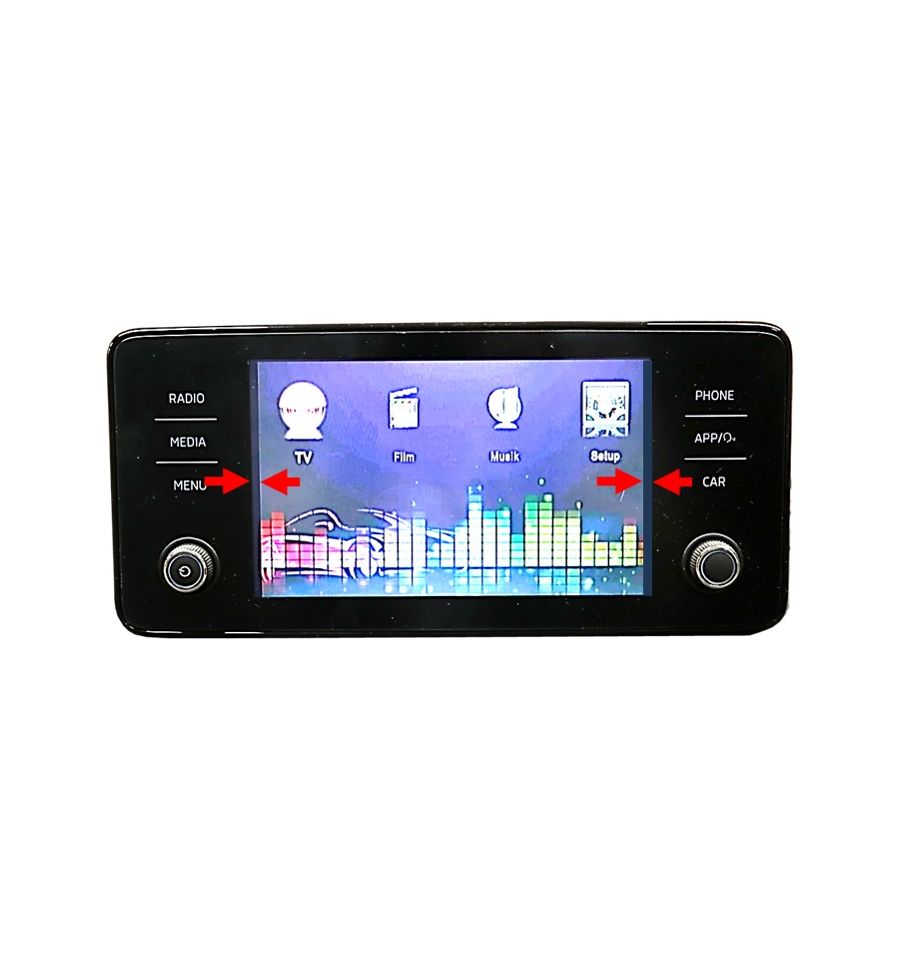

The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC - PAL compatible
Compatibility:
| Model | Radio / Navigation |
| Tourneo Connect 3 from 05/2022 | Audiosystem 2 MIB3 Entry - All-in-One DIN or short-DIN head-unit with 8.25inch monitor |
Limitations:
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
In case that 2 AV source shall be connected, a desired audio switching will require additional electronic.
Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
The front camera will automatically be switched for 5 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported.
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand-by power drain | 7mA |
| Power | 150mA @12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 116 x 25 x 103 mm (W x H x D) |
Connectors
- Video-insertion: 4pin HSD
- Power and CAN-bus: open cable ends (Power) and Plug & Play (Quadlock insert)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
