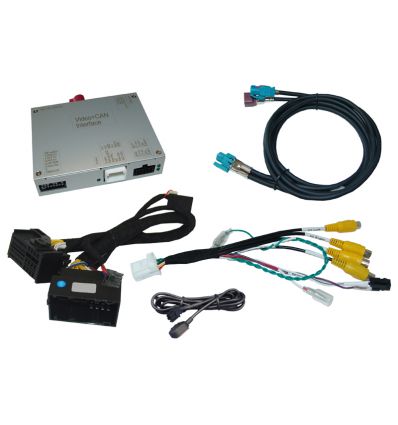

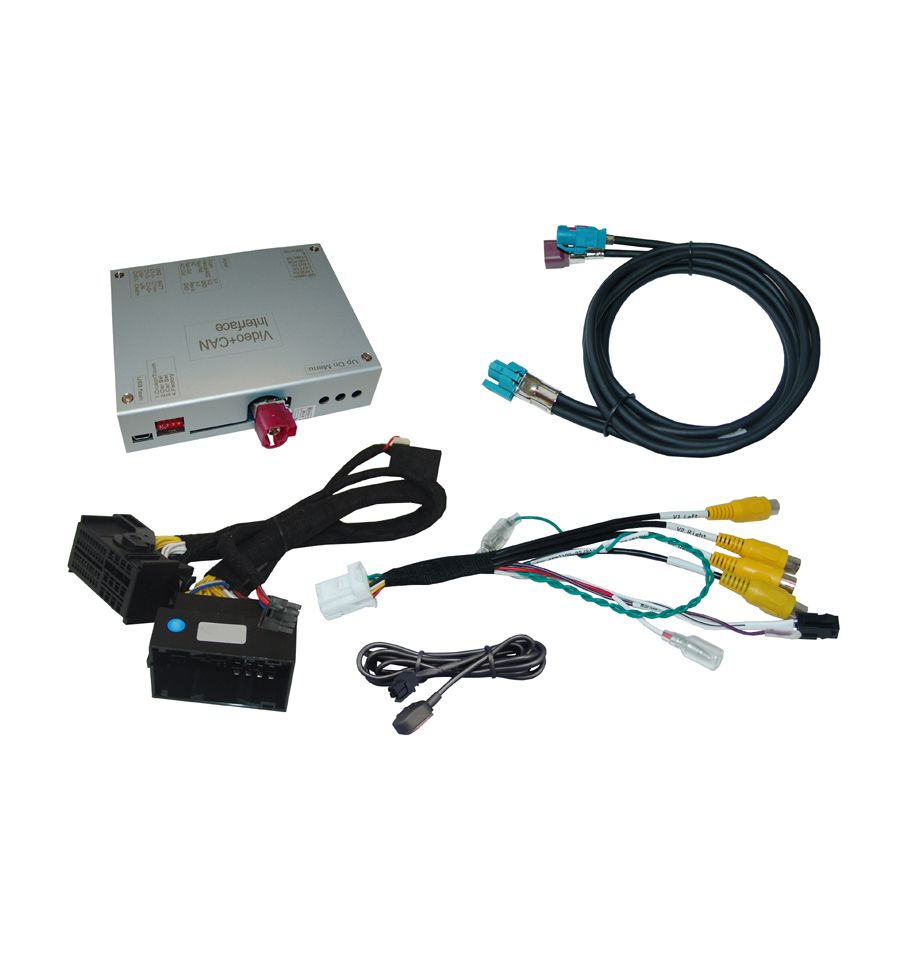

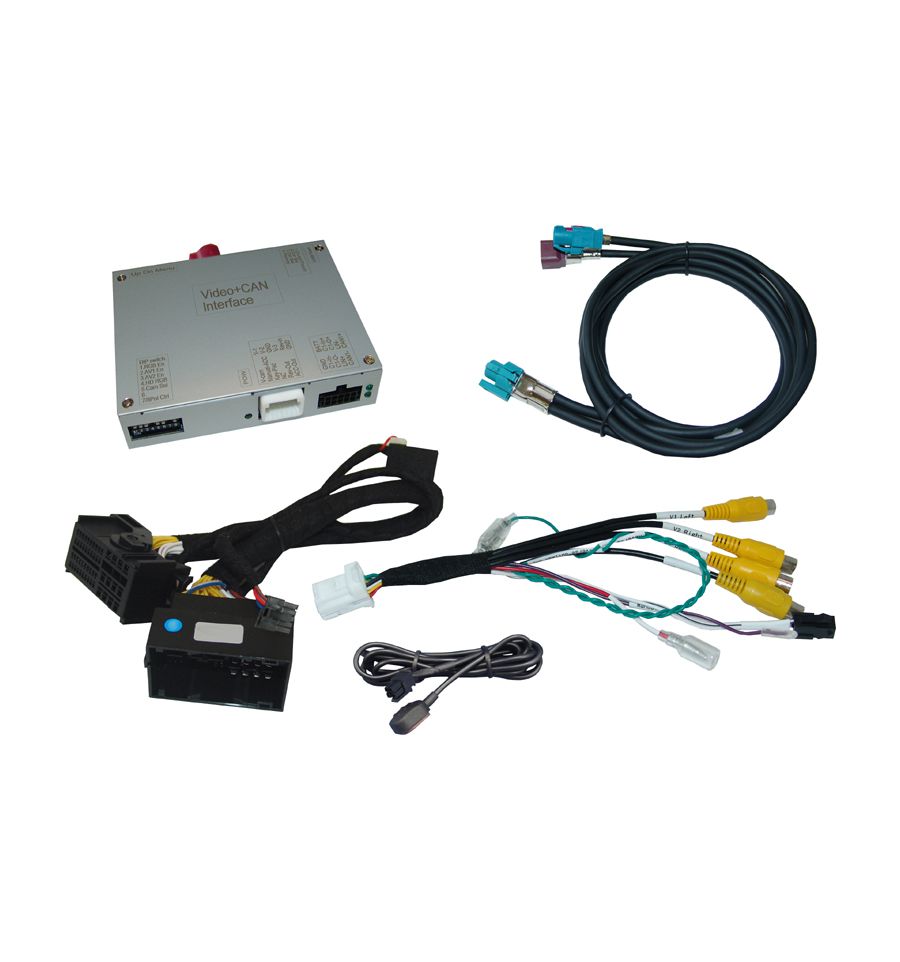

Video interface for Jeep 8.4" Uconnect from 2019
This interface allows to connect a rear-view camera front camera with auto switching and 2 video-sources. (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.
Product features:
- Video-insertion
- 2 video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Rear-view camera video-input
- Front camera video input
- Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 10 seconds (not available in all cars)
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs NTSC compatible only
Compatibility:
| Model | System |

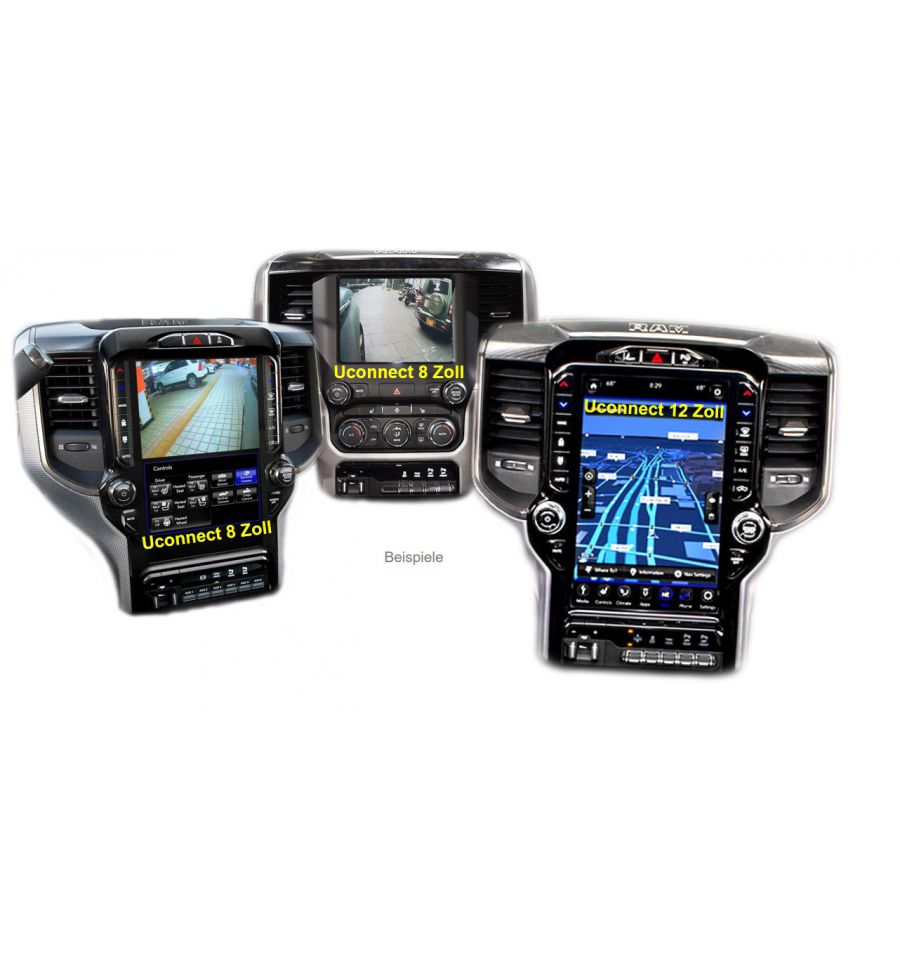

| Grand Cherokee from 2019 | Uconnect 4C NAV UAV Infotainment with 8,4inch monitor and separate head-unit |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Picture format | Only compatible with NTSC |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <10mA |
| Power | 0.7A@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 154 x 22 x 92 mm (W x H x D) |
Connections:
- Video-input: RCA connector
- Rear-view camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Jeep | Grand Cherokee |
| Category | Rear View Camera Interfaces, Video integration |
