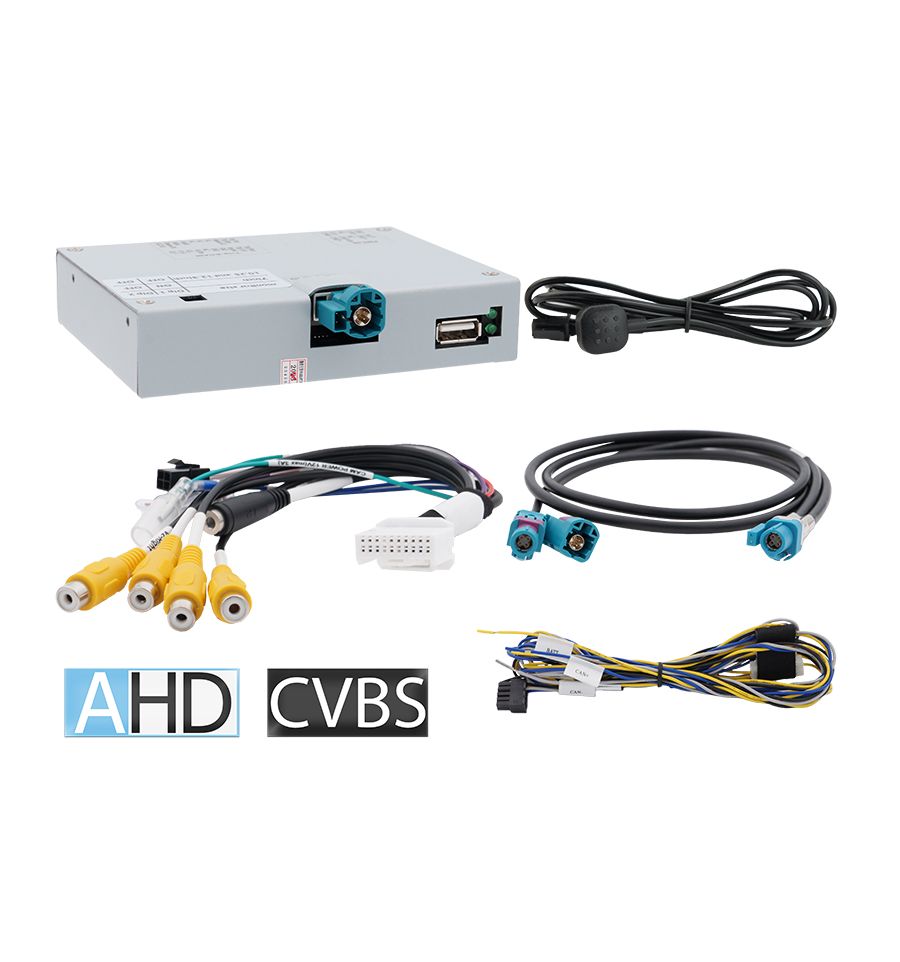

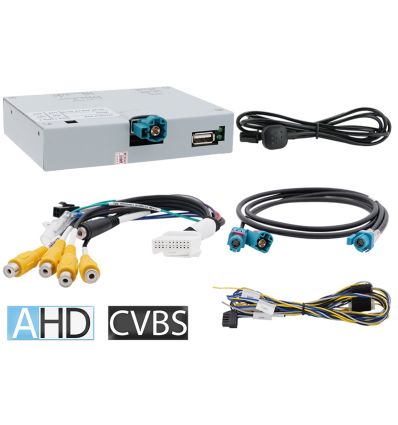

RVC AHD video nterface for rear view and front camera for Jeep Avenger with 10.25" IVI monitor
RVC AHD video nterface for rear view and front camera for Jeep Avenger with 10.25" IVI monitor
This interface allows you to integrate a rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).
Product features:
- Video-insertion for factory infotainment systems
- 1 Rear-view camera AHD/CVBS video-input
- 1 AHD/CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility:
| Modello | Radio / Navigazione |

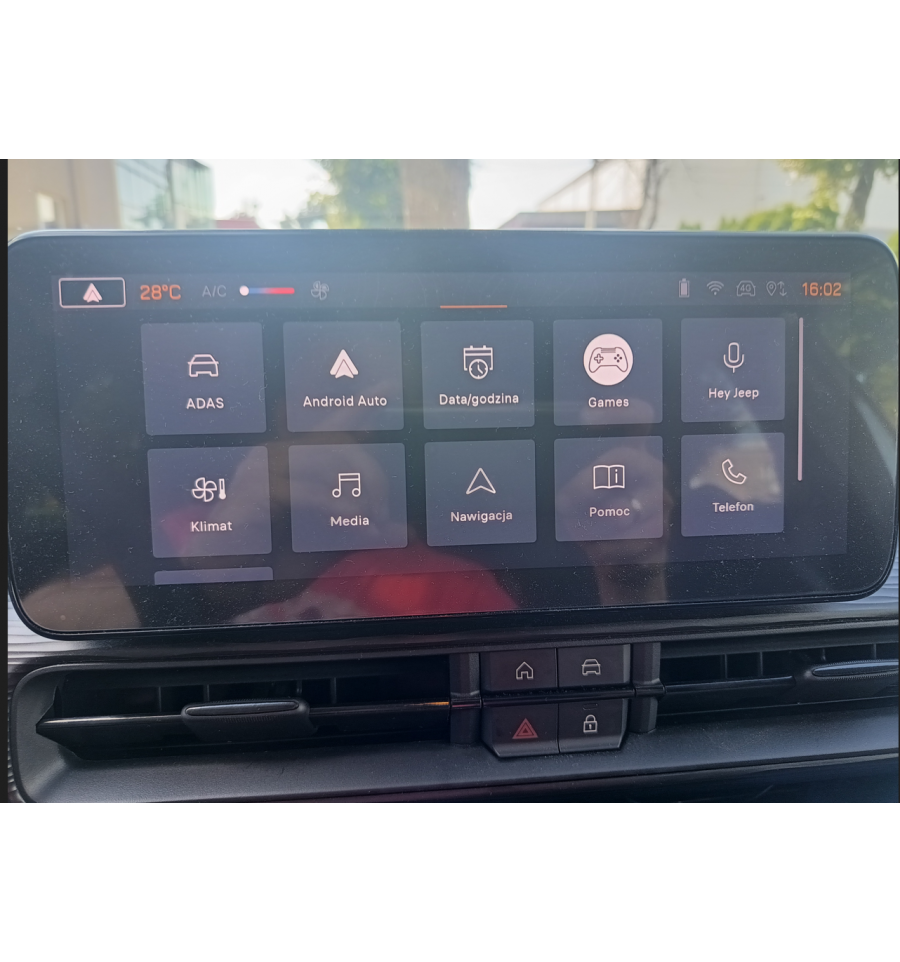

| Jeep Avenger 2023- | IVI Harmann 10.25inch touch monitor. Only for monitor with separate head unit |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 AV-sources shall be connected to the infotainment, for audio switching an additional electronic part is required. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | 2.8mA |
| Power | 300mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 118 x 23 x 105 mm (W x H x D) |

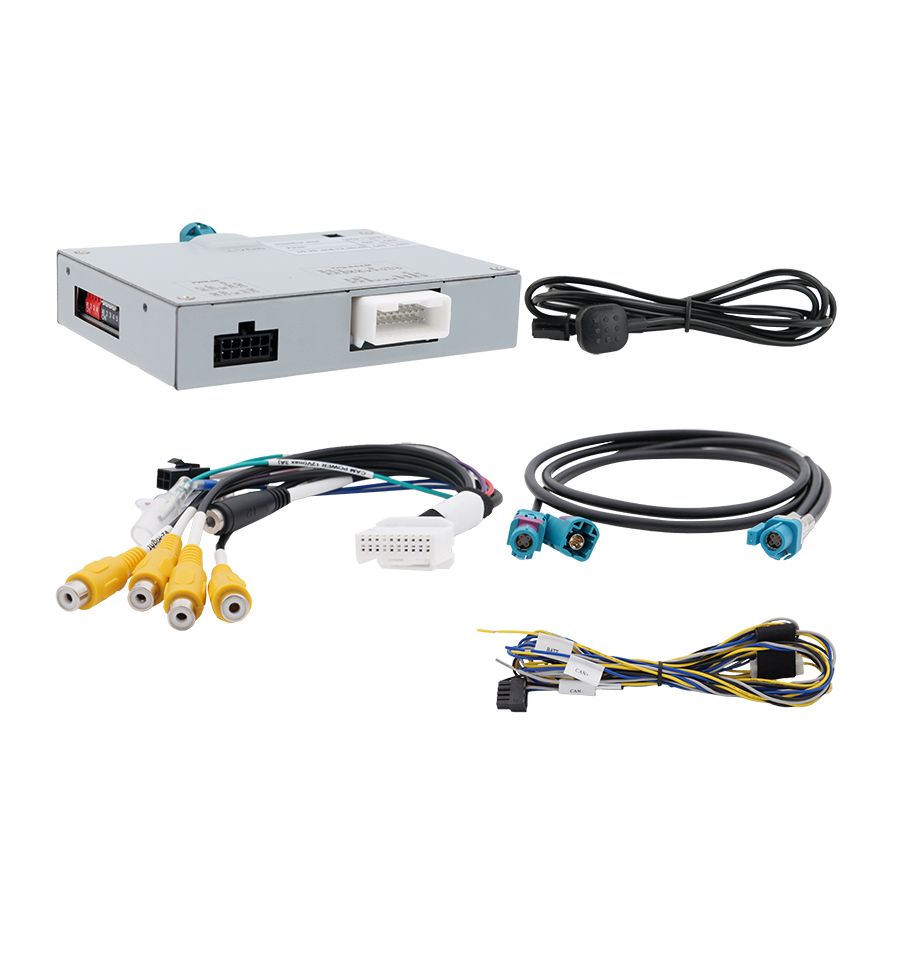

Connectors
- Video-insertion: 4-pin HSD or double 4-pin HSD
- Power and CAN-bus
- Video-input (2x): RCA connector
- Rear-view and front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
