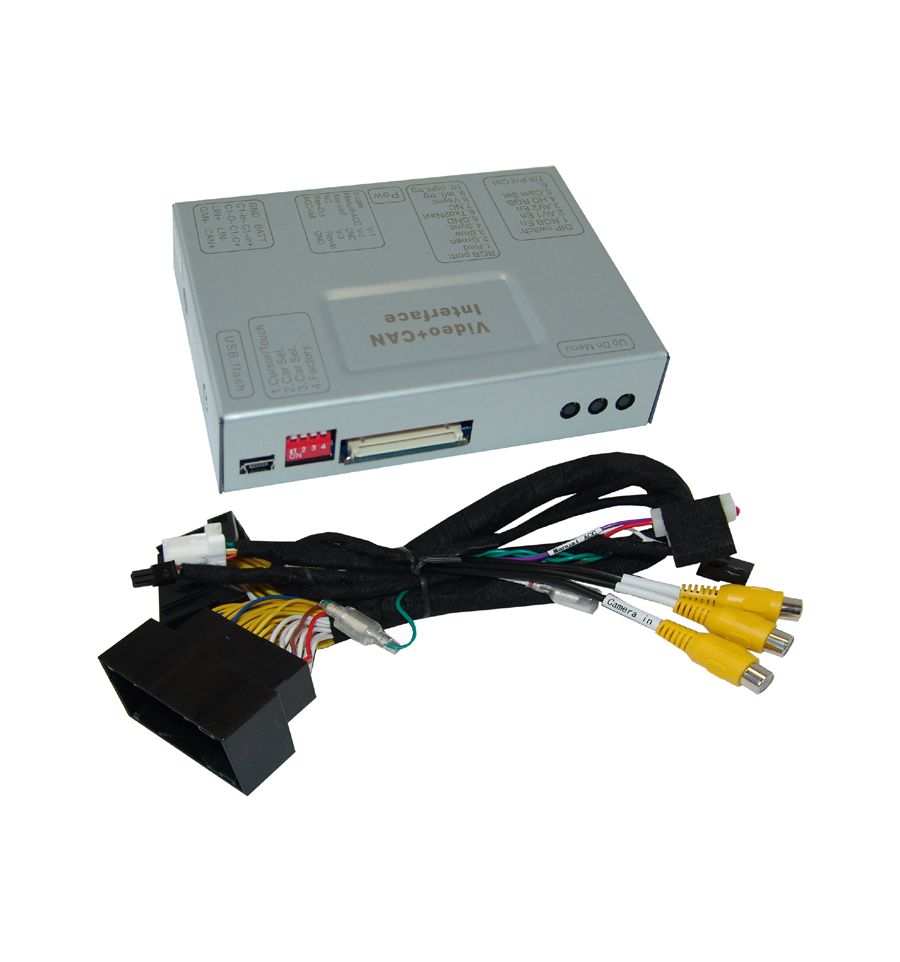

Lancia Uconnect 5" front and rear camera inputs video interface

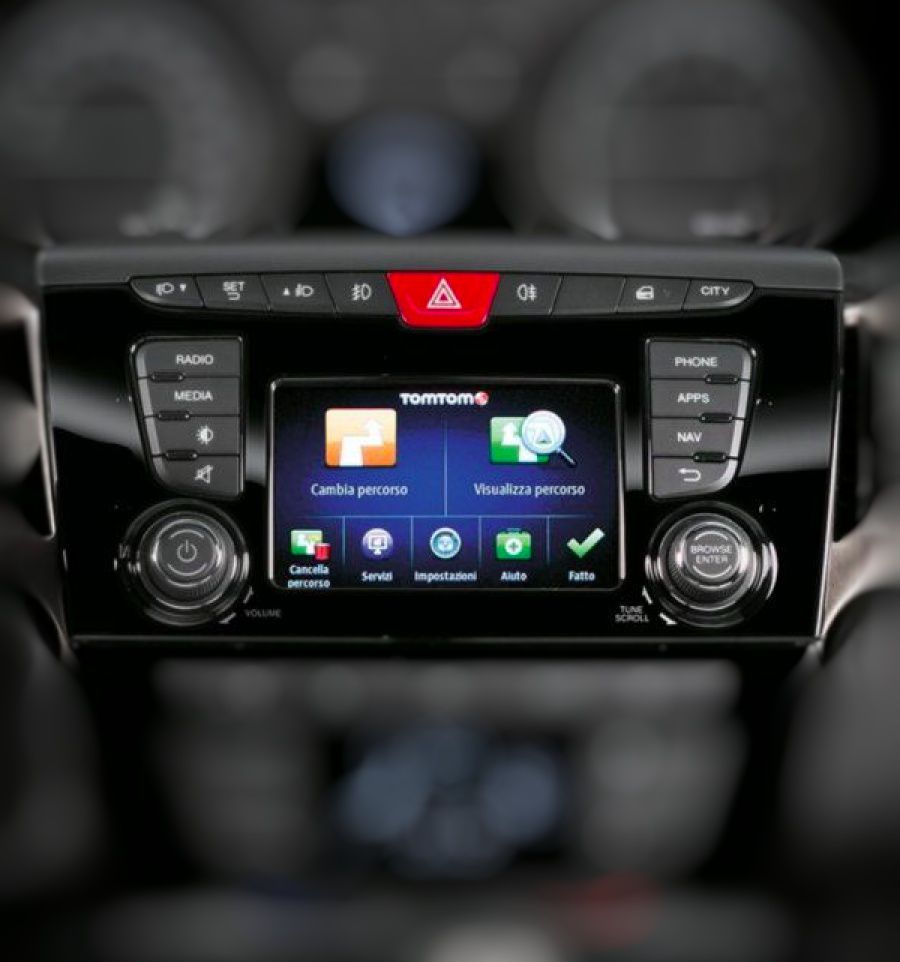

Video interface with front and rear camera inputs for Lancia Uconnect 5" (Radio - Radio Live) VP2/RA2 with CD-drive and DIN-shell behind front-panel.

Main features:

• Video-inserter for factory-infotainment systems
• 1 CVBS rear-view camera video-input
• 1 CVBS front camera video-input
• 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs PAL and NTSC compatible

Compatibility:

Limitations:

• Head unit must be temporary opened to install this interface, professional installation is required.
• The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
• The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.

Specifications:

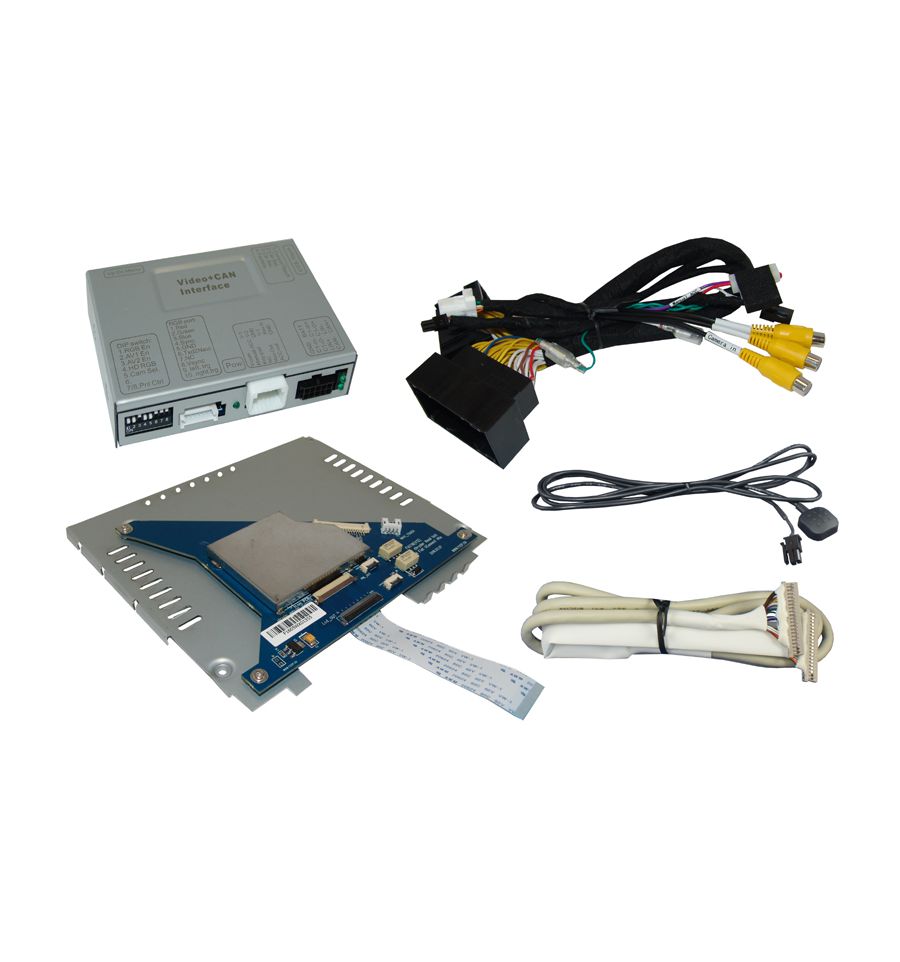

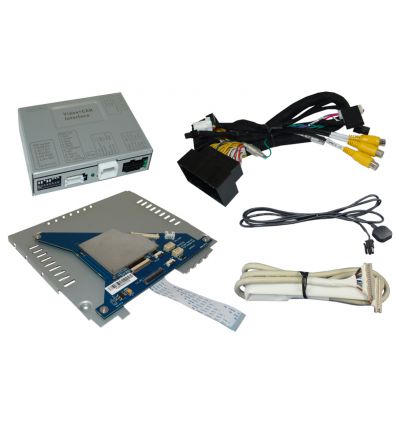

Connectors:

• Video-insertion: Ribbon cable
• Power and CAN-bus: Plug & play (vehicle specific)
• Video-input (2x): RCA female connector
• Rear-view camera-input: RCA female connector
• Front camera-input: RCA female connector

Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
