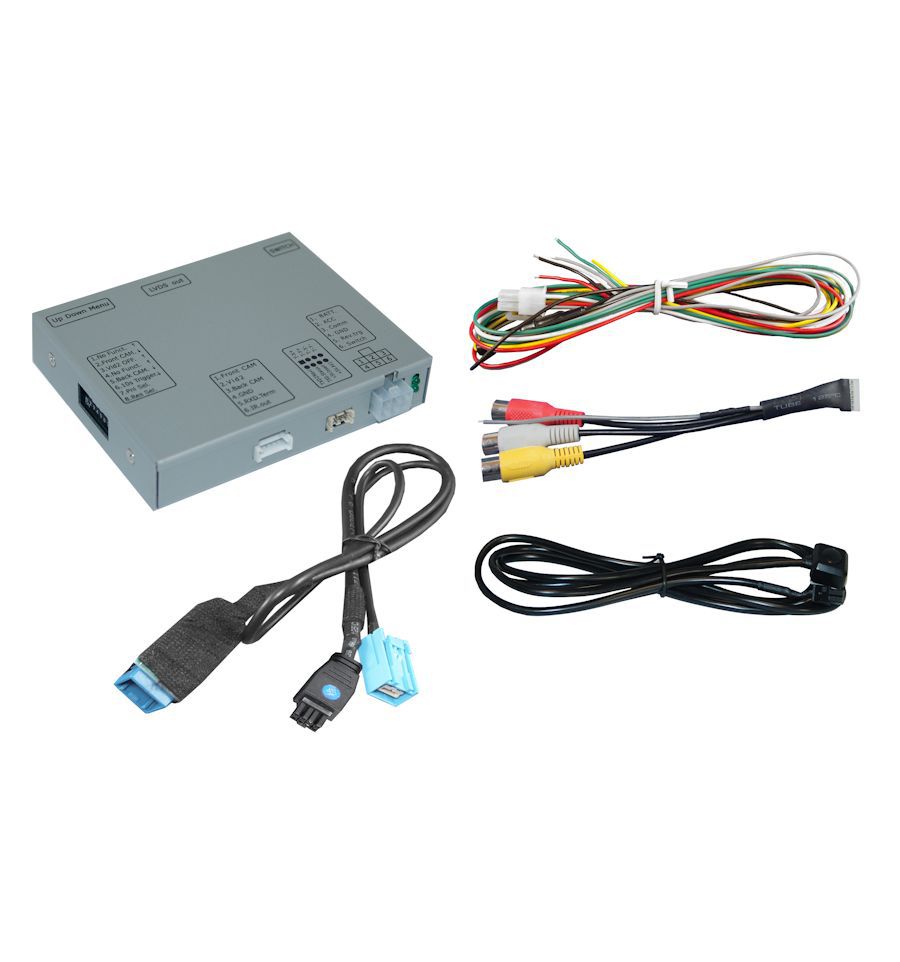

Video inserter for front- and rear-view camera and another video-source.
Compatible with Land Rover vehicles with factory navigation system version 1 and 1.1.
Valutazione: Scrivi per primo una recensione!
Video inserter compatible with Land Rover vehicles with factory navigation system version 1 and version 1.1 (Menu 2). For connection of a front-, rear-view camera and another video source.
Product features
- Video-inserter for factory-infotainment monitors
- Back and front camera CVBS video-input
- CVBS video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Manual switching to front camera by external keypad or factory button
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs NTSC compatible
Compatibility

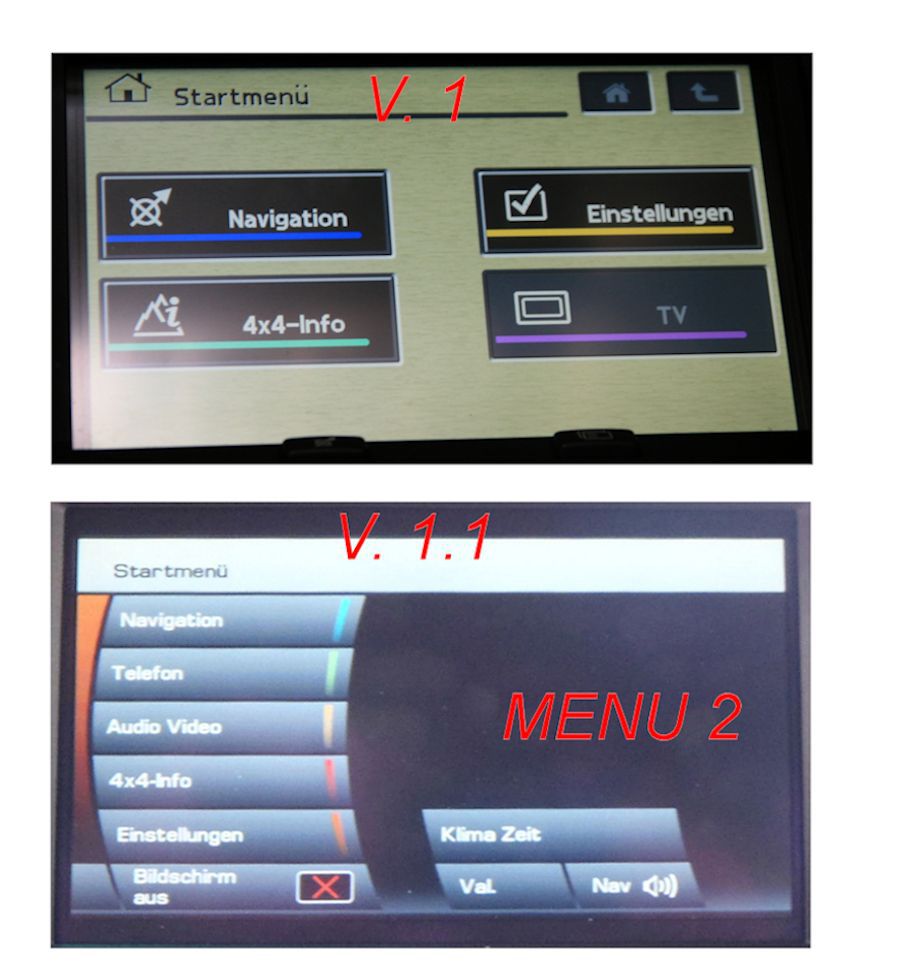

Compatible with Land Rover (ONLY vehicles with navigation) with factory navigation version 1 and version 1.1 (Menu 2) systems
| Model | Radio/Navigation |
| Range Rover Vogue (L322) 2005 > 2009 | Navigation version 1 |
| Range Rover Sport (L320) 2005 > 2009 | |
| Discovery 3 (L319) 2004 > 2009 | |
| Freelander 2 (L359) 2007 > 2012 | Navigation version 1.1 (Menu2) |
Limitations
Specifications(interface-box)
Connections (Interface-box)
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Factory rear-view camera | Automatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| Video-insertion | The inserted video can only be seen in map mode of factory navigation (the automatically switching to an after-market rear-view camera, too). |
| With touch-screen version 1 | Blue GVIF connectors of vehicle and interface must be cut and soldered (exchanged for each other). |
| Video Sources | Only compatible to NTSC Video Sources. |
Specifications(interface-box)
| Operation voltage | 7V – 25V |
| Stand-by power drain | <10mA |
| Video input | 0.7V - 1V |
| Video input formats | NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 113×22×92 mm (W×H×D) |

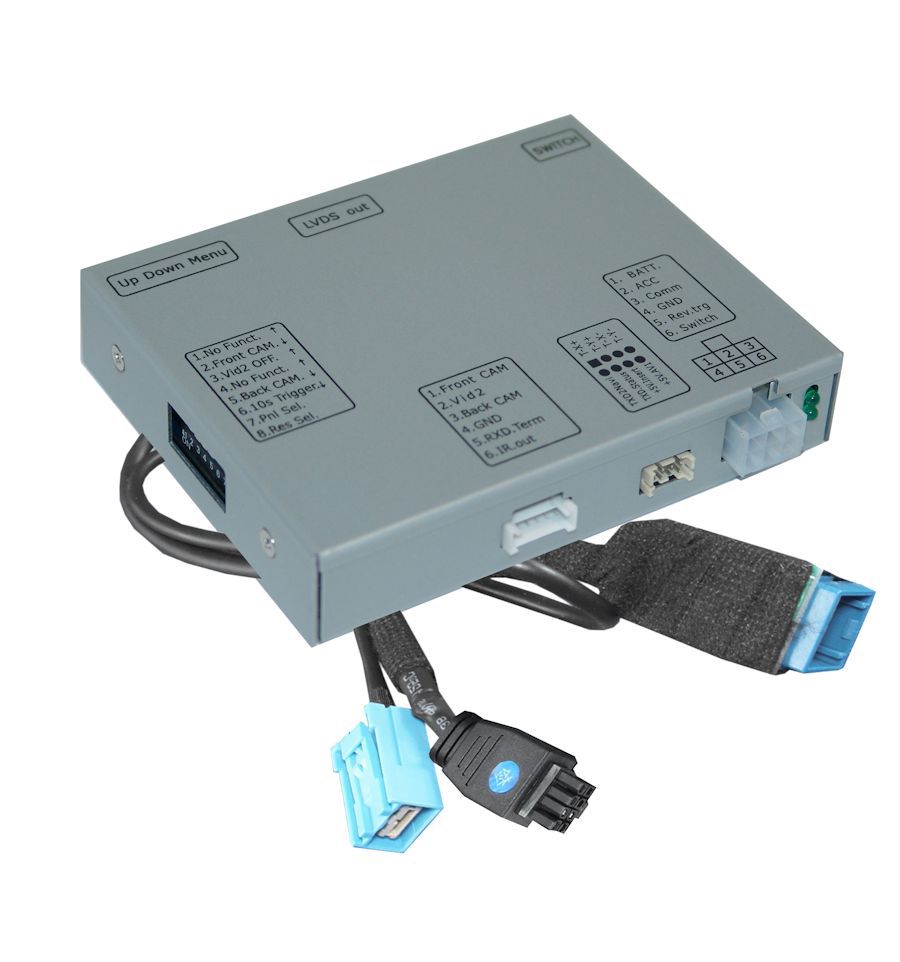

Connections (Interface-box)
- Video-insertion: standard/special blue GVIF
- Power supply: open leads
- Video-input: RCA connector
- Rear-view camera-input: RCA connector
- Front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Land Rover | Discovery, Freelander 2, Range Rover, Range Rover Sport |
| Category | Rear View Camera Interfaces, Video integration |
