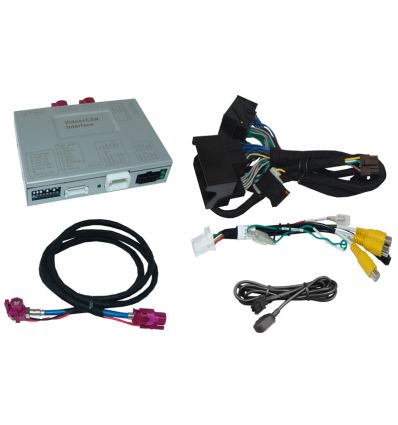

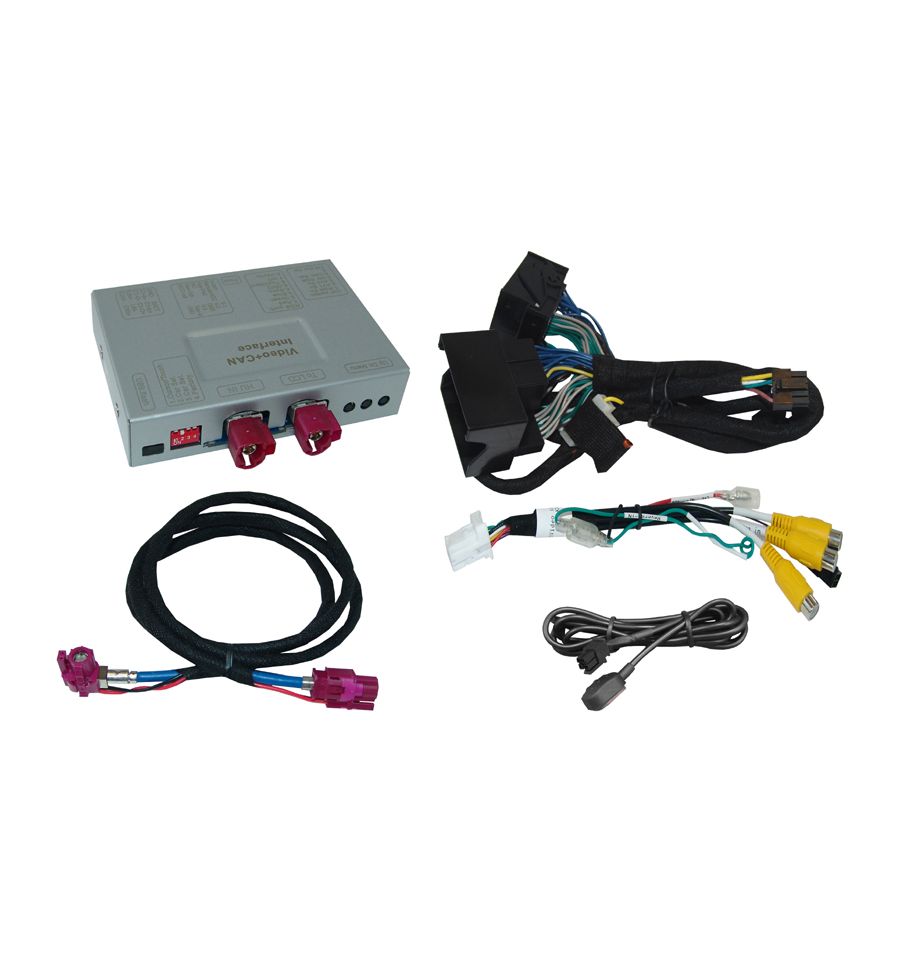

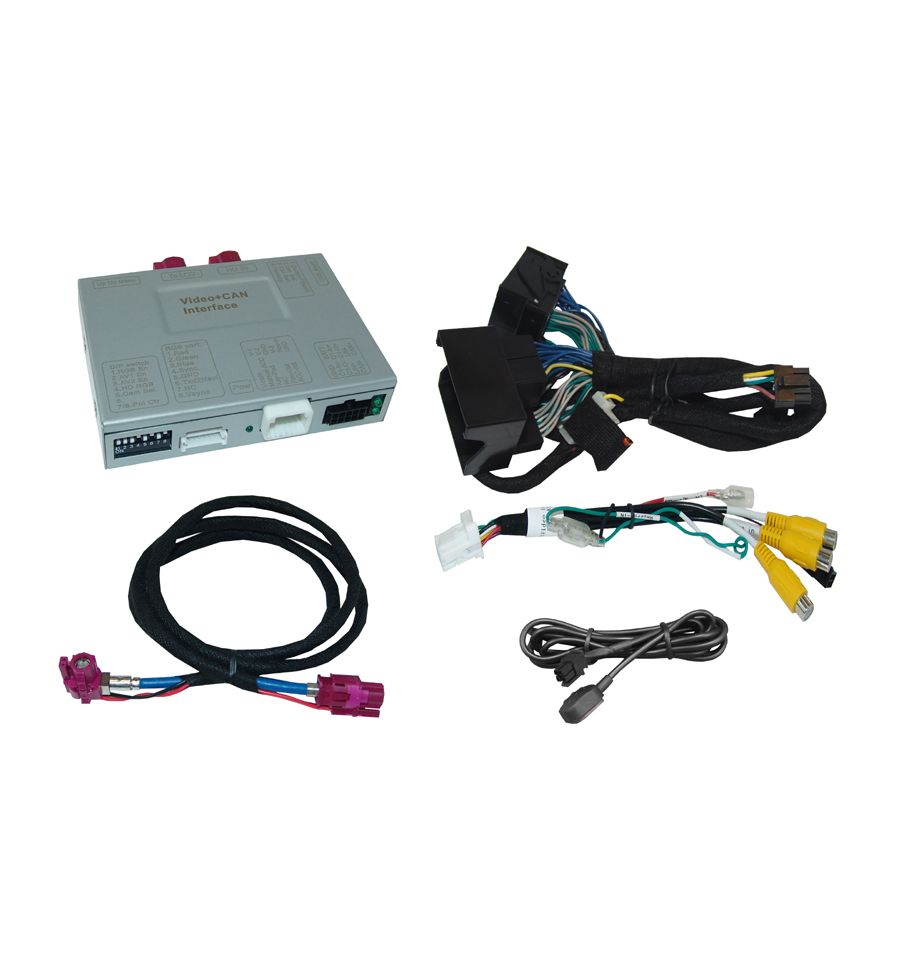

Video interface for Land Rover with Incontrol Touch 8" APIX2

Video interface for Land Rover with Incontrol Touch - 8inc

For connection of 2 different video sources (upgraded devices, for example DVD player, DVB-T tuner), 1 rear camera input,Supports touch-screen and factory optical park-system display (OPS).

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems)

Product features:

• Video-inserter for factory-infotainment systems
• 1 CVBS rear-view camera video-input
• 1 CVBS front camera video-input
• 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Activatable parking guide lines for rear-view camera (not available on all vehicles)
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC compatible

Compatibility:

Touch-screen menu version identification:

Limitations:

• The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

Specifications:

Connections:

• Video-insertion: 4+2 pin HSD+2 (Apix2)
• Power and CAN-bus: Plug & play
• Video-input (2x): RCA female connector
• Rear-view camera-input: RCA female connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
