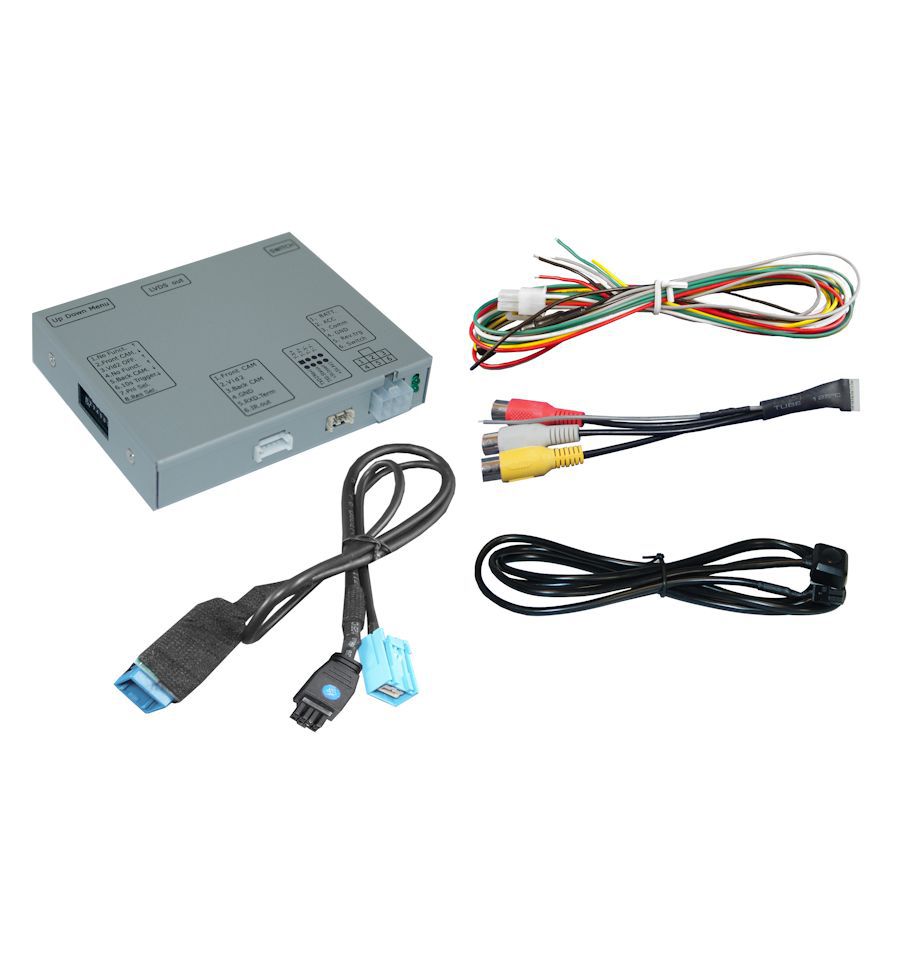

Video inserter for front- and rear-view camera and another video-source.
Compatible with Lexus vehicles with GVIF technology.
Valutazione: Scrivi per primo una recensione!
Video inserter compatible with Lexus vehicles with GVIF technology. For connection of a front-, rear-view camera and another video source.
Product features
- Video-inserter for factory-infotainment monitors
- Back and front camera CVBS video-input
- CVBS video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Manual switching to front camera by external keypad or factory button
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs NTSC compatible
Compatibility
Compatible with Lexus vehicles with GVIF technology
| Model | System |
| ES | Monitor and head-unit must be saparate units and connected with a GVIF-cable |
| GS | |
| IS | |
| LS (not 2012 LS600h) | |
| NX | |
| RX |
Limitations
Specifications (interface-box)
Connections (Interface-box)
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Factory rear-view camera | Automatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| Video Sources | Only compatible to NTSC Video Sources. |
Specifications (interface-box)
| Operation voltage | 7V – 25V |
| Stand-by power drain | <10mA |
| Video input | 0.7V - 1V |
| Video input formats | NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 113×22×92 mm (W×H×D) |

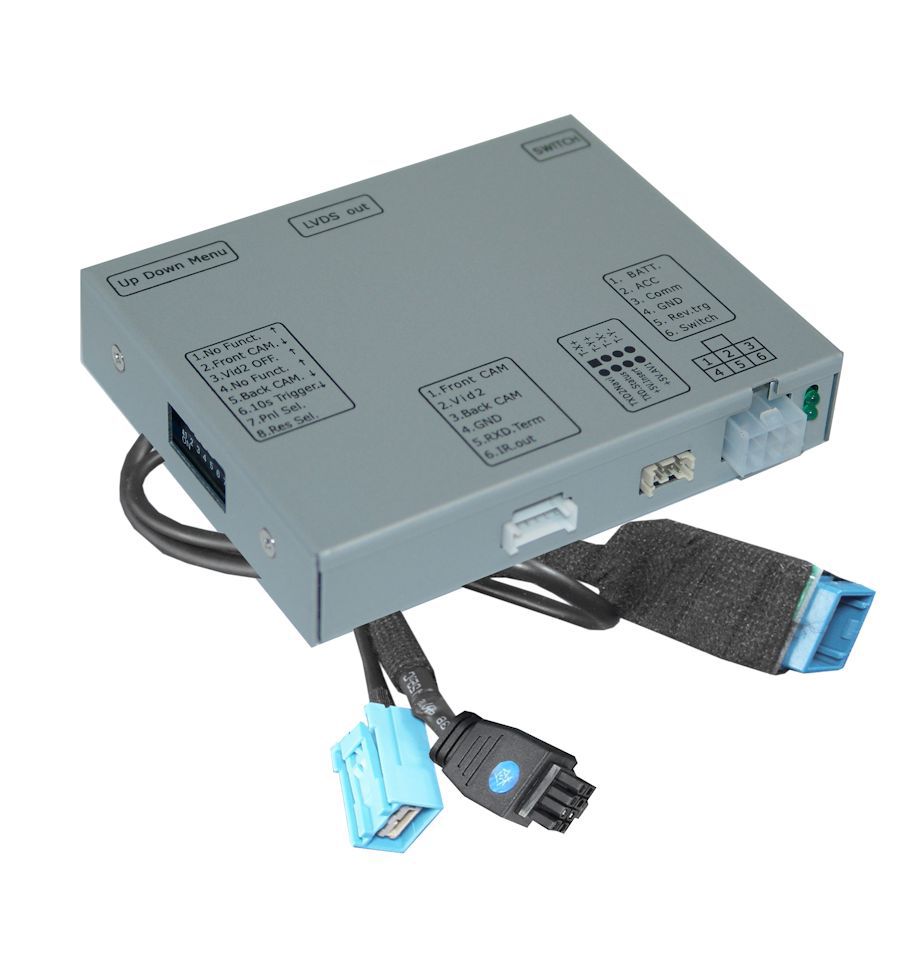

Connections (Interface-box)
- Video-insertion: standard/special blue GVIF
- Power and CAN-bus: Plug & play
- Video-input: RCA connector
- Rear-view camera-input: RCA connector
- Front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Lexus | ES, GS, IS, LS, NX, RX |
| Category | Rear View Camera Interfaces, Video integration |
