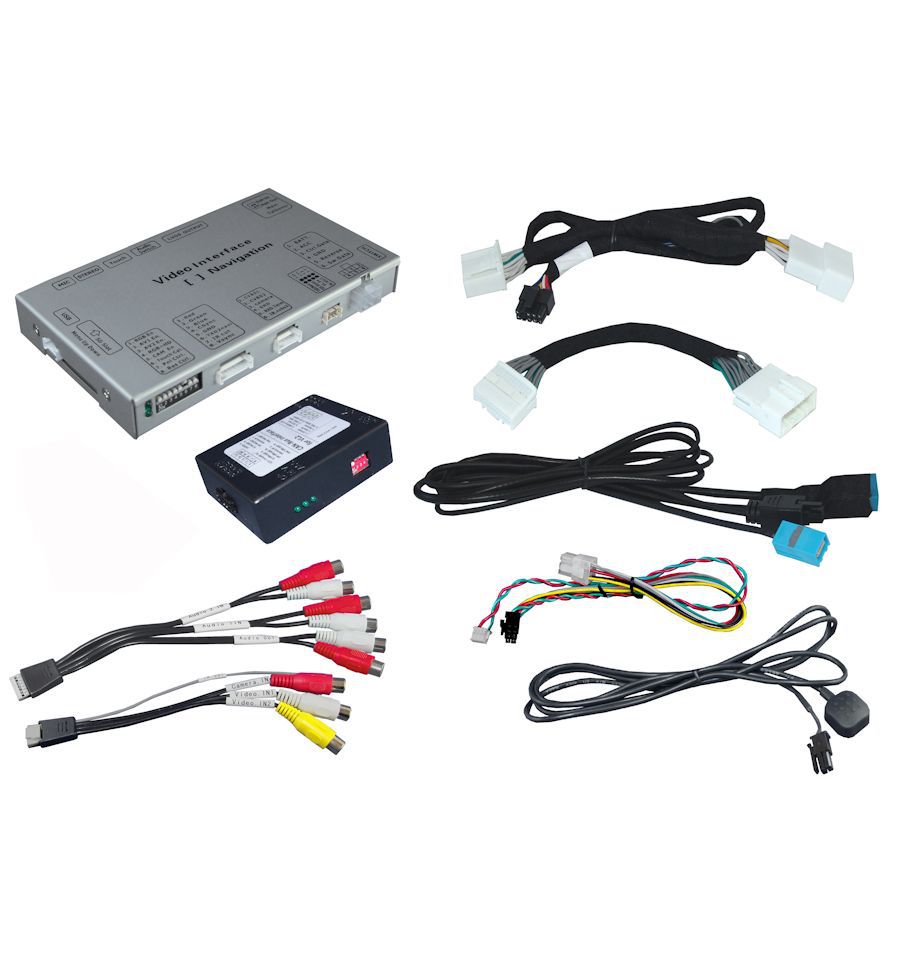

Video interface for Lexus year 2014 with 12inch monitor

Video interface for Lexus year 2014 with 12inch monitor.

The v.LINK interface allows to insert 2 different video sources (upgraded devices, for example DVD player, DVB-T tuner) and 1 rear-view camera.

 Product features:

• Video-insertion for factory-infotainment monitors
• 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
• Built-in audio-switch (no audio-insertion)
• Rear-view camera CVBS video-input
• Automatic switching to rear-view camera input on engagement of reverse gear
• Video-in-motion (ONLY for connected video-sources)
• Compatible with factory rear-view camera
• AV-inputs PAL/NTSC compatible

Compatibility:

Compatible to Lexus LS600h from 2014 and other vehicles with factory navigation system with 12inch monitor.

Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

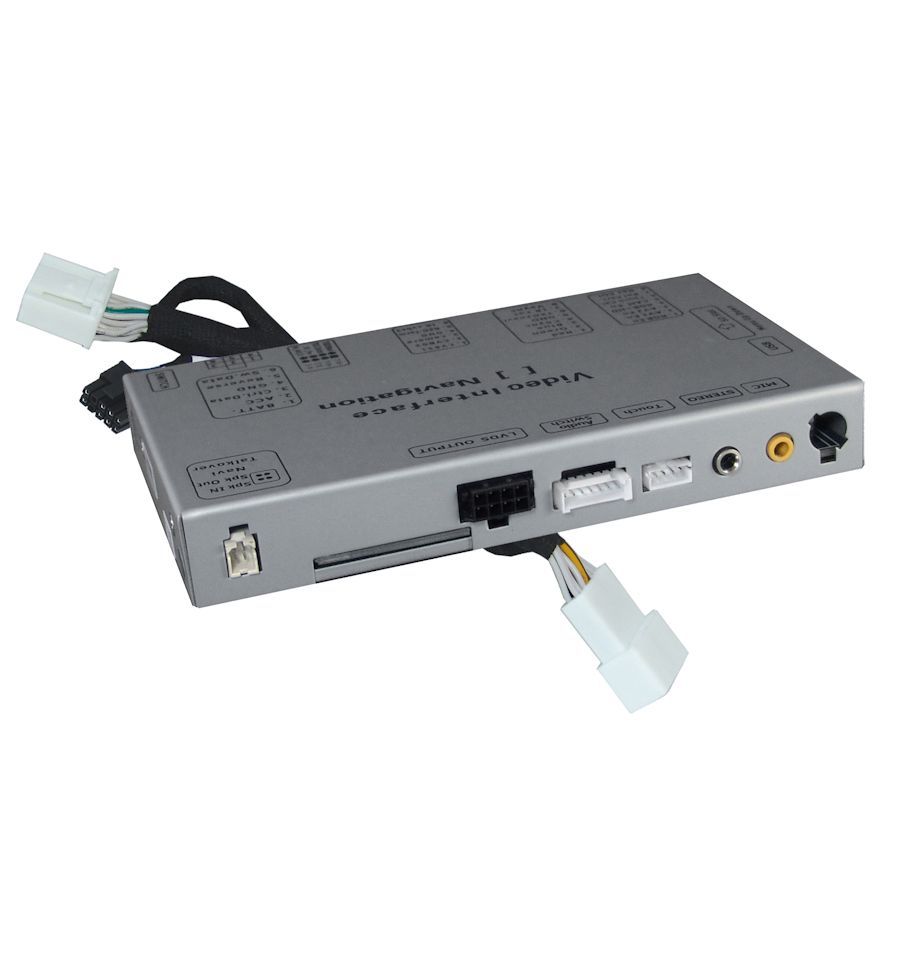

Connections:

• Video-insertion: standard blue GVIF
• Power and CAN-bus: Plug & play
• Video-input (2x): RCA connector
• Rear-view camera-input: RCA connector
• Audio-switch: 2-channel RCA connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
