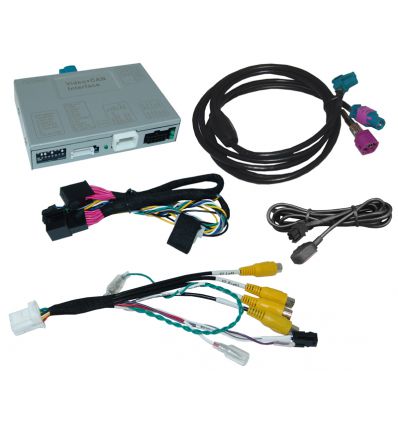

MERCEDES NTG5 - NTG5.1 Comand Online and Audio 20 rear and front camera input video interface
CI-RL4-MBN51
New
Video inserter for front - and rear-view camera and 2 video-sources.
Compatible with Mercedes Benz vehicles generation NTG5-205 and NTG5.1 with Comand Online or Audio20.
Valutazione: Scrivi per primo una recensione!
Video inserter for front - and rear-view camera and 2 video-sources.
Compatible with Mercedes Benz vehicles generation NTG5-205 and NTG5.1 with Comand Online or Audio20.
Product features
- Video-inserter for factory-infotainment systems
- 2 CVBS video inputs for back- and front camera
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Manual switching to front camera by keypad or factory-button
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs PAL/NTSC compatible
Compatibility

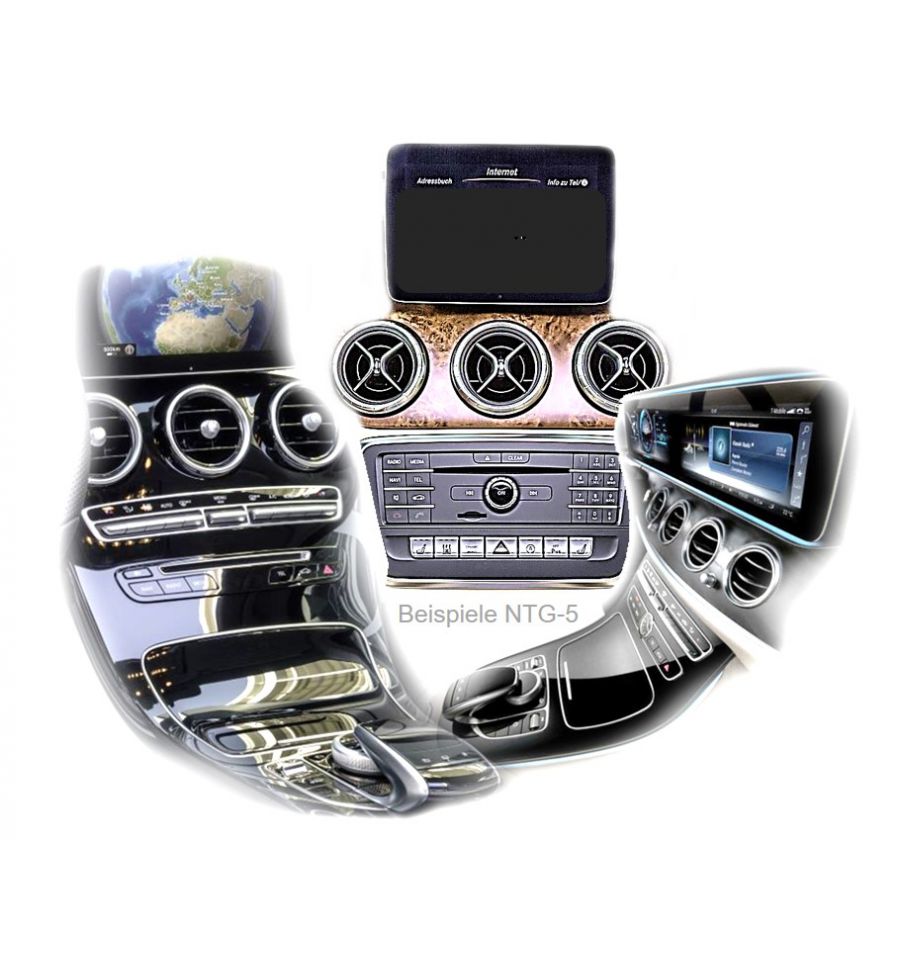

Compatible with Mercedes Benz vehicles with Comand Online NTG5/5.1, Audio20 CD NTG5/5.1 and Audio20 USB NTG5/5.1 with 4pin HSD LVDS connector on the monitor.
| Model | Radio/Navigation |
| Class A (W176) da 09/2015 a 04/2018 | Comand Online NTG5-205 Audio20 CD NTG5-205 Audio20 USB NTG5-205 Comand Online NTG5.1 Audio20 NTG5.1 |
| Class B (W246) da 11/2014 a 11/2018 | |
| Class C (W205) 09/2014-07/2018 | |
| Class C (S205) 06/2014-07/2018 | |
| Class C Convertible (A205) 07/2016-07/2018 | |
| Class C Coupe (C205) 10/2015-07/2018 | |
| CLA Coupe (C117) da 10/2014 a 02/2019 | |
| CLA-Shooting B (X117) da 03/2015 a 06/2019 | |
| CLS Coupe (W218) da 08/2014 a 01/2018 | |
| CLS-Shooting B (X218) da 08/2014 a 2019 | |
| Class E (S/W212) da 11/2014 | |
| Class E Coupe (C207) 06/2015 - 08/2017 | |
| Class G (W463) da 10/2016 a 04/2018 | |
| Class GL (X166) da 09/2016 | |
| GLA (X156) 09/2015-01/2020 | |
| GLC Coupe (C253) 09/2016-ca.05/2019 | |
| GLC SUV (X253) 06/2015-ca.05/2019 | |
| GLE Coupe (C292) 07/2015-05/2019 | |
| GLE SUV (W166) 04/2015-10/2018 | |
| GLS SUV (X166) 10/2015-04/2019 | |
| GT AMG Coupe (C190) 03/2015-12/2021 | |
| GT AMG Roadster (R190) 03/2015-12/2021 | |
| SL (R231) 06/2015-06/2020 | |
| SLC (R172) 05/2015-06/2020 | |
| V-Class (W447) 05(2014-02/2020 | |
| X-Class (BR470) 11/2017-ca.06/2020 |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. For AUX option coding we offer OBD-coder CI-OBD-N45-X-01. |
| Factory rear-view camera | Automatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications(interface-box)
| Operating voltage | 12V DC (7~25V) |
| Standby current | 10mA |
| Current consumption | 280mA |
| Video input | 0.7~1V |
| Video input formats | PAL/NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 117 x 25 x 105mm (W x H x D) |

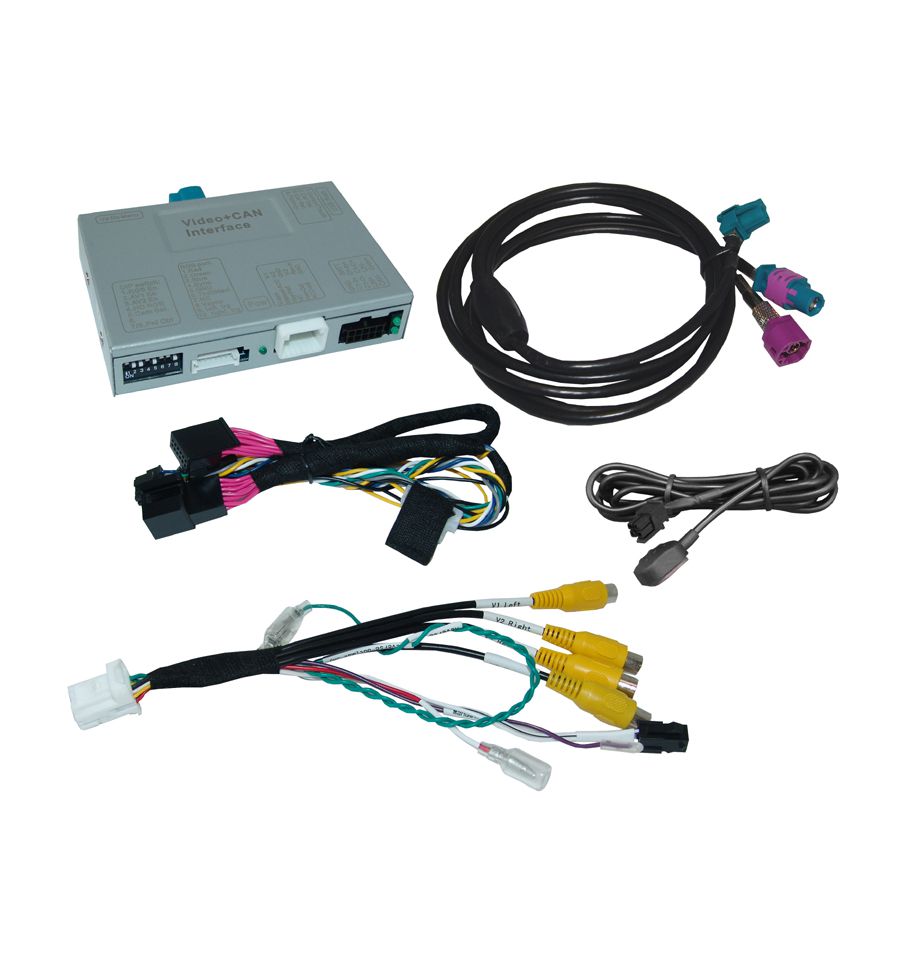

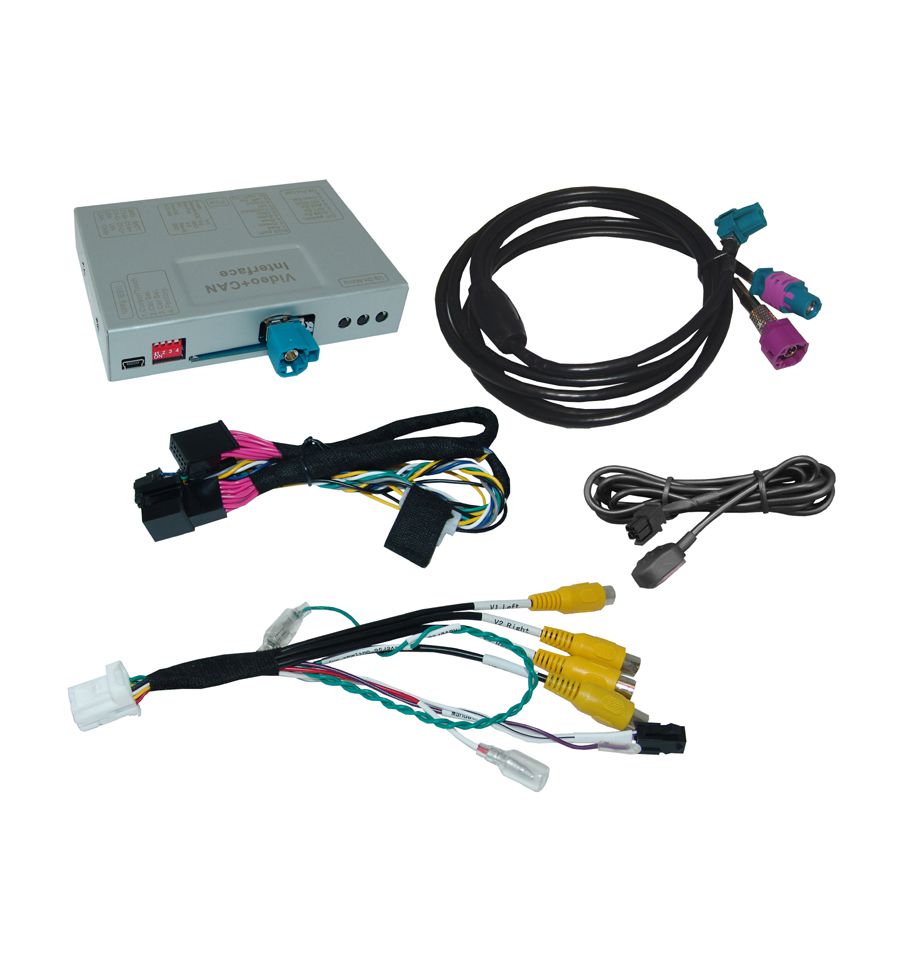

Connections (Interface-box)
- Video-insertion: 4-pin HSD
- Power: Open cable ends
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Mercedes | AMG GT C190, ML Class W166, V Class W447, CLS Coupè C218, CLS X218, GLA X156, GLC X253, GLE C292, GLS X166, GL Class X166, Class G W463, CLA Coupè C117, CLA X117, A Class W176, B Class W246, C Class Coupè C204, Classe C Coupè C205, E Class Coupè C207, E Class W212 |
| Category | Rear View Camera Interfaces, Video integration |
