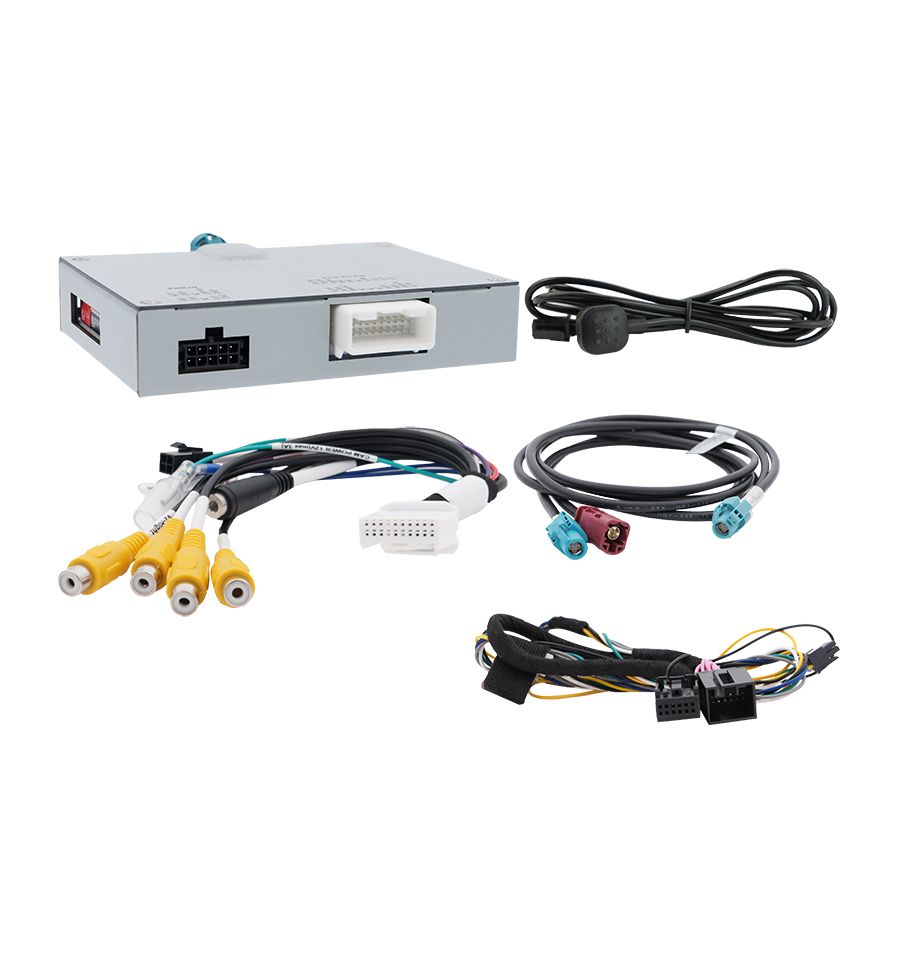

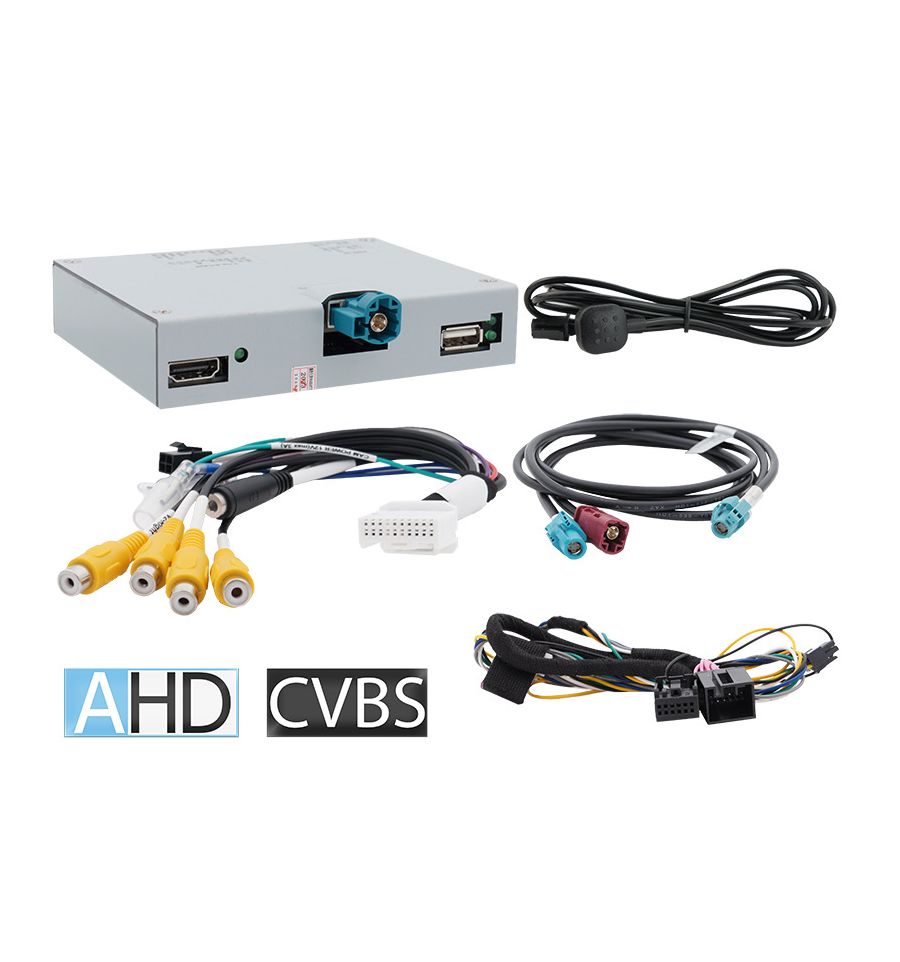

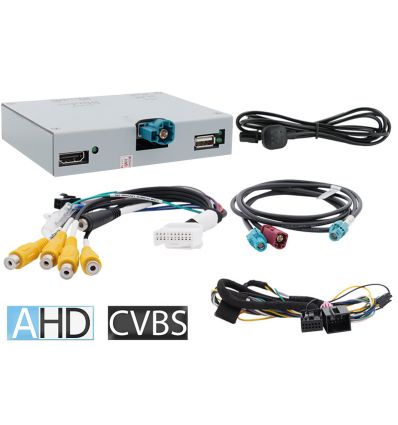

MERCEDES NTG5 NTG5.1 Comand Online or Audio20 AHD/CVBS/HDMI rear and front camera input interface
CI-HDV-MBN51
New
Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible. Additional HDMI input. Compatible with Mercedes Benz vehicles generation NTG5-205 or NTG5.1 with Comand Online or Audio20
Valutazione: Scrivi per primo una recensione!
Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible. Additional HDMI input. Compatible with Mercedes Benz vehicles generation NTG5-205 or NTG5.1 with Comand Online or Audio20
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS/AHD-input for rear-view camera
- 1 CVBS/AHD-input for front camera
- 2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
- All inputs NTSC and PAL compatible
- Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
- 1 HDMI-input for HD rear-view camera or additional HDMI-sources (e.g., IOS/Android, laptop, streaming stick, DVD-Player, DVB-T2 Tuner, etc.)
- Automatic switching to rear-view camera input while reverse gear is engaged
- Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
- Activatable driving-path lines for rear-view camera (not available for all vehicles)
- Picture free during the car ride (only for inserted video-sources)
Compatibility
Compatible with Mercedes Benz vehicles with Comand Online NTG5/5.1, Audio20 CD NTG5/5.1 and Audio20 USB NTG5/5.1 with 4pin HSD LVDS connector on the monitor.
| Model | Radio/Navigation |
| Class A (W176) da 09/2015 a 04/2018 | Comand Online NTG5-205 Audio20 CD NTG5-205 Audio20 USB NTG5-205 Comand Online NTG5.1 Audio20 NTG5.1 |
| Class B (W246) da 11/2014 a 11/2018 | |
| Class C (W205) 09/2014-07/2018 | |
| Class C (S205) 06/2014-07/2018 | |
| Class C Convertible (A205) 07/2016-07/2018 | |
| Class C Coupe (C205) 10/2015-07/2018 | |
| CLA Coupe (C117) da 10/2014 a 02/2019 | |
| CLA-Shooting B (X117) da 03/2015 a 06/2019 | |
| CLS Coupe (W218) da 08/2014 a 01/2018 | |
| CLS-Shooting B (X218) da 08/2014 a 2019 | |
| Class E (S/W212) da 11/2014 | |
| Class E Coupe (C207) 06/2015 - 08/2017 | |
| Class G (W463) da 10/2016 a 04/2018 | |
| Class GL (X166) da 09/2016 | |
| GLA (X156) 09/2015-01/2020 | |
| GLC Coupe (C253) 09/2016-ca.05/2019 | |
| GLC SUV (X253) 06/2015-ca.05/2019 | |
| GLE Coupe (C292) 07/2015-05/2019 | |
| GLE SUV (W166) 04/2015-10/2018 | |
| GLS SUV (X166) 10/2015-04/2019 | |
| GT AMG Coupe (C190) 03/2015-12/2021 | |
| GT AMG Roadster (R190) 03/2015-12/2021 | |
| SL (R231) 06/2015-06/2020 | |
| SLC (R172) 05/2015-06/2020 | |
| V-Class (W447) 05(2014-02/2020 | |
| X-Class (BR470) 11/2017-ca.06/2020 |
Limitations
Specifications(interface-box)
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. For AUX option coding we offer OBD-coder CI-OBD-N45-X-01. |
| Factory rear-view camera | Automatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications(interface-box)
| Operation voltage | 9V – 16V |
| Stand-by power drain | 3mA |
| Video input | 07V - 1V |
| Video input format | CVBS/AHD/HDMI NTSC/PAL |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 115 x 25 x 109mm (W x H x D) |
Connections :
- Video: 4-pin HSD LVDS
- Cablaggio Alimentazione a fili liberi e CAN-bus plug&play
- Video-inputs (2x): RCA connector
- Rear-view camera-input: RCA connector
- Front camera-input: RCA connector
- Ingresso video HDMI
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
