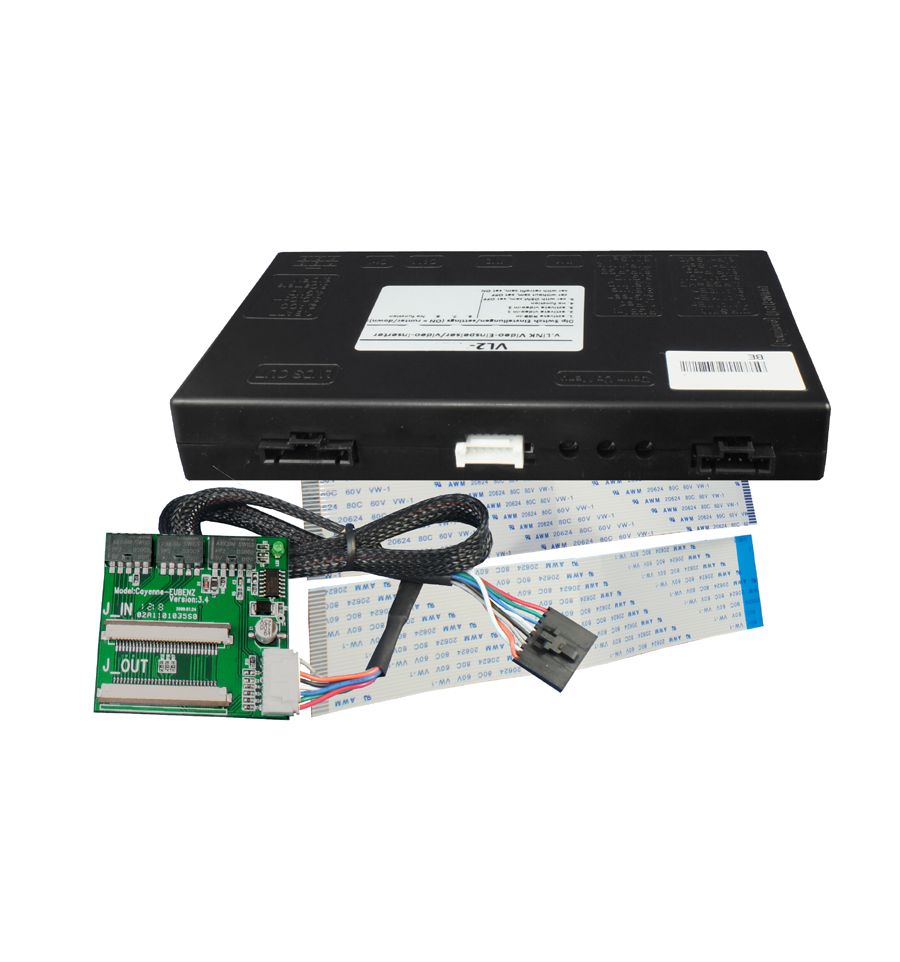

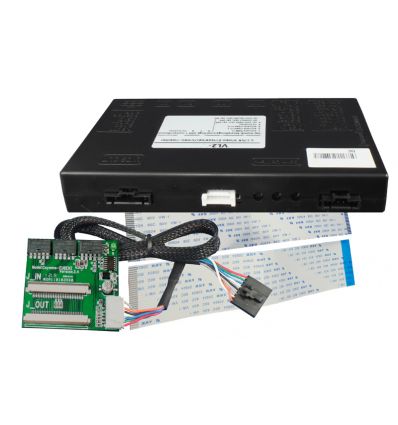

Video interface for Mercedes vehicles with Comand APS NTG1 and NTG2 navigation.
Video interface for Mercedes vehicles with Comand APS NTG1 and NTG2 navigation.
This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.
The multimedia interface has 2 video inputs and a rear camera input The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance.
Product features:
- Video-insertion for factory-infotainment monitors
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Rear-view camera CVBS video-input
- Automatic switching to rear-view camera input on engagement of reverse gear
- Switching of video through steering-wheel button and external switch
- Video inputs only NTSC compatible (only PAL compatible if factory TV is installed)
- Compatible with factory rear-view camera
Compatibility:

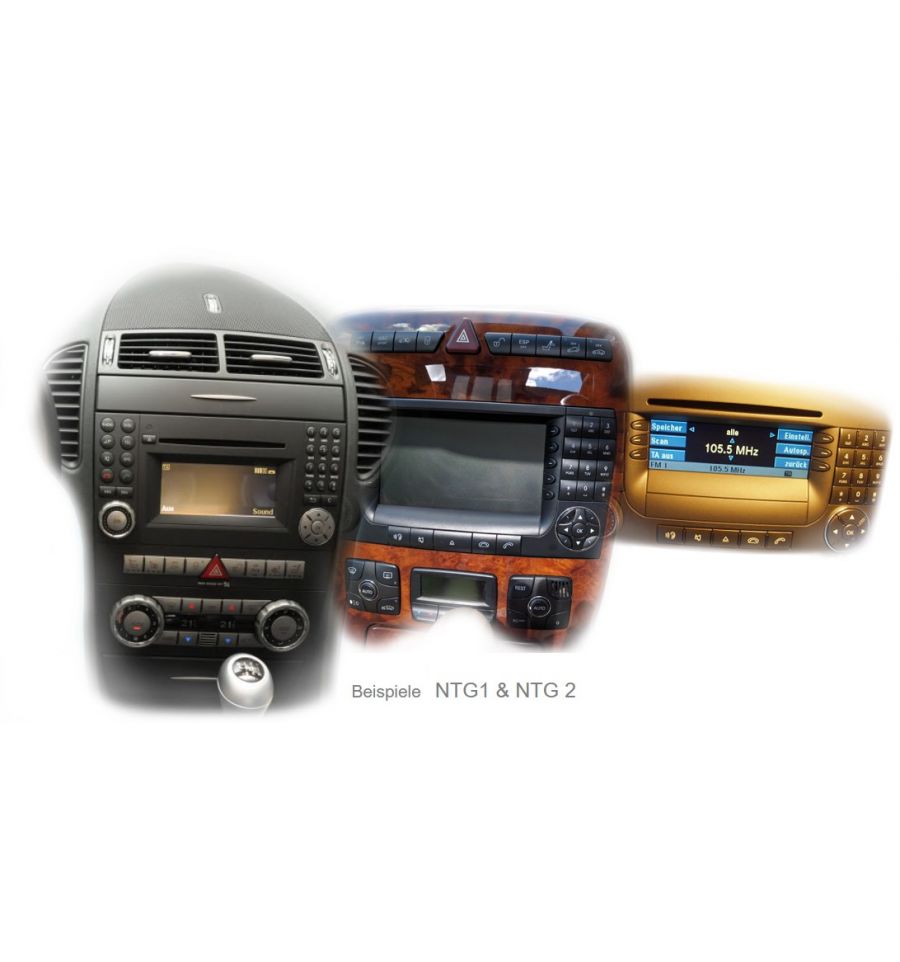

Compatible to Mercedes vehicles with Comand APS NTG1 and NTG2 navigation system.
| Model | Navigation |
| CLS-Coupe (W219) 10/2004 - 03/2008 | Comand APS NTG1 |
| E-class (W211) til 05/2008 | |
| SLK-class(R171) 03/2004 - 03/2008 | |
| A-class (W169) 10/2004 - 06/2008 | Comand APS NTG2 |
| B-class (W245) 09/2004 - 06/2008 | |
| C-class (W203) 04/2004 - 02/2007 | |
| CLC-class (CL203) 06/2008 - 09/2008 | |
| CLK-class (C209 W209) from 06/2004 | |
| G-model (G463) 04/2007 - 08/2008 | |
| GL-class (X164) til 06/2008 | |
| ML-class (W164) til 06/2008 | |
| R-class (W251) til 06/2008 | |
| Sprinter (W906) 04/2006- | |
| Viano (W639) |
Limitations:
- The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
- The video-inputs of the VL1 are compatible with NTSC sources only. But if a factory TV-tuner is installed, it is possible that only PAL sources can be connected.
- Video quality of inserted picture is often limited. It is also possible that inserted picture has a color touch (e.g., greenish). This cannot be changed, nor predicted prior to installation. We therefore recommend the use only for camera systems.
- The interface have to be installed in the monitor panel (the monitor needs to be opened!).
Specifications:
| BATT/ACC range | 7V – 25V |
| Power | 0.3A@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 159 x 25 x 95 mm (W x H x D) |

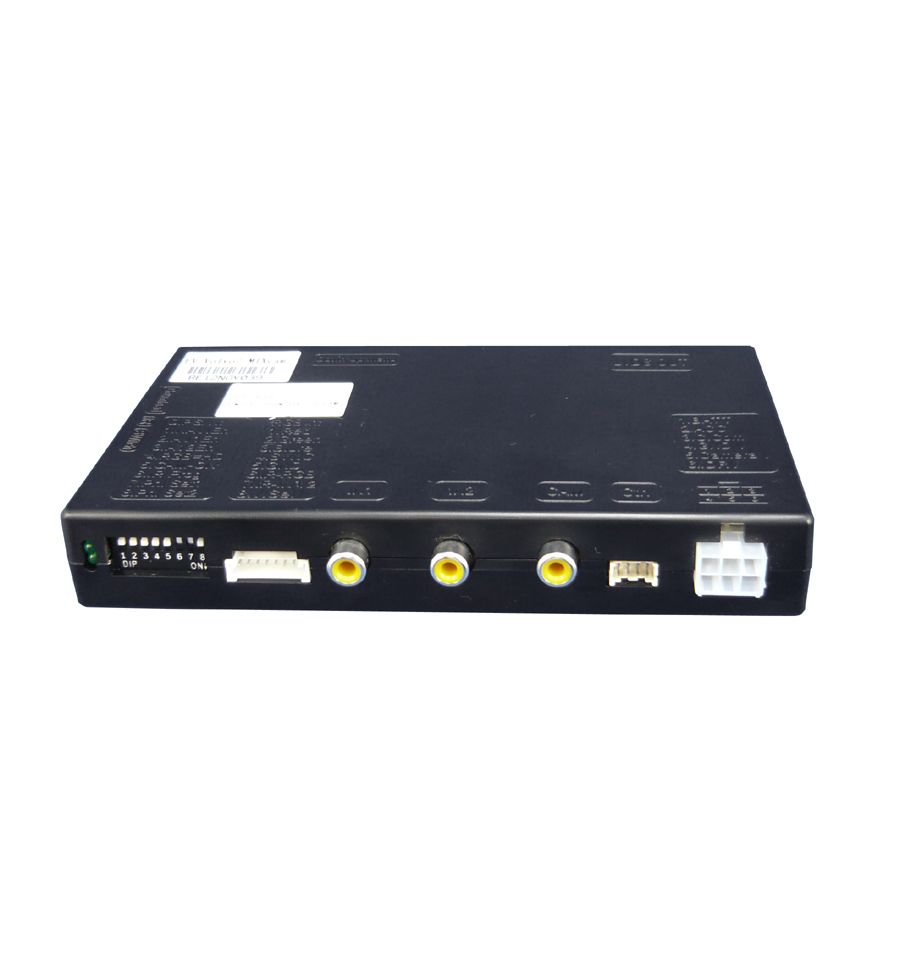

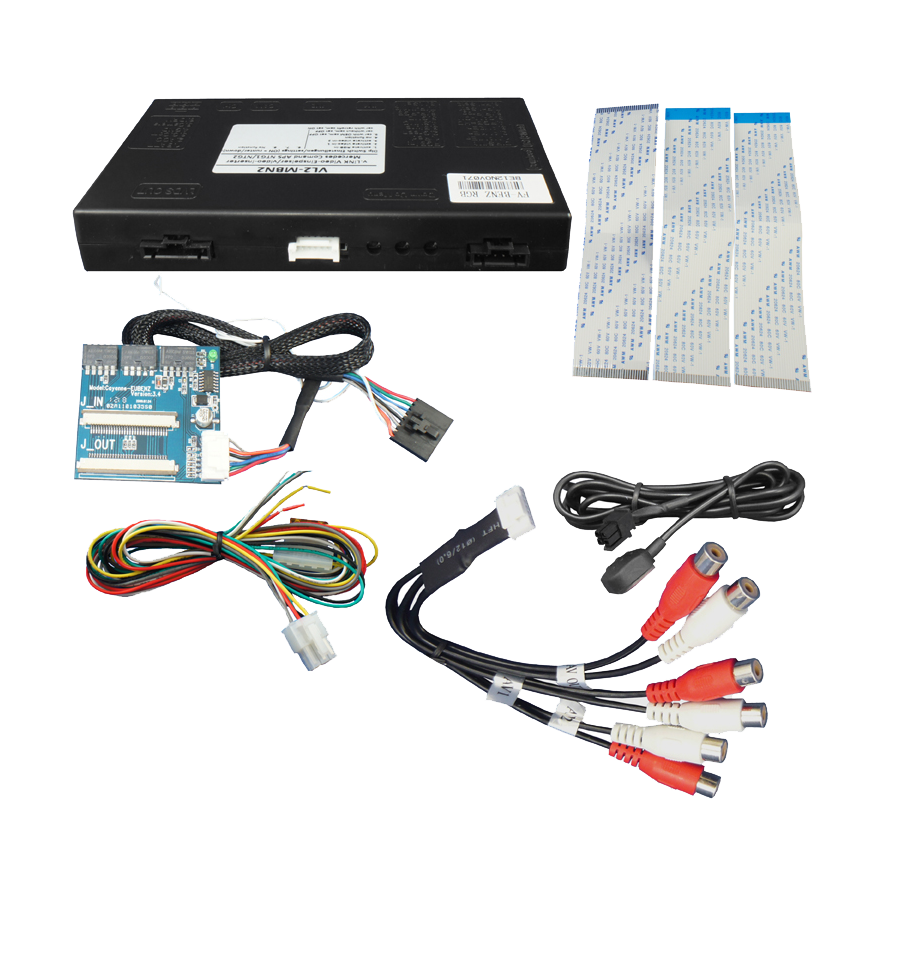

Connections:
- Video-insertion: ribbon cable
- Power and CAN-bus: open ends
- Video-input (2x): RCA connector
- Rear-view camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
