New

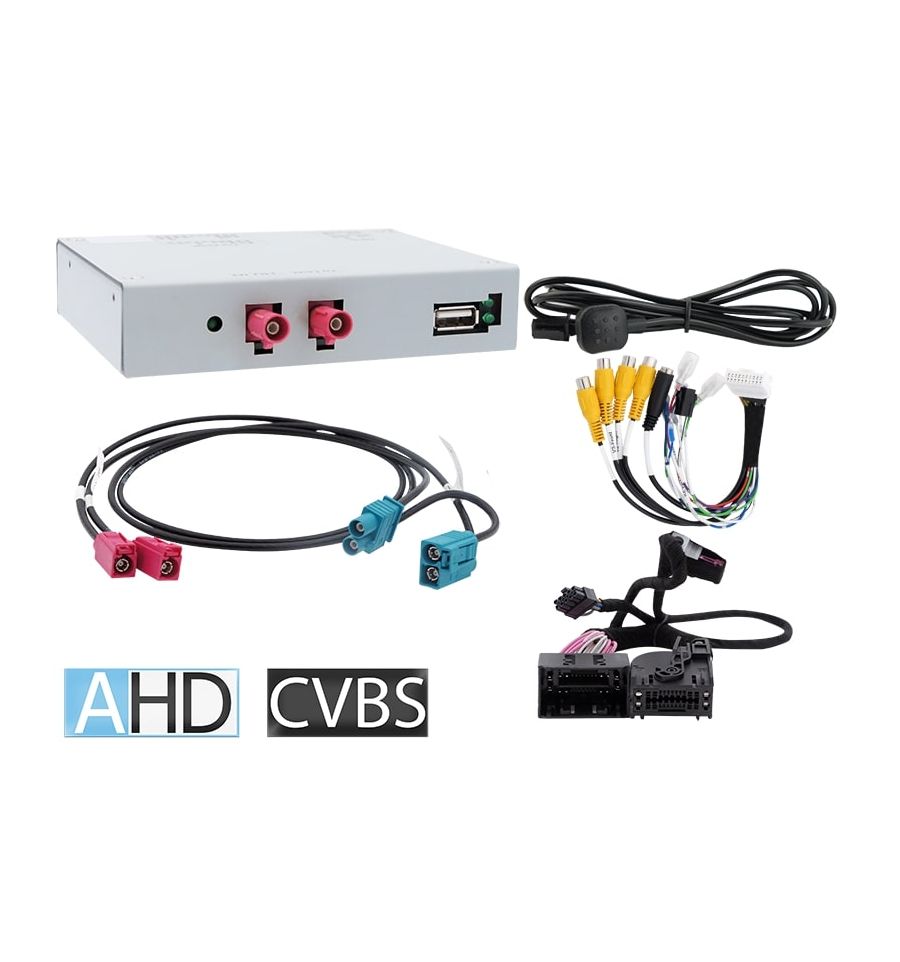

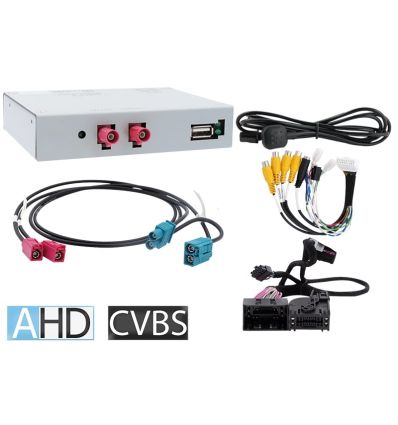

Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible.

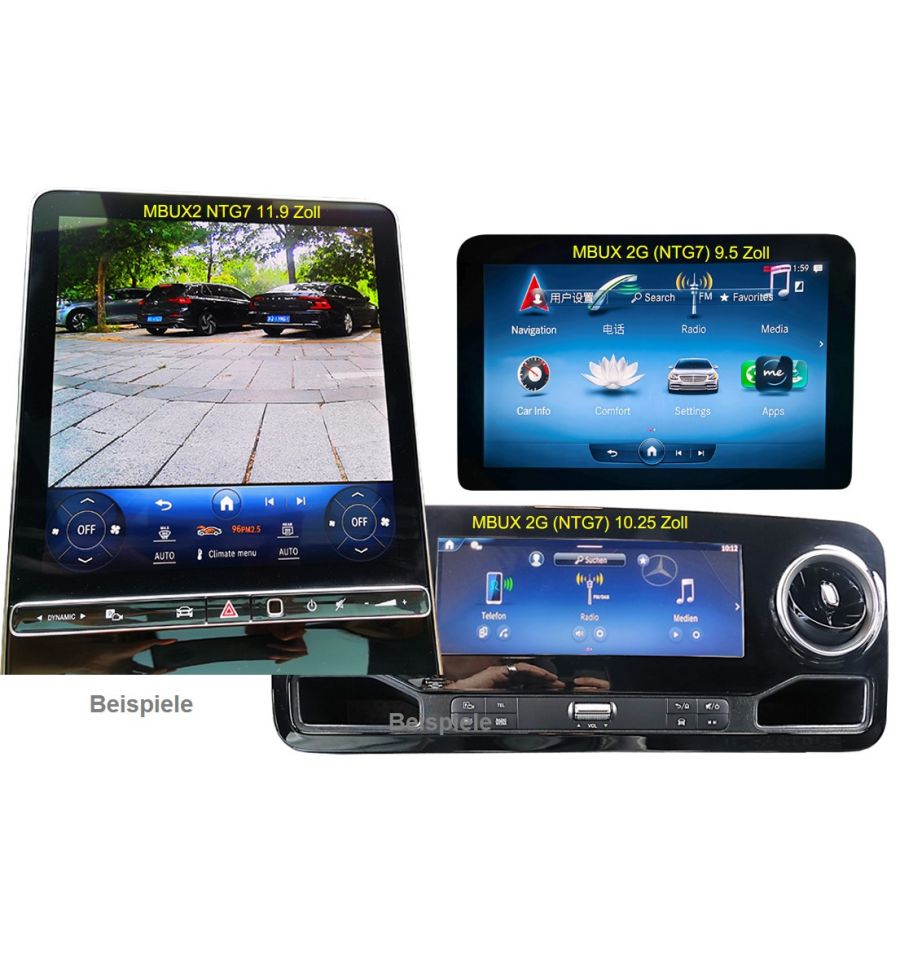

Compatible with Mercedes Benz MBUX 2G NTG7 systems with 9.5, 10.25 und 11.9 monitor.
Valutazione: Scrivi per primo una recensione!
Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible.
Compatible with Mercedes Benz MBUX 2G NTG7 systems with 9.5, 10.25 und 11.9 monitor.
Product features
- Video-insertion for factory infotainment systems
- 1 Rear-view camera AHD/CVBS video-input
- 1 AHD/CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility
| Model | Navigation | ||
|---|---|---|---|
| C-class (W206) from 06/2021, C-class T-model/station wagon (S206) from 06/2021, C-class All-Terrain (X206) from 10/2021, CLE Coupé (C236) from 11/2023, CLE Convertible (A236) from 2024, E-class (W214) from 08/2023, E-class T-model/station wagon (S214) from 08/2023, E-class All-Terrain (X214) from 09/2013, EQE (V295) from 03/2022, EQE SUV (X294) from 12/2022, EQS (V297) from 08/2021, EQS SUV (X296) from 08/2022, GLC Coupé (C254) from 07/2023, GLC SUV (X254) from 07/2022. GT AMG Coupé (C192) from 10/2023, SL AMG (R232) from 11/2021 | MBUX 2G NTG7 multimedia system with 9.5 or 11.9 inch monitor | ||
| A-class (W177), B-class (W247), Sprinter (W907/W910), Vito (W447) | MBUX 2G NTG7 multimedia system with 10.25 inch monitor |
Limitations
Specifications(interface-box)
Connections (Interface-box)
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Video input signal | Only NTSC video sources compatible. |
| Guide lines | Available only for vehicles with 7inch monitor, not for 10inch monitor. If the interface does not receive the required information from the vehicle guide lines wont be supported. |
Specifications(interface-box)
| Operation voltage | 7V – 25V |
| Stand-by power drain | <10mA |
| Video input | 0.7V - 1V |
| Video input format | NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 119×24×95 mm (W×H×D) |

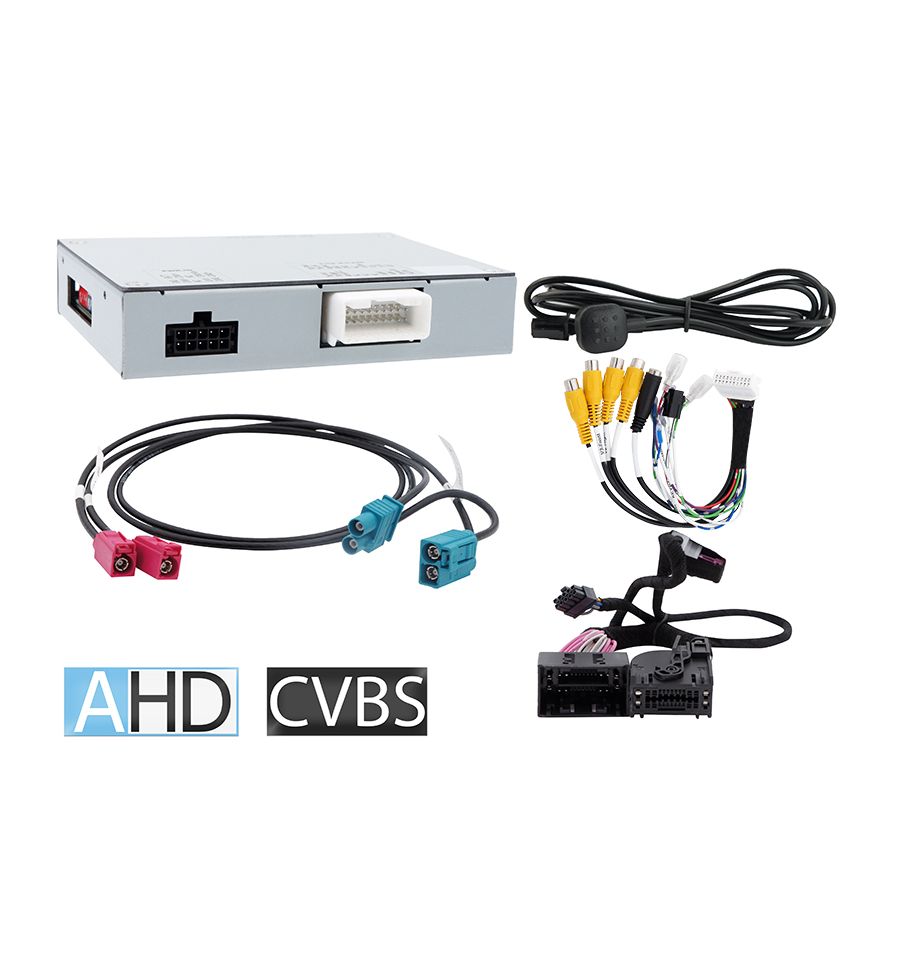

Connections (Interface-box)
- Video-insertion: Double Fakra
- Power
- Video-inputs (2x): RCA connector
- Rear-view camera-input: RCA connector
- Front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
