MINI with Radio Visual Boost or Professional navigation NBT Video interface Media-controller

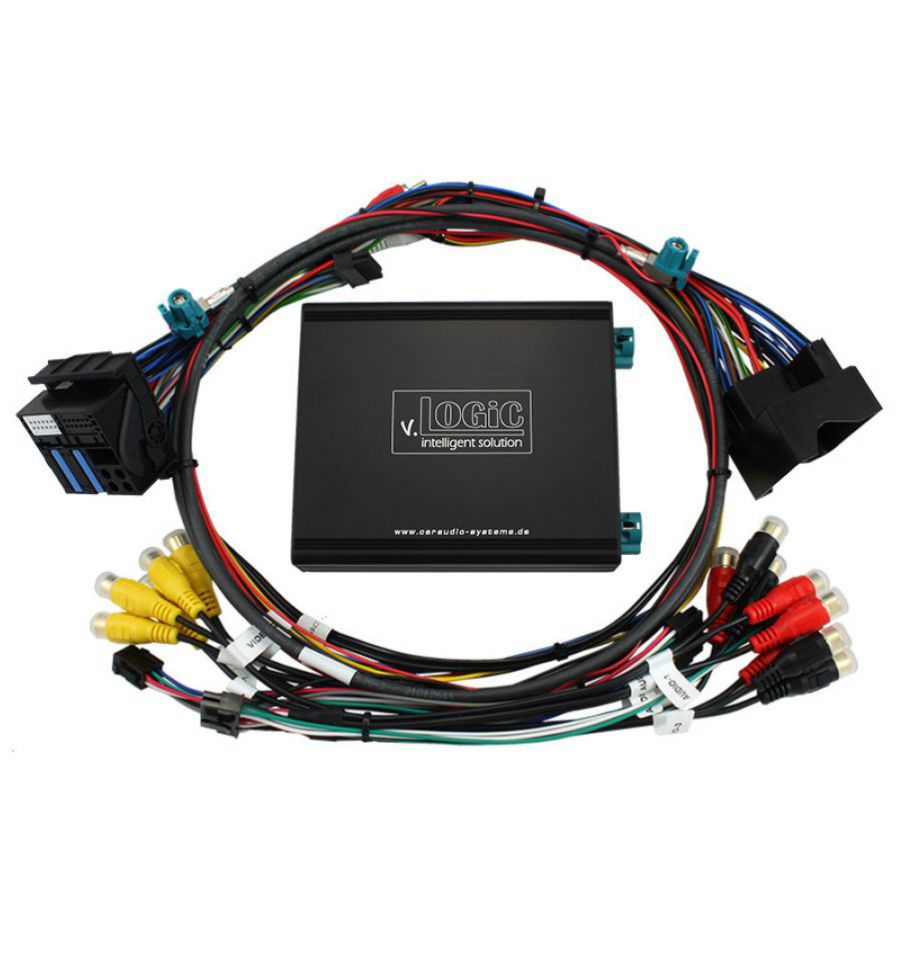

v.LOGiC Media-controller for MINI with Radio Visual Boost or Professional navigation NBT with 6.5inch or 8.8inch monitor and 4+2pin LVDS monitor plug.

V4 media-controller - 3 AV-inputs with device control + rear-view camera input + front camera integration & more
The V4 media-controller allows to connect up to three different AV-sources (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer.If the AV-source(s) is/are in the list of compatible devices, it is possible to control the AV-source(s) by the factory infotainment. Additionally the connection of a rear-view camera is possible and an output to rear-seat entertainment is available. A front camera can be integrated through the third AV-input. Rear-view and front camera act jointly with each other and with the factory infotainment. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the users needs and switched back to previous video after the parking maneuver is finished. Video-in-motion is included for AV-sources that are connected to the factory infotainment through the V4.

Product features:

• Plug and play media-controller with controls by factory infotainment
• Own on-screen display and setup
• No coding of vehicle/factory-infotainment necessary
• On 8.8inch ultrawide monitor 5 picture format modes (split-mode, 16:9, 16:9 zoom, full screen and full screen zoom)
• On 6.5inch monitor 2 picture format modes (full screen and zoom)
• 3 AV-inputs
• Controls of after-market devices (e.g. DVB-T tuner, DVD-player, DAB tuner) by factory infotainment (iDrive)
• 2 trigger outputs (+12V max. 1A), separately adjustable switching events
• Video-in-motion
• Rear-view camera input
• Interactive lane lines
• Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
• AV3 can be used for front camera (automatic swtiching on parking maneuver, automatic return at 20km/h)
• Manual switching to rear-view camera (only vehicles with PDC button)
• Manual return from rear-view and front camera (cancellation of automatic switching)
• Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics
• Compatible with all factory video accessories (e.g. rear-view camera, TV-tuner)
• Rear-seat-entertainment output for AV-sources connected to the V4
• USB update-port for software-updates by consumer

Compatibility:

Compatible to vehicles MINI with Radio Visual Boost or Professional navigation NBT with 6.5inch or 8.8inch monitor with 4+2pin HSD LVDS plug.

Limitations:

Factory USB-port: The AUDIO connection is different if the vehicle is with factory USB-port, please see the note in the manual!

PDC / interactive lane lines: PDC, picture in picture and interactive lane lines function is not simultaneously usable

Specifications:

Connectors:

• Video-insertion: 4+2-pin HSD
• Power and CAN-bus: Plug & play
• Video-input (3x): RCA connector
• Rear-view camera-input: RCA connector
• Audio-input (3x): 2-channel RCA connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
