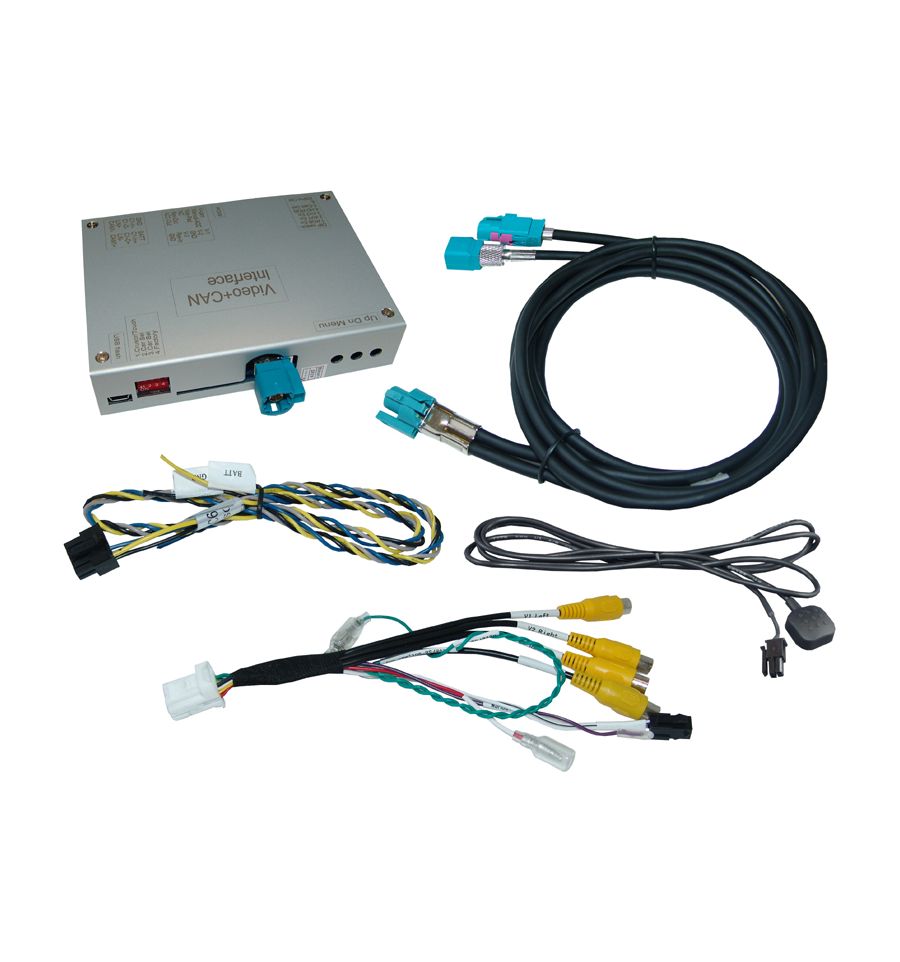

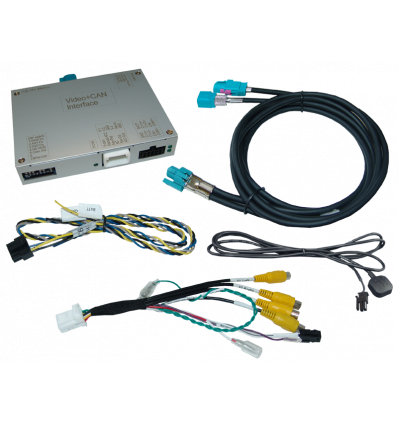

Opel Navi 5.0 IntelliLink - Multimedia Navi Pro video interface with Rear camera input
CI-RL4-NAC08-OP
New
RVC Interface for rear view camera for Opel Navi 5.0 IntelliLink
Valutazione: Scrivi per primo una recensione!
RVC Interface for rear view camera for Opel Navi 5.0 IntelliLink
This interface allows you to integrate a rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).
Product features:
- Video-insertion for factory infotainment systems
- 1 Rear-view camera CVBS video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility:
| Model | Radio / Navigation |

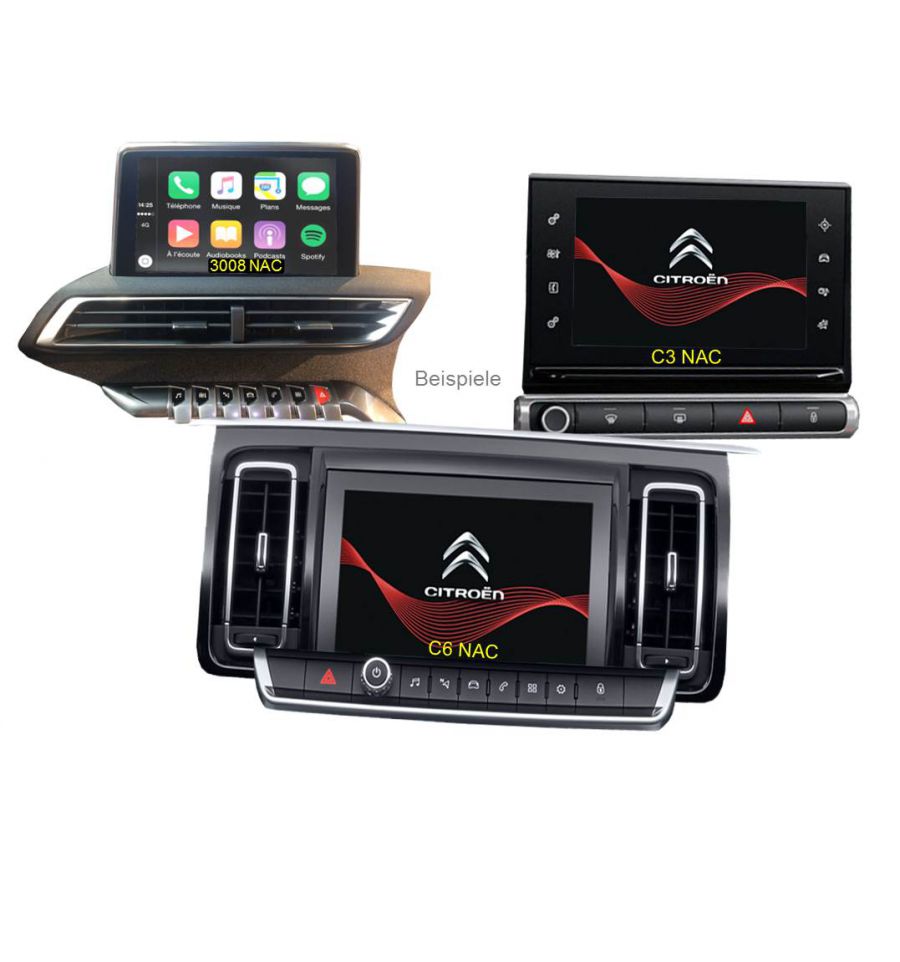

| Combo MY 2018 > | Navi 5.0 IntelliLink 8" (NAC low Continental) Multimedia Radio 7" (RCC Bosch) Multimedia Navi Pro 7" Multimedia 7" |
| Corsa F MY 2019 > | |
| Crossland X MY 2017 > | |
| Grandland X MY 2017 > | |
| Mokka B 09/2020- | |
| Vivaro MY 2020 > | |
| Zafira Life MY 2020 > |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 AV-sources shall be connected to the infotainment, for audio switching an additional electronic part is required. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | 2.8mA |
| Power | 300mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 118 x 23 x 105 mm (W x H x D) |
Connectors
- Video-insertion: 4-pin HSD or double 4-pin HSD
- Power and CAN-bus: Plug & play
- Video-input (2x): RCA connector
- Rear-view and front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Opel | COMBO B, CROSSLAND X, GRANDLAND X |
| Category | Rear View Camera Interfaces, Video integration |
