Video interface for Opel Multimedia Navi Pro 8

Video Interface for Opel Multimedia Navi Pro 8'' monitor

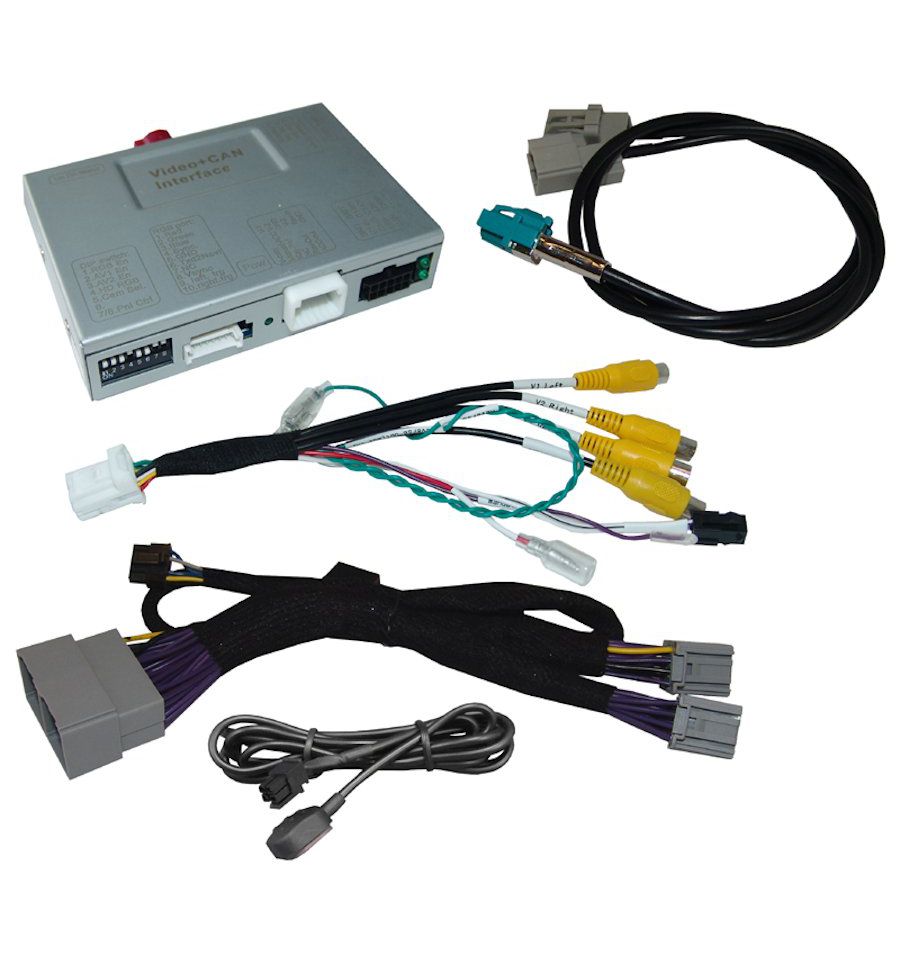

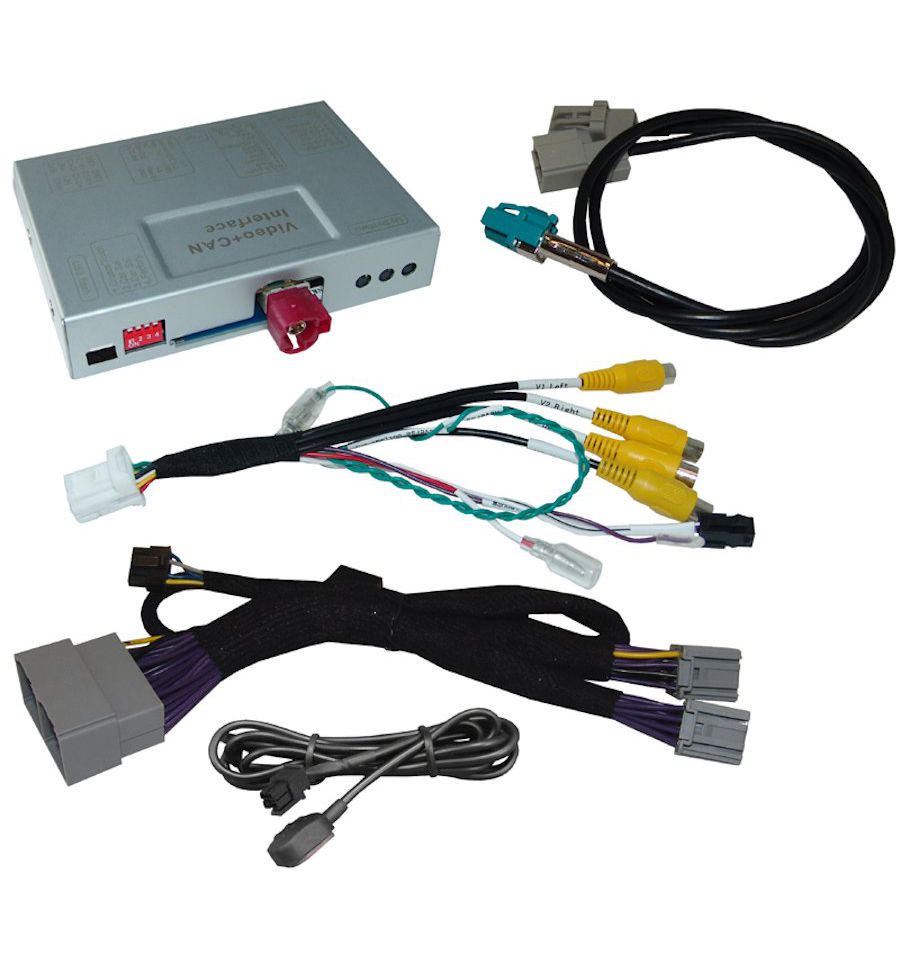

The r.LiNK interface allows to connect a rear-view camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.

Product features:

• Video-insertion for factory infotainment systems
• 1 Rear-view camera CVBS video-input
• 1 CVBS front camera video-input
• 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
• Automatic switching to rear-view camera input on engagement of reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Video-in-motion (ONLY for connected video-sources)
• Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
• Compatible with factory rear-view camera
• AV-inputs PAL/NTSC compatible

Compatibility:

Limitations:

• The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

Connections:

• Video-insertion: mini USB

• Power and GM-LAN-bus: Plug & play (vehicle specific)
• Video-input (2x): female RCA connector
• Rear-view camera-input: female RCA connector
• Front camera-input: female RCA connector

 Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
