Video interface for Opel IOR Karl from 2018

Video interface for Opel IOR Karl from 2018

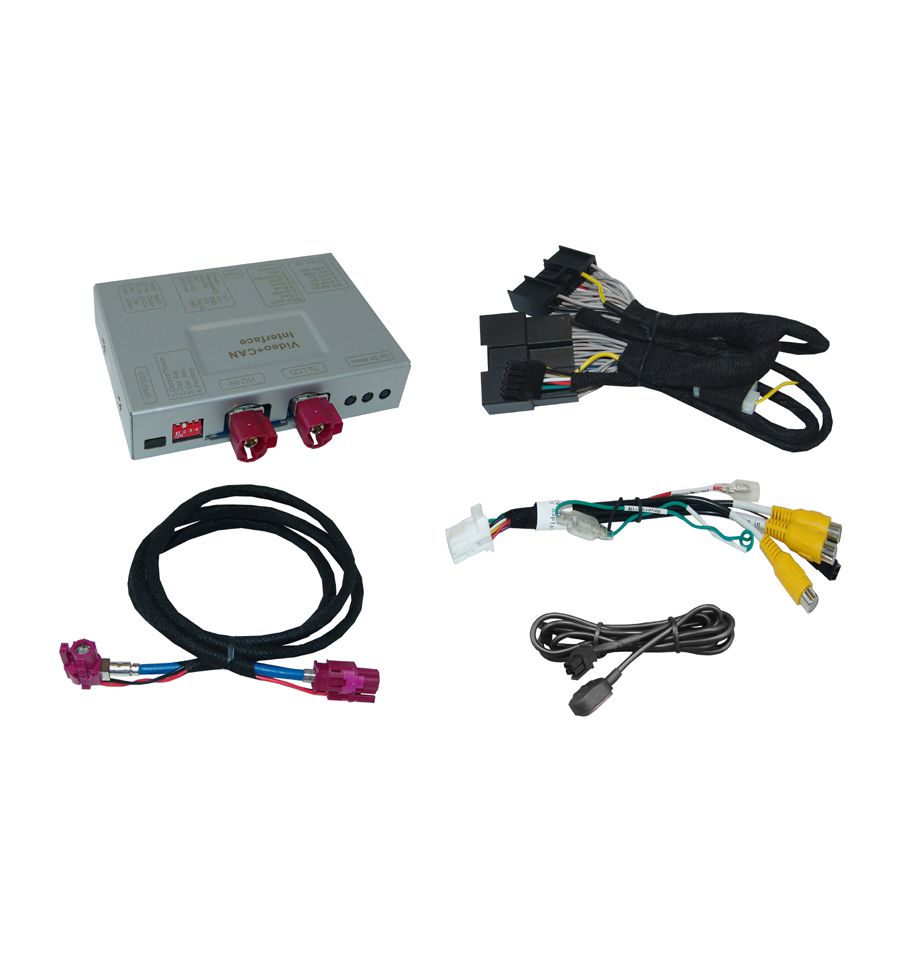

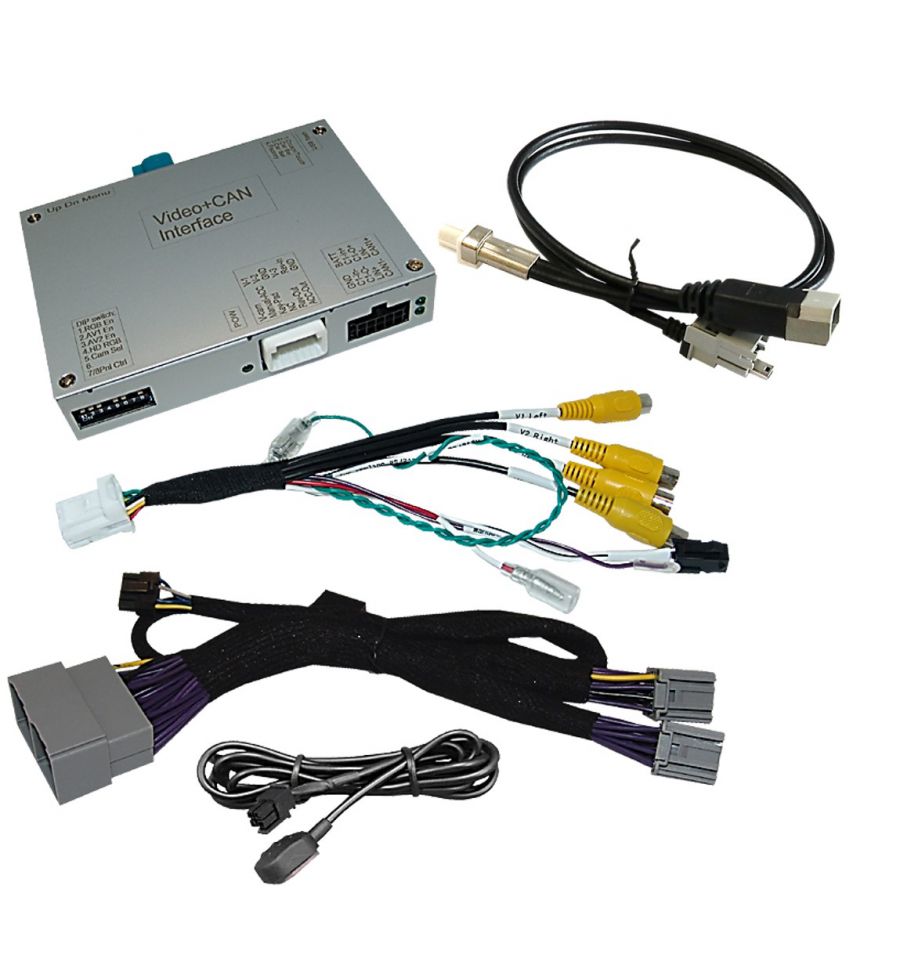

The r.LiNK interface allows to connect a rear-view camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.

Product features:

• Video-inserter for factory-infotainment systems
• 1 CVBS rear-view camera video-input
• 1 CVBS front camera video-input
• 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs PAL and NTSC compatible

Compatibility:

Limitations:

• The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
• The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.

Connections:

• Video-insertion: Mini USB alternative coding

• Power and CAN-bus: Plug & play (vehicle specific)
• Video-input (2x): female RCA connector
• Rear and front view camera-input: female RCA connector

 Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
