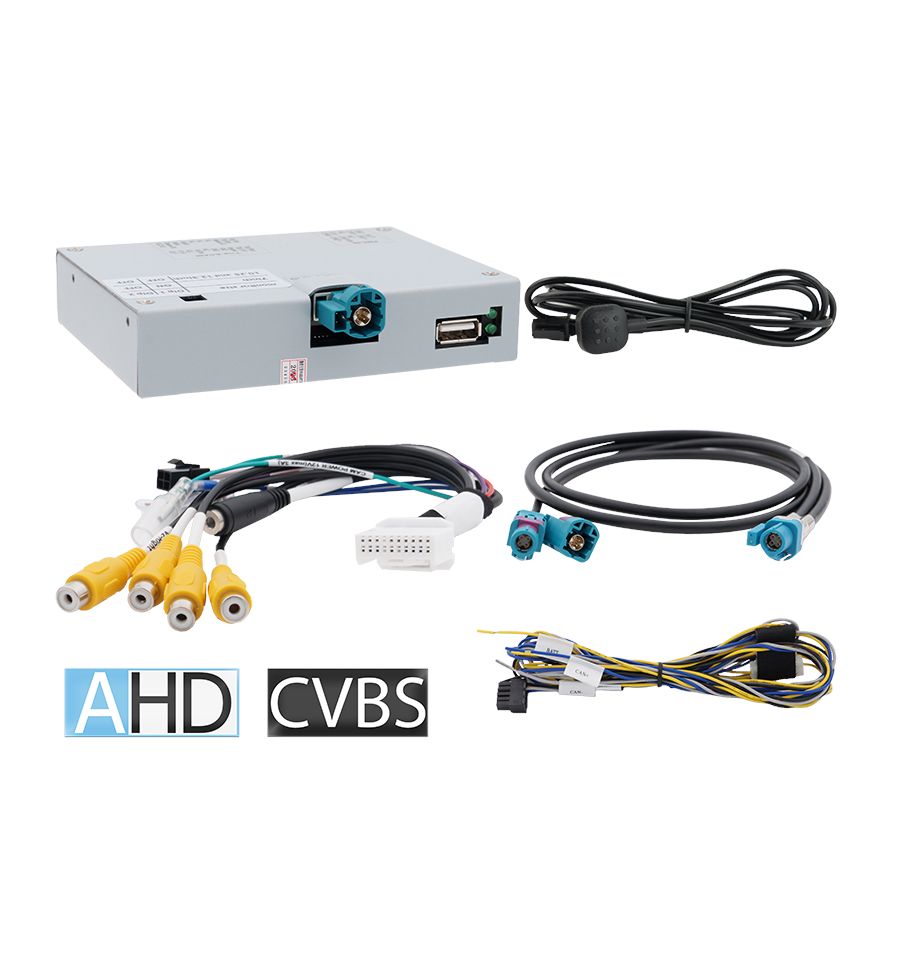

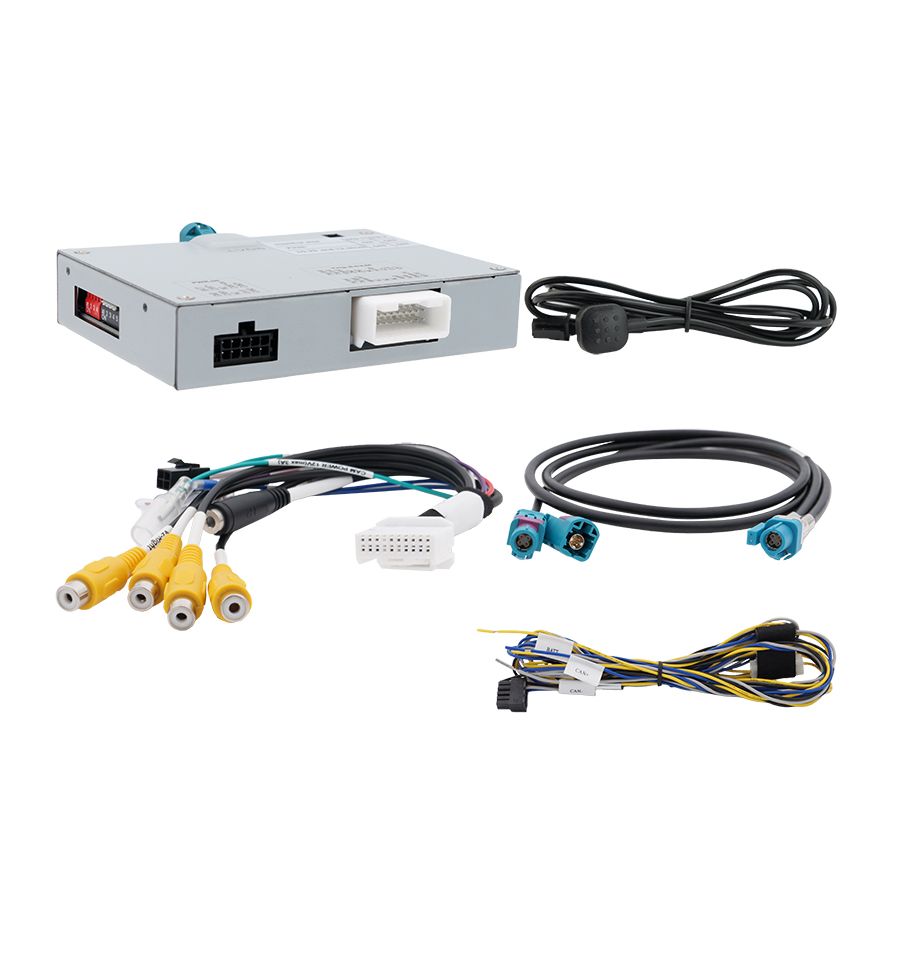

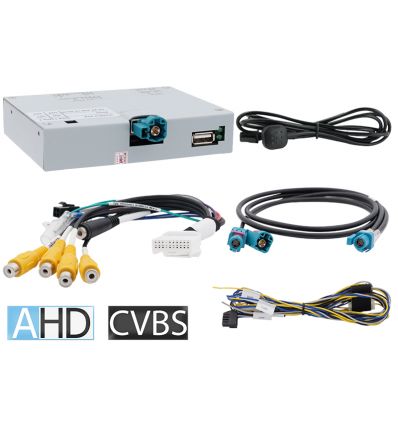

Peugeot IVI Mid/High, NAC Low/High or RCC video interface with rear and front camera input
CI-HDA-NAC12-PE
New
Peugeot IVI Mid, IVI High, NAC Low, NAC High or RCC with 10.25inch or 12.3inch touch monitor video interface with rear and front camera input
Peugeot IVI Mid, IVI High, NAC Low, NAC High or RCC with 10.25inch or 12.3inch touch monitor video interface with rear and front camera input
This interface allows you to integrate a rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).
Product features:
- Video-insertion for factory infotainment systems
- 1 Rear-view camera AHD/CVBS video-input
- 1 AHD/CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility:
| Modello | Radio / Navigazione |
| 208 II 06/2019- | IVI Mid, IVI High, NAC Low, NAC High or RCC by Bosch, Continental or Harmann with 10.25inch or 12.3inch touch monitor and separate silver-box HU. For Continental NAC High version an additional cable CAB-HSD-MF026 might be required. |
| 2008 II 11/2019 - 04/2023 (solo NAC) | |
| 308 III 09/2021- | |
| 3008 II 05/2021-03/2024 | |
| 3008 III 04/2024- | |
| 408 III 11/2022- | |
| 508 II 10/2018- | |
| 5008 II 10/2020- | |
| Rifter 03/2024- | |
| Traveller 04/2024- |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 AV-sources shall be connected to the infotainment, for audio switching an additional electronic part is required. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | 2.8mA |
| Power | 300mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 118 x 23 x 105 mm (W x H x D) |
Connectors
- Video-insertion: 4-pin HSD or double 4-pin HSD
- Power and CAN-bus
- Video-input (2x): RCA connector
- Rear-view and front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Peugeot | 208, 3008, 308, 5008, 508 |
| Category | Rear View Camera Interfaces, Video integration |
