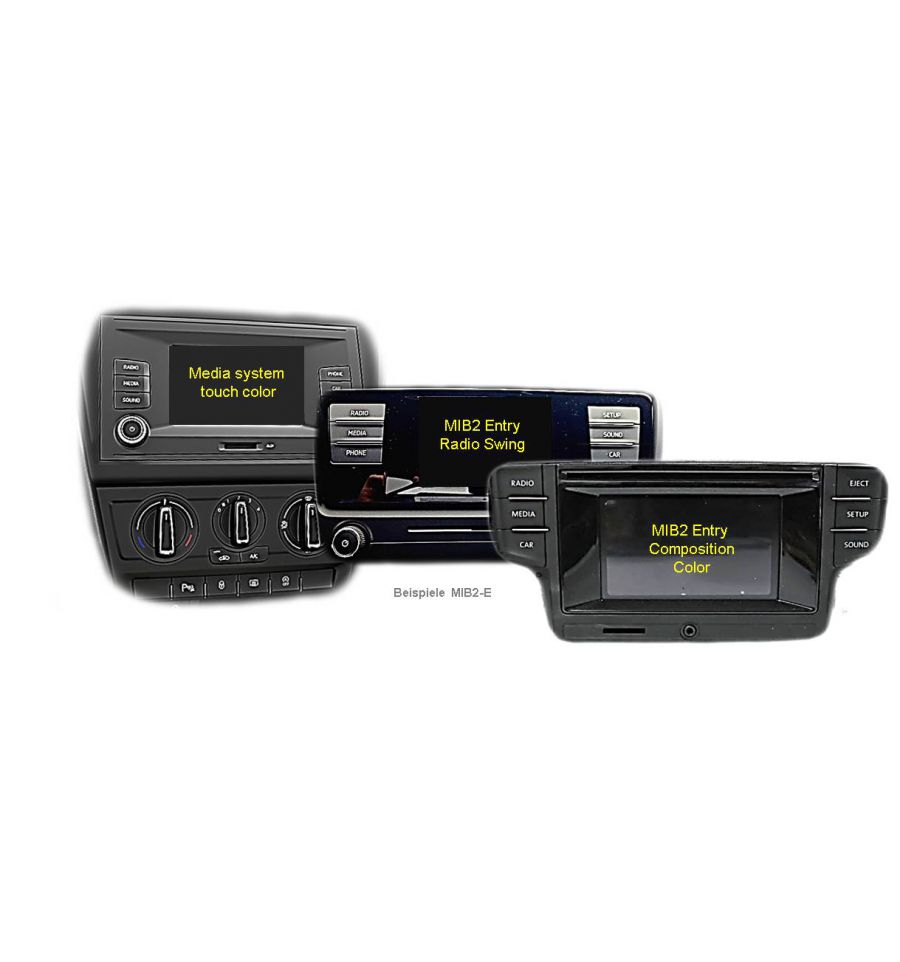

Video interface for Seat with MIB2 Entry - Media System Touch Color

Video interface for Seat with MIB2 Entry - Media System Touch Color - 5inch monitor.

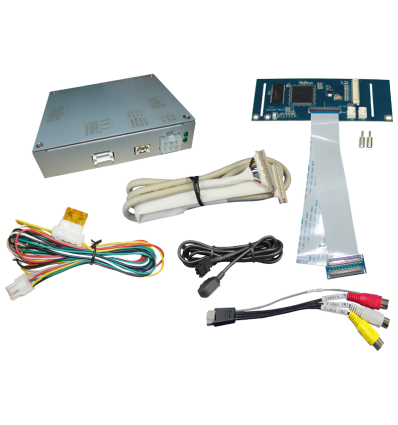

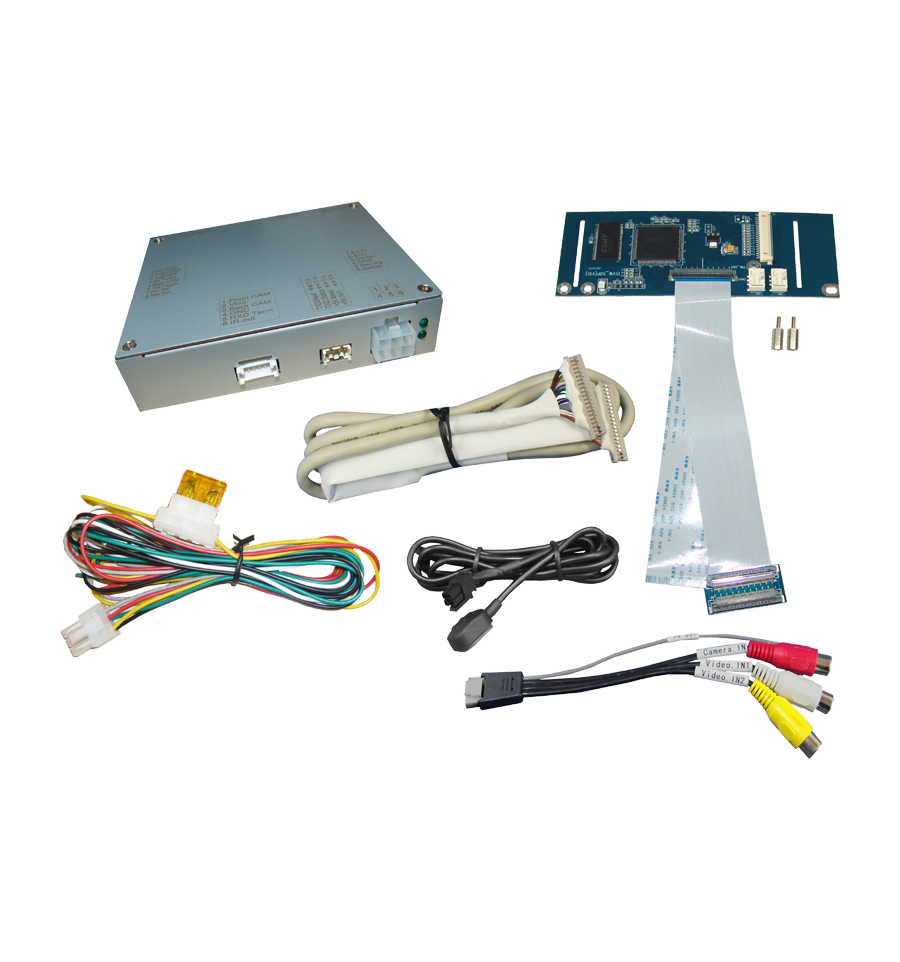

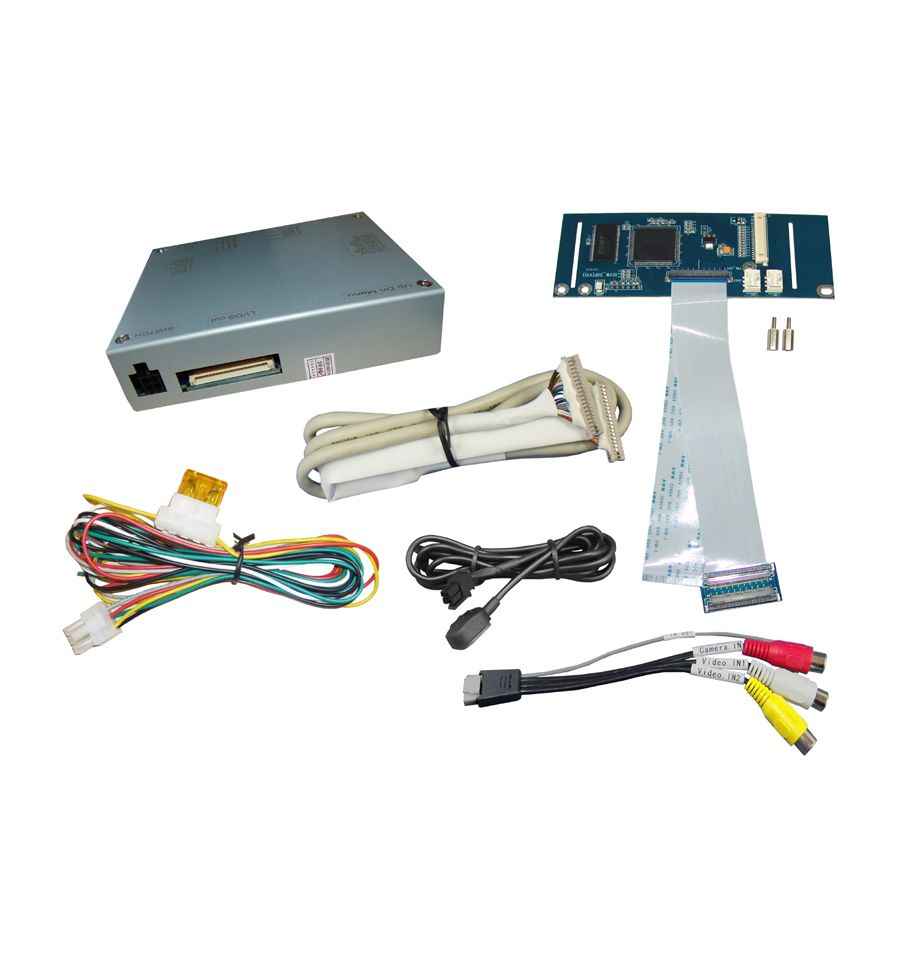

The v.LINK interface allows to insert 1 external video source (upgraded devices, for example DVD player, DVB-T tuner) and 1 rear-view camera.

Product features:

• Video-inserter for factory-infotainment systems
• 1 CVBS rear-view camera video-input
• 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Activatable parking guide lines for rear-view camera (not available for all vehicles)
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs PAL and NTSC compatible

 Compatibility:

Limitations:

• The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is require
• Only NTSC compatible.

Specifications:

Connections:

• Video-insertion: ribbon cable
• Power: open cable ends

• 2 Video-input: RCA female connector
• Rear-view camera-input: RCA female connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
