Video interface for Seat MIB/MIB2 High/Standard - Navigations System Plus or Media System Plus - 6.5inch or 8inch monitor
Video interface for Seat MIB/MIB2 High/Standard - Navigations System Plus or Media System Plus - 6.5inch or 8inch monitor

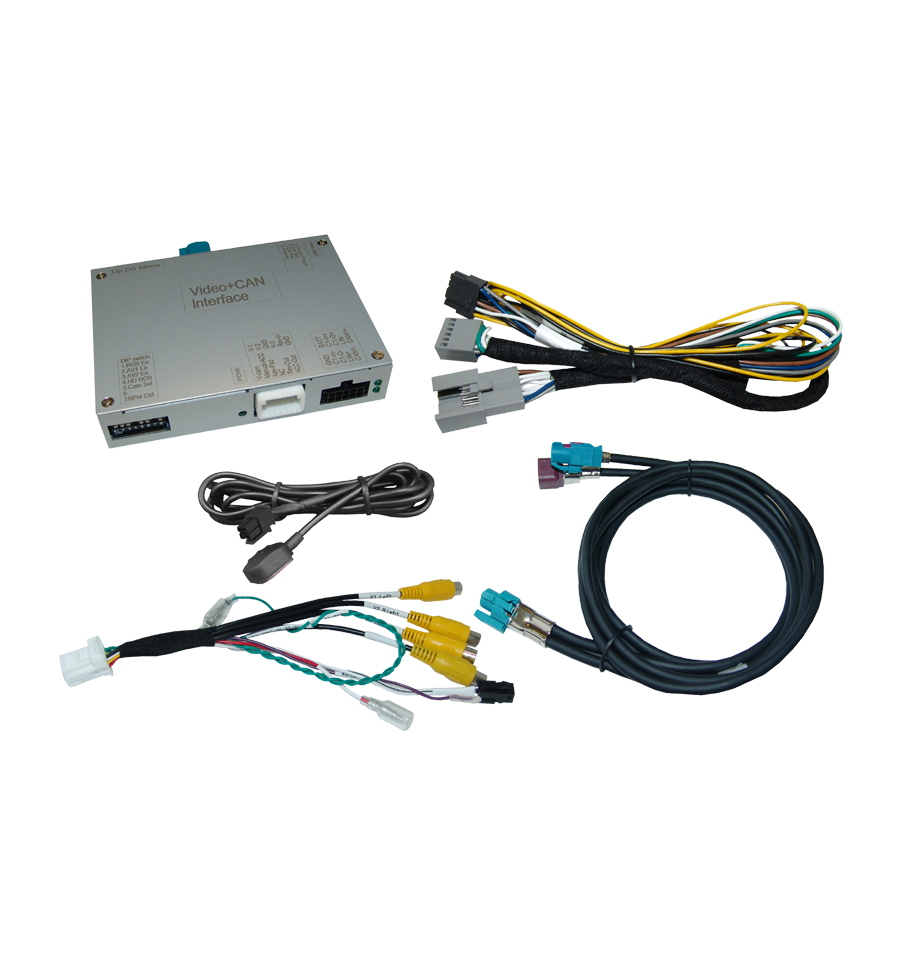

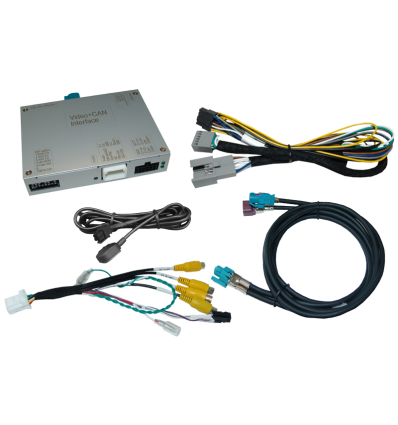

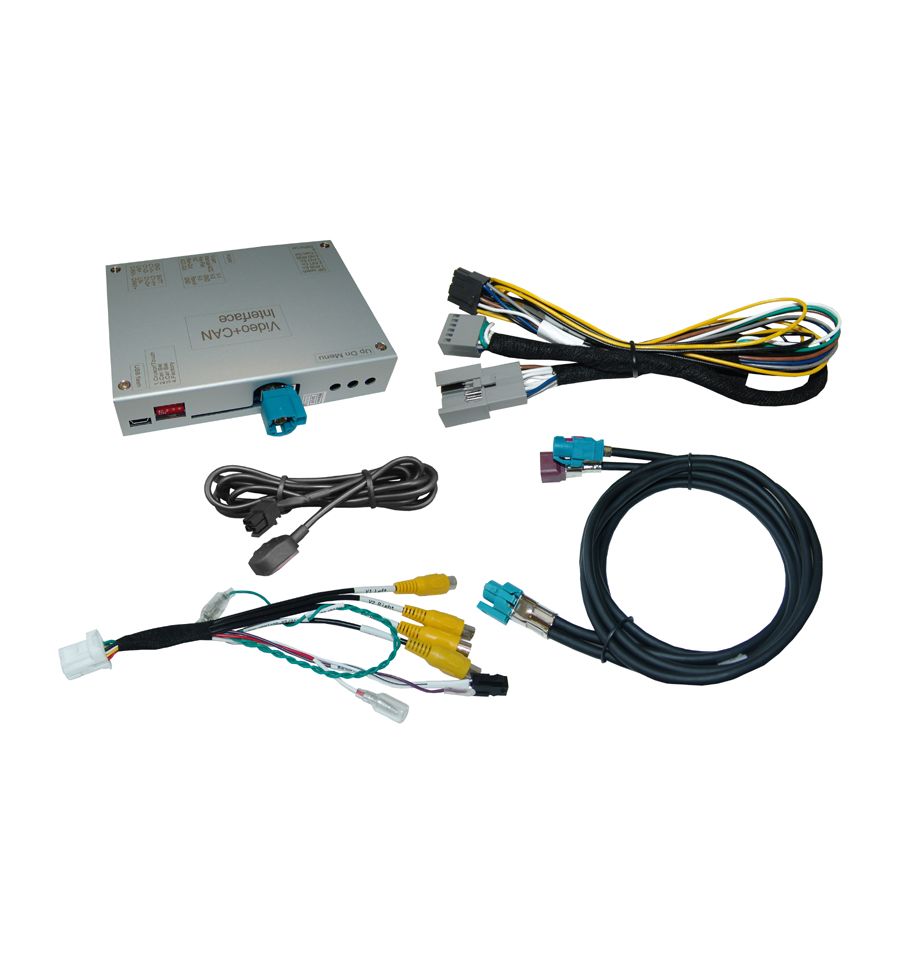

The r.LINK interface allows to connect a rear-view camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10/15/20 seconds
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC and PAL compatible
Compatibility:
| Model | Navigation |
| Arona (KJ7) from 2017 | MIB/MIB2 High/Standard |
| Ateca (KH7) from 2017 | |
| Ibiza (6P) MY 2016 | |
| Leon3 (5F) MY 2013-2019 | |
| Tarraco (KN2) 12/2018- | |
| Toledo4 (KG) 2016 |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Picture format | Only compatible with NTSC |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| Factory PDC | With connecting the interface, the former factory PDC graphics wont apply anymore. Acoustic signals will still be present. |
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <10mA |
| Power | 0.7A@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 154 x 22 x 92 mm (W x H x D) |
Connections:
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play
- Video-input: RCA connector
- Rear-view camera-input: RCA connector
- front-view camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Seat | Ibiza, Leon 5F, Toledo |
| Category | Rear View Camera Interfaces, Video integration |
