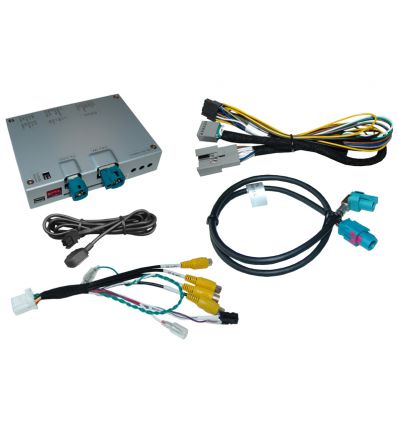

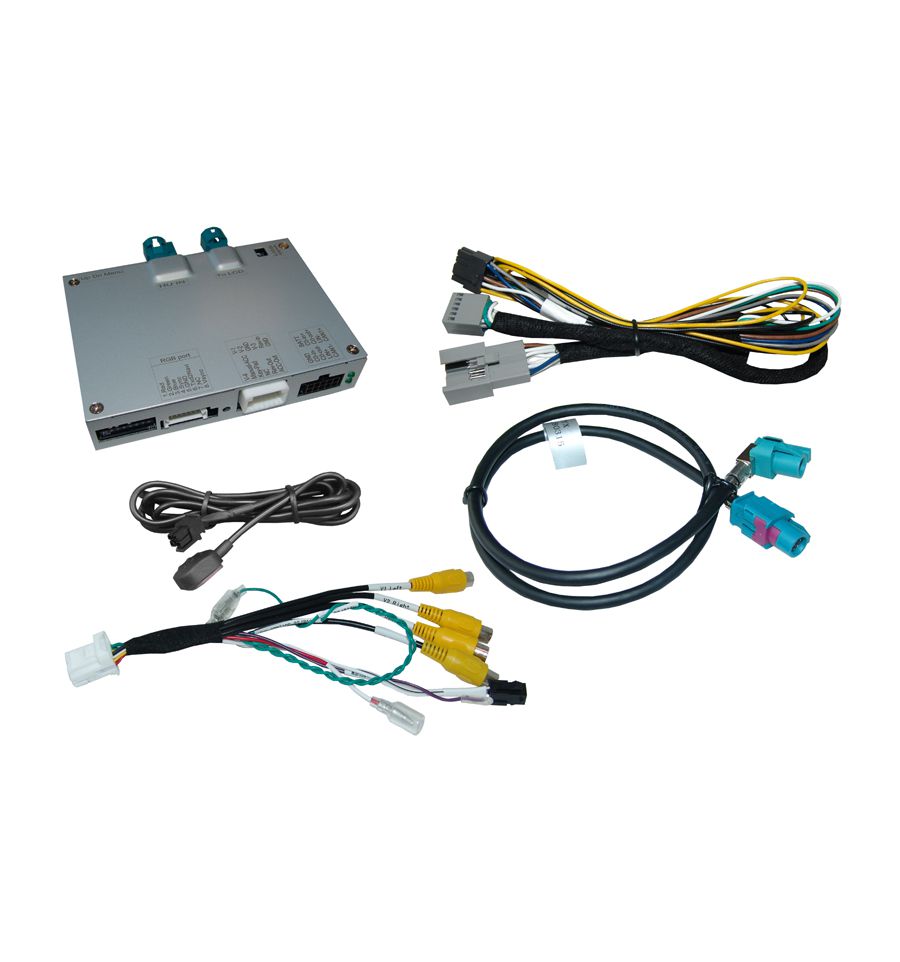

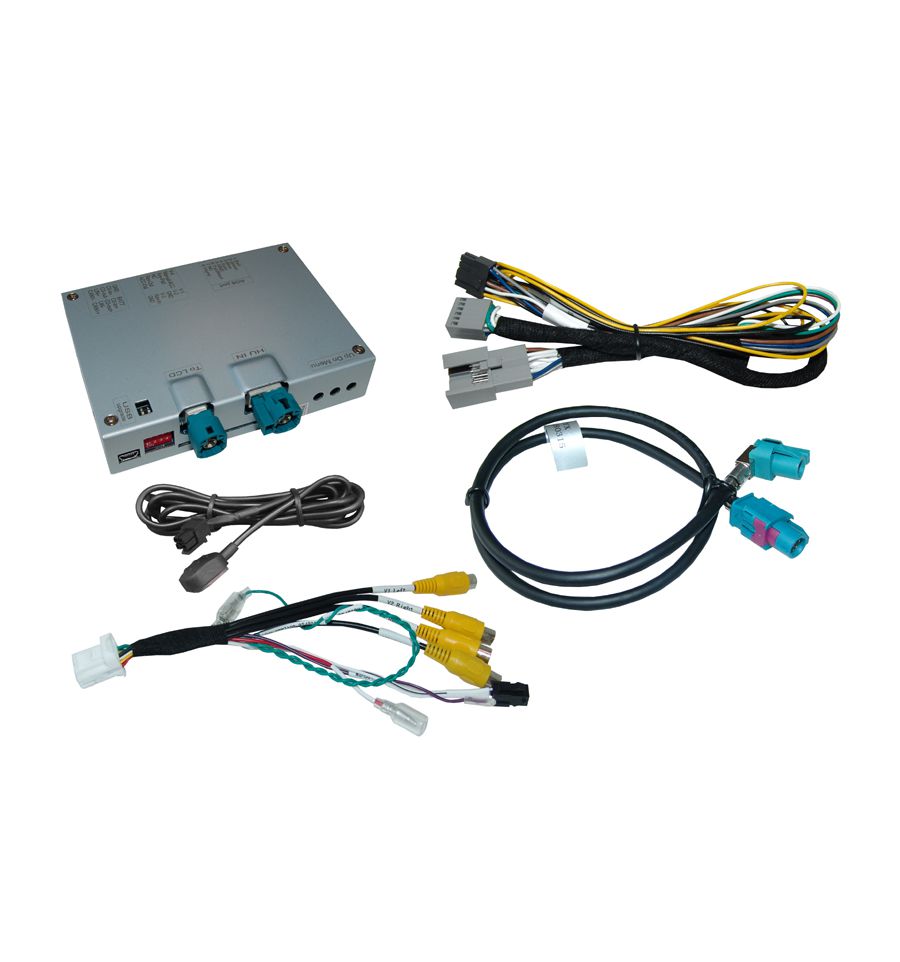

Video interface for VW Touareg CR Discover Premium (18T) MIB 15inch monitor

More details

€ 479,00

tax incl.

Video interface for VW Touareg CR Discover Premium (18T) MIB 15inch monitor

The r.LINK interface allows to connect a rear-view camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.


Product features:

  • Video-insertion for factory-infotainment systems
  • 1 Back camera CVBS video-input
  • 1 CVBS Input for front camera
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible only




 Compatibility:

ModelRadio / Navigation

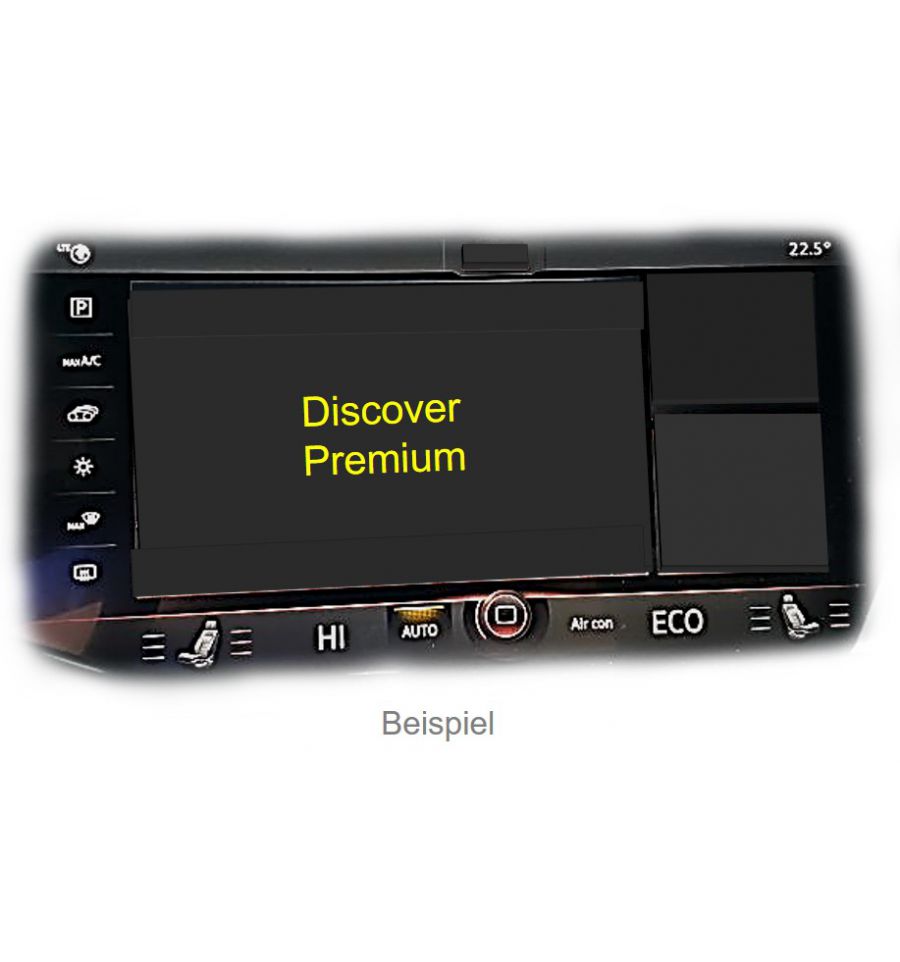

  Touareg3 (CR) from 07/2018-Discover Premium (18T) - MIB with 15inch monitor
Not compatible to vehicles with factory DVD-player!



Limitations:

The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.

Only compatible with NTSC.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

With connecting the interface, the former factory PDC graphics won't apply anymore. Acoustic signals will still be present.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.7A@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions video-box119 x 25 x 103 mm (W x H x D)




Connectors

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input: RCA connector
  • Rear-view camera-input: RCA connector
  • front-view camera-input: RCA connector





Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
