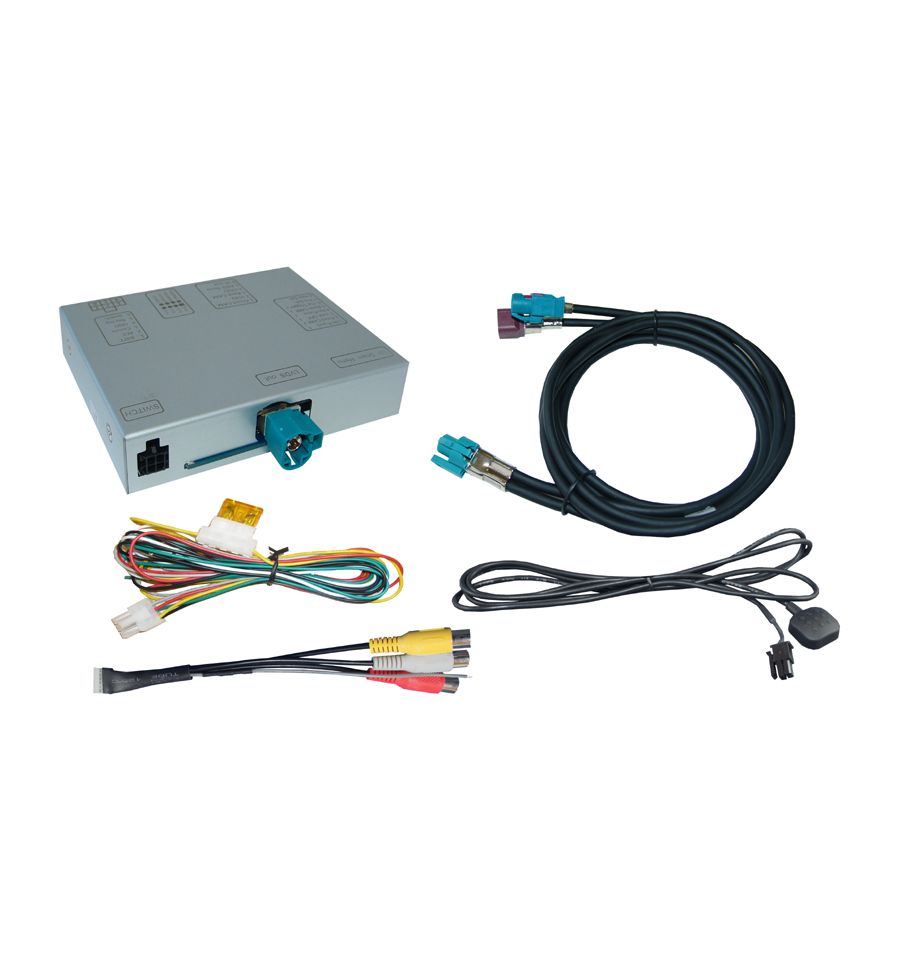

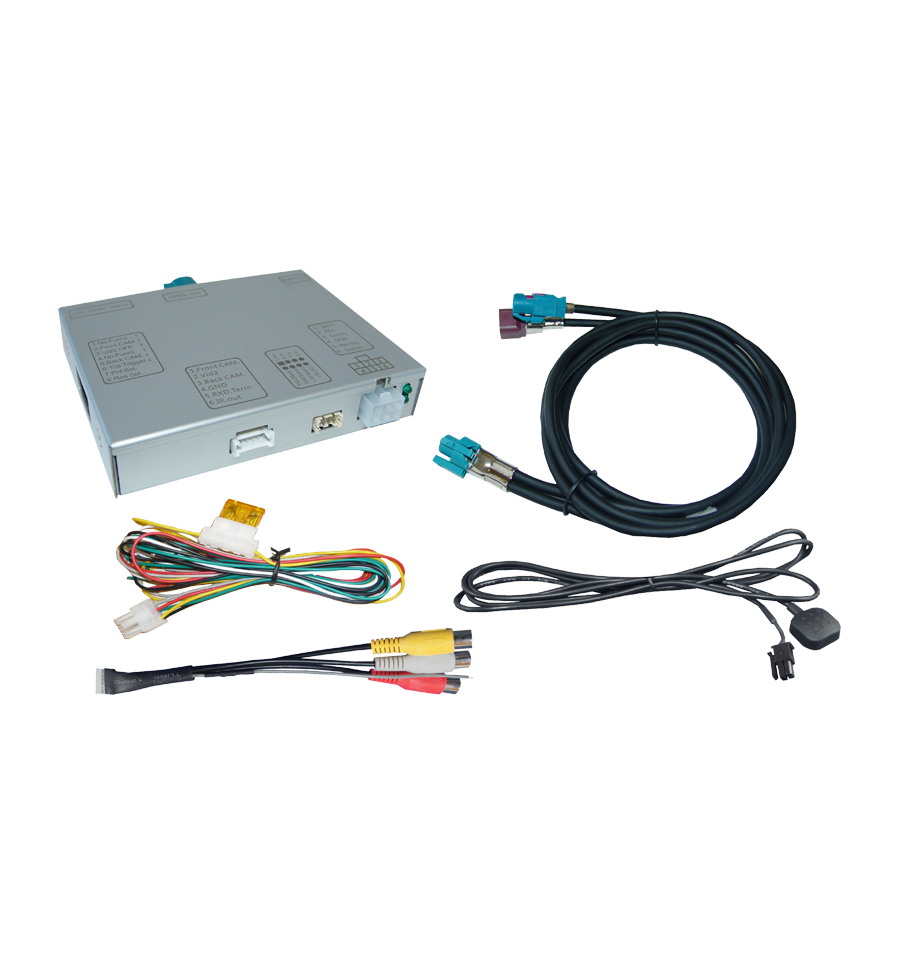

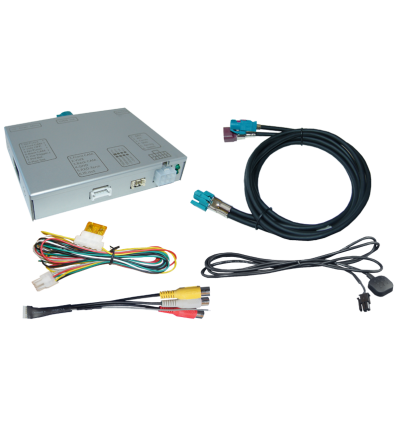

Video inserter for front- and rear-view camera and another video-source.
Compatible with Volkswagen vehicles with RNS850 with 4-pin HSD LVDS connector. Not Q3.
Valutazione: Scrivi per primo una recensione!
Video inserter compatible with Volkswagen vehicles with RNS850 with monitor with 4pin HSD LVDS connector. For connection of a front-, rear-view camera and another video source.
Product features
- Video-inserter for factory-infotainment monitors
- Back and front camera CVBS video-input
- CVBS video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Manual switching to front camera by external keypad or MMI button
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs PAL / NTSC compatible
Compatibility
| Model | Radio/Navigation |
| Tuareg 2011 - 06/2018 | RNS850 |
Limitations
Specifications(interface-box)
Connections (Interface-box)
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Factory OPS | The indicators of an optical park system (OPS) can't be displayed if an after-market rear-view camera is connected and reverse gear is engaged. Acoustic signals are still present. |
| Factory rear-view camera | Automatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications(interface-box)
| Operation voltage | 7V – 25V |
| Stand-by power drain | <10mA |
| Power | 0.7A@12V |
| Video input | 0.7V - 1V |
| Video input formats | PAL / NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 113×22×92 mm (W×H×D) |
| Dimensions CAN-box | 73×22×30 mm (W×H×D) |
Connections (Interface-box)
- Video-insertion: 4-pin HSD
- Power
- Video-input: female RCA connector
- Rear-view camera-input: female RCA connector
- Front camera-input: female RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Volkswagen | Touareg |
| Category | Rear View Camera Interfaces, Video integration |
