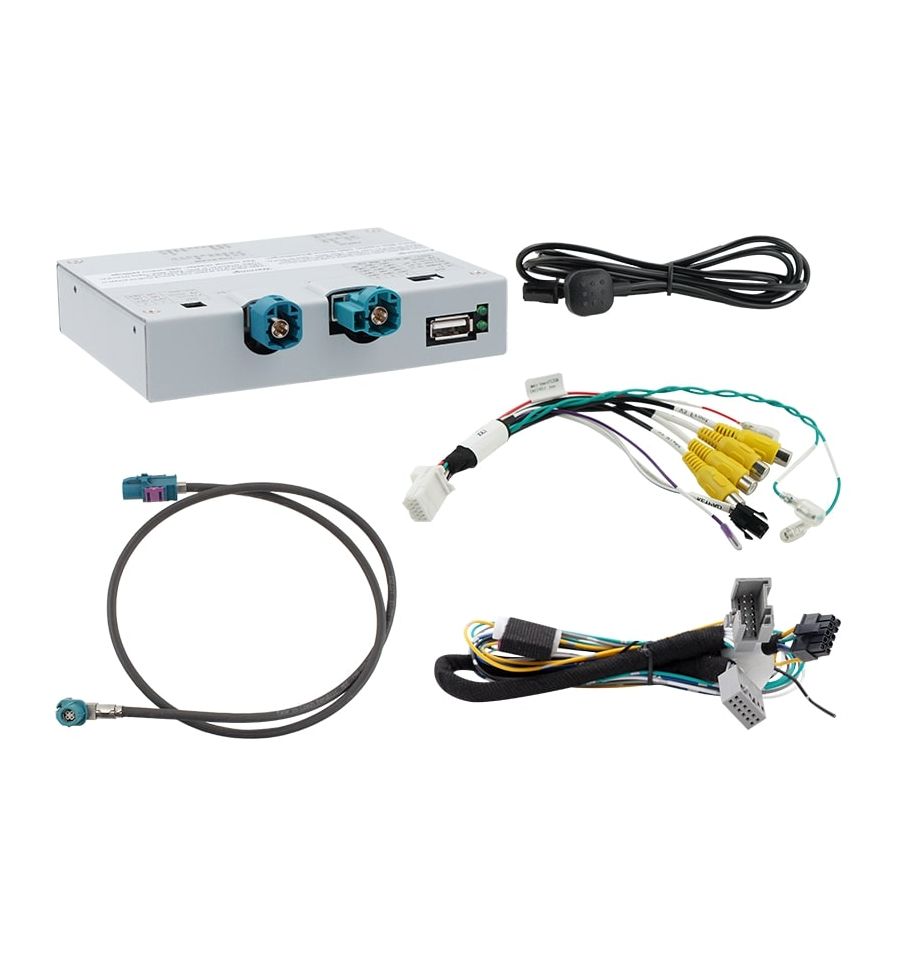

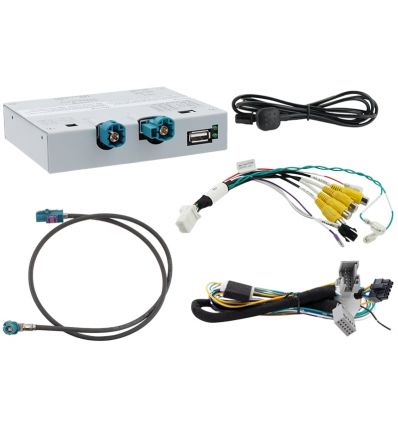

Volkswagen ICAS3/MIB3 video interface with rear and front camera input
Valutazione: Scrivi per primo una recensione!
Volkswagen ICAS3/MIB3 video interface with rear and front camera input
This interface allows you to integrate a rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS/AHD-input for rear-view camera
- 1 CVBS/AHD-input for front camera
- 2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
- All inputs NTSC and PAL compatible
Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - Automatic switching to rear-view camera input while reverse gear is engaged
- Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
- Adjustable guide lines (fixed or movable) can be activated for rear-view camera (movable guide lines not available for all vehicles)
- PDC graphics can be activated (not available for all vehicles)
- Picture free during the car ride (only for inserted video-sources)
Compatibility:
| Caddy5 (SB) from 11/2020, Crafter Face-Lift (SZ/SY) from 06/2024, ID.3 (E11) from 09/2020, ID.4 (E21) from 12/2020, ID.5 (E39) from 01/2022, ID.7 (ED) from 08/2023, ID.Buzz (EB) from 05/2022, Golf 8 (CD) from 12/2019, Passat (B9) from 11/2023, Tayron from 2024, Tiguan3 from 11/2023, Transporter T7 (ST) from 10/2021 | ICAS3/MIB3 High - Discover Media/Pro, Ready 2 Discover Infotainment â with DIN head-unit with separate 10inch, 10.3inch, 10.4inch, 12inch, 12.9inch or 13inch ultra-wide monitor |
| Touareg3 (CR) from 07/2018 Not compatible with vehicles with factory DVD player (factory DVD player no longer displays a picture)! | Discover Premium (18T) MIB with 15inch monitor |
| TGE (VW Crafter based) from model year 2024 | ICAS3/MIB3 - Composition Media or Discover Media infotainment â with 10.3inch, 10.4inch or 12.9inch monitor with separate DIN head-unit |
Limitations:
| CAN-bus compatibility | CAN-bus compatibility of interface may to some vehicles have no or limited compatibility. This can show on installation as well as later. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus. Yes, in this case, some features do not work, see hereinafter. |
| Video only | Interface inserts only video-signals into the infotainment. To insert audio signals a possibly existing factory audio-AUX-input or other optional products (e.g. AUX-UNI0x, FM-Modulator) must be used. |
| Factory rear-view camera | Automatic switching to factory rear-view camera input is only possible while reverse gear is engaged. For deviating switching times optional accessories are required. |
| Factory DVD player | Not compatible with Audi vehicles and VW Touareg with factory DVD player (factory DVD player no longer displays a picture)! |
| After market front camera | Front camera will automatically be switched to for 5, 10, 15 or 20 seconds (depending on menu setting) after disengaging the reverse gear. Manual switching to front camera is possible by external keypad. |
| Guide lines for rear-view camera and PDC | If the vehicle CAN bus is not fully compatible with the interface or if the connection is analogue, the moving guide lines and optical PDC display function cannot be used. |
Specifications:
| Operating voltage | 12V DC (9~16V) |
| Standby current | about 4mA |
| Current consumption | 400mA |
| Video input | 0.7~1V |
| Video input signal types | CVBS/AHD |
| Signal standards CVBS/AHD | NTSC/PAL |
| Temperature range | -40°C bis +85°C |
| Dimensions video-box | 117 x 25 x 109mm (W x H x D) |
Connectors
- Video-insertion: 4pin HSD
- Power: open cable ends
- CAN-bus: Plug & play (Quadlock insert)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
- Trigger wires (4x): Open cable ends
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
