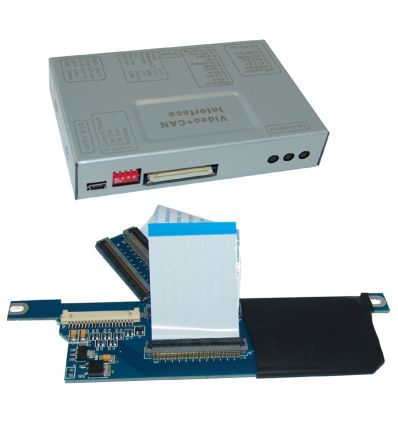

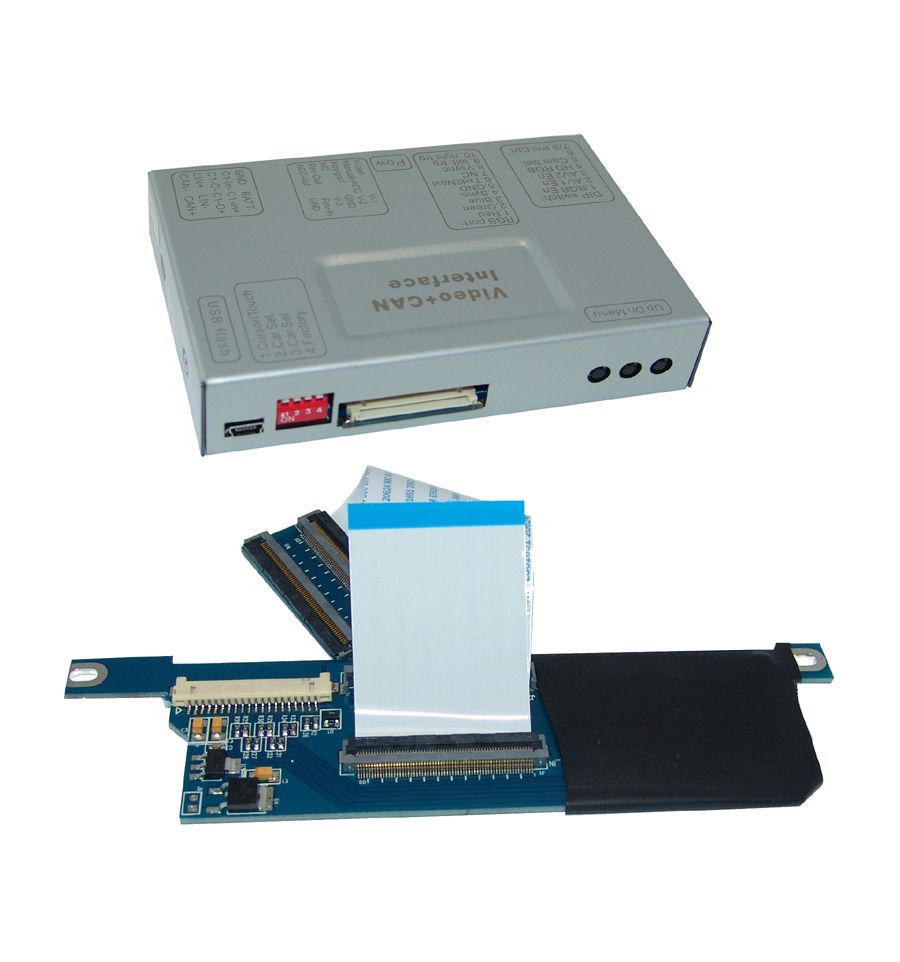

RVC Interface for front and rear view camera for VW Crafter with RNS6000.
RVC Interface for front and rear view camera for VW Crafter with RNS6000.
This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.
Product features:
- Video-insertion for factory-infotainment systems
- Rear and front camera CVBS inputs.
- CVBS Video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
- Automatic switching to rear-view camera input on engagement of reverse gear
- Manual Switching to Front Camera by Keypad or factory button
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs NTSC compatible
Compatibility:
Compatible with Volkswagen Crafter with RNS6000.
| Model | Radio / Navigation |
| Crafter 2015 > 2016 | RNS6000 (Only version with full DIN cage behind front panel) |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Connecting 2 AV-sources | If 2 AV-sources shall be connected to the infotainment the optional audio switch SW-A2X1 is available, which is controlled by the video interface. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
The interface have to be installed in the monitor panel (the cover needs to be opened!).
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | 135mA |
| Power | 135mA@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions | 118 x 23 x 86 mm (W x H x D) |

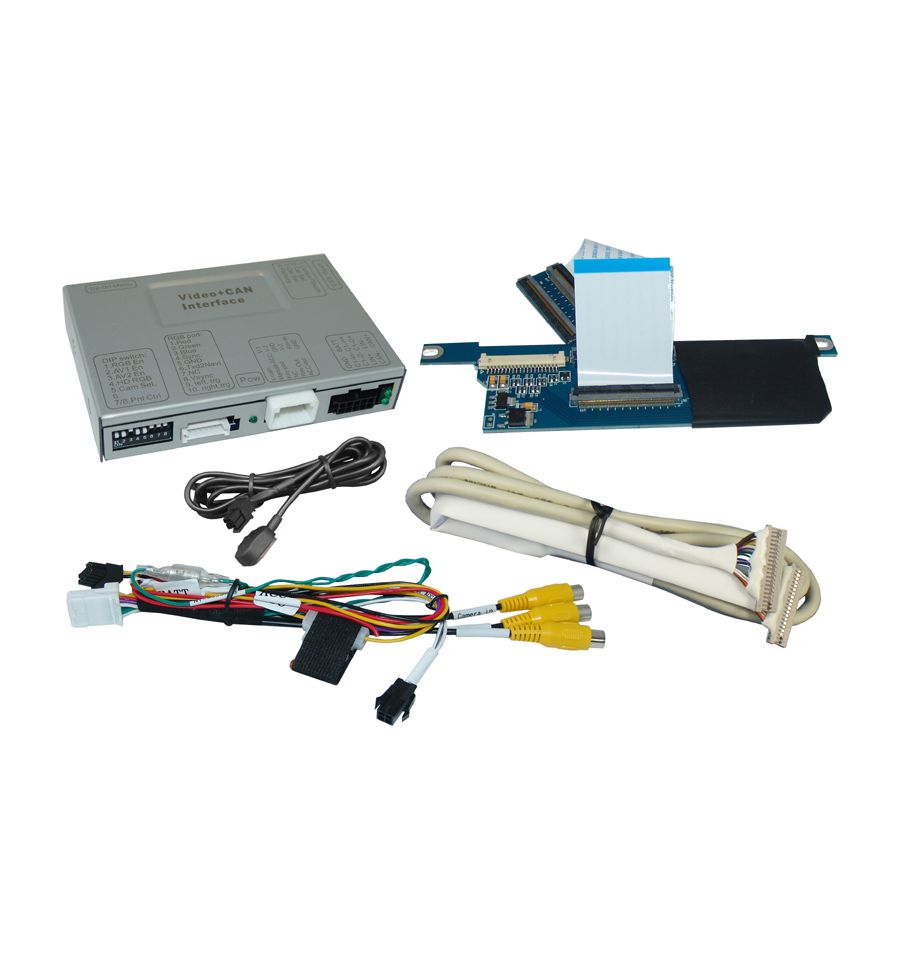

Connectors:
- Video-insertion: ribbon cable
- Power and CAN-bus: open cable end (vehicle specific)
- Video-input (2x): female RCA connector
- Rear-view camera-input: female RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Volkswagen | Crafter |
| Category | Video integration |
