Video interface for Volvo RTI since 2011 with 7 inch monitor

Video inserter (interface) for Volvo since 2011 with 7 inch RTI monitor.

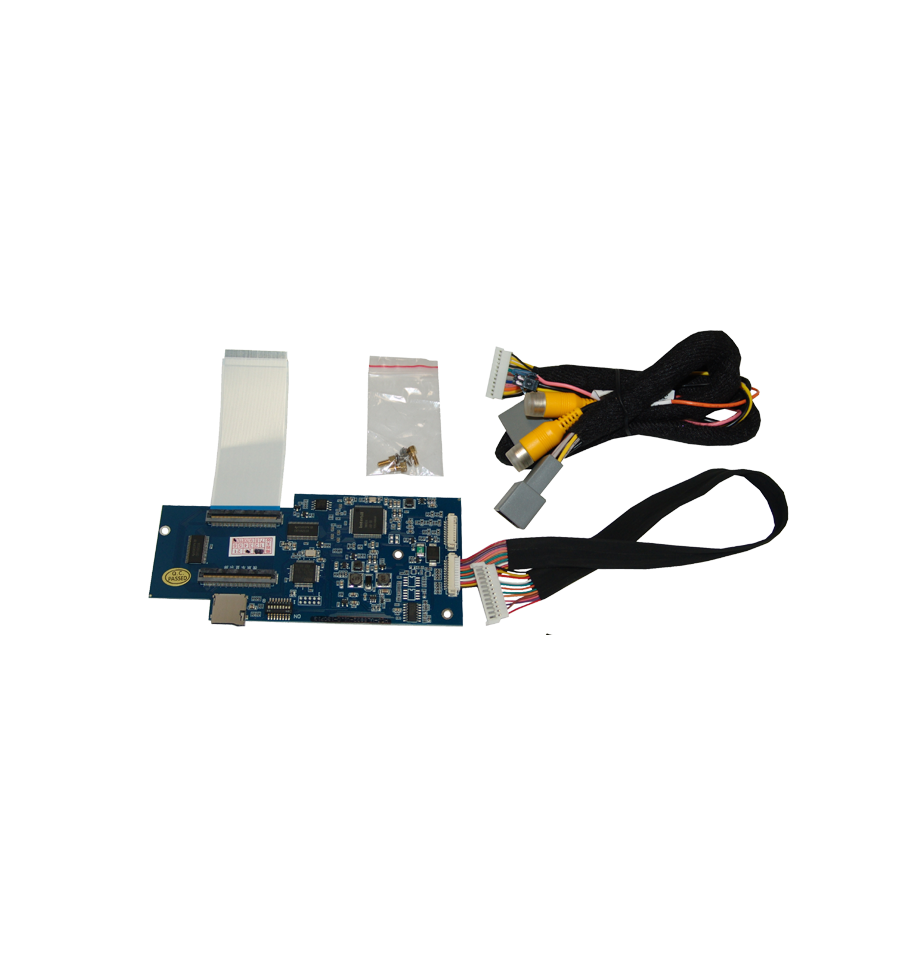

For connection of 1 video sources and 1 RVC. New daughterboard version.

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 1 video input and a rear camera input. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems)

Product features:

• Video-inserter for factory-infotainment systems
• 1 CVBS input for a rear-view camera
• 1 CVBS video-input for a after-market device (e.g. USB-Player, DVB-T2 tuner, ...)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Activatable dynamic parking guide lines for rear-view camera (not available on all vehicles)
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC compatible

Compatibility:

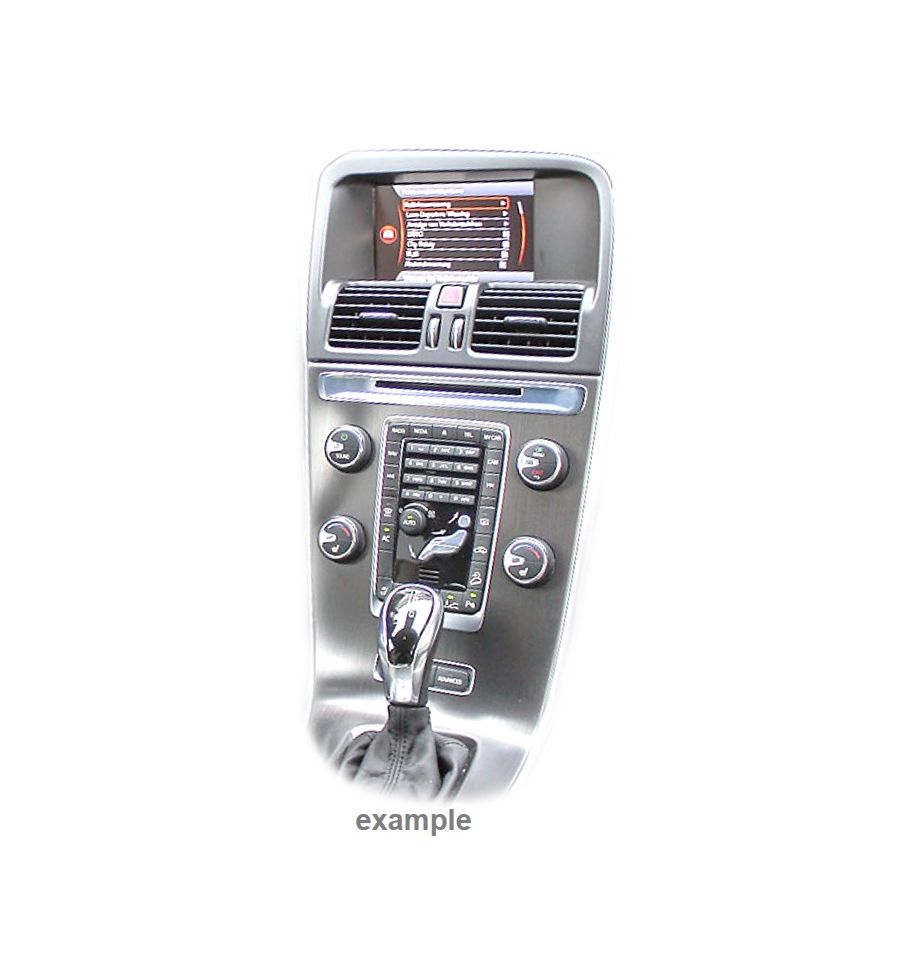

• Compatible to Volvo since 2011 vehicles with 7 inch RTI monitor.


Limitations:

• The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
• The interface have to be installed in the monitor panel (the cover needs to be opened!).

Specifications:

Connections:

• Video-insertion: ribbon cable
• Power and CAN-bus: Open cable ends
• Video-input (2x): RCA connector
• Rear-view camera-input: RCA connector
• Audio-switch: 2-channel RCA connector

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
