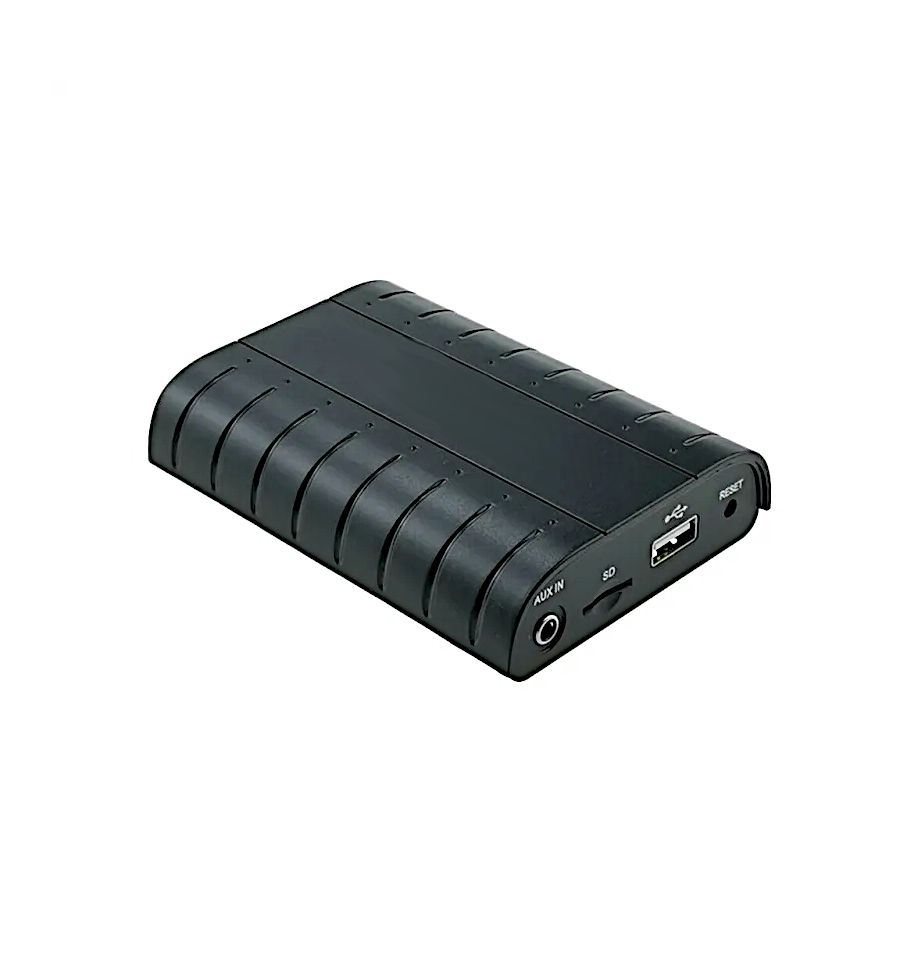

Audi MMI 3G High / Basic / Plus Bluetooth USB AUX interface (MOST)

Audi MMI 3G High / Basic / Plus Bluetooth USB AUX interface for MOST equipped radios (optical fiber)

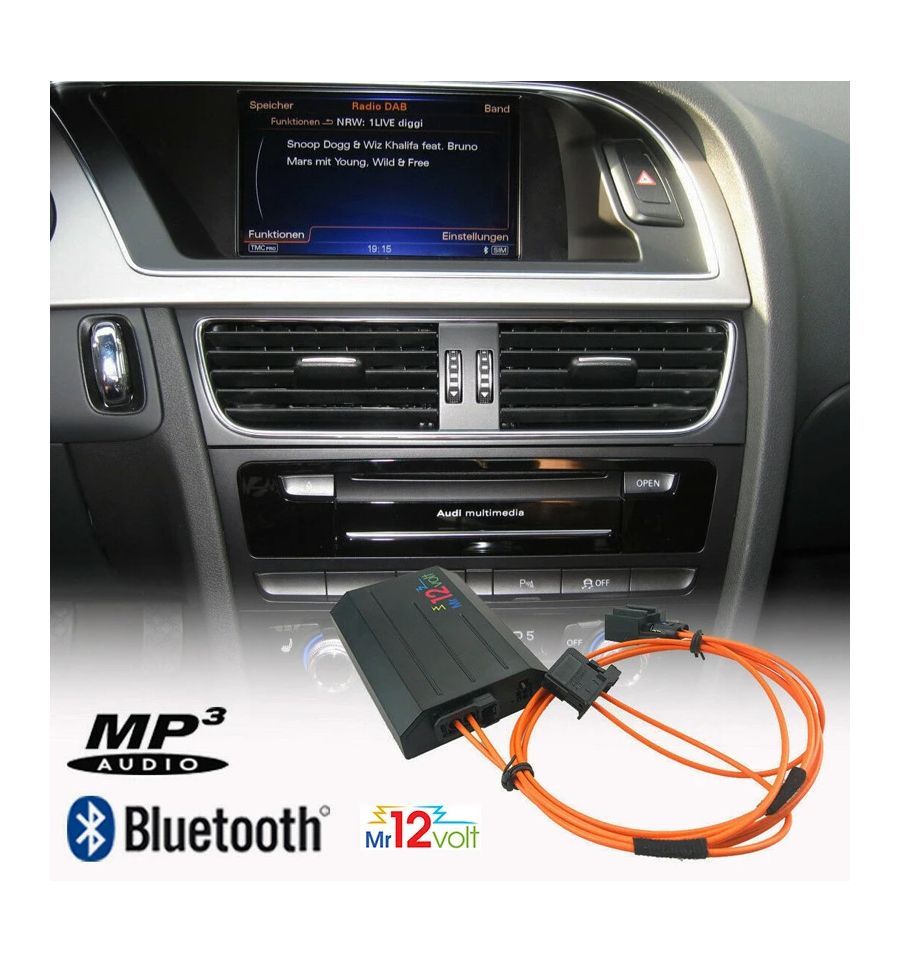

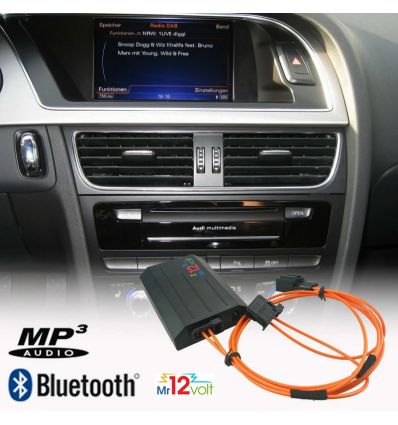

This interface is installed on the OEM radio via Fiber Optical system (MOST).

It therefore delivers high quality sound just like your original CD.

And with this seamless integration, you can control your songs from your favourite app (such as Spotify, Deezer, Pandora, iTunes, YouTube...) through your radio buttons and steering buttons.

Features:

• Support steering wheel buttons control
• Hands-free calling directly from the car stereo via Bluetooth
• Bluetooth Audio streaming
• Support USB flash / SD card play ( MP3 & WMA files)
• Support AUX in external device
• App audio through car speakers
• Sound of music, navigation, podcasts, spotify, etc. through the car speakers
• Easy to use interface with menu browsing and music information on your car display (on selected radio with text support only)
• Phone charging via USB cable (300mAh)

USB file reading:

• File System: FAT16 or FAT32
• Storage capacity: up to 32GB music content
• Music Format: MP3, WMA

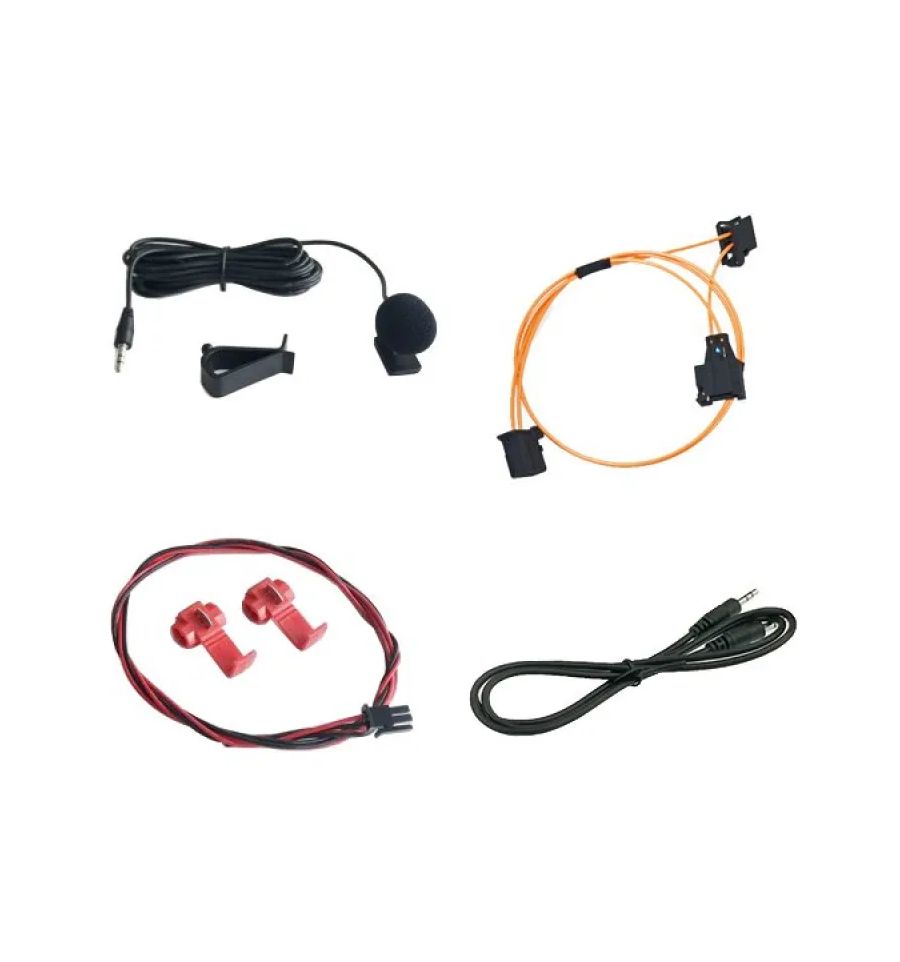

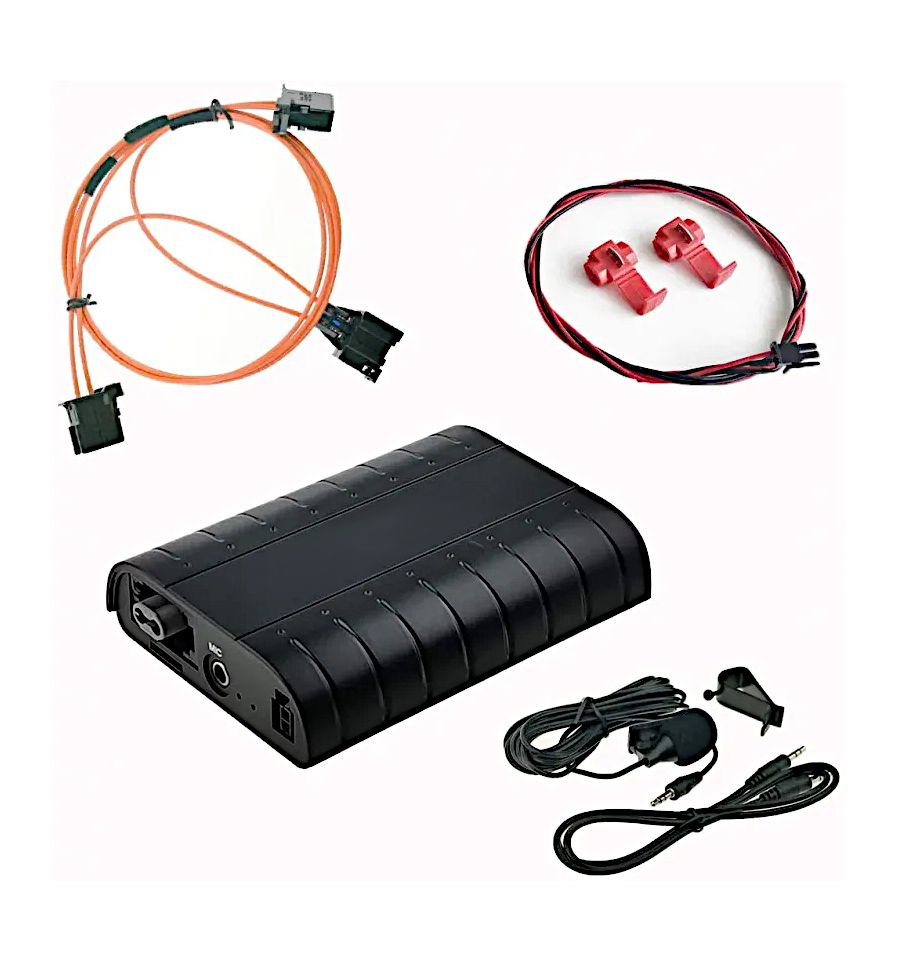

Package contents:

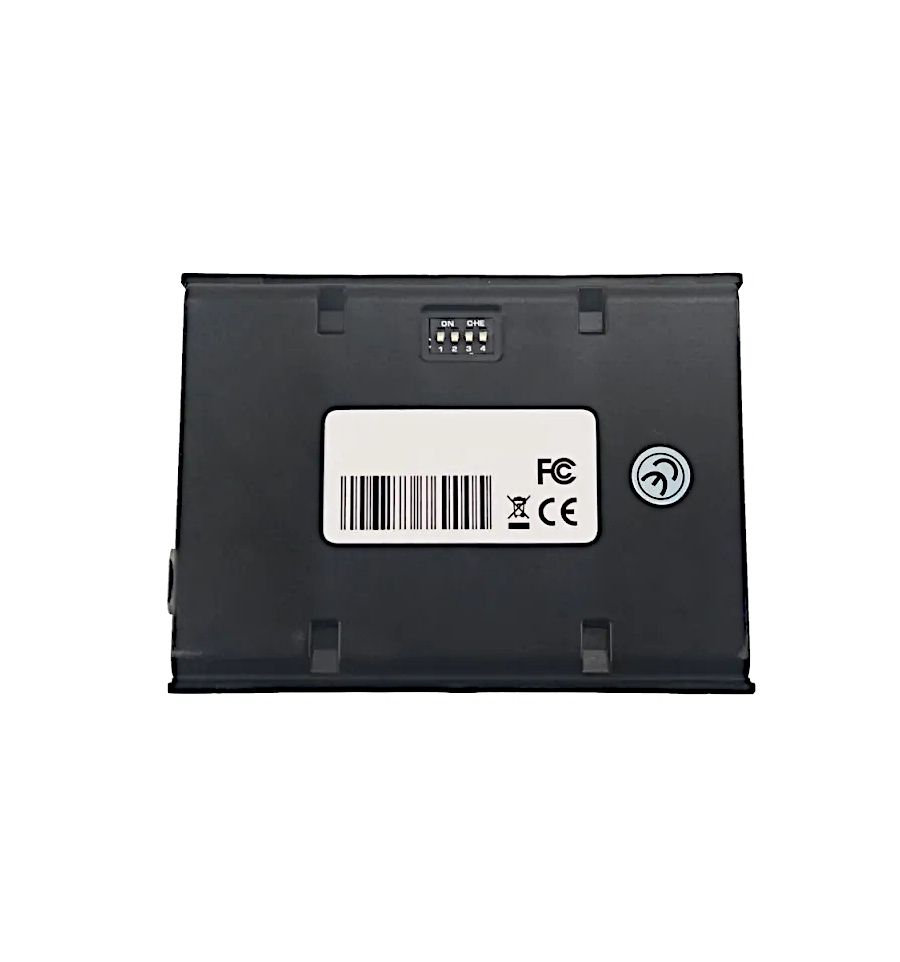

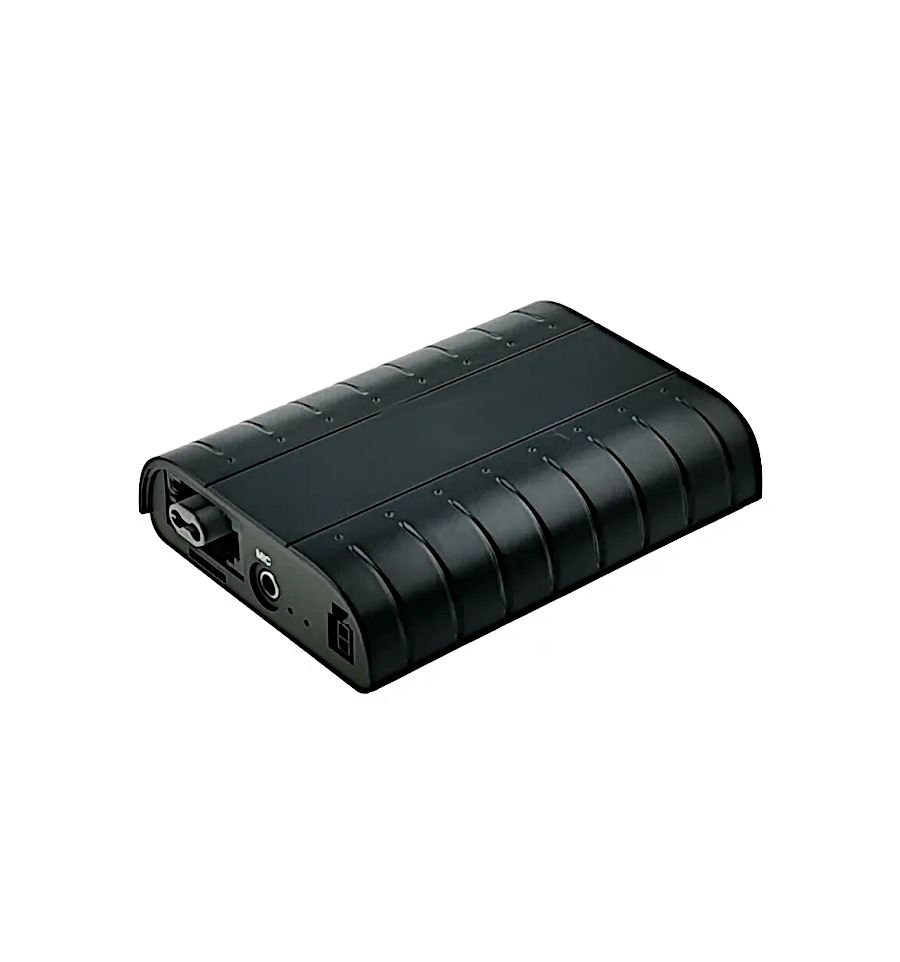

• MOST interface main module
• Fiber optical harness (Y cable)

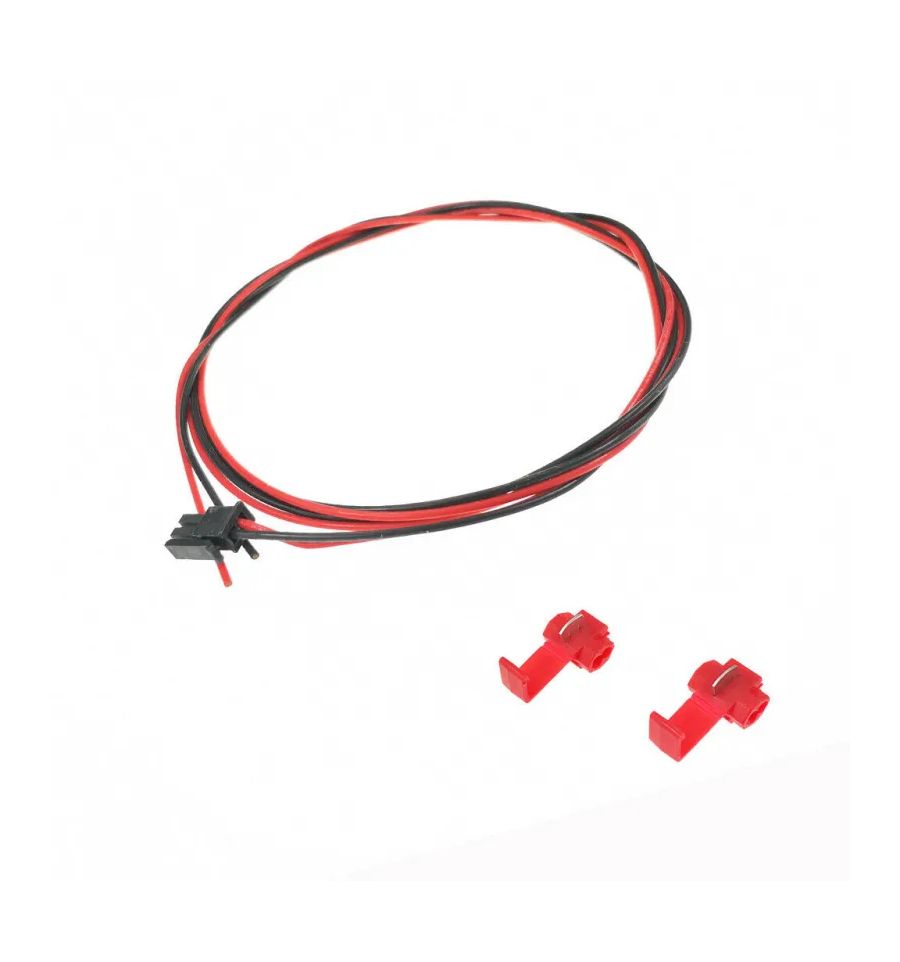

• Power wiring

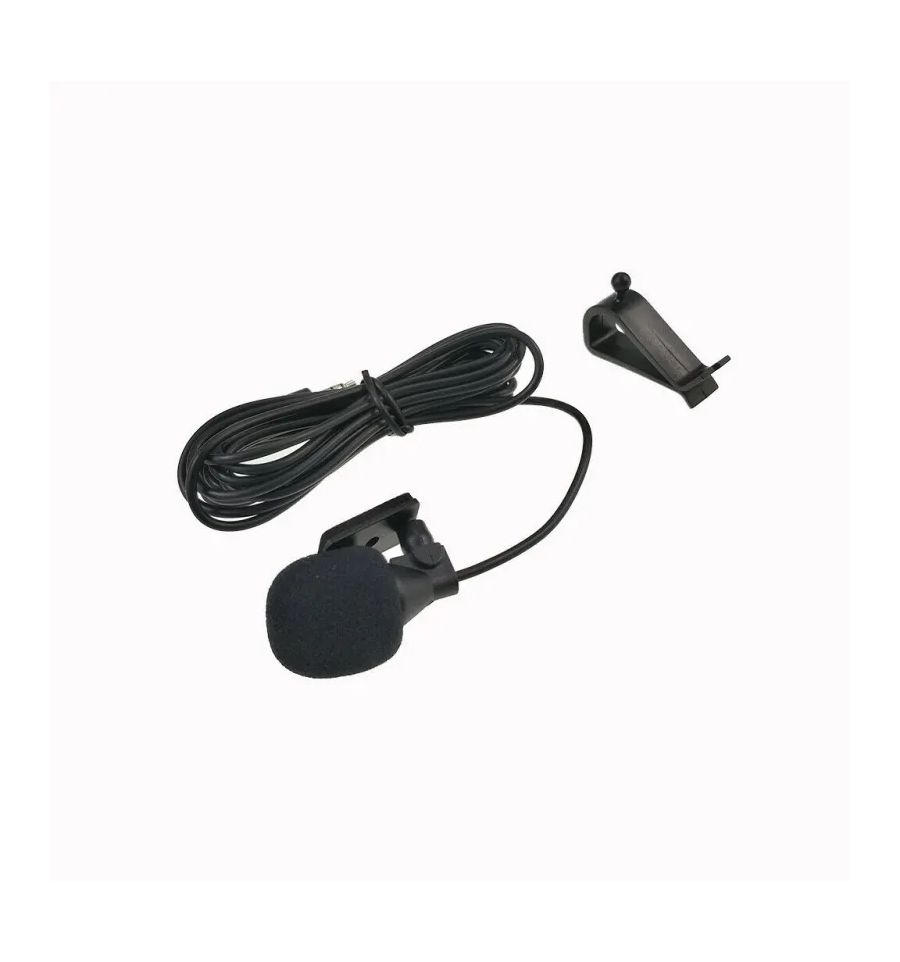

• Microphone, cable length 270cm

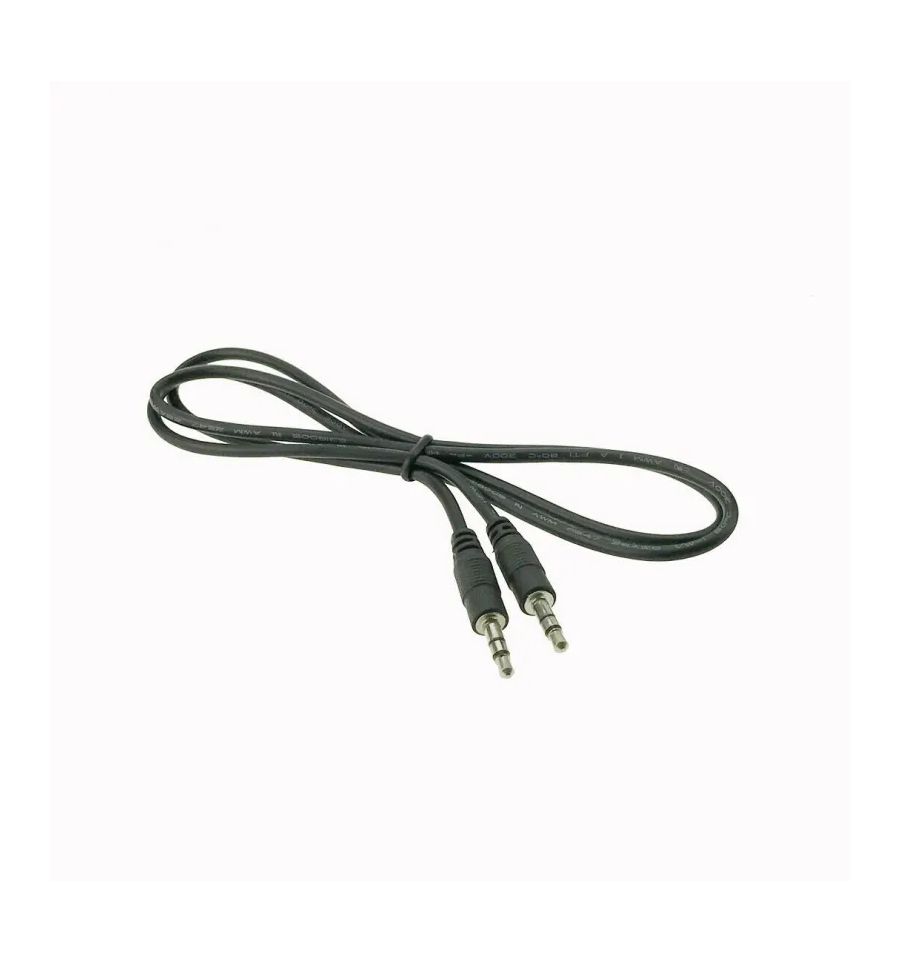

• 3.5mm AUX IN cable
• 2x red Scotch Lock wire connectors
• 1x optical loop connector

Compatibility:

• Audi A4 8K year 2009 or later
• Audi A5 8T/8F from 2009 or later
• Audi A6 4F/4G year 2010 or later
• Audi A7 4G8 year 2010 - 2018
• Audi A8 4E built in 2009 or later
• Audi Q5 8R from 2009 or later
• Audi Q7 4L year 2009 or later

Note:

• For MMI units without double CD changer support, if there is a 6 CD changer, it must be fully disconnected when installing this device
• The power supply of the interface must be connected to CONSTANT/PERMANENT +12V



The installation takes place behind the MMI 3G unit.

1. Turn off the ignition and the MMI system
2. Connect the plugs of the supplied fiber optic cluster and the power cables.
3. Disconnect the plug of the fiber optic cable from the MMI 3G unit and connect it to the fiber optic cluster.
4. Connect the second plug of the fiber optic cluster to the connector of the MMI 3G unit instead of the disconnected fiber optic cluster.
5. Connect the black wire to ground and the red to +12V constant from the car's power supply system.  Possibly to be measured with a multimeter
6. Turn on the ignition and the MMI system
