KIA Soul Rear-view camera exchange license-plate illumination with guide-lines Expand

KIA Soul Rear-view camera exchange license-plate illumination with guide-lines

Kia Kia

CI-VS3-HY24-KI

New

Vehicle specific changeable license plate light glass with camera and distance lines

More details

€ 139,00

tax incl.

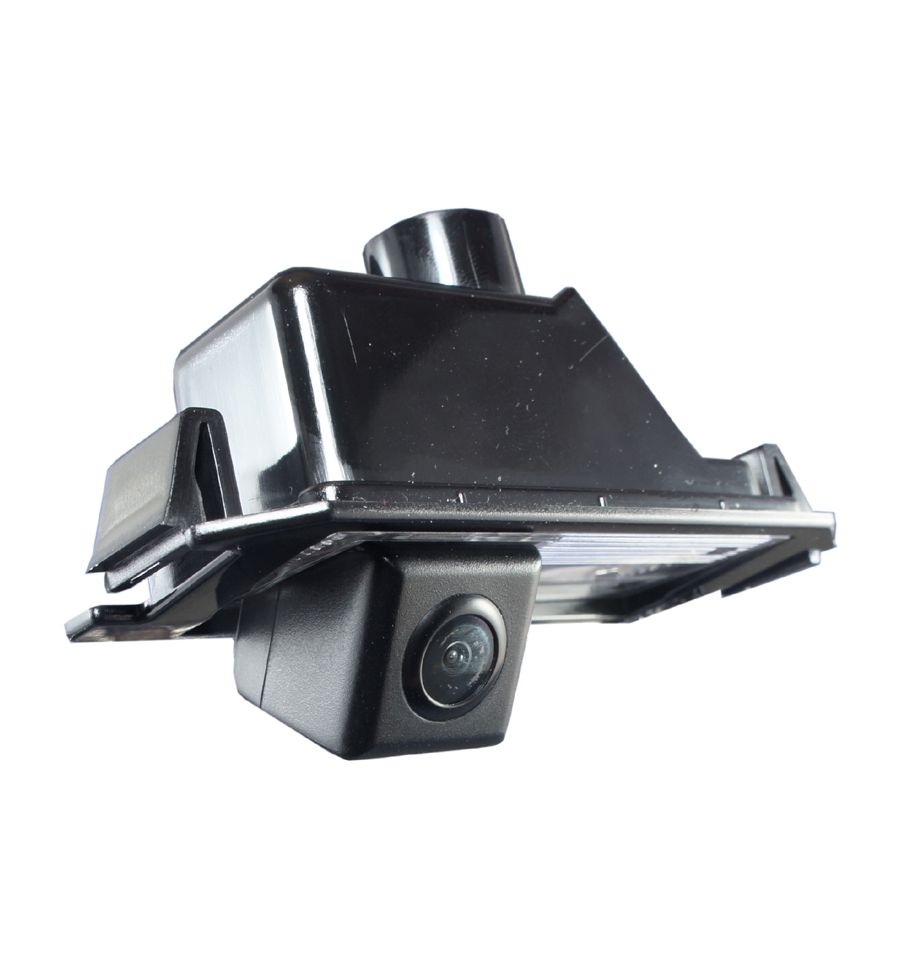

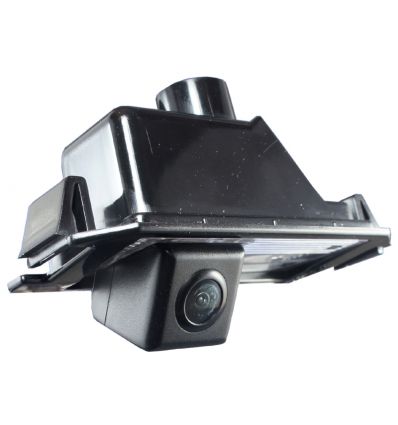

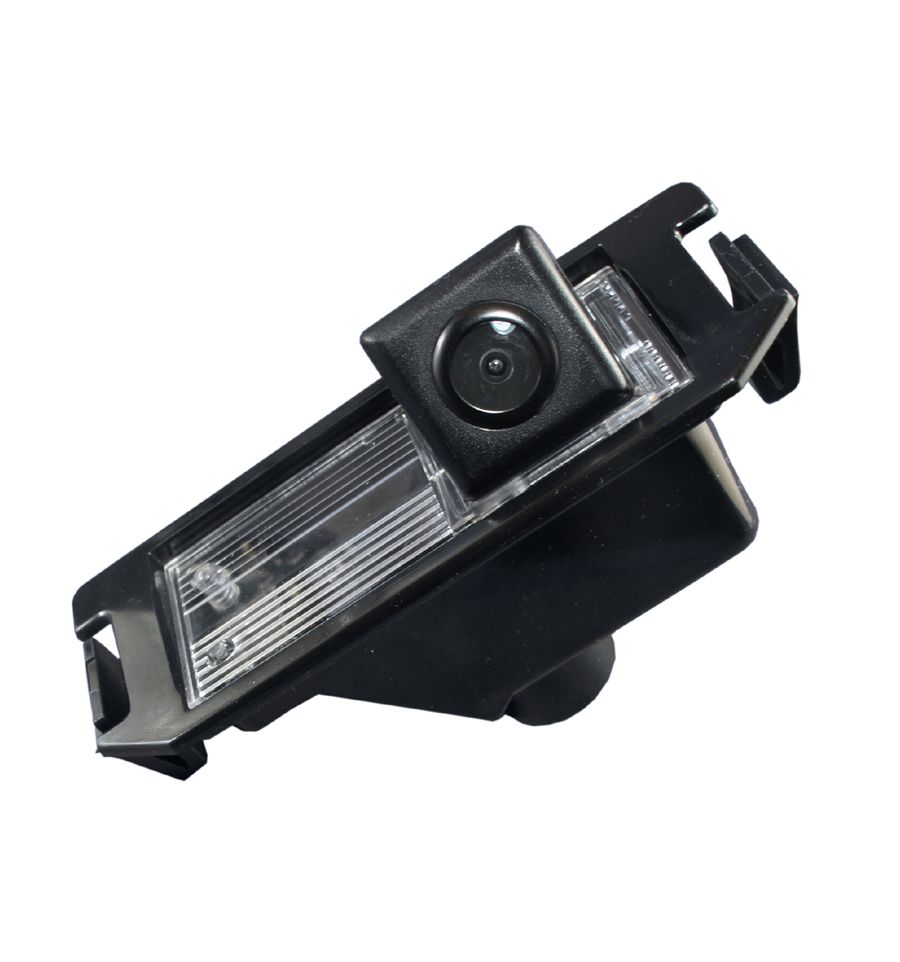

Mini-camera with vehicle specific license plate light glass.
Simple installation due to replacement with the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.


Compatible with:
  • Kia Soul

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:
  • Mini-camera with vehicle-specific number-plate illumination-glass
  • Water resistance IP69K
  • Sensor-type 1/3inch CMOS NTSC colour
  • Resolution 800 TV lines
  • Sensitivity 0.01Lux F1.2
  • Angle horizontal 120°, vertical 100°, diagonal 170°
  • Mirrored image (fixed)
  • Guide lines, optionally disengageable
  • Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
  • Extension cable 4pin 3V, 8m with wire for signal throughput
  • System-connector system cable 4pin 3V with RCA connector and fuse

Dimensions:
  • Overall L/W/D  99 x 37 x 55 mm
  • Cover glass L/W/D  97 x 37 x 32 mm
  • Build-in hole L/W  73.5 x 33.5 mm
  • Hole spacing 97 mm


BATT/ACCrange6V - 26V
Power0.05A 12V
Power consumption0.6W
Weight incl. cable203g
Operating temperature-30°C to +70°C
CategoryCameras RVC
