Mercedes S-Class Rear-view camera with guide-lines for factory camera location on rear door

Reference CI-VS3-ME23

Condition: New

Mercedes S-Class Rear-view camera with guide-lines for factory camera location on rear door

Car electronic experts since 1990

Valutazione: Scrivi per primo una recensione!

More info
Data sheet

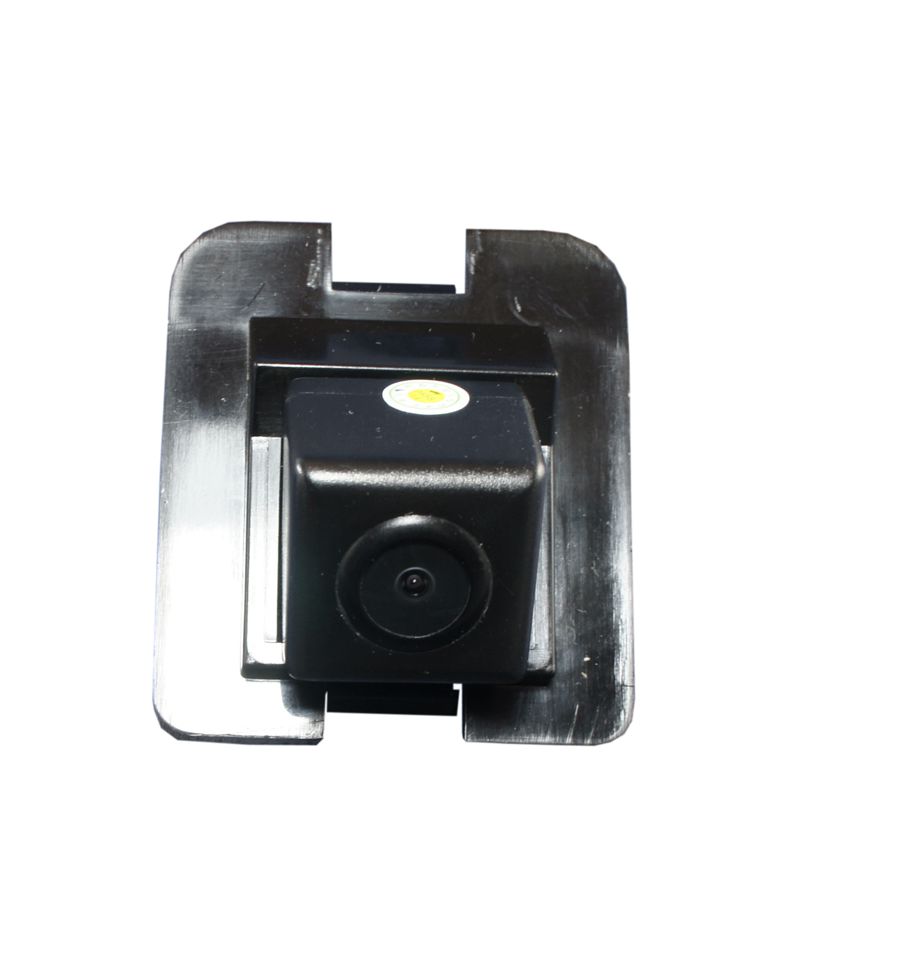

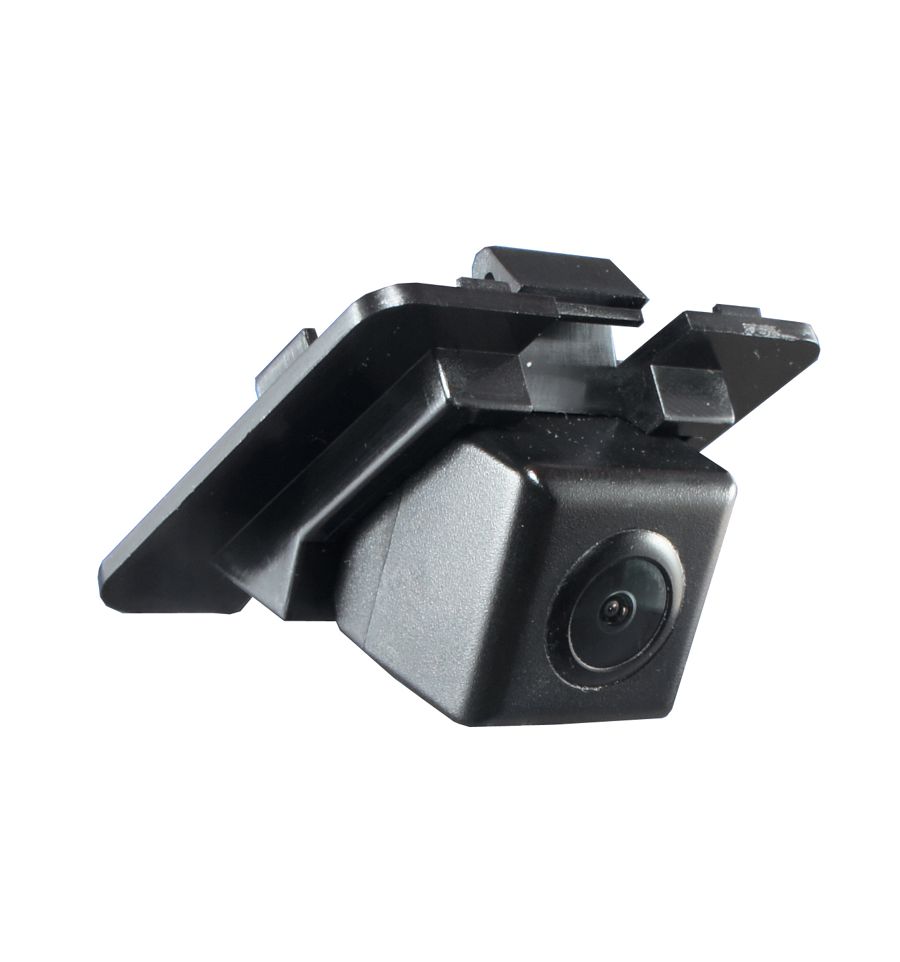

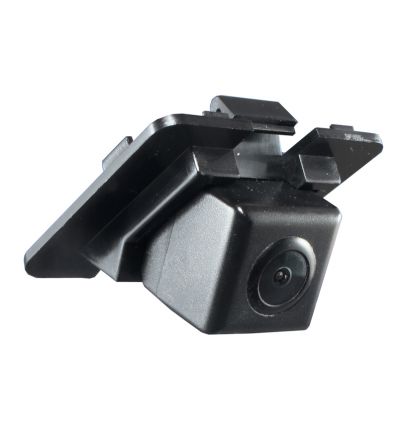

Mini-camera. Simple installation on factory camera installation location.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be switched off.

Compatible with:

Mercedes Benz S-Class (W221)

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

Properties:

Mini-camera with vehicle-specific number-plate illumination-glass
Water resistance IP69K
Sensor-type 1/3inch CMOS NTSC colour
Resolution 800 TV lines
Sensitivity 0.01Lux F1.2
Angle horizontal 120°, vertical 100°, diagonal 170°
Mirrored image (fixed)
Guide lines, optionally disengageable

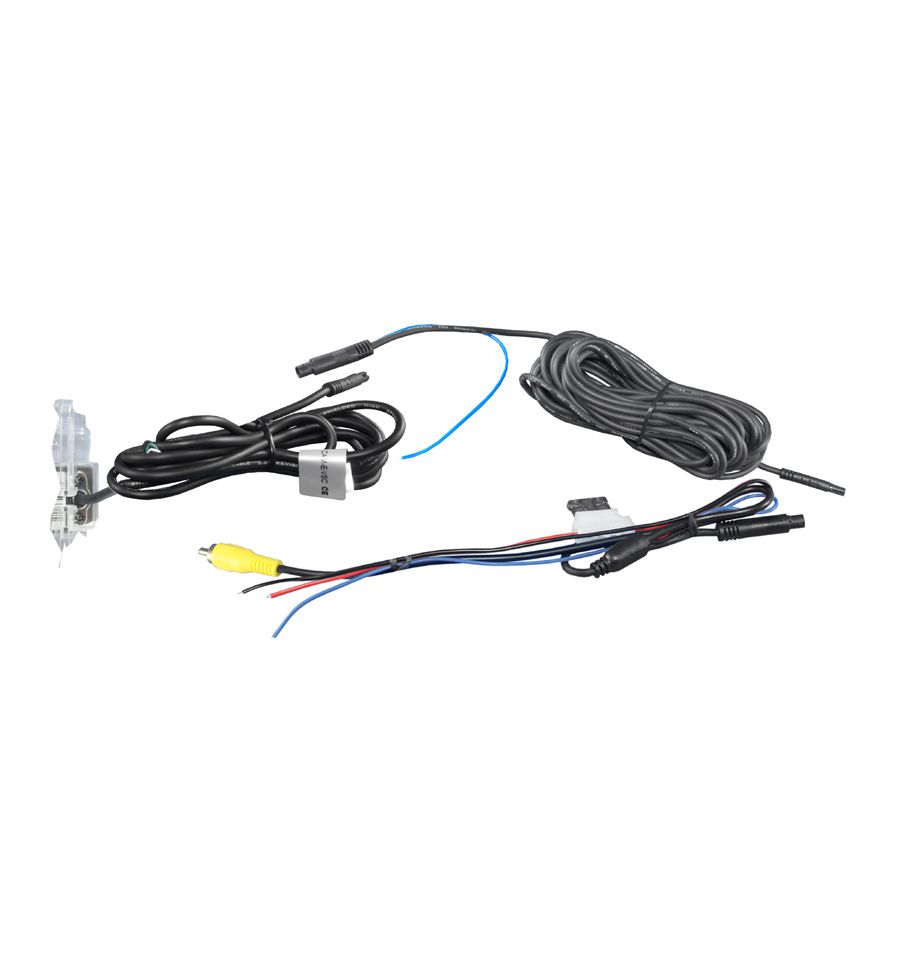

Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
Extension cable 4pin 3V, 8m with wire for signal throughput
System-connector system cable 4pin 3V with RCA connector and fuse

Dimensions:

Overall L/W/D 48 x 54 x 34 mm
Cover glass L/W 48 x 54 mm
Build-in hole L/W 38 x 45 mm
Hole spacing 42 mm

BATT/ACCrange	6V - 26V
Power	0.05A 12V
Power consumption	0.6W
Weight incl. cable	190g
Operating temperature	-30°C to +70°C

Mercedes	S Class W221
Category	Cameras RVC
