MERCEDES B-class Rear-view camera license-plate light with guide-lines Expand

MERCEDES B-class Rear-view camera license-plate light with guide-lines

Mercedes Mercedes

CI-VS3-ME29

New

MERCEDES B-class Rear-view camera license-plate light with guide-lines

More details

€ 139,00

tax incl.

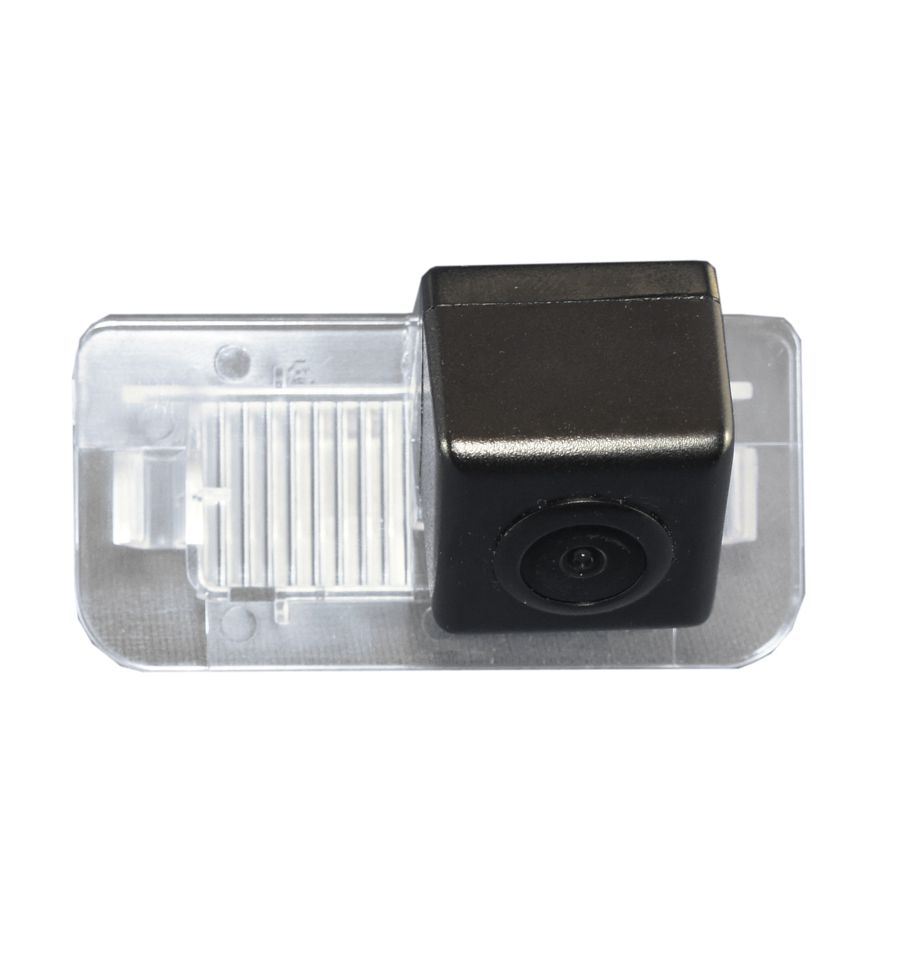

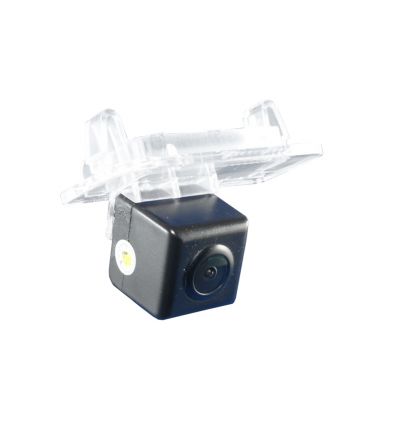

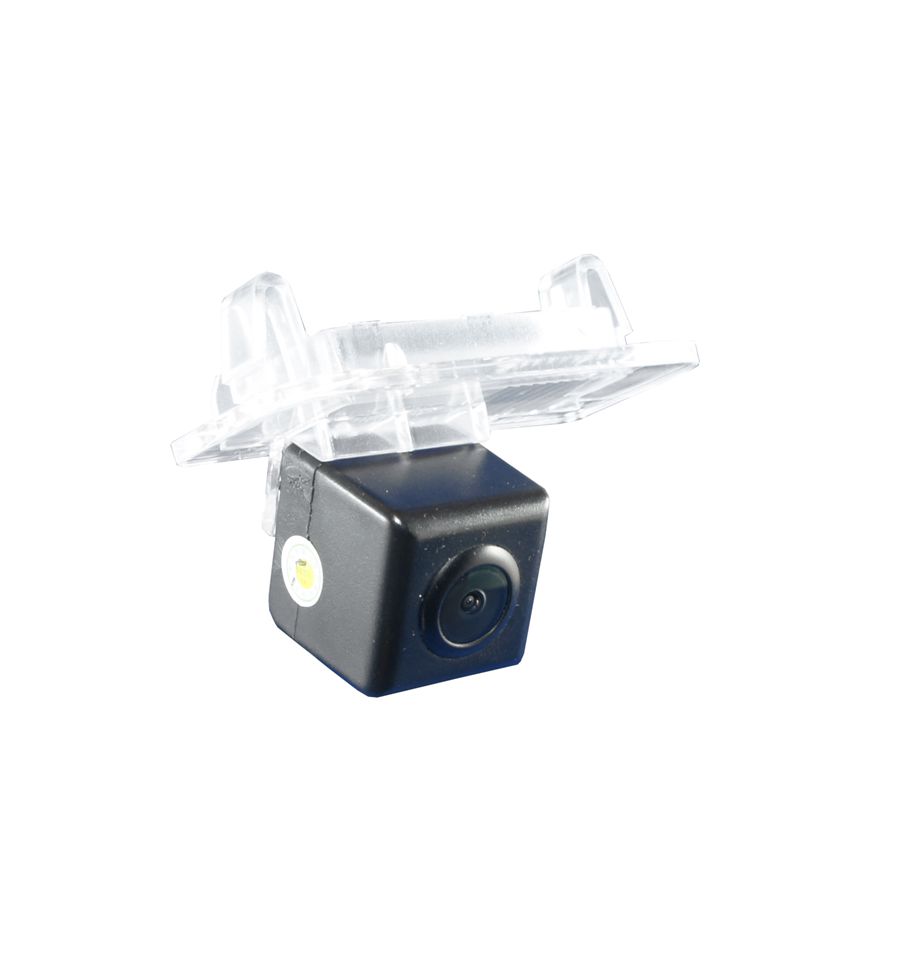

Mini-camera with vehicle specific license plate light glass.
Simple installation due to replacement of the factory license plate light glass.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.


Compatible with:
  • Mercedes Benz B-Class(W246) 11/2011-10/2014


NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Properties:

  • Mini-camera with vehicle-specific number-plate illumination-glass
  • Water resistance IP69K
  • Sensor-type 1/3inch CMOS NTSC colour
  • Resolution 800 TV lines
  • Sensitivity 0.01Lux F1.2
  • Angle horizontal 120°, vertical 100°, diagonal 170°
  • Mirrored image (fixed)
  • Guide lines, optionally disengageable
  • Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
  • Extension cable 4pin 3V, 8m with wire for signal throughput
  • System-connector system cable 4pin 3V with RCA connector and fuse
Dimensions:
  • Overall L/W/D  62 x 32 x 48 mm
  • Cover glass L/W/D  62 x 30 x 27 mm
  • Build-in glass L/W 53 x 22 mm
  • Hole spacing 53 mm


BATT/ACCrange6V - 26V
Power0.05A 12V
Power consumption0.6W
Weight incl. cable188g
Operating temperature-30°C to +70°C
MercedesB Class W246
CategoryCameras RVC
