MERCEDES C-class, E-class Rear-view camera exchange license-plate illumination with guide-lines and cold-white LED

Reference CI-VS3-ME31W

Condition: New

MERCEDES C-class, E-class Rear-view camera exchange license-plate illumination with guide-lines and cold-white LED

Car electronic experts since 1990

Valutazione: Scrivi per primo una recensione!

More info
Data sheet

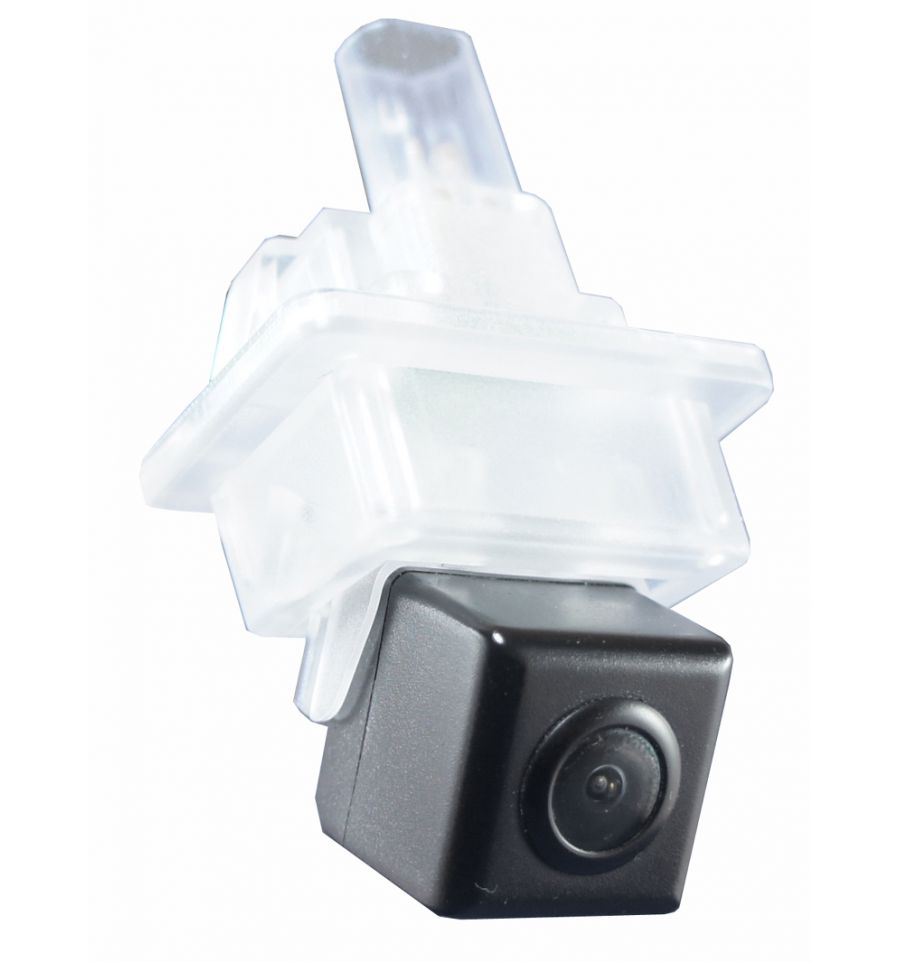

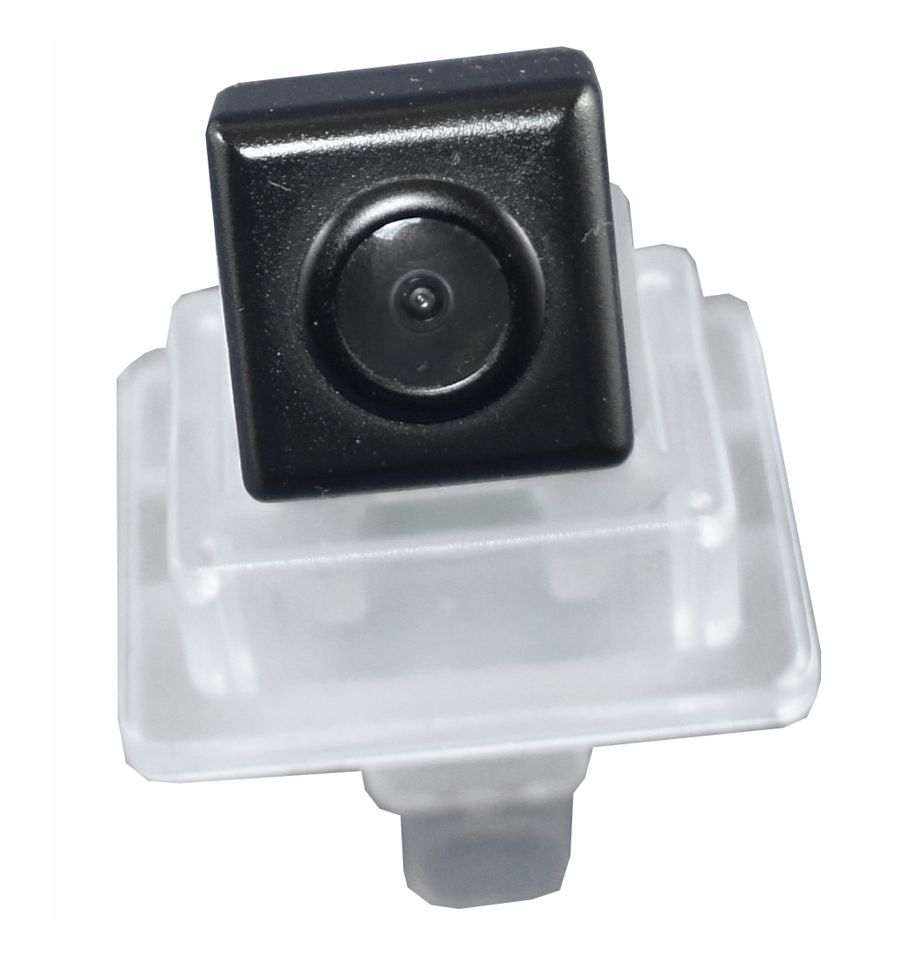

Mini-camera with vehicle specific license plate light glass with cold-white LED.
Simple installation due to replacement of the factory license plate light glass.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.

Compatible with:

C-class (W204) 2013
E-class (W212) 2013

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

Properties:

Mini-camera with vehicle-specific number-plate illumination-glass
Water resistance IP69K
Sensor-type 1/3inch CMOS NTSC colour
Resolution 800 TV lines
Sensitivity 0.01Lux F1.2
Angle horizontal 120°, vertical 100°, diagonal 170°
Mirrored image (fixed)
Guide lines, optionally disengageable
Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
Extension cable 4pin 3V, 8m with wire for signal throughput
System-connector system cable 4pin 3V with RCA connector and fuse

Dimensions:

Overall L/W/D 60 x 45 x 39 mm
Cover glass L/W/D 60 x 45 x 39 mm
Build-in hole L/W 34.5 x 34 mm

BATT/ACCrange	6V - 26V
Power	0.05A 12V
Power consumption	0.6W
Weight incl. cable	209g
Operating temperature	-30°C to +70°C

Mercedes	C Class W204, E Class W212
Category	Cameras RVC
