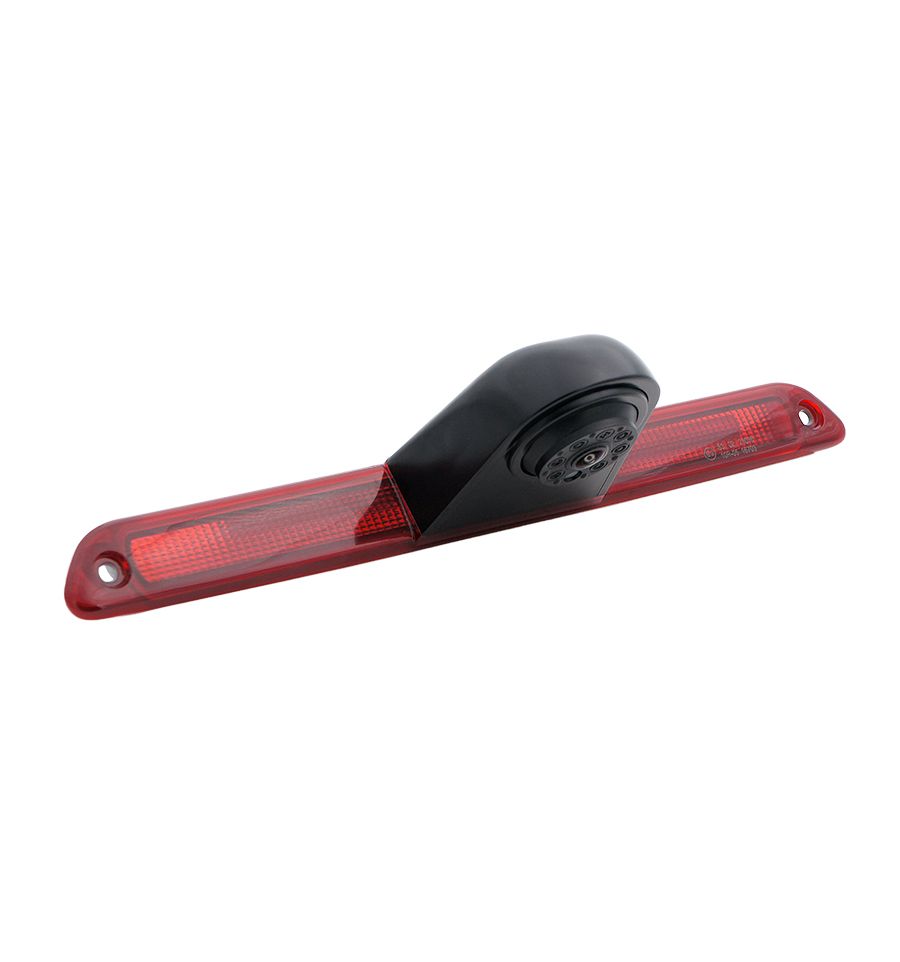

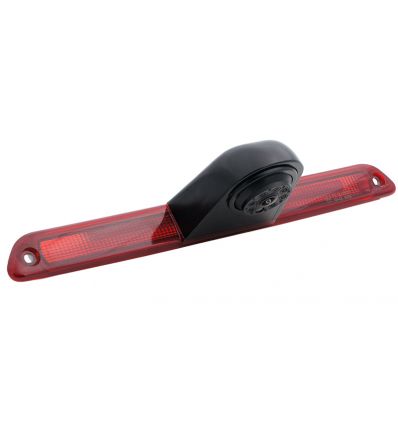

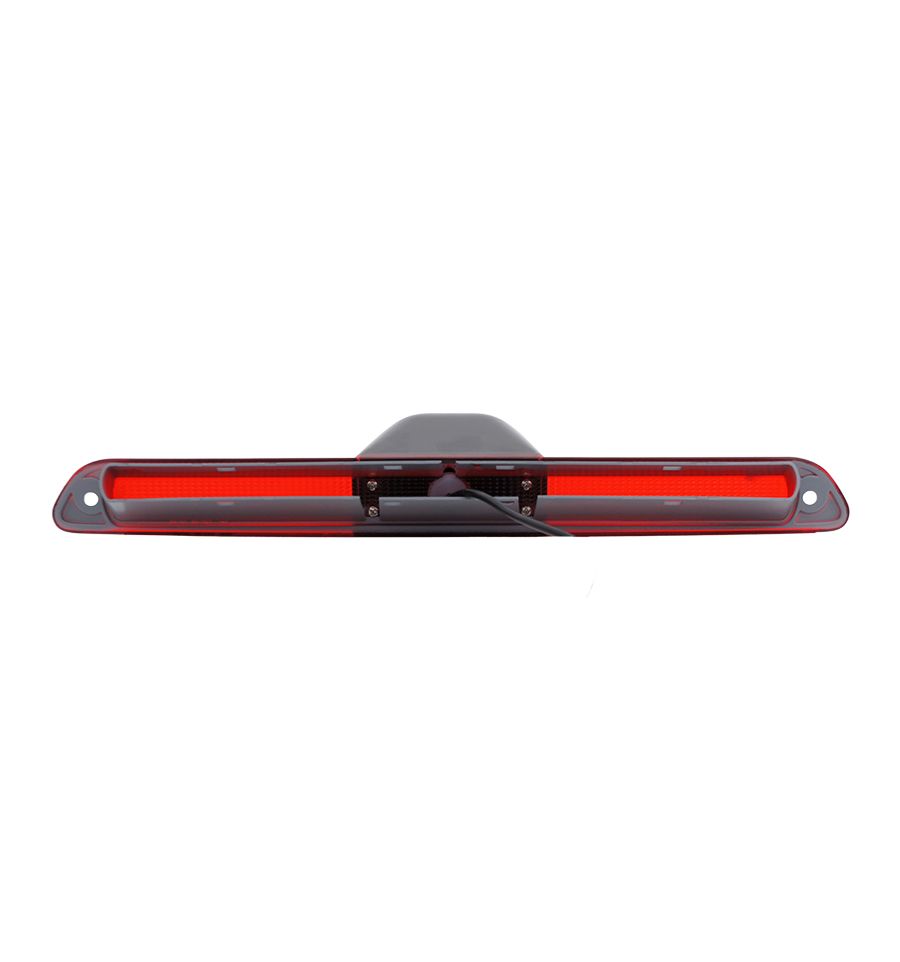

MERCEDES Sprinter W906 W907 W910 Rear-view camera exchange brake light

Brake light with NTSC rear-view camera compatible with Mercedes Sprinter  with H160°, V120°, D200° viewing angle. This camera will simply be changed with the factory brake light.

Compatible with:

• Mercedes Sprinter W906 from   04/2006 til modell year 2018

• Mercedes Sprinter W907/W910 06/2018 up
• Volkswagen Crafter 1 (2E) from modell year 2006 til 11/2016


NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

• Camera in vehicle-specific 3rd brake light glass
• Mounted by exchanging the factory 3rd brake light glass
• Use of factory illumination
• Camera position adjustable in 3 steps vertically
• Sensor-type CMOS 1/4 inch HD low-light sensitive
• NTSC format (800 TV lines)
• Aperture F1.36
• Light sensitivity 0.01 Lux
• Infrared night vision LED
• Angle H = 160°, V = 120°, D = 200°
• Mirrored picture (fixed)
• Guide-lines can be switched off
• Protection class IP69
• Mini 4pin-BM system harness, integrated throughput wire (blue)

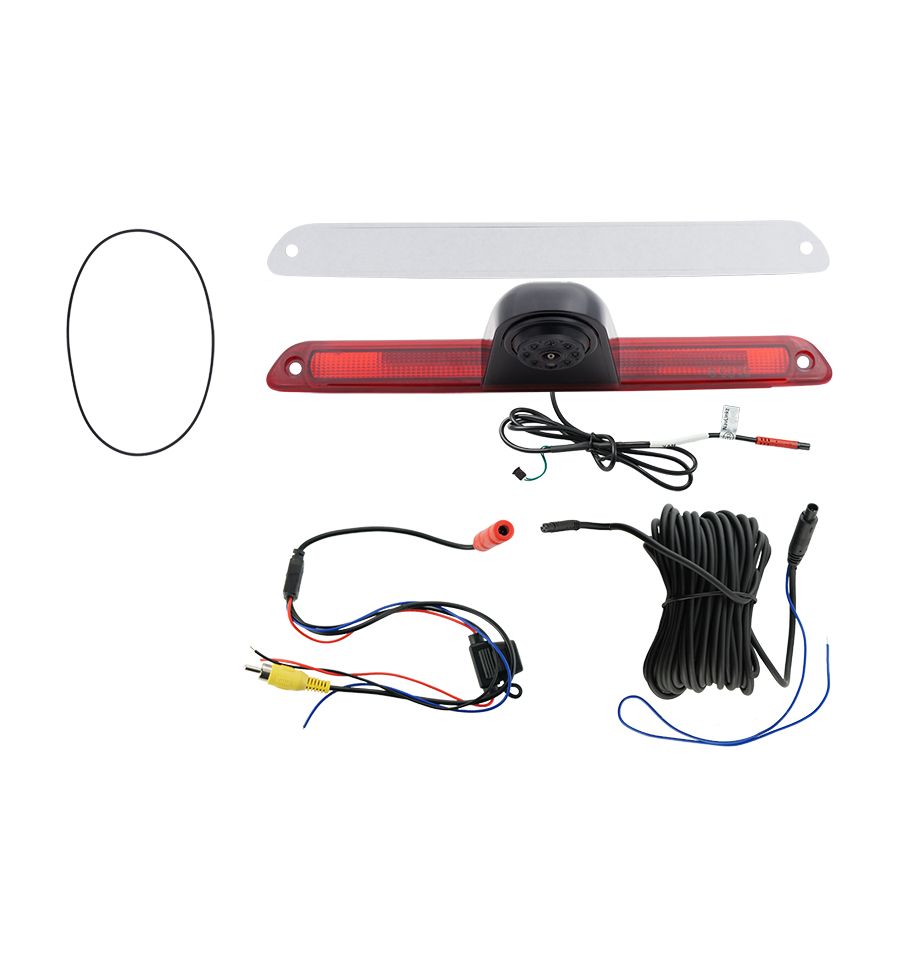

• 11.20m total system cable length, consists of:
  - 0.80m cable fixed on camera to female 4pin-BM (Ø 5mm)
  - 10.00m extension cable male 4pin-BM to female 4pin-BM
  - 0.40m adapter male 4pin-BM to male RCA and power wires

Specifications:

• Brake light with camera 339 x 48 x 123mm (W x H x D)
• Operating voltage +12V DC
• Current consumption max. 120mA
• Suitable for permanent power (ACC)
• Operating temperature range -30°C bis +75°C
• Storage temperature range -40°C bis +80°C
